Description

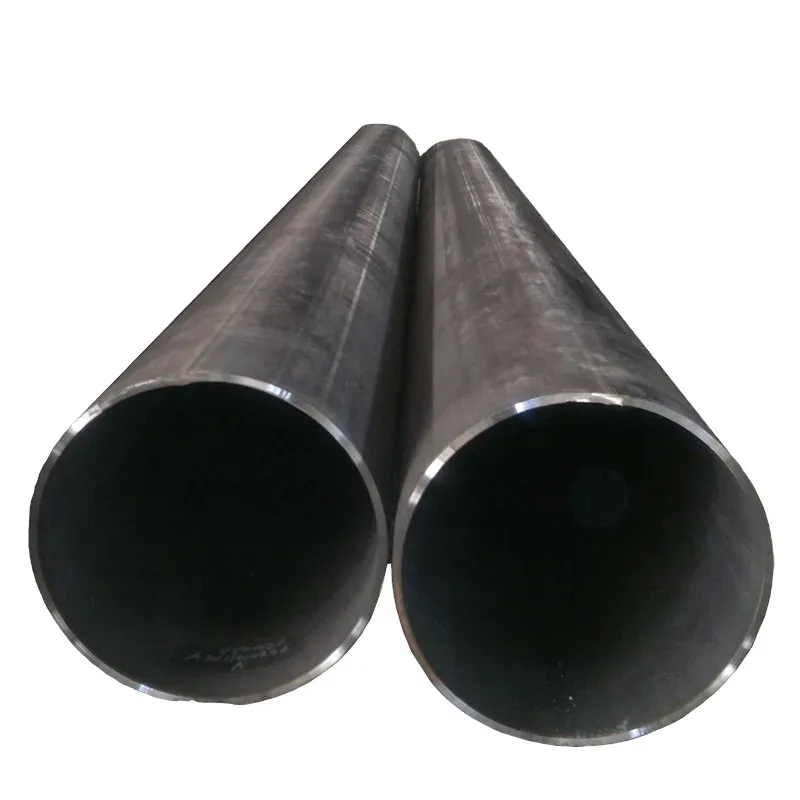

Factory-Direct LSAW Pipe Supply — We manufacture API 5L Gr.B LSAW welded steel pipe in-house with full control over welding, coating, and inspection, eliminating trading margins on large-diameter orders.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | API 5L Gr.B LSAW Welded Steel Pipe |
| Product Type | LSAW Welded Steel Pipe / Longitudinal Submerged Arc Welded Pipe |
| Steel Grade | API 5L Gr.B, Q345 |
| Standard | API 5L PSL1, DIN 1626 |
| Section Shape | Round |
| Outer Diameter | 406.4 mm – 1524 mm |
| Wall Thickness | 8 mm – 50 mm |
| Length | 5.8 m / 6 m / 11.8 m / 12 m / DRL / SRL / Random Length |
| Technique | LSAW / Submerged Arc Welding (SAW) |
| Surface Treatment | Black Painting / 3LPE Coating |
| Tolerance | ±1% |
| Ends | Plastic Pipe Cap / Iron Protector |
| Application | Fluid Pipe, Oil Pipe, Gas Pipe, Boiler Tubes, Structure Pipe, Pile Pipe |
| Processing Service | Bending, Cutting |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas EPC | Onshore and offshore transmission pipelines, gathering lines, gas distribution networks |
| Infrastructure & Piling | Bridge foundation piles, port jetty structures, retaining wall piling |
| Industrial Construction | Boiler feedwater systems, high-pressure fluid conveyance, plant structural columns |
| Municipal Engineering | Water transmission mains, sewage force mains, drainage outfall pipes |
When Wall Thickness Tolerance Decides Whether a Pipeline Passes Hydrostatic Testing
A ±1% tolerance on a 50 mm wall sounds generous — until the thinnest point fails pressure testing at the commissioning stage.
Large-diameter LSAW pipes for oil and gas projects face intense scrutiny during hydrostatic testing. If wall thickness drifts below the minimum specified at any point along the pipe body or near the weld seam, the entire batch may be rejected — even if the average thickness meets specification. On a recent piling project in West Africa, our team found that inconsistent plate edge preparation at the forming stage caused localized thinning near the weld line. The fix was straightforward: real-time ultrasonic thickness mapping during production, not just end-stage spot checks. When sourcing API 5L Gr.B LSAW welded steel pipe for pressure-containing applications, buyers should verify that the supplier performs continuous UT scanning rather than relying on sample-based inspection. [NEED_CITE: API 5L PSL1 hydrostatic testing requirements for large-diameter line pipe]
Matching Large-Diameter LSAW Pipe to High-Pressure Pipeline and Piling Demands
API 5L Gr.B LSAW welded steel pipe in the 406–1524 mm OD range serves two fundamentally different engineering environments: pressurized fluid transmission and structural piling. For oil and gas pipelines, the submerged arc welding process produces a full-penetration weld seam that matches the base metal’s pressure rating — critical when the pipe must withstand internal pressures exceeding 10 MPa. For piling applications, the same large cross-section provides the section modulus needed to resist lateral soil pressures during driving. Our in-house laboratory tests every heat of plate material before forming, ensuring that API 5L Gr.B and Q345 grades meet the chemical and mechanical requirements of their respective standards before a single pipe is welded.
Engineering Compliance Across Pressure Codes and Corrosive Environments
LSAW pipes in this diameter range must satisfy multiple overlapping compliance frameworks depending on the end use. Pressure pipelines typically require full compliance with API 5L PSL1, including Charpy impact testing at specified temperatures and hydrostatic testing at pressures calculated from the specified minimum yield strength. Structural piling may follow DIN 1626 or local geotechnical standards that prioritize dimensional accuracy over pressure ratings. For projects in marine or high-salinity environments, the 3LPE coating system — consisting of fusion-bonded epoxy, copolymer adhesive, and polyethylene outer layer — provides cathodic disbondment resistance that bare black painting cannot match. [NEED_CITE: 3LPE coating system performance requirements per DIN 30670 for buried pipelines] Buyers specifying CE-marked products for EU markets should confirm that the supplier holds EN 10210/EN 10219 factory production control certification, as customs authorities increasingly reject shipments lacking proper CE documentation.
Understanding API 5L Gr.B and Q345 in the LSAW Manufacturing Context
API 5L Gr.B is a carbon manganese steel grade designed specifically for pipeline service, with minimum yield strength of 290 MPa for wall thicknesses up to 25 mm — making it the workhorse grade for medium-pressure oil and gas transmission. Q345, the Chinese national standard equivalent, offers slightly higher yield strength and is widely specified for structural piling and industrial applications where pipeline-grade impact toughness is not mandatory. The submerged arc welding process used in LSAW production is particularly suited to these grades because the slow, controlled heat input produces a coarse-grained heat-affected zone that can be normalized through post-weld heat treatment if required. For wall thicknesses approaching 50 mm, multi-pass SAW welding ensures full fusion without excessive heat input that could degrade the base metal’s toughness. The 3LPE coating option adds a three-layer barrier system: the inner fusion-bonded epoxy provides adhesion and cathodic disbondment resistance, the copolymer adhesive bonds the epoxy to the outer polyethylene layer, and the polyethylene provides mechanical protection against soil stress and handling damage during installation.
The Hidden Cost of Accepting Mill Test Certificates from Unverified Sources
A mill test certificate that cannot be traced back to the actual heat of steel used in production is worse than no certificate at all — it creates a false sense of compliance that only surfaces during third-party inspection or hydrostatic testing. When API 5L Gr.B pipe arrives at a project site with an MTC showing chemical composition outside the standard’s carbon equivalent limits, the entire lot becomes unusable for welded pipeline construction because the weld procedure qualification no longer applies. Similarly, pipes with wall thickness below the specified minimum may pass visual inspection but fail during hydrostatic proof testing, forcing complete replacement and months of delay. [NEED_CITE: consequences of non-compliant steel grade documentation in pipeline EPC projects] Third-party inspection by SGS or BV before shipment provides an independent verification layer that catches these discrepancies before the pipe leaves the mill.
Procurement Confidence Built on Verifiable Manufacturing Controls
Every API 5L Gr.B LSAW welded steel pipe we produce passes through our in-house physical and chemical laboratory at three stages: incoming plate inspection, in-process weld monitoring, and final dimensional and coating verification. This means the mill test certificate you receive is generated from actual test data on your specific order, not copied from a template. Our three dedicated LSAW production lines cover the full 406–1524 mm OD range with wall thicknesses up to 50 mm, allowing us to fulfill mixed-size orders from a single source rather than splitting procurement across multiple mills. For projects requiring 3LPE coating, the coating line is integrated directly after welding and inspection, eliminating the logistics cost and damage risk of transporting bare pipes to a separate coating facility. We hold CE certification under EN 10210/EN 10219, ISO 9001:2015 registration, and Singapore FPC approval, with SGS and BV inspection available on every shipment. Professional container loading plans optimize weight distribution for large-diameter pipes, and our logistics team coordinates FOB, CIF, and DDP shipments to over 50 countries with real-time tracking.
Documentation & Compliance
- Mill test certificate documenting API 5L Gr.B chemical composition (C, Mn, Si, S, P) and mechanical properties (yield strength, tensile strength, elongation) per API 5L PSL1
- CE certificate of conformity per EN 10210/EN 10219 for structural hollow sections, required for EU market customs clearance
- ISO 9001:2015 quality management system certificate covering LSAW pipe manufacturing and 3LPE coating processes
- SGS or BV third-party inspection report verifying dimensional tolerance, coating thickness, and weld seam quality before shipment
- Material traceability documentation linking each pipe to its heat number, plate batch, and welding parameters
- Complete customs document package including packing list, bill of lading, and certificate of origin for destination-country import clearance
Packaging, Loading & Delivery
- API 5L Gr.B LSAW pipes bundled with high-tensile steel strips at intervals matching the 5.8–12 m length range, with wooden cradles preventing point contact on 3LPE coated surfaces
- Black painted pipe ends sealed with plastic caps; 3LPE coated pipes fitted with iron protectors at beveled ends to prevent coating damage during handling
- Container loading plans optimized for 406–1524 mm OD pipes, nesting smaller diameters inside larger ones where specifications allow to maximize container utilization
- Random length and double random length options available to match standard container internal dimensions, reducing cutting waste at the destination site
- Each pipe marked with heat number, steel grade (API 5L Gr.B or Q345), OD, wall thickness, and length for full traceability at the project site
- FOB, CIF, and DDP shipping terms available with professional port coordination and door-to-door logistics to 50+ countries
Request a Quotation with Full Technical Documentation
Submit your project specifications — including OD, wall thickness, length, steel grade, surface treatment, and destination port — to receive a detailed quotation with production lead time, applicable certifications, and a sample mill test certificate for your review. Our engineering team will confirm whether standard API 5L Gr.B LSAW welded steel pipe meets your requirements or if Q345 or alternative grades offer better value for your specific application.
Get Your API 5L LSAW Pipe Quote with Mill Test Certificate
Send your specifications to admin@sdxjysteel.com or contact us via WhatsApp at +86 188 5315 7756 to receive pricing, certification details, and delivery schedules within 12 hours.
Frequently Asked Questions
Q: What is the difference between API 5L Gr.B and Q345 for LSAW pipe applications?
A: API 5L Gr.B is a pipeline-grade carbon manganese steel specified under API 5L PSL1, designed for oil and gas transmission with controlled chemical composition and mandatory impact testing. Q345 is a Chinese structural steel grade with slightly higher yield strength, commonly used for piling and industrial structural applications where pipeline-grade toughness requirements do not apply. Both grades are available in our LSAW production range from 406.4 mm to 1524 mm OD.
Q: What does the mill test certificate include for API 5L Gr.B LSAW pipes?
A: The mill test certificate documents the chemical composition of each heat (carbon, manganese, silicon, sulfur, phosphorus, and carbon equivalent), mechanical test results including yield strength, tensile strength, and elongation, hydrostatic test pressure, and Charpy impact test results if required by the purchase specification. Each certificate is traceable to the specific heat number marked on the pipe.
Q: When should I specify 3LPE coating instead of black painting for LSAW pipes?
A: 3LPE coating is recommended for buried pipelines operating in corrosive soil conditions, offshore applications, or any environment where long-term cathodic disbondment resistance is required. Black painting provides short-term corrosion protection suitable for above-ground structural applications or temporary exposure during construction. The 3LPE system consists of fusion-bonded epoxy, copolymer adhesive, and polyethylene outer layer for mechanical protection.
Q: Can you produce non-standard OD or wall thickness outside the 406–1524 mm range?
A: Our three LSAW production lines cover 406.4 mm to 1524 mm OD with wall thicknesses from 8 mm to 50 mm. For dimensions outside this range, we can evaluate feasibility based on our forming and welding capabilities. Custom lengths, beveled end configurations, and special processing services including bending and cutting are available with typical production lead times confirmed at the quotation stage.
Q: How do you ensure container loading optimization for large-diameter LSAW pipes?
A: Our logistics team prepares detailed loading plans that nest smaller-diameter pipes inside larger ones where specifications permit, maximizing container weight utilization. For 12-meter random length pipes, we coordinate with shipping lines to confirm container internal dimensions and door opening clearances. Professional lashing and dunnage placement prevents pipe movement during ocean transit, protecting both the pipe body and 3LPE coating from damage.
