Description

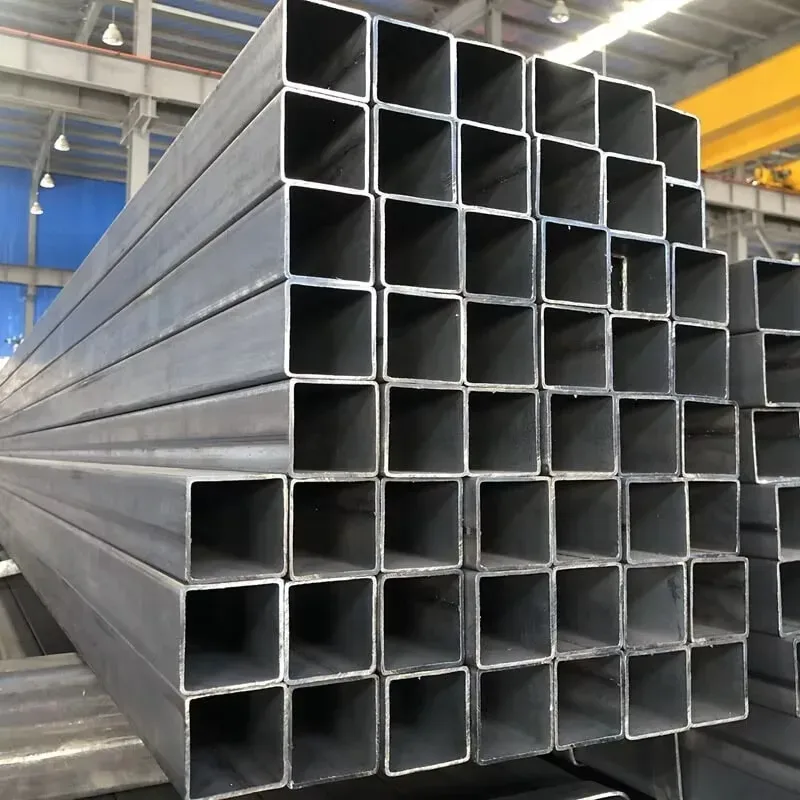

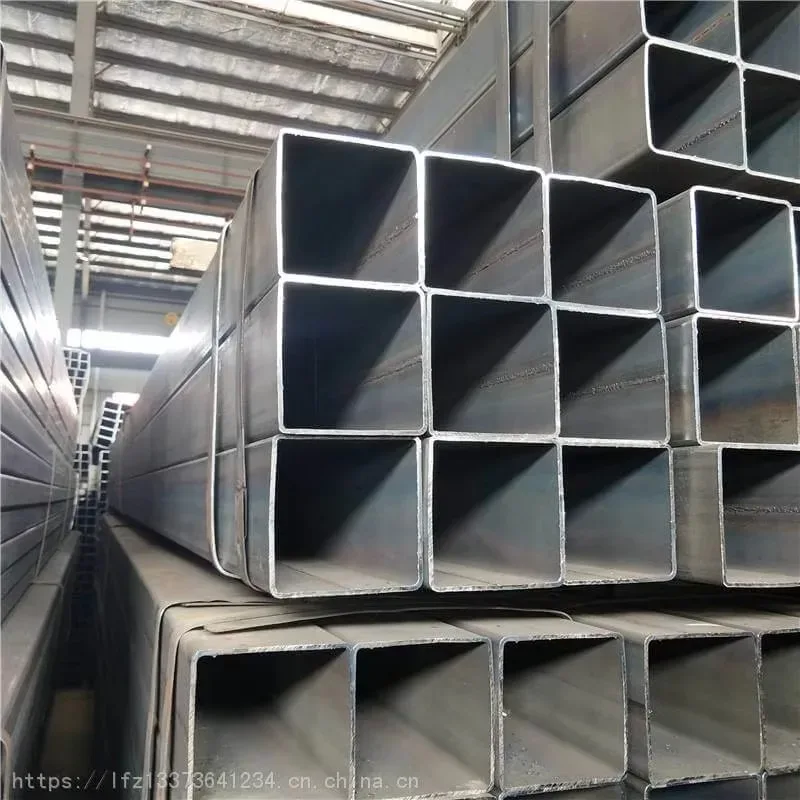

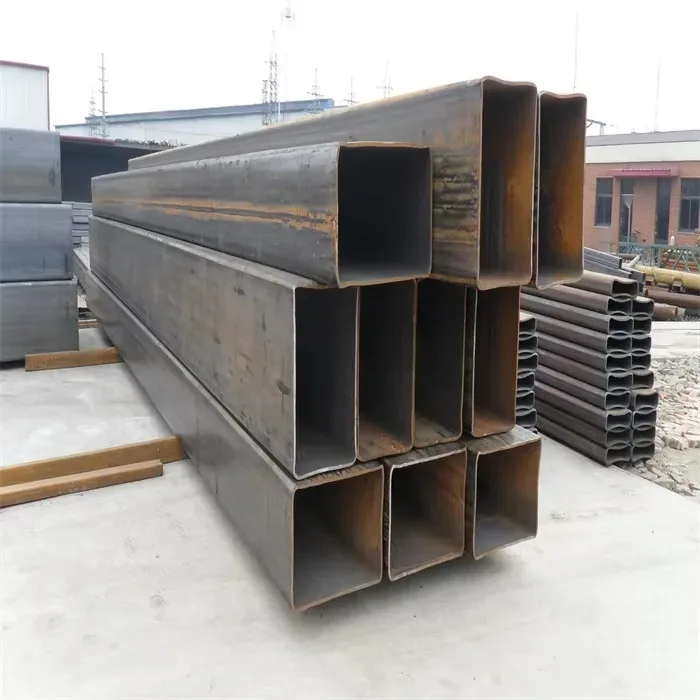

Factory-Direct ERW Square Tubes — Shandong Xin Jiyuan operates three dedicated production lines covering over 2,800 specifications with wall thickness up to 50mm, eliminating middlemen for Q235, Q345, and S355 carbon steel square tube orders.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235 Q345 S355 Carbon Steel Square Tube |
| Product Type | Welded Square Steel Tube (ERW) |
| Steel Grade | Q235, Q235B, Q345, Q345B, S235JR, S275JR, S355J2, SS400, ASTM A53, ASTM A106, API 5L |
| Standard | ASTM A53, ASTM A106, API 5L, EN 10025, GB/T 6728, JIS G3466 |
| Section Shape | Square / Rectangular |
| Size Range | 15mm × 15mm – 800mm × 800mm |
| Wall Thickness | 1mm – 50mm |
| Length | 6000mm / 12000mm (Customized available) |
| Technique | ERW / Hot Rolled / Cold Rolled |
| Surface Treatment | Black Painted / Varnished / Galvanized (Hot-Dip / Electro) / 3LPE / 3LPP Coated / Oiled |
| Tolerance | ±1% |
| Ends | Plain / Beveled |
| Application | Construction, Oil & Gas, Automotive, Machinery, Shipbuilding |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors & Construction | Structural frameworks for industrial plants, scaffolding systems, high-rise building columns and beams |
| Machinery Manufacturers | Hydraulic cylinder housings, pneumatic system frames, conveyor support structures |
| Oil & Gas | Pipeline transmission supports, drilling platform structural members |
| Shipbuilding | Marine piping systems, offshore platform deck structures |
| Infrastructure | Bridge railings, tunnel support frames, solar mounting structures |
What Wall-Thickness Tolerance Costs on a Carbon Steel Square Tube Order
Undersized wall thickness turns a structural order into a liability.
I once inspected a batch of square tubes at a Southeast Asian job site where the specified 2mm wall measured only 1.6mm at the corners. The contractor had to reject the entire shipment, delaying the project by weeks. When sourcing a carbon steel square tube, inconsistent wall thickness or unclear material traceability creates rejection risks at customs and on-site inspection. Buyers often discover specification gaps only after receiving goods — standard catalogs rarely cover non-standard dimensions, and custom orders from fragmented suppliers face unpredictable lead times. Missing or incomplete mill test certificates compound the problem, causing customs clearance failures in markets requiring EN or ASTM compliance documentation. [NEED_CITE: EN 10219 cold-formed structural hollow sections dimensional tolerances]
How ERW Square Tubes Match Structural Frame Requirements
The ERW welding process produces a continuous longitudinal seam that maintains uniform strength across the tube profile, making these carbon steel square tubes suitable for load-bearing frameworks where predictable mechanical behavior matters. For scaffolding and building structures, the ±1% tolerance ensures consistent connection fit-up with standard clamps and bolt patterns. When projects specify Q345 or S355 grades for higher load capacity, our in-house physical and chemical laboratory verifies each heat against the relevant standard before release. The proprietary sharp-corner rectangular tube technology — covered by 41 patents — delivers precise corner radii that improve joint contact area and structural appearance in architectural applications.
Engineering Compliance Across Destination Markets
Structural projects in Europe require CE certification under EN 10210 or EN 10219, while North American specifications typically reference ASTM A500 or A53. Selecting the correct carbon steel square tube grade depends on design loads, environmental exposure, and local building codes. For corrosive environments such as offshore platforms or coastal infrastructure, hot-dip galvanized or 3LPE coated surfaces extend service life without field maintenance. Custom cut-to-length service eliminates on-site welding for standard frame dimensions, and mill test certificates with full chemical composition and mechanical properties satisfy inspector requirements at destination ports. [NEED_CITE: steel grade equivalence between EN 10025 and ASTM standards]
Understanding Grade Selection and Manufacturing Process
Carbon steel square tubes in Q235 and Q345 grades follow the Chinese GB/T 6728 standard, where the number indicates minimum yield strength in MPa — Q345 offers higher load capacity than Q235 for the same cross-section. European S-series grades (S235JR, S275JR, S355J2) under EN 10025 provide equivalent performance with specified impact toughness at sub-zero temperatures, critical for cold-climate installations. The ERW process forms tubes from rolled steel coil through continuous forming and high-frequency welding, producing cost-effective sections with consistent wall thickness for structural applications. Surface treatment selection depends on the installation environment: black painted tubes suit indoor or temporary structures, while hot-dip galvanizing provides decades of corrosion protection for outdoor exposure. Negative tolerance practices in some mills reduce actual wall thickness below nominal values, affecting both theoretical weight calculations and structural safety margins — our production maintains ±1% tolerance verified by calibrated instruments.
Hidden Costs of Incorrect Grade or Missing Certification
Ordering a carbon steel square tube without verified mill test certificates risks customs rejection in markets requiring CE or SGS documentation. Material substitution — receiving Q235 when S355 was specified — creates structural safety concerns that only surface during load testing or inspector audits. Negative tolerance abuse reduces actual wall thickness, forcing engineers to overspecify sections or accept reduced load capacity. Rework, shipment delays, and project penalties far exceed the initial price difference between verified and unverified suppliers. [NEED_CITE: structural hollow section compliance requirements for CE marking]
Procurement Advantages from Direct Factory Source
Shandong Xin Jiyuan operates three dedicated production lines covering over 2,800 specifications in square and rectangular sections, with wall thickness ranging from 1mm to 50mm — eliminating the need to source from multiple suppliers for different dimensions. Our in-house physical and chemical laboratory conducts incoming material inspection, in-process monitoring, and final verification before shipment, with full mill test certificates provided for every order. The 41 patented technologies include proprietary sharp-corner rectangular tube manufacturing that fills gaps in global supply for architectural and precision structural applications. CE certification under EN 10210/EN 10219, ISO 9001:2015 quality management, and third-party inspection by SGS or BV ensure compliance for European, North American, and Middle Eastern projects. Professional loading optimization maximizes container utilization for 6m and 12m lengths, reducing freight costs per ton. Custom non-standard sizes and cut-to-length service accommodate specific project requirements without minimum order penalties.
Documentation & Compliance
- Mill test certificate documenting Q235/Q345/S355 chemical composition and mechanical properties per GB/T 6728 or EN 10025
- CE certificate confirming compliance with EN 10210/EN 10219 for European market structural applications
- ISO 9001:2015 quality management system certificate covering production and inspection processes
- SGS or BV third-party inspection report available upon request for destination customs clearance
- Material traceability by heat number linking each carbon steel square tube to original mill test data
- Complete customs documentation including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

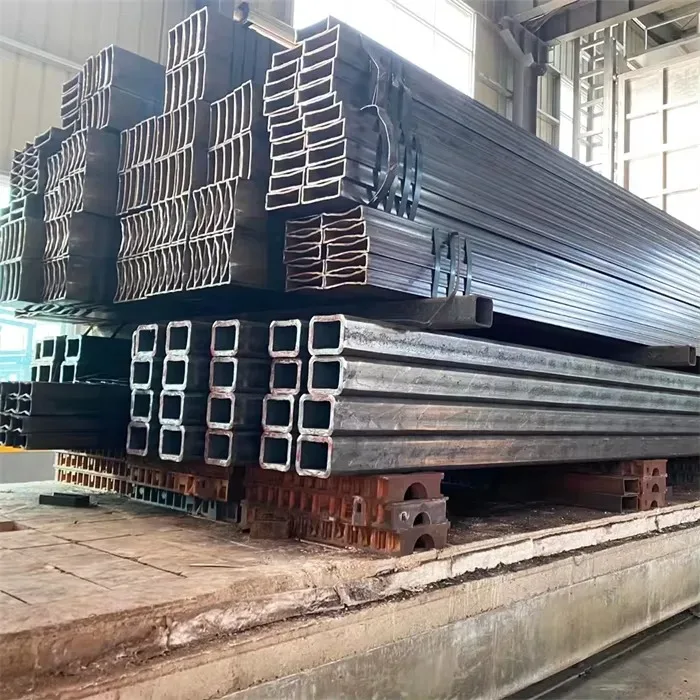

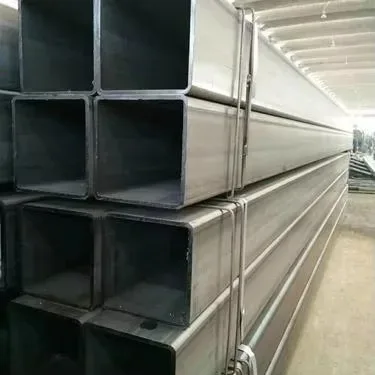

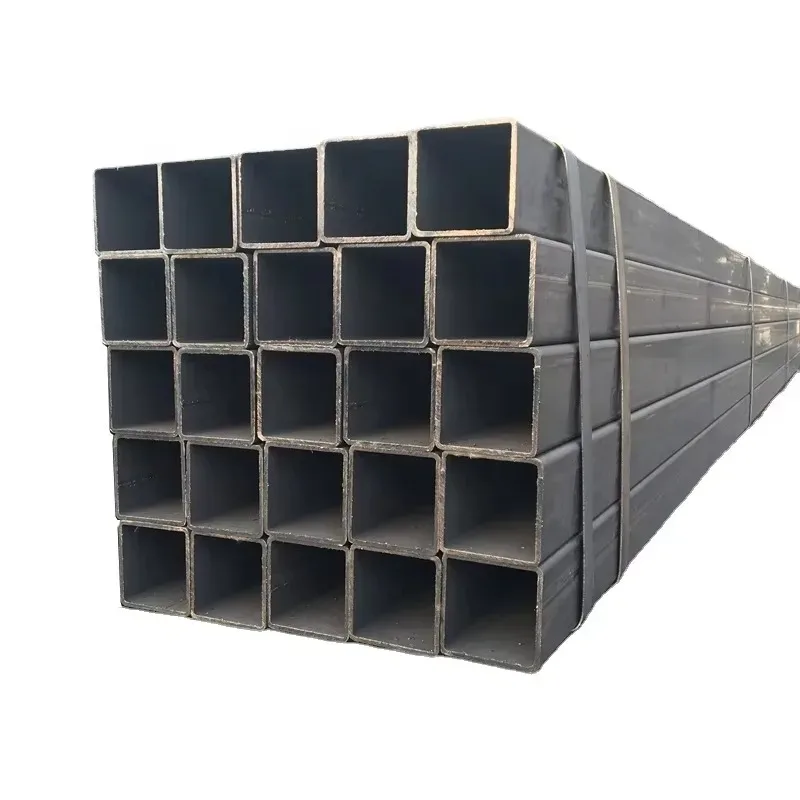

- Black painted or oiled carbon steel square tubes bundled with steel strips and edge protectors to prevent surface damage during transit
- Hot-dip galvanized tubes packed with separation materials to preserve zinc coating integrity across ocean shipments
- Container loading plans optimized for 6m and 12m lengths to maximize payload and minimize freight costs per ton
- Cut-to-length service available for 15×15mm to 800×800mm sections, eliminating on-site cutting waste
- Heat number and grade identification marked on each bundle for site traceability and inspector verification
- FOB, CIF, and DDP shipping terms with door-to-door logistics coordination to 50+ countries
Start Your Carbon Steel Square Tube Inquiry
Submit your specifications including dimensions, steel grade, quantity, and destination port to receive a detailed quotation with production lead time and applicable certification documentation. Our technical team reviews requirements within 12 hours and provides mill test certificate samples for quality confirmation before order placement.
Request Quotation with Mill Test Certificate
Send specifications via email to admin@sdxjysteel.com or contact via WhatsApp at +86 188 5315 7756 for pricing and certification details.
Frequently Asked Questions
Q: How do Q235, Q345, and S355 grades compare for structural applications?
A: Q235 and Q345 follow Chinese GB/T 6728 standards, while S355 follows European EN 10025. The numerical designation indicates minimum yield strength in MPa, with higher numbers providing greater load capacity. We supply all three grades with full chemical composition and mechanical property documentation per the applicable standard.
Q: Can you provide third-party inspection reports for customs clearance?
A: Yes, we arrange SGS or BV third-party inspection for any carbon steel square tube order. Inspection reports include dimensional verification, surface treatment check, and material test confirmation, satisfying customs requirements in European, North American, and Middle Eastern markets.
Q: What is the minimum order quantity for custom non-standard sizes?
A: We produce custom dimensions outside standard catalog specifications through dedicated production lines covering over 2,800 size combinations. Contact our technical team with your required dimensions and quantity to receive specific MOQ and lead time information.
Q: When should I specify hot-dip galvanized versus black painted surface treatment?
A: Hot-dip galvanizing provides long-term corrosion protection for outdoor or humid environments such as coastal construction or infrastructure projects. Black painted or oiled finishes suit indoor applications, temporary structures, or projects where field painting will be applied after installation.
Q: Do you offer DDP shipping with door-to-door delivery?
A: We provide FOB, CIF, and DDP shipping terms with professional container loading optimization. Our logistics team coordinates port clearance and final delivery to project sites across 50+ countries, reducing coordination complexity for international buyers.
