Description
Factory-Direct API 5L ASTM A53 ERW Steel Pipe — OD 21.3–660.4 mm produced on our own ERW lines with in-house lab verification per heat.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A53 / API 5L ERW Round Steel Pipe |
| Product Type | ERW Round Steel Pipe |
| Steel Grade | GR.B, X42, X46, X52, X56, X60, X65, X70, X80, GR A, GR B, GR C, S235, S275, S355, Q195, Q215, Q235, Q345, L175, L210, L245, L320, L360-L555 |
| Standard | API 5L (PSL1/PSL2), API 5CT, ASTM A53, EN10217, EN10219, DIN 2458, IS 3589, JIS G3452, BS1387, GB/T |
| Section Shape | Round (Circular Hollow Section) |
| Outer Diameter | 21.3–660.4 mm |
| Wall Thickness | 1.5–25.4 mm |
| Length | 0.3–18 m (SRL / DRL) |
| Technique | ERW (Electric Resistance Welded) |
| Surface Treatment | Bare / Black Paint / Zinc / PE / Epoxy / 3PE / Bitumen / Galvanized / FBE / Coal Tar Epoxy / Vanish Coating |
| Ends | Plain / Beveled |
| Tolerance | ±5% / ±10% |
| Application | Oil and gas pipeline / Water pipeline / Piling pipe / Structural pipe / Casing and tubing / Low-pressure fluid delivery / Onshore and offshore projects |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Onshore and offshore oil & gas transmission lines, water intake pipelines, driven piling for port and bridge foundations |
| Construction Companies | Structural columns and trusses for high-rise buildings, scaffold tubes, infrastructure handrails and support frames |
| Machinery Manufacturers | Hydraulic cylinder barrels, conveyor roller tubes, low-pressure fluid delivery for cooling and lubrication systems |
| System Integrators | Automation gantry frames, material handling racks, pipe rack supports in industrial plants |
What Wall-Thickness Tolerance Costs on an API 5L ASTM A53 ERW Steel Pipe Order
Tolerance is not a paperwork detail — it is the line between passing mill inspection and scrapping an entire shipment at the destination port.
I still remember a container of LSAW pipe held up at Jebel Ali because the third-party inspector found wall thickness drifting past the negative tolerance limit on every single length. The buyer paid demurrage, re-inspection fees, and eventually had to air-freight replacement sections. On an API 5L ASTM A53 ERW steel pipe order, that kind of surprise usually traces back to one thing: the supplier never ran a real ultrasonic scan before loading [NEED_CITE: API 5L PSL2 ultrasonic inspection requirements]. When you source from a mill that checks every heat in its own physical and chemical laboratory, the tolerance data on the MTC matches what actually arrives on the quay.
Matching ERW Pipe Grades to Pipeline and Structural Demands
An API 5L ASTM A53 ERW steel pipe in X52 or X60 is the default choice for onshore transmission lines where internal pressure and sour service resistance must be balanced against tonnage cost. For structural frames in high-rise or bridge projects, S355 and Q345 grades deliver the higher yield strength that engineers specify under EN 1993 or equivalent codes. Our ERW lines produce the full OD range from 21.3 mm small-bore instrumentation tubes up to 660.4 mm piling and casing sizes, so EPC buyers can consolidate line pipe, structural hollow sections, and casing into one purchase order instead of splitting across three vendors.
Engineering Compliance Across API, ASTM, and EN Frameworks
Project specifications frequently mix standards — an EPC contractor may call for API 5L PSL2 for the process line, ASTM A53 for the structural supports, and EN 10219 for the European-market sections. Each framework demands different test frequencies, impact testing temperatures, and documentation formats. CE certification under EN 10210 and EN 10219 is mandatory for structural hollow sections entering the EU, while API 5L PSL2 requires Charpy impact testing and full traceability by heat number for sour-service applications [NEED_CITE: EN 10219 cold-formed welded structural hollow sections compliance]. Beveled ends per API 5L facilitate field welding on pipeline spreads, while plain ends suit mechanical coupling or threaded connections in piling and scaffolding.
Grade Selection and ERW Weld Integrity Explained
The API 5L grade ladder from GR.B through X80 reflects increasing specified minimum yield strength, letting engineers reduce wall thickness — and therefore tonnage cost — on high-pressure transmission lines. The EN S-series (S235, S275, S355) and Chinese Q-series (Q235, Q345) follow a similar logic for structural applications. ERW welding produces a longitudinal seam formed by electric resistance heating and forge pressure, eliminating filler metal and keeping costs lower than seamless pipe for moderate-pressure duties. Modern ERW lines with in-line ultrasonic weld inspection and hydrostatic testing at every length ensure the weld zone matches the parent metal in strength and toughness. Surface treatments like 3PE, FBE, and hot-dip galvanizing extend service life in buried, submerged, or coastal environments where bare steel would corrode within a few years.
Hidden Costs of Buying the Wrong Grade or Skipping Mill Verification
Ordering GR.B when the design calls for X52 means the pipe will fail hydrostatic test at the design pressure — and the replacement tonnage arrives weeks late. Skipping third-party inspection to save a few hundred dollars routinely leads to customs holds when the destination authority requests SGS or BV verification that was never obtained. Negative tolerance abuse — where wall thickness consistently sits at the lower limit or beyond — inflates theoretical-weight invoicing while reducing actual load-bearing capacity, creating both financial loss and structural risk [NEED_CITE: steel grade equivalence between API 5L and ASTM A53 standards].
Why Global Buyers Source API 5L ASTM A53 ERW Steel Pipe From Our Mill
We run three dedicated ERW production lines covering the full OD range from 21.3 mm to 660.4 mm, so there is no need to split your order between a small-bore specialist and a large-diameter piling supplier. Every heat is tested in our own physical and chemical laboratory before it leaves the mill, and the resulting Mill Test Certificate travels with the shipment — no guessing, no re-inspection surprises. Our product catalog spans 2,800+ specifications including non-standard OD and wall thickness combinations that standard mills refuse to roll. CE certification under EN 10210 and EN 10219, ISO 9001:2015 registration, and SGS/BV third-party inspection capability clear the documentation path for EU, North American, and Middle Eastern customs. With exports to 50+ countries, our logistics team knows how to optimize container loading for mixed-diameter ERW pipe bundles and arrange FOB, CIF, or DDP delivery to your project site.
Documentation & Compliance
- Mill Test Certificate documenting chemical composition and mechanical properties of each API 5L or ASTM A53 heat, traceable by heat number
- CE certificate confirming compliance with EN 10210 and EN 10219 for structural hollow sections entering EU markets
- ISO 9001:2015 quality management certificate covering the full ERW production and inspection process
- SGS or BV third-party inspection report available upon request before shipment, covering dimensional, visual, and NDT checks
- Material traceability report linking each pipe length to its heat number, chemical analysis, and tensile test results
- Full customs document package including packing list, bill of lading, and certificate of origin for the destination country
Packaging, Loading & Delivery

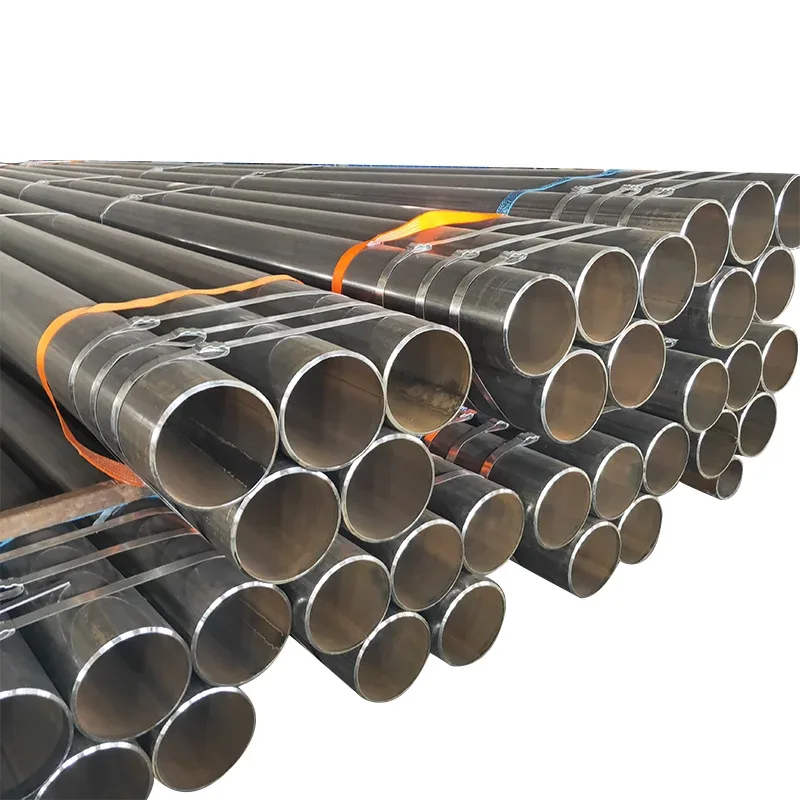

- ERW pipes bundled with galvanized steel strips and padded edge protectors to preserve 3PE, FBE, or galvanized surface coatings during ocean transit

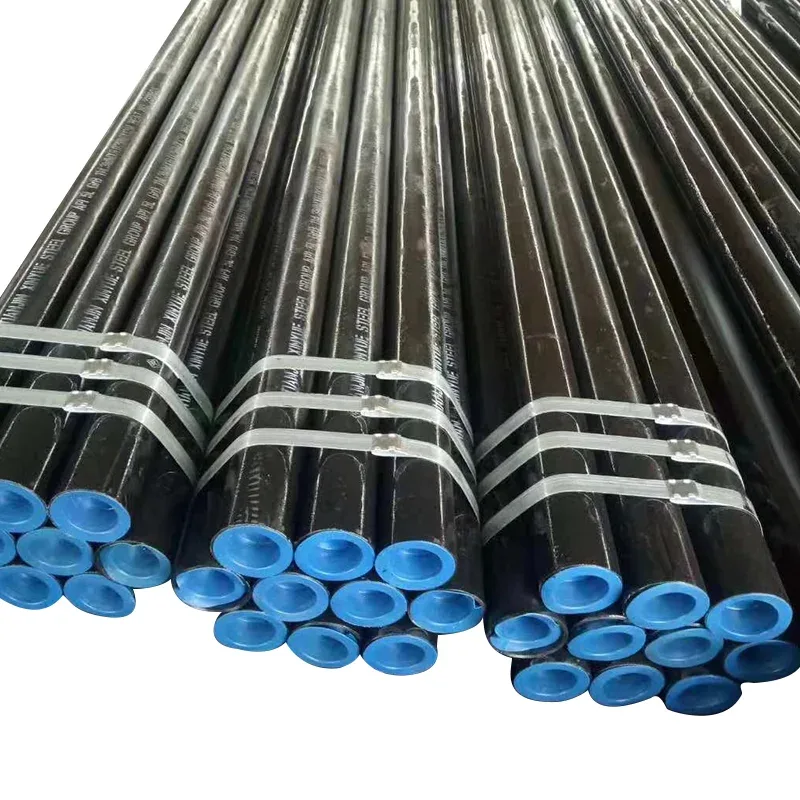

- Beveled-end pipes fitted with plastic end caps to prevent damage to the bevel angle during handling and container loading
- Mixed-diameter container loading plans optimized for 20 ft and 40 ft Open Top or standard containers based on OD and length combinations from 0.3 m to 18 m
- Heat number and steel grade stenciled on each pipe length for on-site traceability and inspection matching
- FOB Jinan or Qingdao port, with CIF and DDP options available to major ports across the Middle East, Southeast Asia, EU, and North America
- Cut-to-length and custom SRL/DRL sizing available to match project spool drawings and reduce on-site welding joints
Getting Your API 5L ASTM A53 ERW Steel Pipe Quote Started
Send your specification sheet — OD, wall thickness, length, steel grade, surface treatment, quantity, and destination port — and our team returns a detailed quotation including unit price, production lead time, applicable certifications, and Incoterms within one business day. If your project requires non-standard dimensions or a specific coating system outside the standard range, we provide a custom feasibility review and sampling plan before you commit to a full order.
Frequently Asked Questions
Q: What is the difference between API 5L PSL1 and PSL2 for ERW pipe?
A: PSL2 adds mandatory Charpy impact testing, stricter chemical composition limits, and enhanced non-destructive inspection requirements compared to PSL1, making it the preferred choice for sour-service and high-pressure transmission lines.
Q: Can you produce non-standard OD and wall thickness combinations outside the API 5L and ASTM A53 range?
A: Yes. Our ERW lines and in-house tooling workshop can produce custom OD and wall thickness combinations beyond standard catalogs, with MOQ and lead time confirmed after technical review of your drawing.
Q: How do you ensure wall thickness tolerance stays within specification?
A: Every pipe length undergoes ultrasonic thickness measurement at multiple points during production, and final inspection data is recorded on the Mill Test Certificate. Third-party verification by SGS or BV is available before shipment.
Q: Which surface treatment is best for buried pipeline applications?
A: 3PE (three-layer polyethylene) and FBE (fusion-bonded epoxy) are the standard choices for buried oil, gas, and water pipelines, offering superior adhesion and cathodic disbondment resistance compared to bare or painted finishes.
Q: Do you provide CE certification for structural ERW pipe shipped to the EU?
A: Yes. Our structural hollow sections are CE certified under EN 10210 and EN 10219, and the full Declaration of Performance is included in the shipping documentation package.
Secure Your API 5L ASTM A53 ERW Steel Pipe Supply
Submit your pipe specifications, steel grade, and destination port to receive a detailed quotation with Mill Test Certificate preview and production schedule.
