Description
Factory-Direct A36 Plates — Every ASTM A36 hot rolled steel plate ships with original mill test certificates and in-house lab verification, eliminating middlemen markup and quality guesswork.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | A36 Hot Rolled Steel Plate |
| Product Type | Steel Plate |
| Steel Grade | A36 |
| Standard | ASTM A36 |
| Technique | Hot Rolled |
| Surface Treatment | Hot Rolled |
| Length | Up to 12m |
| Application | Shipbuilding / Construction / Machinery |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Shipbuilding | Deck plating, bulkhead panels, hull stiffener attachments |
| Construction | Column base plates, beam splice plates, gusset connections |
| Machinery | Equipment frames, crane booms, conveyor support structures |
What Thickness Tolerance Failures Cost on an A36 Plate Order
Inconsistent plate thickness triggers third-party rejection at destination port.
When A36 hot rolled steel plate arrives with negative tolerance beyond ASTM A36 permissible limits, the entire batch fails inspection — even if chemical composition is perfectly within spec. I watched a full container of A36 plates sit in Jakarta port for two months because the buyer’s surveyor measured wall deviation exceeding allowable variance. The root cause was never the steel grade itself; it was the rolling mill’s tolerance control. Fragmented suppliers who outsource production to unverified sub-mills cannot guarantee consistent gauge across the plate length, and by the time the cargo reaches your project site, reordering means weeks of delay and double freight costs. [NEED_CITE: ASTM A36 dimensional tolerance requirements for hot rolled plates]
How A36 Plates Match Structural Fabrication Demands
ASTM A36 hot rolled steel plate delivers the ductility and weldability that structural fabricators require for heavy-load connections. The hot rolled surface provides mill scale that accepts primer coatings without additional surface preparation, while the consistent carbon-manganese composition ensures predictable behavior during flame cutting and bending. For shipbuilding and construction frames where A36 hot rolled steel plate must integrate with welded joints, the material’s elongation characteristics prevent brittle fracture at connection points under dynamic loading.
Engineering Compliance and Certification Requirements
Structural projects governed by AISC specifications require A36 hot rolled steel plate to conform to ASTM A36 chemical and mechanical thresholds, with documentation traceable to each heat number. For projects exporting to European markets, equivalent grade mapping between ASTM A36 and EN 10025 S235JR must be documented in the mill test certificate to satisfy customs and engineering approval. [NEED_CITE: ASTM A36 and EN 10025 S235JR grade equivalence] Plate length up to 12m reduces on-site welding joints, but fabricators must verify that the supplier’s cutting tolerance meets project drawing specifications before committing to full-length orders. Third-party inspection via SGS or BV provides independent verification that the A36 hot rolled steel plate meets both dimensional and chemical requirements prior to shipment.
Understanding A36 Steel Grade and Hot Rolling Process
A36 is a low-carbon structural steel defined by ASTM standards, specifying minimum yield strength and tensile range without prescribing exact chemical formulas — the mill controls composition within the standard’s boundaries to achieve required mechanical properties. The hot rolling process heats steel slabs above recrystallization temperature, then passes them through rolling mills to achieve target thickness; this produces a scaled surface that differs from cold-rolled plate in both texture and dimensional precision. Hot rolled A36 plate offers cost advantages over cold-rolled alternatives for applications where surface finish and tight tolerance are secondary to structural strength. The hot rolled condition also means internal residual stresses are lower than cold-formed products, reducing distortion risk during subsequent welding and machining operations.
Hidden Costs of Sourcing A36 Plate Without Verified Tolerance
Purchasing A36 hot rolled steel plate based solely on price per ton ignores the financial exposure when thickness falls below specification. Engineering calculations assume nominal plate dimensions; when actual thickness deviates negatively, load-bearing capacity drops below design intent, triggering structural engineer rejection and mandatory replacement. [NEED_CITE: structural engineering plate tolerance acceptance criteria] Beyond rework costs, customs authorities in destination countries may detain shipments lacking proper mill test certificates or third-party inspection reports, converting a routine delivery into a demurrage liability. The true cost of non-conforming A36 plate includes not just material replacement, but project timeline delays, penalty clauses from end clients, and reputational damage with the project owner.
Why Source A36 Hot Rolled Steel Plate From Xin Jiyuan
Our Jinan facility operates dedicated plate rolling lines with in-house physical and chemical laboratories that test every heat before release — no subcontracted production means tolerance control stays under direct supervision. We maintain 2,800+ specifications across our product range, allowing single-source procurement when your project requires A36 plate alongside structural sections, pipes, and fabricated components. Every shipment includes original mill test certificates documenting chemical composition and mechanical properties, with SGS and BV third-party inspection available for projects requiring independent verification. Our export experience across 50+ countries means we understand documentation requirements for different customs regimes and can coordinate door-to-door logistics including professional container loading optimization for heavy plate cargo. Custom length cutting up to 12m reduces your on-site processing waste, while our technical team provides material selection guidance when project specifications call for grade equivalency confirmation.
Documentation & Compliance
- Mill test certificate documenting A36 chemical composition including carbon, manganese, phosphorus, sulfur content and mechanical properties per ASTM A36
- ISO 9001:2015 quality management certificate covering hot rolled plate production processes
- SGS or BV third-party inspection report verifying dimensional tolerance and surface quality upon request
- Material traceability by heat number linking each plate to original slab casting and rolling records
- Customs documentation package including packing list, bill of lading, and certificate of origin for import clearance
- CE marking documentation available when A36 plate is supplied for projects requiring European conformity assessment
Packaging, Loading & Delivery

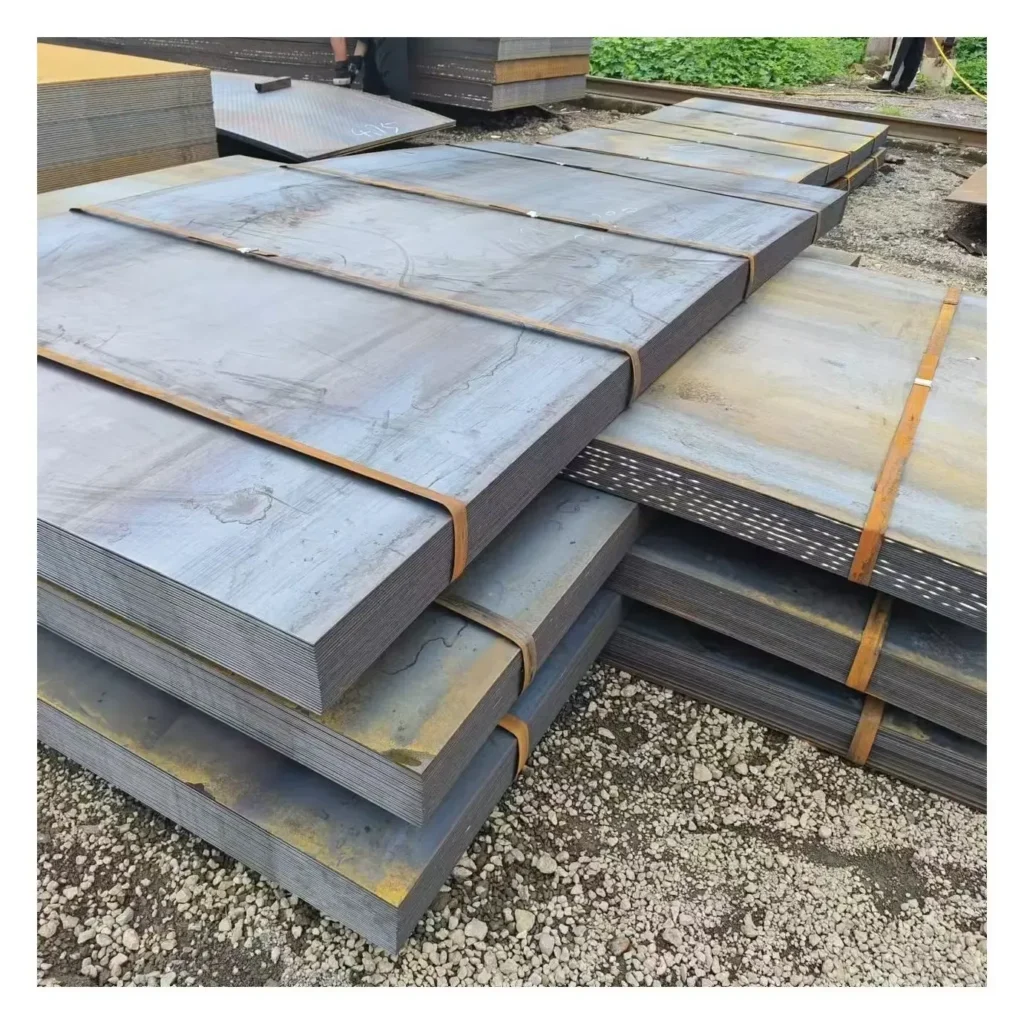

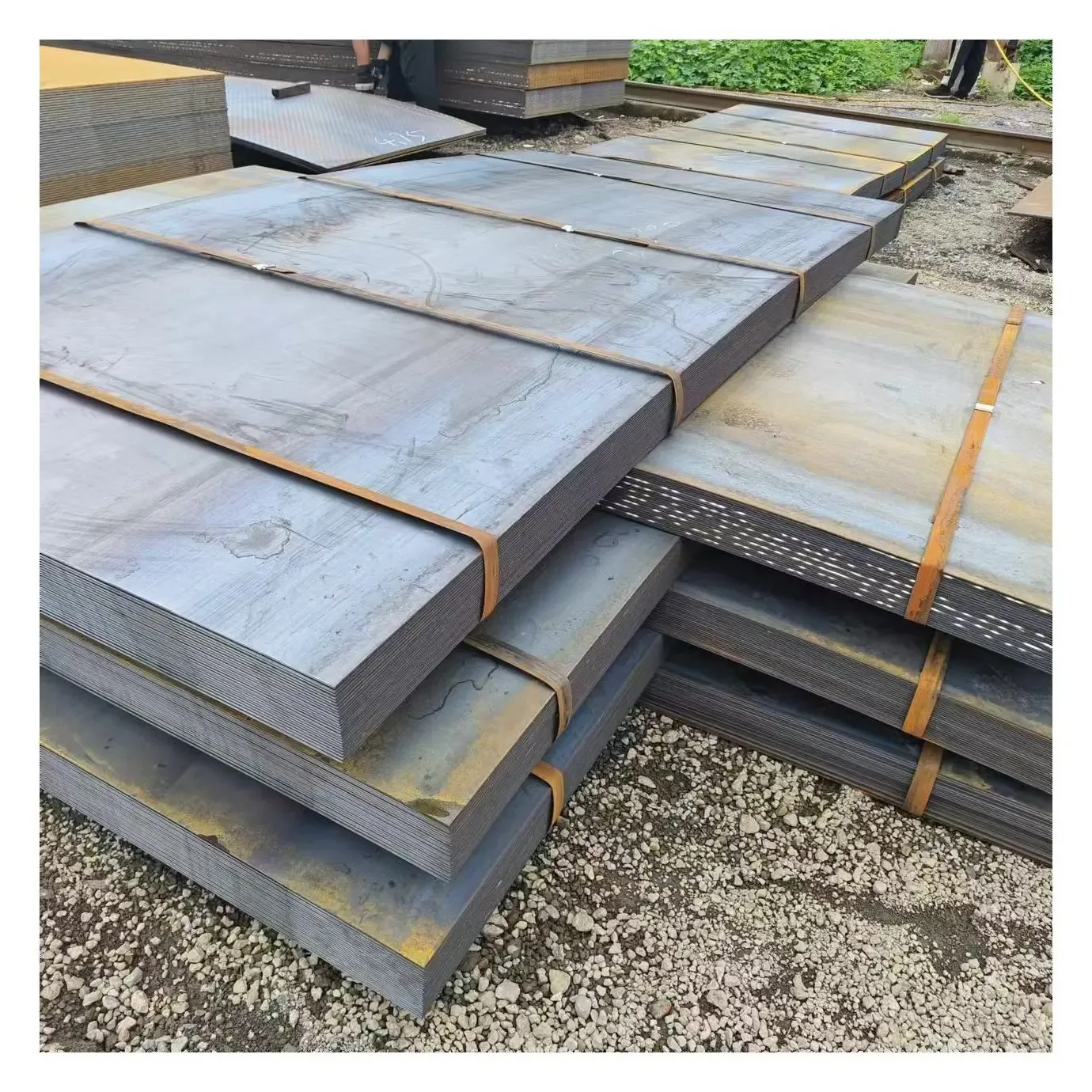

- A36 hot rolled steel plate bundled with steel straps and edge protectors to prevent surface damage during ocean transit
- Hot rolled surface lightly oiled to prevent rust formation during storage and shipping without affecting weldability
- Container loading optimized for plate length up to 12m with weight distribution calculated for 20ft and 40ft equipment
- Custom length cutting available to reduce on-site processing waste and improve container utilization efficiency
- Each plate marked with heat number, steel grade A36, and thickness for on-site identification and traceability
- FOB, CIF, and DDP shipping terms available with professional logistics coordination to 50+ countries
Getting Your A36 Plate Quote Started
Submit your A36 hot rolled steel plate requirements including thickness, width, length, quantity, and destination port to receive a detailed quotation within 12 hours. We will confirm available stock or production lead time, provide mill test certificate samples from recent A36 batches, and outline third-party inspection options if your project requires independent verification.
Request A36 Hot Rolled Steel Plate Quotation
Send your specifications via email to admin@sdxjysteel.com or contact us at +86 188 5315 7756 (WhatsApp/WeChat available) to begin your procurement process.
Frequently Asked Questions
Q: What is the difference between A36 and Q235B steel plates?
A: A36 follows ASTM standards used primarily in North American projects, while Q235B follows Chinese GB standards. Both are low-carbon structural steels with similar mechanical properties, but chemical composition ranges and testing methods differ slightly. For projects requiring grade equivalence documentation, we provide mill test certificates showing compliance with the specified standard.
Q: Can you provide third-party inspection reports for customs clearance?
A: Yes, we arrange SGS or BV third-party inspection before shipment. The inspection report covers dimensional verification, surface quality assessment, and witness testing of mechanical properties. This documentation satisfies customs requirements in most destination countries and provides independent quality confirmation.
Q: What is the MOQ for custom-length A36 steel plates?
A: We accommodate custom length cutting for A36 hot rolled steel plate with flexible minimum order quantities based on total tonnage. Contact us with your specific length requirements and project quantity to receive detailed pricing and lead time confirmation.
Q: How do you ensure consistent thickness tolerance across the full plate?
A: Our in-house laboratory conducts incoming slab inspection, in-process thickness measurement during rolling, and final dimensional verification before shipment. Every heat undergoes chemical composition testing and mechanical property verification to confirm ASTM A36 compliance. Full mill test certificates document the results for each batch.
Q: What surface treatment options are available beyond hot rolled?
A: Beyond standard hot rolled finish, we can supply A36 plate with shot blasting and primer coating for immediate fabrication, or coordinate galvanizing services for corrosion protection in marine environments. Contact us with your surface treatment requirements to confirm availability and additional processing lead time.
Start Your A36 Steel Plate Procurement
Email your project specifications to admin@sdxjysteel.com or message +86 188 5315 7756 to receive pricing, mill test certificate samples, and delivery confirmation for your A36 hot rolled steel plate order.
