Description
Factory-Direct Thick-Wall Seamless Sections — Every S355JRH seamless square steel tube EN10210 supplier order rolls through our in-house physical and chemical laboratory before release, eliminating third-party markups and quality guesswork.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | S355JRH/J0H/J2H/K2H/NH Seamless Square & Rectangular Steel Tube |
| Product Type | Seamless Square and Rectangular Hollow Section |
| Steel Grade | S355JRH, S355J0H, S355J2H, S355K2H, S355NH, S460, S690, Weathering Steel |
| Standard | EN10210, EN10219, ASTM A500, ASTM A501, JIS G3444, JIS G3466 |
| Section Shape | Square / Rectangular |
| Wall Thickness | Up to 40 mm |
| Technique | Seamless Manufacturing Process |
| Surface Treatment | Hot Rolled, Non-oiled, Smooth finish |
| Tolerance | ±1% |
| Application | Steel structures, Heavy-duty engineering, Construction frames, Bridge and highway construction, Port and stadium construction, High-rise building and steel frame structure, Glass curtain wall framing and facade system, Prefabricated and modular buildings, Industrial framing and support |
| MOQ | 10 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors & Steel Fabricators | Load-bearing columns and trusses for industrial plants, warehouse frames, heavy machinery bases |
| Construction & Infrastructure | High-rise building core frames, bridge piers, port crane booms, stadium roof trusses |
| Architectural Facade Systems | Glass curtain wall mullions, sharp-corner rectangular tubes for flush facade joints |
| Modular & Prefabricated Building | Column-to-beam connections in volumetric modular units, prefabricated corridor frames |
What Negative Tolerance Really Costs on a 40 mm Wall Frame Order
A ±1% tolerance on a 40 mm wall S355JRH seamless square steel tube EN10210 supplier shipment is the difference between a structure that passes ultrasonic inspection and one that gets rejected at the port.
I once watched a container of EN10219 cold-formed sections get held at Hamburg because the wall thickness drifted past the negative tolerance limit — the mill test certificate said one thing, the ultrasonic gauge said another. The buyer faced three choices: pay for re-inspection, air-freight replacement sections, or scrap the lot. On thick-wall seamless tubes destined for load-bearing frames, that kind of surprise does not just delay a project; it can void the structural engineer’s sign-off. [NEED_CITE: EN 10219 cold-formed hollow section requirements] When steel grade traceability is unclear and tolerance documentation is incomplete, customs brokers hold the cargo, the site crane sits idle, and the EPC contractor absorbs every day of demurrage.
Matching Heavy-Duty Seamless Sections to Structural Frame Loads
Thick-wall seamless hollow sections in S355JRH through S355NH grades carry compressive and torsional loads that welded alternatives cannot sustain without local buckling. The seamless manufacturing process removes the weld seam entirely, giving uniform wall distribution around the full perimeter — critical when a column must resist multi-axial forces in a high-rise core or a port crane pedestal. Our ±1% tolerance holds wall consistency across every length, so connection plates seat flush without shimming. For curtain wall integrators, the same S355JRH seamless square steel tube EN10210 supplier capability extends to proprietary sharp-corner rectangular profiles that eliminate visible gaps at facade joints.
Engineering Compliance Across EN, ASTM, and Marine Certification Paths
Structural designers specifying EN 1993 (Eurocode 3) require hollow sections that conform to EN10210 for seamless or EN10219 for cold-formed welded — and the certification must travel with the steel. A S355JRH seamless square steel tube EN10210 supplier shipment entering the EU needs a CE mark under the Construction Products Regulation, backed by a Declaration of Performance and factory production control audit. [NEED_CITE: CPR certification requirements for structural steel hollow sections] For North American projects, the same product family can be supplied to ASTM A500 Grade B or C with equivalent mill documentation. Marine and offshore applications demand Lloyd’s Register or equivalent class society notation, which our Singapore FPC and CE certifications already cover.
Decoding S355JRH, J0H, J2H, K2H, and NH — Impact Toughness Is the Real Divider
The S355 family shares the same minimum yield strength, but the suffix letters define impact test temperature and energy — the factor that decides whether a tube survives a Arctic winter or a desert-to-night temperature swing. JRH carries no specified impact test; J0H requires 27 J at 0 °C; J2H at −20 °C; K2H at −20 °C with higher energy; NH adds normalized rolling for improved through-thickness ductility. For bridge piers in northern Europe or port structures in the North Sea, J2H or NH is non-negotiable. Seamless manufacturing preserves these properties uniformly around the section, unlike welded hollow sections where the heat-affected zone can create localized toughness drops. [NEED_CITE: steel grade impact toughness classification EN 10210]
The Hidden Price of Buying Seamless Sections Without Verified Mill Certificates
Specifying S355J2H and receiving material that tests as S275JR does not show up until the structural engineer drills a test coupon — at which point the entire batch is suspect. Customs authorities in the EU and Middle East increasingly cross-check mill test certificates against physical samples, and a mismatch triggers full container quarantine. [NEED_CITE: customs inspection protocols for structural steel imports] Beyond the immediate rejection, the project faces re-procurement lead times that can push completion past contractual penalties. Choosing a S355JRH seamless square steel tube EN10210 supplier that issues heat-number-traceable certificates from an in-house accredited laboratory removes this risk before the material leaves the mill.
Why Project Procurement Teams Source Thick-Wall Seamless Sections Through Xin Jiyuan
Every S355JRH seamless square steel tube EN10210 supplier order we ship passes through our own physical and chemical laboratory — no outsourcing, no third-party reports stamped after the fact. We hold 41 invention patents, including a proprietary sharp-corner rectangular tube process that fills specification gaps competitors cannot cover. Our three dedicated production lines cover over 2,800 specifications with wall thickness up to 40 mm, and we accept custom non-standard sizes without punitive minimums. CE certification under EN10210/EN10219, ISO 9001:2015, Singapore FPC, and SGS/BV third-party verification travel with every shipment. We have exported to 50+ countries across the EU, North America, India, Southeast Asia, and the Middle East since 2013, and our loading teams optimize container stowage for heavy-wall sections to maximize payload and minimize transit damage.
Documentation & Compliance
- Mill Test Certificate documenting S355JRH/J2H/NH chemical composition and mechanical properties per EN10210, traceable to heat number
- CE certificate covering EN10210 seamless and EN10219 cold-formed welded hollow sections under the Construction Products Regulation
- ISO 9001:2015 quality management certificate covering full production and inspection workflow
- SGS or BV third-party inspection report available per batch upon client request
- Material traceability sheet linking each bundle to its heat number, chemical analysis, and tensile test results
- Customs documentation package including packing list, bill of lading, and certificate of origin formatted for EU, Middle East, and Southeast Asian ports
Packaging, Loading & Delivery

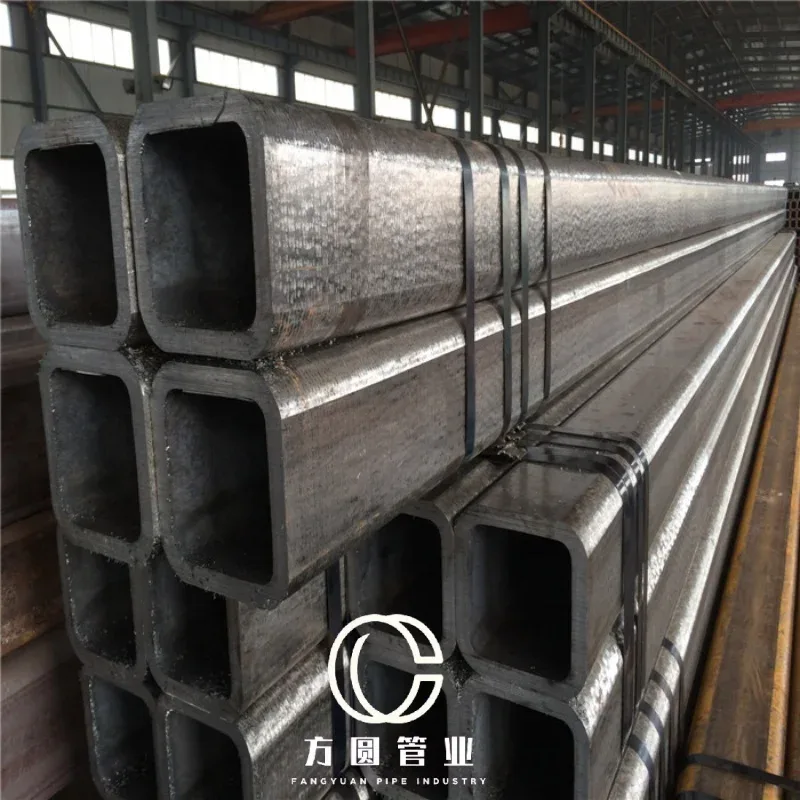

- Hot-rolled S355JRH seamless square steel tube EN10210 supplier sections bundled with high-tensile steel strips and edge protectors to prevent surface scoring during ocean transit
- Non-oiled smooth finish tubes wrapped in waterproof cloth with desiccant packs to prevent condensation rust in container shipping
- Container loading plans optimized for thick-wall sections up to 40 mm, maximizing payload within weight limits and preventing shift damage
- Cut-to-length service available for export-standard lengths, with bevelled or plain ends per project drawing requirements
- Each bundle tagged with heat number, steel grade, size, and length for immediate site identification and traceability
- FOB, CIF, and DDP shipping terms supported with door-to-door logistics coordination to 50+ countries
Getting Your Thick-Wall Seamless Section Quote and Mill Documentation
Submit your specification sheet — including section shape, dimensions, wall thickness, steel grade, quantity, and destination port — and our engineering team returns a detailed quotation with unit pricing, production lead time, and applicable certification scope within 12 hours. We can arrange sample sections and original mill test certificates for your quality confirmation before contract signing.
Start Your S355JRH Seamless Hollow Section Procurement
Send your specifications and destination details to receive a full quotation, mill test certificate preview, and container loading plan.
Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.sdxjysteel.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@sdxjysteel.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What is the difference between EN10210 seamless and EN10219 welded hollow sections for structural applications?
A: EN10210 covers seamless hot-finished structural hollow sections, which have no weld seam and uniform mechanical properties around the full perimeter — ideal for heavy load-bearing columns and dynamic load applications. EN10219 covers cold-formed welded hollow sections, which are more cost-effective for standard structural frames where weld seam integrity is acceptable. Both standards share the same steel grade designations like S355JRH and S355J2H.
Q: Can you provide Mill Test Certificates and arrange third-party inspection before shipment?
A: Yes. Every S355JRH seamless square steel tube EN10210 supplier order ships with an original Mill Test Certificate documenting chemical composition and mechanical properties, traceable to the heat number. We also accept SGS or BV third-party inspection at our facility before loading, and the inspection report is included in the shipping documentation package.
Q: What is the MOQ for custom non-standard sizes and thick-wall seamless sections?
A: Our standard MOQ is 10 Tons. For custom non-standard dimensions or specialized steel grades such as S460, S690, or weathering steel, we evaluate each inquiry individually and can often accommodate smaller trial quantities for qualified project requirements.
Q: How do S355JRH, J0H, J2H, K2H, and NH grades differ in impact toughness?
A: All S355 grades share the same minimum yield strength, but the suffix defines impact test conditions. JRH has no specified impact test; J0H requires 27 J at 0 °C; J2H at −20 °C; K2H at −20 °C with higher energy absorption; NH indicates normalized rolling for improved through-thickness ductility. The choice depends on your project’s minimum service temperature and structural code requirements.
Q: Do you offer DDP shipping and professional container loading for heavy-wall tubes?
A: Yes. We support FOB, CIF, and DDP terms with professional loading plans that optimize container payload for thick-wall sections up to 40 mm. Our logistics team coordinates port clearance, inland transport, and door-to-door delivery to 50+ countries, with real-time shipment tracking provided after loading.
