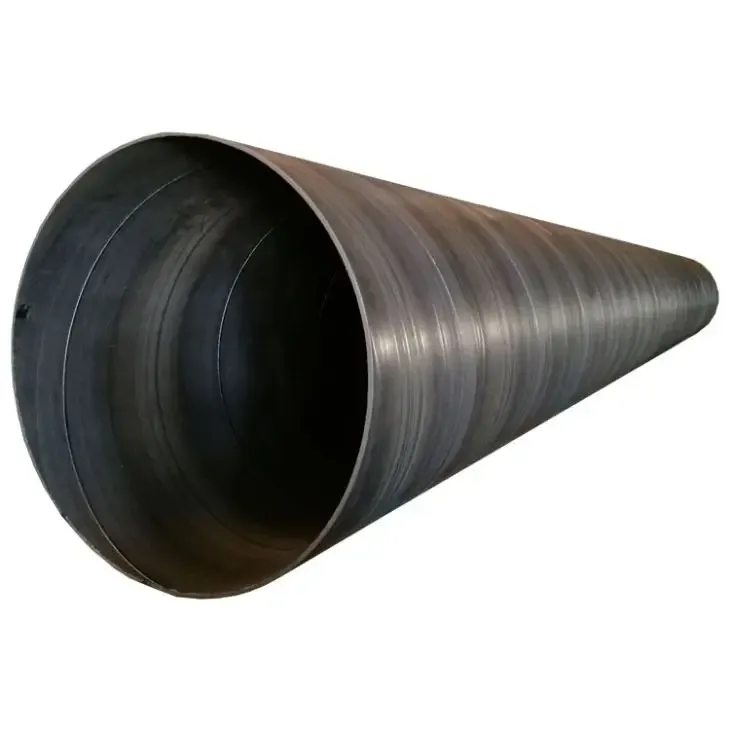

Description

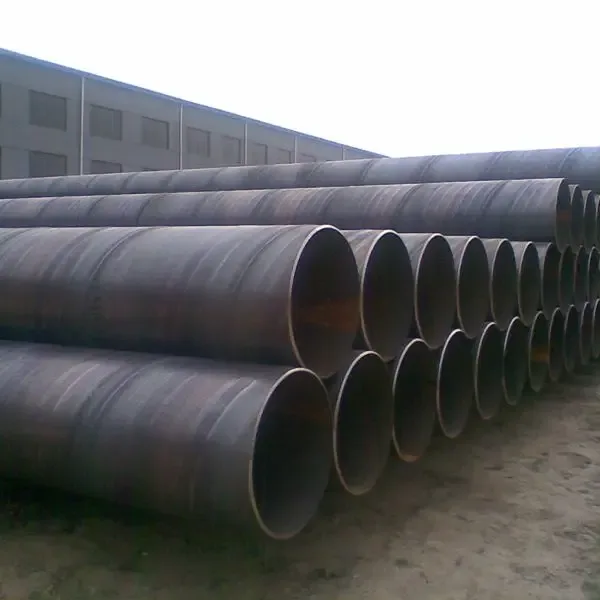

Factory-Direct SSAW Pipe Supply — In-house production lines with physical and chemical laboratories verify every heat of Q345B and API 5L L245–L320 spiral welded steel pipe before shipment, eliminating middleman markups and quality gaps.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q345B / L245-L320 Spiral Welded Steel Pipe |
| Product Type | Spiral Welded Steel Pipe (SSAW) |
| Steel Grade | Q235, Q345, L175, L210, L245, L320 |
| Standard | GB/T 9711.1, GB/T 9711.2, SY/T 5037, SY/T 5040, API 5L, ISO 9001, CE, BV |
| Section Shape | Round |
| Size Range | OD 219 mm – 3000 mm |
| Wall Thickness | 6 mm – 24.5 mm |
| Length | 6 m / 6.4 m / 12 m (or custom) |
| Technique | ERW / Spiral Welded (SSAW) |
| Surface Treatment | Hot Rolled / Oiled or Non-oiled |
| Tolerance | ±1% |
| Ends | Plain / Beveled (per standard) |
| Application | Fluid transportation, Gas pipeline, Oil pipeline, Bridge construction, Building construction, Structural pipe, Drill pipe, Chemical fertilizer pipe |
| MOQ | 5 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas EPC | Long-distance crude oil and natural gas transmission pipelines using API 5L L245–L320 grades |
| Bridge & Infrastructure | Structural support columns and pile foundations for highway bridges using Q345B large-diameter pipes |
| Industrial Fluid Systems | Chemical fertilizer plant piping and cooling water circulation networks |
| Urban Construction | Municipal water supply and drainage trunk lines in developing urban areas |
Where Wall-Thickness Tolerance Decides Structural Integrity on Large-Diameter Pipeline Orders
A ±1% tolerance on a 3000 mm OD pipe means up to 30 mm deviation — enough to compromise weld joint alignment and pressure rating.
When EPC contractors source API 5L SSAW spiral welded steel pipe for high-pressure gas transmission, even minor wall-thickness inconsistency across the 6–24.5 mm range can cause field welding failures and hydrostatic test rejection. Fragmented sourcing from multiple suppliers without in-house laboratory verification leads to material property uncertainty — one batch meets L320 yield requirements, the next falls short. [NEED_CITE: API 5L dimensional tolerance requirements for spiral welded pipe]
Matching OD 219–3000 mm SSAW Pipe to High-Pressure Pipeline and Structural Applications
Large-diameter SSAW spiral welded steel pipe in Q345B and API 5L L245–L320 grades serves two distinct engineering demands: fluid transmission under pressure and structural load-bearing in bridge or building frames. The spiral welding technique allows continuous production up to 3000 mm outer diameter — impossible with straight-seam ERW — while maintaining ±1% wall-thickness tolerance critical for field welding and hydrostatic testing. Hot-rolled surface with oil or non-oiled finish provides downstream flexibility for 3PE coating or direct burial in corrosive soil environments.
Engineering Compliance Requirements for SSAW Pipeline and Structural Pipe
Pipeline projects requiring API 5L certification must verify chemical composition and mechanical properties per heat number — L245 through L320 grades serve different pressure classes from low-pressure water lines to high-pressure gas transmission. Bridge and infrastructure applications typically specify Q345B for its higher yield strength compared to Q235, meeting structural codes for load-bearing columns and pile foundations. EU and Middle East projects demand CE certification under EN 10210/10219 for customs clearance, while Southeast Asian buyers often require BV or SGS third-party inspection reports. [NEED_CITE: EN 10210 hot-finished structural hollow section requirements] Custom cut-to-length from 6 m to 12 m reduces on-site welding joints and accelerates construction schedules.
Understanding Steel Grade Selection and Spiral Welding Process for SSAW Pipe
Q235 serves general structural applications where high strength is not critical, while Q345B provides higher yield strength for bridge columns and heavy-load building frames. API 5L grades L175 through L320 follow a different designation system — the number indicates minimum yield strength in MPa, with L320 suitable for higher-pressure oil and gas pipelines. Spiral submerged arc welding (SSAW) allows production of large-diameter pipe up to 3000 mm OD from narrower steel coil, reducing material cost compared to seamless pipe while maintaining pressure integrity through dual-sided welding. Hot-rolled surface treatment removes mill scale and provides uniform finish for downstream coating application, while oiled or non-oiled options address different storage and transportation corrosion protection needs. Wall thickness from 6 mm to 24.5 mm covers both thin-wall structural applications and heavy-wall high-pressure pipeline requirements.
Hidden Costs of Procuring SSAW Pipe Without Proper Certification and Tolerance Control
Specifying Q345B but receiving material with inconsistent chemical composition leads to field welding cracks and structural safety concerns — rework costs far exceed initial price savings. Missing or incomplete API 5L mill test certificates cause customs delays at destination ports, with demurrage charges accumulating daily. Wall-thickness tolerance exceeding ±1% creates weld joint misalignment during field installation, requiring expensive re-cutting and delaying project schedules. Third-party inspection rejection at discharge port means entire shipment replacement at supplier’s cost — or project acceptance of substandard material with long-term liability exposure. [NEED_CITE: steel grade equivalence between GB Q345B and international standards]
Why Global EPC Contractors Source SSAW Pipe from Our Integrated Production Facility

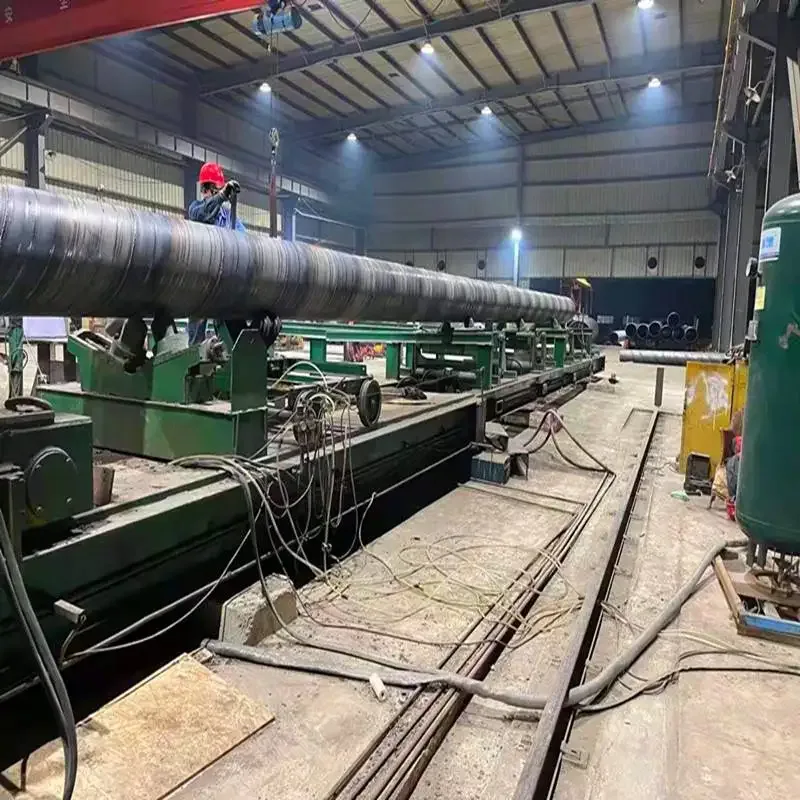

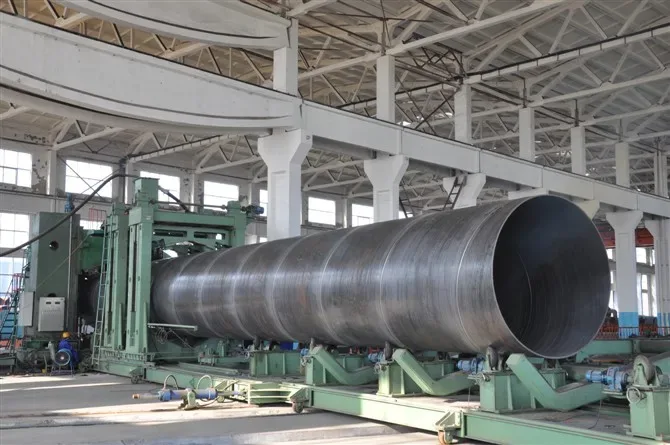

Our three dedicated SSAW production lines manufacture Q345B and API 5L L245–L320 spiral welded steel pipe in OD 219–3000 mm range with in-house physical and chemical laboratories conducting incoming material, in-process, and final inspection — every heat number traceable to original mill test certificate. Factory-direct pricing eliminates trading company markups while 2,800+ specifications in our product portfolio allow one-stop procurement combining spiral pipe, seamless pipe, and structural steel for complete project packages. CE certification under EN 10210/10219 and ISO 9001:2015 quality management ensure EU and international project compliance, while 41 invention patents include proprietary welding technology for large-diameter pipe. Professional loading plans optimize container utilization for 12 m length pipe, with door-to-door logistics serving 50+ countries including EU, North America, Middle East, and Southeast Asia.
Documentation & Compliance
- Mill test certificate documenting Q345B chemical composition (C, Si, Mn, P, S) and mechanical properties (yield strength, tensile strength, elongation) per GB/T 1591 standard, with heat number traceability
- API 5L certificate confirming L245–L320 grade compliance with chemical and mechanical requirements per GB/T 9711.1 and API 5L specifications for pipeline applications
- CE certificate under EN 10210/EN 10219 for EU market customs clearance and project specification compliance
- SGS or BV third-party inspection report available upon request for independent quality verification at production facility or discharge port
- Material traceability documentation linking each pipe to heat number, production date, and test results for full supply chain transparency
- Customs documents including packing list, bill of lading, and certificate of origin for smooth import clearance in destination country
Packaging, Loading & Delivery
- Q345B and API 5L SSAW pipe bundled with steel strips in seaworthy packaging, with OD 219–1000 mm pipe nested for container optimization and OD 1000–3000 mm pipe shipped in open-top containers or breakbulk
- Hot-rolled surface with oil coating applied before bundling to prevent rust during ocean transit, with non-oiled option available for immediate downstream coating application
- Professional loading plan accounting for 6 m, 6.4 m, or 12 m length pipe to maximize 20ft and 40ft container payload while preventing pipe movement and end damage during shipping
- Custom cut-to-length service available for project-specific requirements, reducing on-site cutting waste and accelerating installation schedules
- Heat number and steel grade marked on each pipe end with weatherproof paint for site identification and traceability verification
- FOB, CIF, and DDP shipping terms available with door-to-door logistics coordination to project site in 50+ countries
Initiating Your SSAW Pipe Procurement with Complete Technical Documentation
Submit your project specifications including OD, wall thickness, steel grade (Q345B or API 5L L245–L320), quantity, and destination port to receive detailed quotation with mill test certificate preview and delivery timeline within 12 hours. Request non-standard dimension customization or third-party inspection arrangement for your specific project compliance requirements.
Request API 5L SSAW Pipe Quotation with Mill Test Certificate
Send specifications to admin@sdxjysteel.com or contact via WhatsApp at +86 188 5315 7756 for factory-direct pricing and complete documentation package.
