Description
Factory-Direct Supply, No Middlemen Markup — Every Q345/S355JR seamless square and rectangular tube is produced on our own hot-rolled seamless lines and shipped directly from Jinan, eliminating trading-company markups.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q345/S355JR Seamless Square and Rectangular Steel Tube |
| Product Type | Seamless Square and Rectangular Steel Tube (Hollow Section) |
| Steel Grade | Q195, Q235, Q345, S235JR, S275JR, S355JR |
| Standard | ASTM (also meets EN 10210 / EN 10219 equivalents) |
| Section Shape | Square / Rectangular |
| Technique | Hot Rolled Seamless |
| Surface Treatment | Black (Hot Rolled) |
| Tolerance | ±1% |
| Size | Customized Size |
| Ends | Plain |
| Processing Service | Welding, Punching, Cutting, Bending, Decoiling |
| Application | Fluid Pipe, Boiler Pipe, Drill Pipe, Hydraulic Pipe, Gas Pipe, Oil Pipe, Chemical Fertilizer Pipe, Steel Structures, Machinery, Construction Frames |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Industrial piping networks, pressure vessel supports, structural frameworks for processing plants |
| Machinery Manufacturers | Hydraulic cylinder housings, precision equipment frames, drill pipe bodies |
| Construction Companies | Heavy-duty building columns, bridge support members, construction crane booms |
| Infrastructure Projects | Gas transmission lines, oil and chemical fertilizer pipelines, boiler tube assemblies |
Where Wall-Thickness Tolerance Decides Structural Acceptance
A ±1% tolerance on hot-rolled seamless square and rectangular tubes is the difference between passing third-party inspection and facing a full-container rejection at destination port.
When procurement teams source High Quality Hot Rolled Seamless Square Rectangular Steel Tube Supplier products without verified tolerance control, negative deviation beyond the acceptable band triggers SGS or BV rejections at discharge ports. I have seen entire shipments held because actual wall thickness fell outside the tolerance band, forcing the contractor to either accept a commercial settlement or wait weeks for replacement material while erection schedules slipped. The root cause is almost always the same: the supplier’s in-house quality loop cannot catch drift during continuous rolling, and no independent lab verification exists before loading. [NEED_CITE: EN 10219 cold-formed hollow section dimensional tolerance requirements]
Matching Seamless Hollow Sections to Structural and Pressure Applications
Hot-rolled seamless square and rectangular tubes carry load through closed-section geometry, making them ideal for compression members, moment frames, and hydraulic systems where internal pressure and external bending act simultaneously. The absence of a weld seam eliminates the weak point that ERW sections present under cyclic loading, which is why EPC contractors specify seamless hollow sections for boiler supports, drill pipe bodies, and hydraulic manifolds. Our High Quality Hot Rolled Seamless Square Rectangular Steel Tube Supplier capability covers Q345 and S355JR grades in customized dimensions, so project engineers can match section modulus to calculated loads without accepting catalogue compromises.
Engineering Compliance and Certification Pathways
Structural frames designed to EN 1993 or AISC specifications require hollow sections that conform to recognized product standards — EN 10210 for hot-finished seamless, ASTM A500 for North American projects, and EN 10219 for cold-formed alternatives. The Q345 grade maps closely to S355JR in yield behavior, while ASTM equivalence must be confirmed against the specific project specification before ordering. [NEED_CITE: steel grade equivalence between EN 10210 and ASTM A500 standards] Black hot-rolled surface finish is suitable for indoor structural use or as a base for further coating; for corrosive environments, galvanizing or painting should be specified at inquiry stage. CE certification under EN 10210/10219 is mandatory for EU customs clearance, and mill test certificates must document heat-level traceability for every bundle shipped.
Steel Grade Selection and Hot-Rolled Seamless Process Logic
The Q-series grades (Q195, Q235, Q345) follow the Chinese GB/T system where the number indicates minimum yield strength in MPa, while S235JR, S275JR, and S355JR follow the European EN system with JR denoting room-temperature impact toughness. Moving from Q195 to Q345 or from S235JR to S355JR increases yield strength, allowing thinner walls for the same load — reducing weight and cost per meter. Hot-rolled seamless production pierces a solid billet and elongates it through a mandrel mill, producing a tube with uniform grain flow around the entire cross-section. This contrasts with ERW, where the weld seam creates a potential initiation point for fatigue cracks under dynamic loading. The ±1% tolerance on our seamless lines reflects controlled piercing and rolling parameters, verified by in-process ultrasonic and final dimensional checks. [NEED_CITE: hot-rolled seamless versus ERW steel tube process comparison]
Hidden Costs of Unverified Hollow Section Procurement
Specifying S355JR and receiving material that fails chemical composition checks means the entire batch cannot be used in load-bearing frames — there is no commercial workaround for a structural safety rejection. Missing CE certificates delay EU customs clearance by weeks, demurrage charges accumulate, and project handover dates slip. Negative wall-thickness tolerance beyond the standard band forces the contractor to either downgrade the design or scrap the material, both of which destroy the original cost saving from choosing a lower-priced supplier. [NEED_CITE: consequences of non-compliant steel tube tolerance on structural acceptance]
Procurement Confidence Built on Factory Capability
Every High Quality Hot Rolled Seamless Square Rectangular Steel Tube Supplier inquiry is handled directly by our Jinan production facility, where three dedicated seamless lines cover over 2800 specification combinations. Our in-house physical and chemical laboratory tests every heat before release, and the mill test certificate travels with the material — no third-party lab is needed to confirm what we already verified. Forty-one invention patents, including proprietary sharp-corner rectangular tube technology, demonstrate that our engineering depth extends beyond standard catalogue production. CE EN 10210/10219, ISO 9001:2015, and SGS/BV verification ensure that documentation matches the material in the container. Custom non-standard sizes and定尺 cutting are available with 1-ton MOQ, and our logistics team plans container loading to maximize weight utilization for heavy seamless sections.
Documentation & Compliance
- Mill test certificate documenting Q345 or S355JR chemical composition, yield strength, and tensile properties per heat number
- CE certificate confirming compliance with EN 10210 for hot-finished seamless hollow sections, required for EU project acceptance
- ISO 9001:2015 quality management certificate covering the full production and inspection workflow

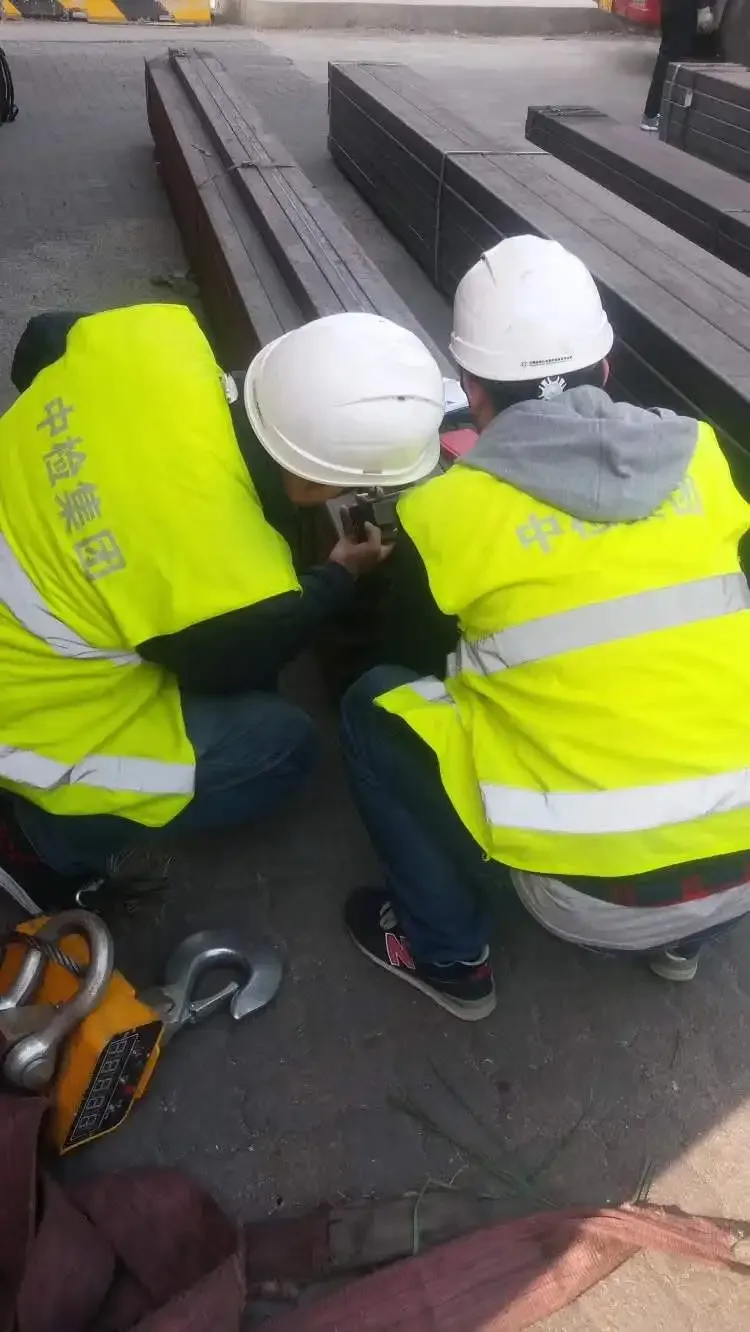

- SGS or BV third-party inspection report available upon request for independent verification before shipment
- Material traceability by heat number linking each bundle to its original billet, rolling record, and test results
- Customs documentation package including packing list, bill of lading, and certificate of origin for destination clearance
Packaging, Loading & Delivery

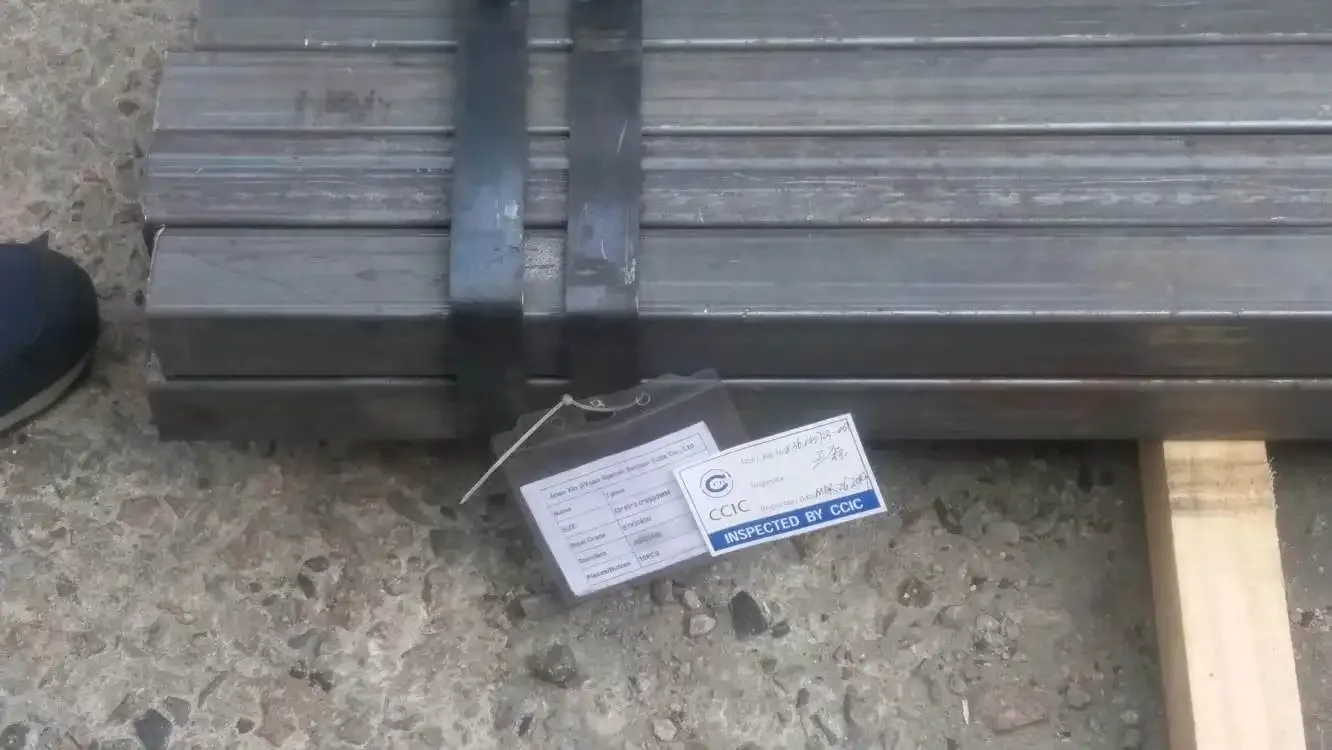

- Black hot-rolled seamless square and rectangular tubes bundled with high-tensile steel strips, edges protected to prevent surface scoring during ocean transit
- Plain-end tubes stacked with wooden separators to maintain surface integrity and allow fork-lift handling at site
- Container loading plans optimized for customized-length seamless sections, maximizing weight per 20ft or 40ft unit to reduce freight cost per ton
- Cutting-to-length service available before shipment, with each piece marked by heat number and steel grade for site identification
- FOB, CIF, and DDP logistics options with real-time tracking from Jinan inland depot to destination port or project site
- Fumigated wooden pallets or steel-frame crates for smaller MOQ orders, ensuring Q345/S355JR tubes arrive without transit damage
Start Your Seamless Tube Procurement
Submit your specification sheet — section dimensions, wall thickness, steel grade (Q345, S355JR, or other), quantity, and destination port — and receive a detailed quotation including unit price, production lead time, payment terms, and applicable certification scope within 12 hours. Non-standard sizes and定尺 cutting requirements are reviewed by our technical team for feasibility and pricing before contract confirmation.
Request Quotation and Mill Test Certificate
Send your High Quality Hot Rolled Seamless Square Rectangular Steel Tube Supplier inquiry to admin@sdxjysteel.com or contact us via WhatsApp at +86 188 5315 7756 with your project specifications.
—
Frequently Asked Questions
Q: How does Q345 compare to S355JR and ASTM A500 for structural applications?
A: Q345 (Chinese GB/T system) offers similar yield strength to S355JR (European EN system), while ASTM A500 Grade C is the North American equivalent for cold-formed hollow sections. For hot-rolled seamless applications, EN 10210 covers S355JR, and grade equivalence should be confirmed against your project specification before ordering.
Q: How do you ensure material traceability and provide mill test certificates?
A: Every heat of Q345 or S355JR seamless square and rectangular tube is tested in our in-house laboratory for chemical composition and mechanical properties. The mill test certificate documents heat number, chemical analysis, yield strength, tensile strength, and elongation, and travels with each bundle to destination.
Q: Can you produce non-standard custom sizes for seamless square and rectangular tubes?
A: Yes, our production lines cover over 2800 specification combinations, and custom non-standard sizes are available with 1-ton MOQ. We also provide cutting, punching, bending, and welding services to reduce on-site fabrication work.
Q: What surface treatment options are available for seamless square tubes?
A: Standard delivery is black hot-rolled finish, suitable for indoor structural use or as a base for painting. Galvanizing, painting, or other coating options can be arranged based on your corrosion environment and project requirements.
Q: How do you handle international shipping and documentation for EU and North American customs clearance?
A: We provide complete documentation packages including mill test certificates, CE certificates (EN 10210/10219), packing lists, bills of lading, and certificates of origin. Our logistics team coordinates FOB, CIF, or DDP shipment with professional container loading plans optimized for heavy seamless sections.
