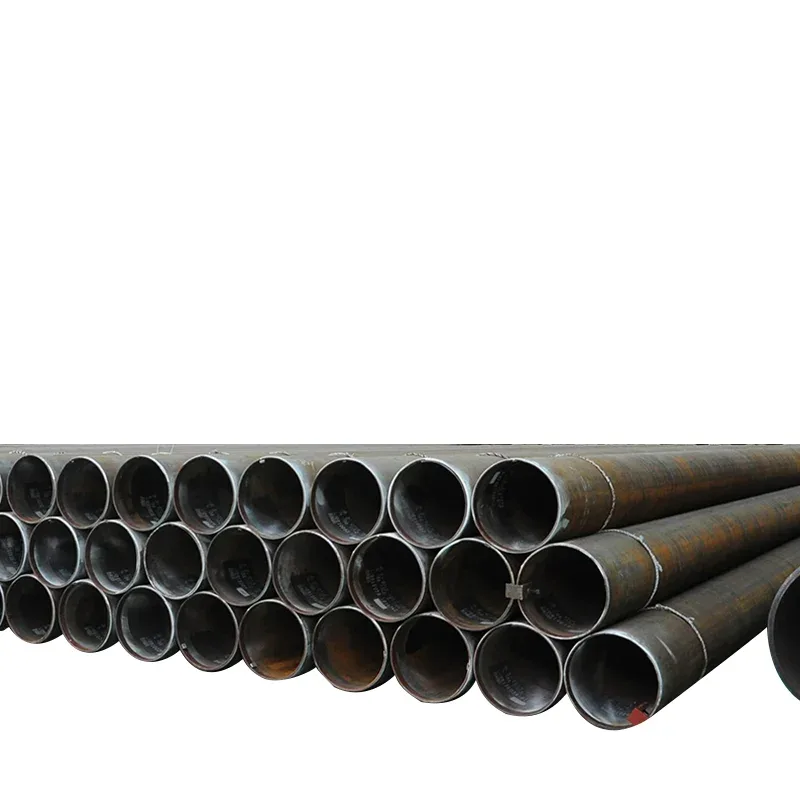

Q235B/Q355B Large Diameter LSAW Steel Pipe API 5L JCOE Supplier

Description

Factory-direct JCOE pipe mill — We produce large diameter LSAW steel pipes from Q235B to X80 on our own JCOE lines, eliminating broker markups on heavy-wall orders.

Technical Specifications

Application Suitability

Why Missing CE Marks on JCOE Pipe Stall EU Customs for Weeks

API 5L mill test certificates alone do not satisfy EU Notified Body requirements for structural hollow sections.

When a Middle East EPC sources large diameter LSAW steel pipe for a European-funded bridge project, the pipe may arrive at Rotterdam with a perfectly valid API 5L PSL2 certificate — and still get held at the port. EU customs under the Construction Products Regulation demand EN 10217 or EN 10219 compliance with CE marking, not just API. I have seen 40-foot containers of 12-meter JCOE pipes sit in bonded storage for over a month because the supplier could not produce an EN 10204 3.2 inspection certificate signed by an independent third party. [NEED_CITE: EU Construction Products Regulation certification requirements for steel hollow sections] The cost is not just demurrage — it is a delayed pile-driving window that pushes the entire marine foundation schedule into the monsoon season.

Matching JCOE Wall Thickness to Piling and Penstock Loads

For bridge piling in soft marine clay, a 355.6 mm OD with 16 mm wall in S355 gives the section modulus needed to resist driving stresses without buckling. When the same large diameter LSAW steel pipe is used as a hydropower penstock, the design shifts — internal pressure at 40-bar head demands thicker walls, often 25–40 mm, and the JCOE process holds the ±10% tolerance tight enough that field welding with matching consumables does not require excessive root-gap adjustment. Beveled ends per API 5L come ready for automatic submerged-arc welding on-site, while plain ends suit flanged connections at valve chambers.

Structural Codes, Corrosion Environments, and Grade Selection

Engineering specifiers working to EN 1993 or AISC 360 need traceable chemistry and impact toughness data, not just a mill stamp. For offshore piling in chloride-laden seawater, galvanized surface treatment or a 3PE coating system over bare JCOE pipe extends service life far beyond oiled bare steel. In arid Middle East infrastructure, black painting over shot-blasted surface is often sufficient for buried water mains. The steel grade itself carries the structural story: Q355B and S355 offer higher yield than Q235B, reducing section weight for the same load — but only if the mill can prove the chemistry through a proper EN 10204 3.1 certificate. [NEED_CITE: EN 1993 structural steel design requirements for hollow sections]

JCOE Forming vs. SSAW: When Diameter and Wall Thickness Decide

JCOE (J-ing, C-pressing, O-pressing, Expanding) produces one pipe at a time from a single plate, allowing wall thickness up to 50 mm and OD up to 4000 mm — ranges that SSAW spiral welding cannot reach with consistent seam quality. For X80 line pipe in high-pressure gas transmission, the JCOE longitudinal seam undergoes full ultrasonic and radiographic inspection along its entire length, whereas SSAW’s helical seam geometry complicates automated NDT coverage. Q235B and Q35B structural grades suit piling and bridge columns where the JCOE process delivers straightness within 1/500 of length — critical when 12-meter joints must align in a template before concrete pour. The multi-grade range from L245/B through L555/X80 means a single mill can supply both the structural piling and the process piping on an EPC site, consolidating procurement.

The Hidden Cost of Accepting Out-of-Tolerance JCOE Pipe

When wall thickness runs minus 15% instead of the stated ±10%, the theoretical weight drops — and so does the buckling resistance of a 30-meter bridge pier. The pipe passes visual inspection at the port, but the engineer’s recalculated section modulus fails the EN 1993 check. Now the contractor faces three choices: reject and reorder with weeks of delay, accept a reduced design load, or pay for on-site reinforcement. None of these costs appear on the original purchase order. [NEED_CITE: tolerance requirements for large diameter welded steel pipe per EN 10219] Missing heat-number traceability compounds the problem — without it, no third-party inspector will sign off, and the entire batch becomes scrap regardless of actual material quality.

Procuring Large Diameter LSAW Steel Pipe JCOE Supplier Direct from the Mill

Our JCOE lines in Jinan roll OD 355.6–4000 mm in wall thickness 8–50 mm, covering over 2,800 specifications across Q235B, Q355B, API 5L X42–X80, and EN S235–S460 grades — all from a single factory with no trading-company markup. Our in-house physical and chemical laboratory tests every heat for composition, tensile, Charpy impact, and hydrostatic pressure before release, generating EN 10204 3.1 certificates tied to specific heat numbers. We hold CE certification under EN 10210 and EN 10219, ISO 9001:2015, and Singapore FPC, with SGS and BV third-party inspection available on every order. Our 41 invention patents include proprietary sharp-corner rectangular tube technology, and our experience exporting to 50+ countries means we know exactly which documents EU, Middle East, and Southeast Asian customs require. Professional loading plans optimize 40-foot OT and flat-rack containers for 12-meter JCOE pipe, and we coordinate FOB, CIF, or DDP delivery to project site.

Documentation & Compliance

• Mill Test Certificate documenting Q355B chemical composition, yield strength, and Charpy V-notch impact energy per GB/T 1591 and EN 10204 3.1 format
• CE Declaration of Performance and Factory Production Control certificate per EN 10219 for structural hollow sections exported to EU markets
• ISO 9001:2015 quality management certificate covering JCOE forming, submerged-arc welding, and final inspection processes
• SGS or BV third-party inspection report verifying dimensional tolerance, weld seam NDT, and surface treatment thickness on request
• Full material traceability by heat number linking each pipe to its plate origin, chemical analysis, and mechanical test results
• Customs documentation package including packing list, ocean Bill of Lading, and Certificate of Origin for destination-country clearance

Packaging, Loading & Delivery

• Bare Q235B and Q355B large diameter LSAW pipes bundled with high-tensile steel strips at both ends and mid-span, with wooden chocks preventing ovalization during ocean transit
• Oiled surface treatment applied to bare JCOE pipe before bundling to prevent flash rust during 30–45 day sea freight to Southeast Asia and Middle East ports
• Galvanized large diameter LSAW steel pipe packed with rubber edge protectors under steel straps to preserve zinc coating integrity at contact points
• 12-meter fixed-length JCOE pipes loaded in 40-foot open-top containers with professional lashing plans maximizing 22-ton payload while meeting road weight limits at destination

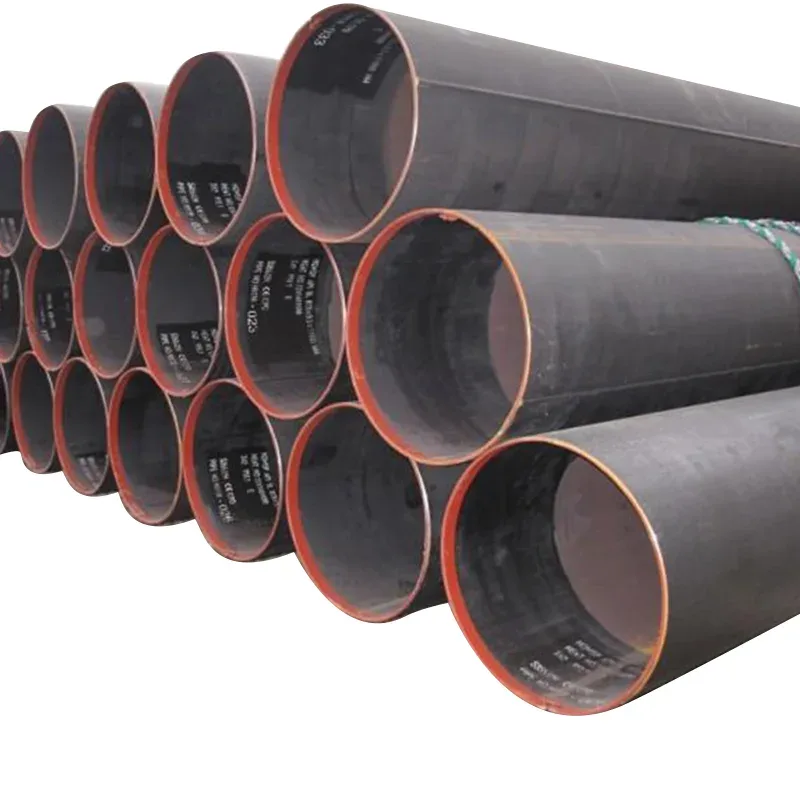

• Heat number, steel grade, OD, and wall thickness stenciled on each pipe end in weatherproof paint for site identification and traceability verification
• FOB Jinan or Qingdao port, with CIF and DDP options available to major project sites across EU, North America, India, Southeast Asia, and Middle East

Requesting a Quote for Your JCOE Pipe Specification

Submit your outer diameter, wall thickness, steel grade, quantity, and destination port — we respond within 12 hours with unit pricing, production lead time, applicable certifications, and a sample Mill Test Certificate from a recent heat of the same grade. For non-standard wall thickness or length beyond 12 meters, our engineering team provides a custom rolling方案 with confirmed feasibility before you commit.

Get Your Large Diameter LSAW JCOE Quote with Mill Test Certificate

Send your specification sheet to admin@sdxjysteel.com or message on WhatsApp at +86 188 5315 7756 — include OD, WT, grade, quantity, and destination for a complete quotation within 12 hours.
