Description
Factory-Direct Galvanized Flat Bars — Hot dip galvanized flat steel in Q235B and Q355B produced on our own rolling lines with Z121–Z180 zinc coating verified in-house.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B/Q355B Galvanized Flat Steel |
| Product Type | Galvanized Flat Steel Bar |
| Steel Grade | Q235A, Q235B, Q355B |
| Standard | GB, EN, ASTM, AISI |
| Section Shape | Flat |
| Width | 45 mm – 2200 mm (customizable) |
| Thickness | 0.15 mm – 6.00 mm (customizable) |
| Length | 6 m – 12 m or customized |
| Technique | Hot Rolled Based |
| Surface Treatment | Hot Dip Galvanized (Z121 – Z180) |
| Spangle Type | Zero Spangle |
| Skin Pass | Yes |
| Oiled or Non-oiled | Non-oiled |
| Tolerance | ±1% |
| Hardness | Hard |
| Processing Service | Decoiling, Bending, Cutting, Punching, Welding |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Structural Support | Building frames, scaffolding uprights, connecting plates, column base brackets |
| Industrial Manufacturing | Machinery frames, equipment guards, stiffening ribs, conveyor support rails |
| General Fabrication & Hardware | Custom brackets, straps, hinges, reinforcement plates, mounting channels |
| Scaffolding & Access Systems | Scaffold planks, ledger blades, coupler plates, toe-board supports |
| Infrastructure & Civil Works | Bridge stiffeners, culvert reinforcement flats, retaining wall ties |
What Zinc Coating Weight Really Means for Your Project Timeline
Z121–Z180 hot dip galvanized flat steel bars carry enough zinc mass to survive months of outdoor staging without white rust forming before installation.
I have seen entire container loads of flat bars rejected at site because the galvanizer cut corners on coating weight. The buyer measured Z80 when the purchase order specified Z150. Re-galvanizing on the other side of the ocean is not an option — the cost of return freight and re-order wipes out the margin on the whole shipment. [NEED_CITE: hot dip galvanizing coating thickness standards ASTM A123] When you source a Q235B Q355B hot dip galvanized flat steel bar supplier who runs an in-house coating lab, you get a mill test certificate that states the actual zinc mass per square meter before the container is sealed.
Matching Flat Bar Dimensions to Structural Connection Details
Engineers specifying Q235B Q355B hot dip galvanized flat steel bar supplier products for bracket and gusset plates need width and thickness to match bolt-hole patterns and weld prep exactly. Our hot-rolled base goes through skin pass treatment, which keeps flatness within ±1% tolerance across widths up to 2200 mm — critical when a 400 × 10 mm gusset has to sit flush against an H-beam flange. We cut, punch, and bend to drawing in-house, so the flat bar arrives on site ready to bolt, eliminating a secondary fabrication step that would otherwise strip the zinc coating at every cut edge.
Engineering Compliance Across Destination Markets
Flat bars used in load-bearing frames must meet the material certification requirements of the destination code — EN 10219 for European structural hollow sections, ASTM A500 / A36 for North American projects, and GB standards for domestic Chinese-specification jobs. [NEED_CITE: steel grade equivalence between Q series and ASTM / EN standards] Q235B maps closely to S235JR and A36 in carbon and manganese range, while Q355B aligns with S355JR / A572 Gr 50 for higher load applications. Missing or mismatched mill certificates trigger customs holds, especially in the EU where CE marking under EN 10210 / EN 10219 is mandatory for structural steel. [NEED_CITE: CE marking requirements for structural steel under EU Construction Products Regulation]
Steel Grade Selection and Hot Dip Galvanizing Interaction
Q235B and Q355B are the two workhorse grades for galvanized flat bars in global construction. Q355B offers higher yield strength than Q235B, allowing thinner sections to carry the same load — but silicon content in higher-strength grades can accelerate zinc-iron alloy growth during hot dipping, producing a thicker but more brittle coating. Our galvanizing bath temperature and withdrawal speed are controlled to keep the coating ductile even on Q355B, preventing flaking when the flat bar is bent on site. Zero spangle finish gives a uniform matte appearance that accepts paint systems directly if the project later requires a duplex coating scheme.
The Hidden Cost of Under-Specified Coating and Tolerance
Ordering flat bars by weight alone invites suppliers to push negative tolerance to the limit and drop zinc coating below the specified Z-grade. A 6 mm flat bar rolled to −3% tolerance saves the supplier zinc and steel cost, but the structural engineer’s load calculation assumed nominal thickness. The result: the member passes visual inspection but fails ultrasonic thickness verification during the owner’s quality audit. [NEED_CITE: tolerance classes for hot rolled flat bars per EN 10058] Replacing rejected material weeks after installation begins costs multiples of the original purchase price.
Procurement Confidence from a Verified Q235B Q355B Hot Dip Galvanized Flat Steel Bar Supplier
Every batch of Q235B Q355B hot dip galvanized flat steel bar supplier stock is tested in our own physical and chemical laboratory — coating weight measured by gravimetric method, dimensions checked against drawing tolerance, steel grade verified by spark spectrometry. We hold ISO 9001:2015 certification, Lloyd’s Register EU CE marking, and Singapore FPC approval, with SGS and BV third-party inspection available on request. Our production lines cover 2,800+ specifications across flat bars, tubes, plates, and sections, so a single purchase order for a mixed structural package goes out in one coordinated shipment. Professional loading plans maximize container payload for long-length flat bars, and door-to-door logistics handle customs documentation for 50+ destination countries.
Documentation & Compliance
- Mill test certificate documenting Q235B / Q355B chemical composition and mechanical properties per GB/T 700 and GB/T 1591, with heat number traceability
- CE certificate conforming to EN 10210 / EN 10219 for structural steel products exported to European Union markets
- ISO 9001:2015 quality management system certificate covering hot rolling, galvanizing, and finishing processes
- SGS or BV third-party inspection report verifying zinc coating weight Z121–Z180 and dimensional tolerance ±1%
- Material traceability report linking each flat bar bundle to its original heat number and galvanizing batch
- Customs documentation package including packing list, bill of lading, and certificate of origin for destination-country clearance
Packaging, Loading & Delivery

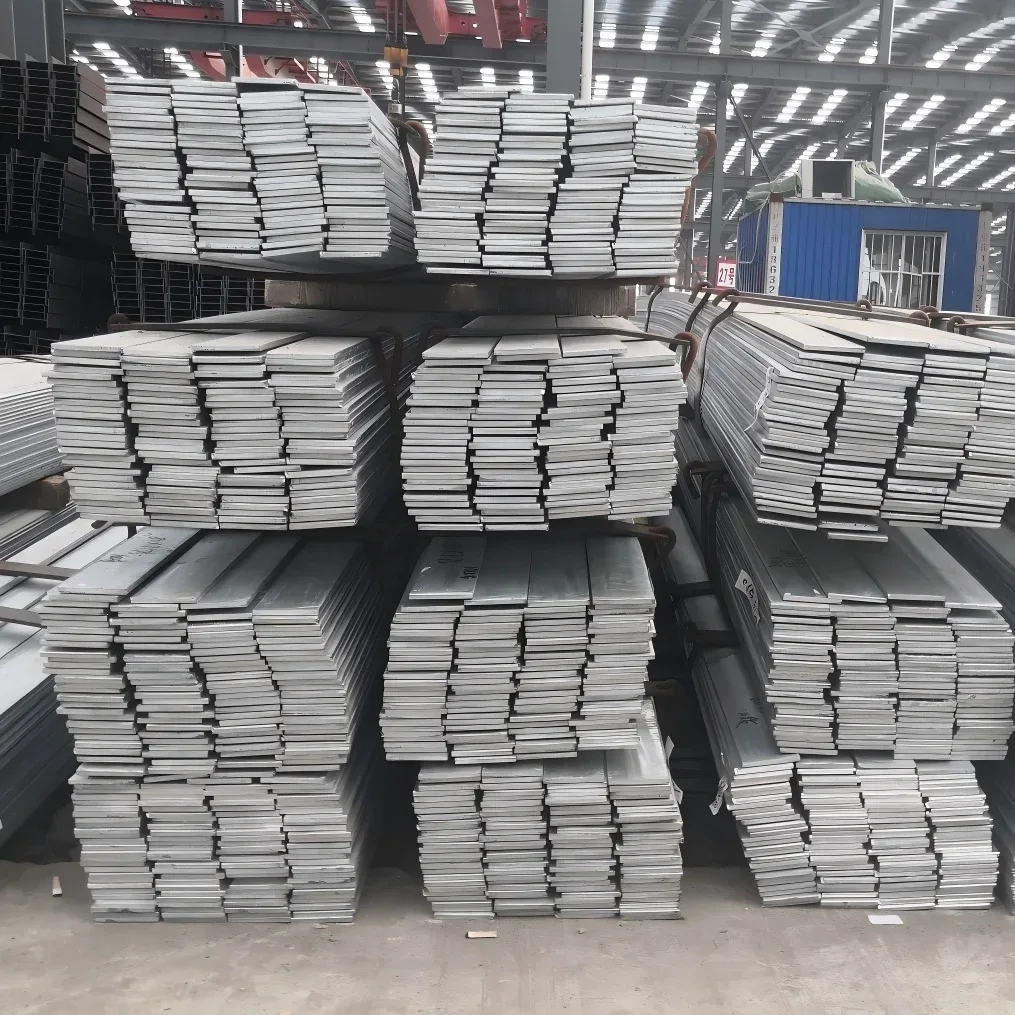

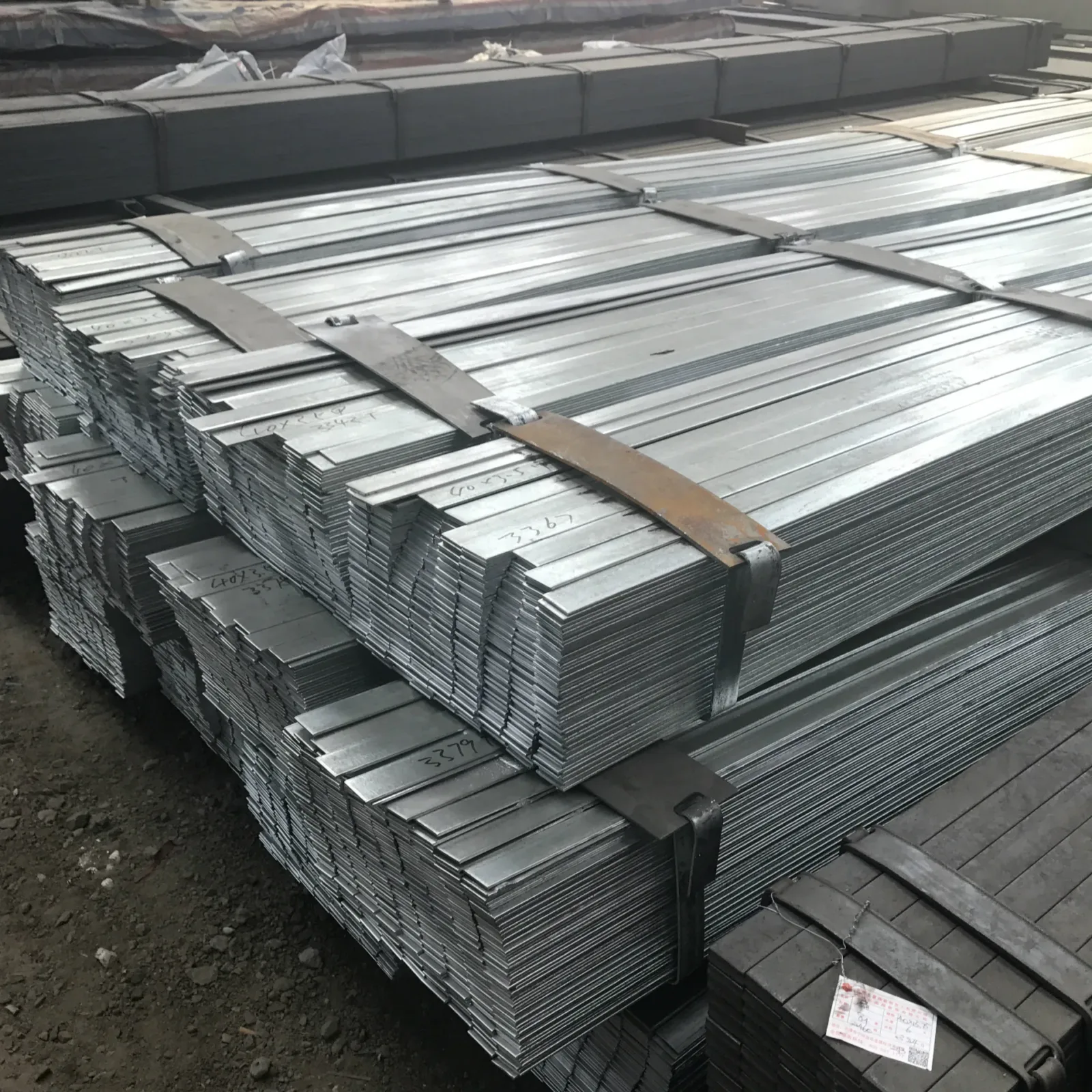

- Q235B and Q355B galvanized flat bars bundled with galvanized steel strips and edge protectors to preserve the zero spangle zinc coating during ocean transit
- Non-oiled surface left bare after galvanizing; bundles wrapped in waterproof kraft paper for containers shipped to high-humidity ports in Southeast Asia and the Middle East
- 6 m and 12 m lengths loaded in 20 ft and 40 ft containers with optimized stacking plans to maximize payload without exceeding road weight limits at destination

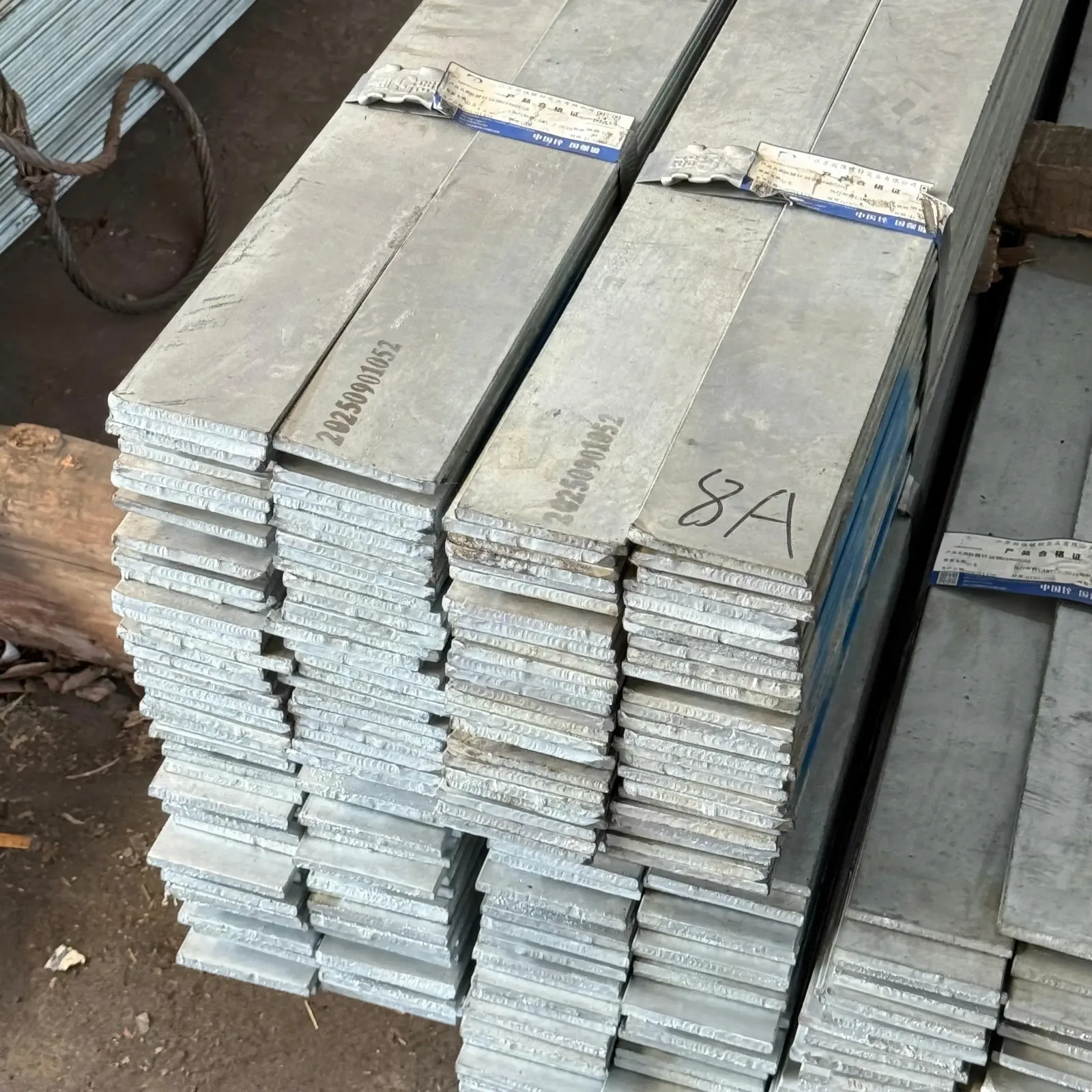

- Custom cut-to-length flat bars packed separately with heat number and steel grade stenciled on each bundle for site identification
- FOB Jinan / Qingdao, CIF, and DDP delivery terms available with real-time container tracking to 50+ countries
Request a Project-Specific Quote for Your Flat Bar Package
Send your flat bar specifications — width, thickness, length, steel grade, zinc coating requirement, and destination port — and receive a detailed quotation with mill test certificate sample and typical production lead times within 12 hours. Non-standard dimensions and processing requirements (cutting, punching, bending) are quoted against your drawings.
Get Your Galvanized Flat Bar Quotation Today
Submit your specifications and destination to receive pricing, coating verification data, and certification documents.
Email: admin@sdxjysteel.com | WhatsApp: +86 188 5315 7756 | Tel: +86 531 8573 6315
Frequently Asked Questions
Q: What is the difference between hot dip galvanized and electro-galvanized flat bars for outdoor structural use?
A: Hot dip galvanized flat bars in Z121–Z180 coating provide a metallurgically bonded zinc-iron alloy layer that offers superior corrosion resistance for outdoor and industrial environments compared to electro-galvanized coatings, which are thinner and suited mainly for indoor decorative applications.
Q: Can you produce flat bars in non-standard widths and thicknesses outside your listed range?
A: Yes. Our hot rolling lines can produce custom widths from 45 mm to 2200 mm and thicknesses from 0.15 mm to 6.00 mm. For dimensions outside these ranges, we evaluate feasibility against your drawing and provide a technical response with lead time.
Q: How do you verify that the zinc coating meets Z121–Z180 requirements?
A: Each production batch is tested in our in-house laboratory using the gravimetric method per relevant standards. The mill test certificate states the actual coating weight, and third-party inspection by SGS or BV is available upon request for independent verification.
Q: Do you provide cutting, bending, and punching services for galvanized flat bars?
A: Yes. We offer in-house processing services including decoiling, cutting to length, bending, punching, and welding. Processing is completed before galvanizing where possible to ensure full zinc coverage on cut edges, or touch-up per ASTM A780 is applied for post-galvanizing work.
Q: Can you supply CE and ISO certificates required for customs clearance in the EU?
A: Yes. Our products carry CE certification under EN 10210 / EN 10219 and ISO 9001:2015 quality certification. The full documentation package including mill test certificates, packing list, bill of lading, and certificate of origin is provided for every shipment to support customs clearance.
