Description

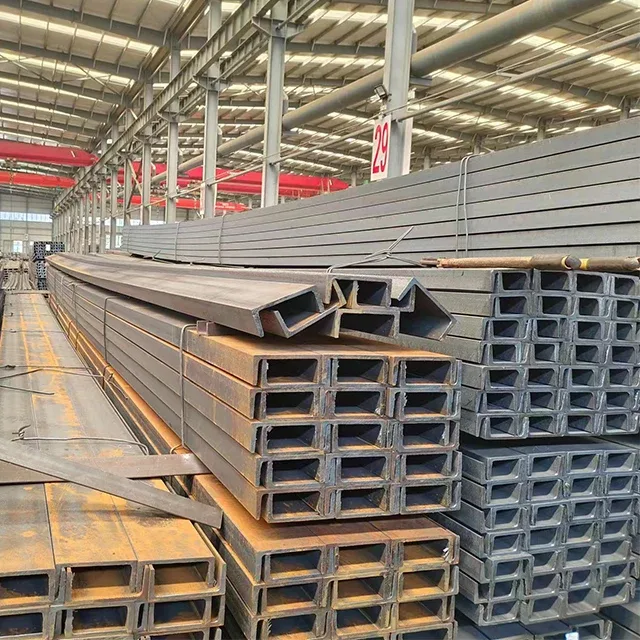

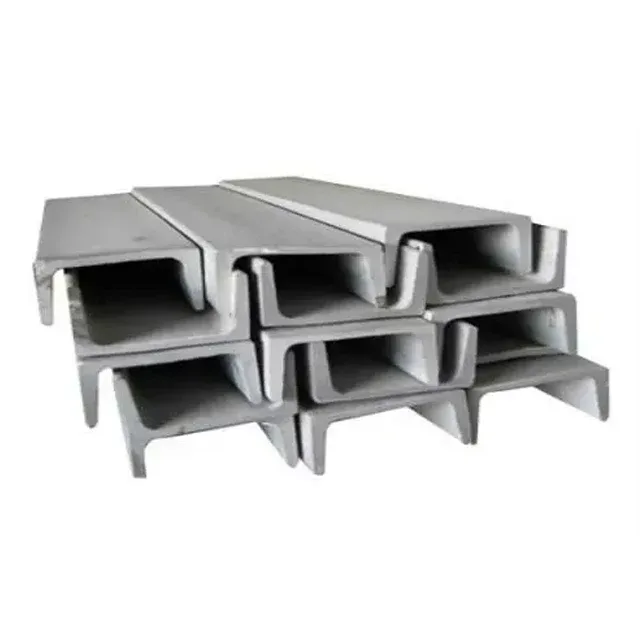

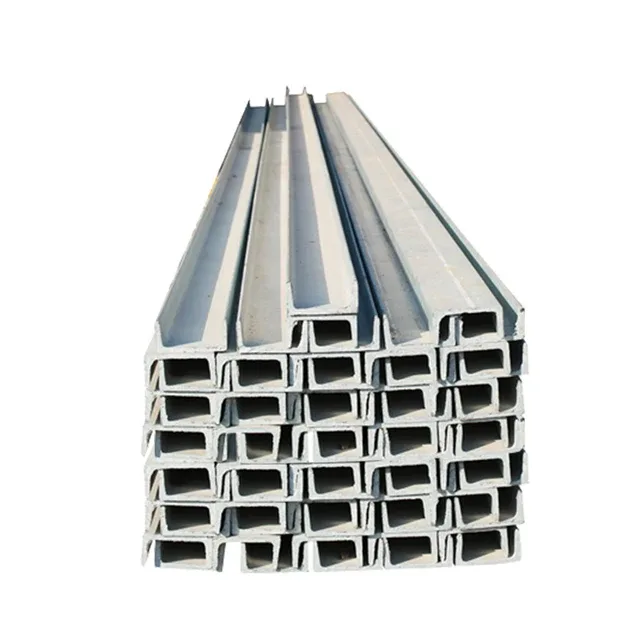

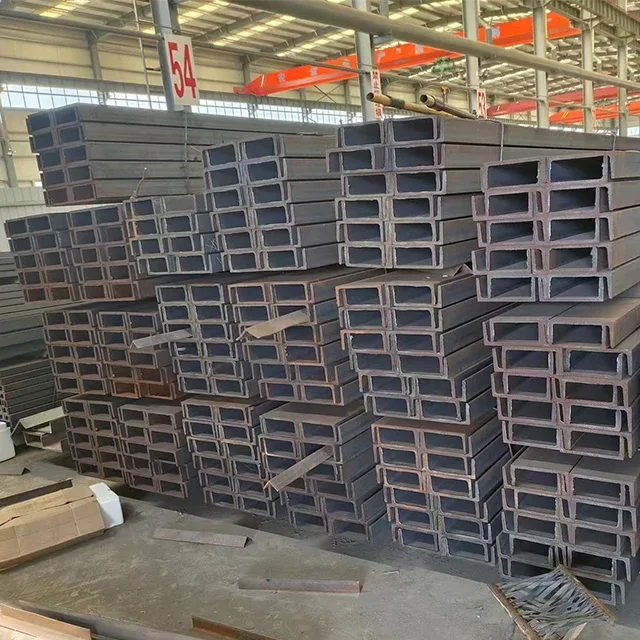

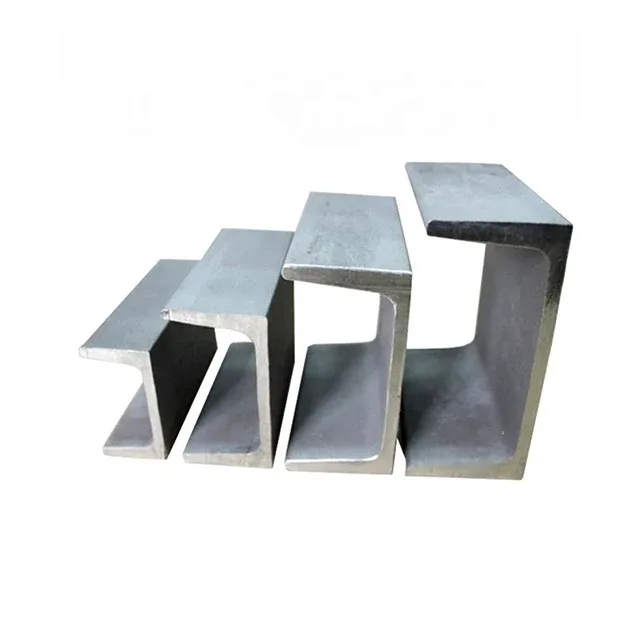

Factory-direct Q235B Q345B U C channel steel — Hot rolled sections from 5# to 40# shipped with full mill test certificates and CE compliance to 50+ countries.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B/Q345B U/C Channel Steel |
| Product Type | U / C Channel Steel |
| Steel Grade | Q235B, Q345B, SS400 |
| Standard | AISI, ASTM, BS, DIN, JIS, EN, GB |
| Section Shape | U / C Channel |
| Size Range | 5#–40# (GB: 100×48mm–400×102mm / JIS: 50×25mm–250×90mm) |
| Length | 1–12m / 6m / 12m / customized |
| Technique | Hot Rolled |
| Surface Treatment | Black / Bright / Galvanized / Painted |
| Tolerance | ±1% |
| Processing Service | Bending, Welding, Punching, Decoiling, Cutting |
| Application | Building structures, vehicle manufacturing, industrial structures, solar mounting brackets |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Industrial building frames, warehouse purlin systems, equipment support structures |
| Solar Energy | PV mounting bracket rails, panel support channels, ground-screw base connections |
| Vehicle Manufacturing | Truck chassis cross-members, trailer side rails, cargo bed framing |
| Construction | Scaffold uprights, mezzanine floor beams, curtain wall sub-frames |
| Machinery | Conveyor frame rails, crane runway beams, hoist support channels |
Where Certification Gaps Turn a Channel Steel Order into a Customs Nightmare
Missing or incomplete mill test certificates are the single most common reason section steel gets held at destination ports.
I have seen entire container loads of C-channel sit in a Middle Eastern port for six weeks because the supplier’s test report listed chemical composition but omitted yield strength and elongation data. The importer’s customs broker could not match the paperwork to EN 10219 requirements, and the cargo was flagged for re-inspection. By the time the documents were corrected and re-issued, the project’s foundation crews had already moved on to another site. When you source Q235B Q345B U C channel steel supplier from a factory without an in-house laboratory, you inherit that risk — every heat number, every batch, every shipment. [NEED_CITE: EN 10219 cold-formed and hot-rolled structural section documentation requirements]
How Hot Rolled Channels Fit Solar Mounting and Structural Frame Demands
Solar mounting systems demand channels that hold their geometry under decades of wind load and UV exposure. Our Q235B Q345B U C channel steel supplier hot rolled sections arrive with ±1% dimensional tolerance, meaning bracket rails seat flush against bolt holes drilled to JIS or GB templates — no on-site shimming. For ground-mount arrays in coastal Southeast Asia, we supply hot-dip galvanized C-channel with zinc coating verified before loading, because I learned the hard way that paper-thin galvanization fails within one monsoon season. The same Q345B grade serves EPC contractors building warehouse purlin systems where higher yield strength reduces section weight without sacrificing load capacity.
Engineering Compliance and Surface Treatment Selection Across Export Markets
Structural channels exported to the European market must carry CE marking under EN 10210 or EN 10219, and customs authorities in Germany, the Netherlands, and Spain routinely request the Declaration of Performance alongside the mill certificate. [NEED_CITE: CE marking requirements for structural steel under EN 10210 and EN 10219] For North American EPC projects, ASTM A36 or A572 equivalence to Q235B and Q345B must be documented on the test report. Surface treatment selection depends on the corrosion environment: black or bright finish suits indoor industrial structures where paint will be applied on-site; hot-dip galvanized channels are mandatory for outdoor solar mounts and coastal construction; painted finishes provide an additional barrier for aggressive chemical plant environments. Custom cut-to-length service at 6m or 12m reduces on-site welding and waste. [NEED_CITE: steel grade equivalence tables between GB Q-series and ASTM/EN standards]
Steel Grade Selection: Q235B vs Q345B vs SS400 and What It Means for Load-Bearing
Q235B is the baseline carbon structural steel in the GB system, widely specified for general building frames and non-critical load paths. Q345B offers higher yield strength, allowing engineers to reduce section size or span length in purlin and girt applications — a meaningful cost saving on large-scale warehouse projects. SS400, the JIS equivalent, is frequently requested by Japanese-specification projects across Southeast Asia and the Pacific Islands. The hot rolling process ensures uniform grain structure through the web and flange, which matters when channels are bent or punched for bolted connections — cold-formed alternatives can crack at tight radii if the inner fiber exceeds the material’s elongation limit. Wall thickness tolerance of ±1% means the theoretical weight per meter stays consistent, so structural calculations based on catalog data match the delivered product.
The Hidden Cost of Buying Channel Steel Without Verified Traceability
Ordering section steel based on price alone, without confirmed heat-number traceability and independent test verification, shifts risk downstream. A batch of Q345B channel that fails to meet the specified yield strength will not show the problem until the structural engineer’s inspector tests a coupon on-site — at which point the entire shipment may be rejected, the project timeline delayed, and the replacement cost absorbed by the buyer. Certification gaps also trigger customs holds: shipments without proper CE documentation cannot clear EU borders, and missing SGS or BV inspection reports cause rejection at destination. [NEED_CITE: consequences of non-compliant structural steel in international construction projects]
Why Global Buyers Source Q235B Q345B U C Channel Steel From Our Mill
We operate three dedicated production lines with in-house physical and chemical laboratories that test every heat before release — no batch leaves without a verified mill test certificate. Our 2,800+ specification range covers the full 5# to 40# channel size spectrum in Q235B, Q345B, and SS400, so EPC contractors sourcing channels, I-beams, and fabricated components deal with a single factory and a single quality standard. We hold CE certification under EN 10210/10219, ISO 9001:2015, and Singapore FPC, and accept third-party inspection through SGS and BV at the buyer’s request. Custom non-standard lengths, punched holes, and welded assemblies are produced in-house, eliminating the coordination risk of multi-supplier orders. Professional loading plans optimize container weight for heavy section steel, and we ship FOB, CIF, or DDP to 50+ countries with full document packages.
Documentation & Compliance
- Mill test certificate documenting Q235B/Q345B chemical composition and mechanical properties per GB/T 700 and GB/T 1591, with heat number traceability
- CE certificate under EN 10210/10219 for structural steel sections exported to European Union markets
- ISO 9001:2015 quality management system certificate covering hot rolled channel production
- SGS or BV third-party inspection report available for pre-shipment verification of dimensions, surface finish, and mechanical properties
- Material traceability by heat number stamped on each channel, cross-referenced to the mill test certificate
- Full customs document package: packing list, bill of lading, certificate of origin, and commercial invoice
Packaging, Loading & Delivery
- Hot rolled Q235B/Q345B channels bundled with steel strips in seaworthy packages, with wooden or rubber edge protectors to prevent coating damage on galvanized finishes
- Galvanized C-channel and U-channel bundled separately with waterproof wrapping to preserve zinc coating integrity during ocean transit
- Custom cut-to-length channels at 6m or 12m loaded with optimized container stowage plans to maximize weight utilization for heavy section steel
- Each bundle labeled with heat number, steel grade (Q235B/Q345B/SS400), size designation, and length for on-site identification
- FOB, CIF, and DDP shipping terms available with real-time tracking to ports across the EU, Middle East, Southeast Asia, and South America
Start Your Channel Steel Procurement With Verified Documentation
Submit your specification sheet — including channel type (U or C), size designation, steel grade, quantity, surface treatment, and destination port — and receive a detailed quotation with delivery timeline and applicable certification within 12 hours. Request mill test certificates from previous batches, confirm third-party inspection arrangements, or discuss custom length and processing options directly with our engineering team.
Get Your Q235B Q345B Channel Steel Quote With Full Mill Test Certificates
Send your specifications via email or WhatsApp to receive pricing, certification details, and delivery options for your next project.
Contact Us
Company: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.sdxjysteel.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@sdxjysteel.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What is the difference between Q235B and Q345B for channel steel applications?
A: Q235B is a standard carbon structural steel suitable for general building frames and non-critical load paths. Q345B offers higher yield strength, allowing engineers to reduce section size or increase span length in purlin, girt, and heavy structural applications. The choice depends on your structural design loads and local building code requirements.
Q: Can you provide third-party inspection and mill test certificates for customs clearance?
A: Yes. Every batch of Q235B Q345B U C channel steel is accompanied by a mill test certificate documenting chemical composition and mechanical properties with heat number traceability. We also accept SGS or BV third-party inspection at the buyer’s request, and provide CE certification under EN 10210/10219 for European market compliance.
Q: What surface treatment is best for outdoor solar mounting structures?
A: Hot-dip galvanized finish is recommended for outdoor solar mounting brackets and coastal construction, as it provides long-term corrosion resistance. Black or bright finish is suitable for indoor applications where paint will be applied on-site. Painted finish offers an additional protective barrier for aggressive environments.
Q: What is the MOQ for custom lengths and non-standard channel sizes?
A: We produce custom lengths from 1m to 12m and non-standard sizes based on your drawings. MOQ varies by specification and processing requirements — contact us with your detailed specification sheet for a precise answer.
Q: How do you handle loading optimization and logistics for heavy section steel?
A: Our logistics team prepares professional loading plans that maximize container weight utilization for heavy channel steel shipments. We offer FOB, CIF, and DDP terms with real-time tracking, and ship to 50+ countries including the EU, North America, Middle East, Southeast Asia, and South America.
Source Q235B Q345B U C channel steel with complete traceability and global delivery — send your specifications today for a detailed quotation and certification package.
