Description

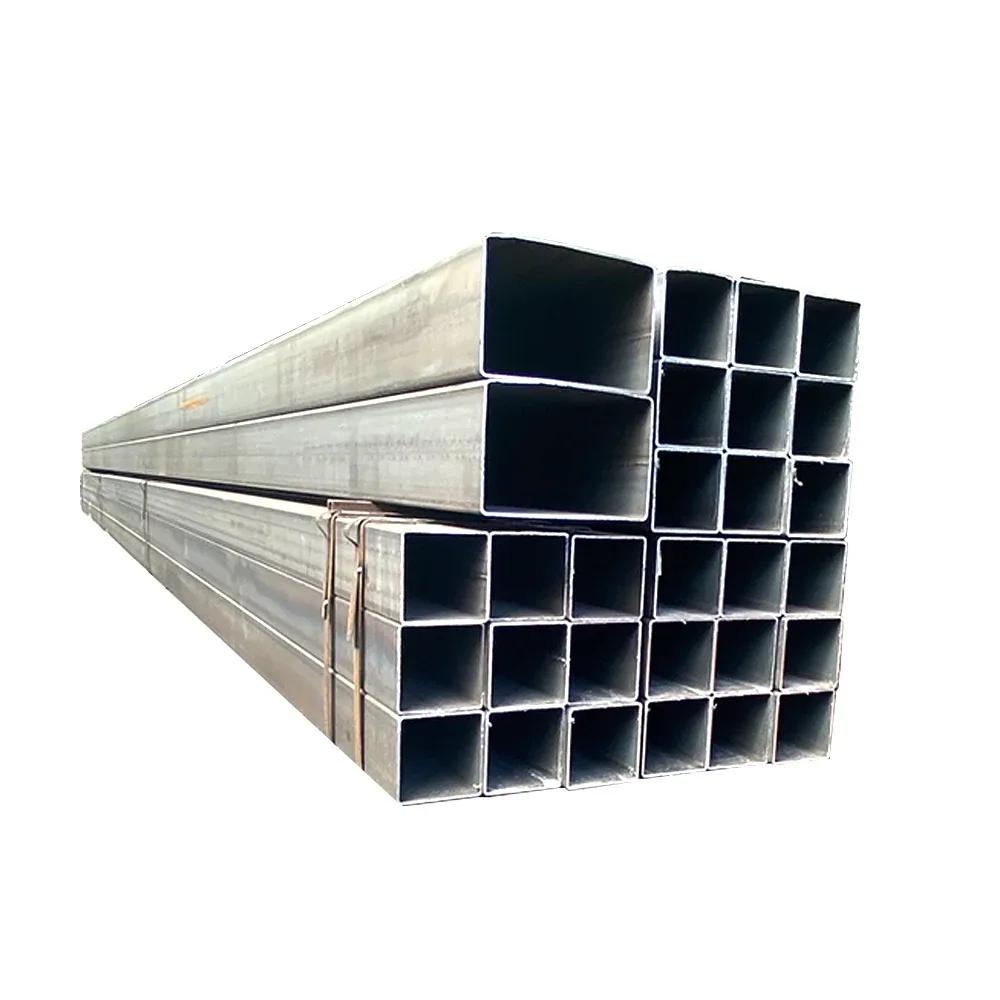

Factory-Direct Q235 Welded Square Steel Pipe Pricing — Every Q235 welded square steel pipe rolls off our own ERW lines, so you pay mill price with no trading markup.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235 Welded Square Steel Pipe |
| Product Type | Welded Square Steel Pipe (ERW) |
| Steel Grade | Q195, Q215, Q235, Q255, Q275 |
| Standard | ASTM, JIS, DIN, GB |
| Section Shape | Square |
| Size Range | 300×300 mm to 500×500 mm |
| Wall Thickness | 0.5–30 mm |
| Length | 6–12 m (customizable) |
| Technique | Hot Rolled / Cold Rolled (Welded) |
| Surface Treatment | Black / Oiled (as supplied) |
| Tolerance | ±1% |
| Ends | Plain / Beveled (customizable) |
| Application | Steel structures / Building frames / Bridges / Boilers / Shipbuilding / Roofing / Construction |
| MOQ | 5 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Industrial plant steel frames, pipe rack supports, equipment platforms |
| Construction Companies | High-rise building column frames, bridge truss members, roofing purlin systems |
| Machinery Manufacturers | Conveyor base structures, crane boom sections, equipment support legs |
| Infrastructure Developers | Sound barrier posts, highway sign gantries, solar mounting structures |
What Negative Tolerance Overruns Cost on a 300×300 Structural Frame Order
A 1.2 mm wall-thickness deviation on a 300×300 Q235 welded square steel pipe can shift actual weight by over two tons per container — and trigger full-cargo rejection at third-party inspection.
I watched a 300×300 square pipe shipment get turned back at the destination port because the wall thickness ran past the negative tolerance limit. The buyer’s surveyor weighed every piece, found the discrepancy, and the entire container had to be stripped and reloaded. That kind of failure doesn’t just waste freight cost — it stalls the erection schedule and forces emergency re-procurement. Quality uncertainty on structural hollow sections remains one of the most frequent causes of project delays across developing construction markets [NEED_CITE: quality compliance risks in imported structural steel hollow sections].
How 300×300 to 500×500 Q235 Welded Square Steel Pipe Fits Structural Frame Engineering
Large-dimension square hollow sections in the 300×300 to 500×500 range carry primary column and beam loads in industrial frames and high-rise structures. The Q235 grade delivers adequate yield strength for general construction while remaining weldable and formable on-site. Our ERW welding process produces a continuous longitudinal seam that runs through the full length of each Q235 welded square steel pipe, ensuring uniform load distribution across the cross-section. For projects in coastal or high-humidity environments, the black or oiled surface can be upgraded to hot-dip galvanizing to extend corrosion resistance without changing the structural geometry.
Structural Code Compliance and Certification Pathways for Q235 Hollow Sections
Engineering specifications for steel structures typically reference EN 1993 or AISC 360, which require documented material properties and traceable heat numbers for every load-bearing member. Q235 corresponds broadly to S235JR under EN 10219 and ASTM A36 under US standards, though exact chemical composition and impact testing requirements differ [NEED_CITE: steel grade equivalence between GB Q235, EN S235JR, and ASTM A36]. For EU-bound projects, CE marking under EN 10210 or EN 10219 is mandatory for structural hollow sections — without it, customs will hold the shipment regardless of physical quality. Our in-house physical and chemical laboratory tests every heat before release, and the mill test certificate follows each Q235 welded square steel pipe to the job site.
Understanding Q235 Grade Selection and ERW Welding for Square Hollow Sections
Q235 sits in the middle of the Chinese carbon steel grade range from Q195 to Q275, offering a balance between forming ease and structural strength. The “Q” prefix indicates yield point in MPa under the GB standard system, making Q235 suitable for general-purpose structural frames where extreme load or low-temperature impact resistance is not the primary design driver. The ERW (Electric Resistance Welding) process forms the square profile by progressively rolling a flat strip through成型 stands and fusing the seam without filler metal — this keeps production costs lower than seamless while maintaining dimensional accuracy across the 0.5–30 mm wall thickness range. Wall thickness tolerance of ±1% means a nominal 10 mm wall measures between 9.9 mm and 10.1 mm, keeping theoretical weight calculations reliable for structural engineering take-offs. For applications requiring sharper internal corner radii — such as bolted connections or flush-mounted bracket plates — proprietary sharp-corner forming technology produces tighter corner profiles than conventional ERW dies, improving joint fit-up and load transfer [NEED_CITE: sharp-corner rectangular tube forming technology advantages in structural connections].
The Hidden Costs of Buying Q235 Welded Square Steel Pipe Without Verified Documentation
Purchasing structural hollow sections without mill test certificates or third-party inspection reports creates compounding risks downstream. Material grade substitution — where Q195 is shipped under a Q235 label — reduces actual yield strength and can cause structural members to fail load testing during project acceptance. Missing CE or SGS documentation triggers customs holds that delay cargo release by weeks, generating demurrage charges that often exceed the pipe cost itself. Negative tolerance violations inflate the piece count needed to meet design weight requirements, forcing reorder cycles that push back erection timelines. Engineering codes and international procurement standards explicitly require traceable certification for load-bearing steel members [NEED_CITE: certification and traceability requirements for imported structural steel in international EPC projects].
Why Procurement Teams Source Q235 Welded Square Steel Pipe From Our Mill
Every Q235 welded square steel pipe we ship comes directly from our three dedicated production lines in Jinan — there is no trading company margin layered into the price. Our in-house laboratory performs chemical analysis and mechanical testing on every heat, producing mill test certificates that trace back to the original slab. We hold 41 invention patents, including proprietary sharp-corner rectangular tube technology that fills specification gaps unavailable from other domestic mills. The full product range covers over 2,800 specifications across square, rectangular, and round profiles, meaning a single purchase order can consolidate beams, columns, and bracing members without splitting across multiple suppliers. CE certification under EN 10210/EN 10219, ISO 9001:2015 registration, and SGS/BV third-party verification ensure that documentation clears customs in the EU, North America, and Middle East without delay. We export to over 50 countries with professional container loading plans that maximize payload per shipment, and our logistics team coordinates FOB, CIF, and DDP terms door-to-door.
Documentation & Compliance
- Mill test certificate documenting Q235 chemical composition (C, Mn, Si, S, P) and yield/tensile strength per GB/T 700 and EN 10219 equivalence
- CE certificate under EN 10210/EN 10219 for structural hollow sections exported to EU member states
- ISO 9001:2015 quality management system certificate covering the full ERW square pipe production process
- SGS or BV third-party inspection report available upon request for pre-shipment quality verification
- Heat number traceability stamped on each pipe end, matching the mill test certificate batch record
- Export customs documents including packing list, bill of lading, and certificate of origin for destination clearance
Packaging, Loading & Delivery
- Q235 welded square steel pipes in 300×300 to 500×500 mm dimensions bundled with galvanized steel strips at intervals to prevent shifting during ocean transit
- Black or oiled surface finish protected by waterproof wrapping and edge guards to prevent corner damage and moisture ingress during container loading
- Container loading plans optimized for 6–12 m lengths in 20ft and 40ft units, maximizing tonnage per shipment while respecting port weight restrictions
- Custom cut-to-length service available for 300×300 and 500×500 sections, with saw-cut ends deburred and marked per drawing specifications
- Heat number, steel grade Q235, and dimension markings stenciled on each pipe bundle for on-site identification and inspection traceability
- FOB Jinan/Qingdao, CIF destination port, or DDP door-to-door delivery coordinated with forwarders experienced in heavy structural steel cargo
Getting Your Q235 Welded Square Steel Pipe Quote Started
Send your specification sheet — including section size, wall thickness, total tonnage, steel grade, and destination port — and our team returns a detailed quotation within 12 hours covering unit price, production lead time, payment terms, and applicable certification scope. For non-standard dimensions outside the 300×300 to 500×500 range, we provide custom forming feasibility assessments and MOQ confirmation. You can also request sample sections and original mill test certificates before contract signing to verify material quality independently.
Frequently Asked Questions
Q: How does Q235 compare to ASTM A36 or S235JR for structural applications?
A: Q235 is the Chinese GB standard equivalent, with similar carbon content and yield strength range to S235JR (EN) and ASTM A36. Chemical composition and impact testing requirements differ slightly between standards, so project engineers should confirm which grade designation the structural drawings specify. We provide mill test certificates showing actual test values so you can verify compliance against your design code.
Q: Can you produce non-standard sizes beyond 300×300 and 500×500 mm?
A: Yes. Our production lines cover over 2,800 specifications across square, rectangular, and round profiles with wall thickness up to 30 mm. For dimensions outside the standard range, we evaluate forming feasibility and provide MOQ and lead time confirmation based on the specific cross-section requested.
Q: What certifications come with each shipment of Q235 welded square steel pipe?
A: Every shipment includes a mill test certificate traceable to the heat number, covering chemical composition and mechanical properties. For EU projects, CE marking under EN 10210/EN 10219 is provided. Third-party inspection reports from SGS or BV are available upon request for pre-shipment verification.
Q: How do you handle container loading for large-dimension square pipes like 500×500 mm?
A: Large square sections require careful weight distribution and nesting optimization to maximize container payload without exceeding axle weight limits at destination. Our logistics team prepares loading plans specific to the ordered dimensions and lengths, coordinating with forwarders for FOB, CIF, or DDP delivery.
Q: What is the minimum order quantity for Q235 welded square steel pipe?
A: The MOQ is 5 tons per order. For custom non-standard dimensions or special surface treatment requirements, MOQ may vary depending on the forming setup needed — we confirm this during the quotation stage.
Get Your Q235 Welded Square Steel Pipe Quote With Mill Test Certificate
Submit your specifications — section size, wall thickness, quantity, and destination — to receive a factory-direct quotation with full certification documentation within 12 hours.
