Description
Factory-Direct Large Diameter SSAW Steel Pipe — We manufacture Q235/Q345 and API 5L GR A through X70 SSAW pipes up to 3048mm OD on three dedicated production lines, eliminating middleman markups and ensuring mill-level traceability from slab to shipment.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235/Q345 SSAW Steel Pipe |
| Product Type | Round Steel Pipe (SSAW) |
| Steel Grade | Q235, Q345, L175, L210, L245, L320, API 5L GR A, GR B, X42, X46, X52, X56, X60, X65, X70 |
| Standard | API 5L, GB, ASTM A36 |
| Section Shape | Round |
| Outer Diameter | 219–3048 mm |
| Wall Thickness | 5–25.4 mm |
| Length | Customer’s Request |
| Technique | SSAW (Spiral Submerged Arc Welding) |
| Surface Treatment | Hot Rolled |
| Tolerance | ±1% |
| Ends | Plain / Beveled (per request) |
| Application | Fluid transportation / Gas pipeline / Water supply / Bridge construction / Building structure / Oil & gas transmission |
| MOQ | 5 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Long-distance water transmission mains and gas distribution networks requiring API 5L certified large-diameter pipe |
| Construction Companies | Bridge piers, wharf fender systems, and infrastructure foundations where structural round pipe carries compressive and lateral loads |
| Industrial Distributors | Regional stockists supplying OD 219–3048mm SSAW pipe to municipal and industrial end-users across developing markets |
| Oil & Gas Operators | Onshore gathering lines and low-pressure transmission pipelines conforming to API 5L GR B through X70 |
Why Large Diameter SSAW Steel Pipe Tolerance Drives Project Cost Overruns
A ±1% OD tolerance on a 3048mm pipe means ±30mm — enough to misalign flange connections and trigger field rework.
When procurement teams source large diameter SSAW steel pipe from fragmented suppliers, wall thickness often drifts beyond the tolerance band, and mill test certificates arrive with inconsistent heat numbers. I have seen entire shipments held at port because the MTC listed a steel grade that did not match the physical stamp on the pipe ends. The result is not just a customs delay — it is a chain reaction of crane re-mobilization, weld procedure re-qualification, and schedule slippage that dwarfs the original pipe cost. [NEED_CITE: API 5L dimensional tolerance requirements for spiral welded pipe]
Matching Large Diameter SSAW Steel Pipe to Pipeline and Structural Demand
Large diameter SSAW steel pipe in OD 219–3048mm serves two distinct engineering functions. For fluid and gas transmission, the spiral weld seam must pass 100% ultrasonic inspection and the pipe body must meet API 5L hydrostatic test pressure — which is why we run every heat through our in-house physical and chemical laboratory before release. For bridge and building structures, the same SSAW process delivers the section modulus that designers need, with beveled ends ready for full-penetration butt welds on site. Our production lines cover Q235 through X70 in a single order, so EPC contractors do not have to split procurement across multiple mills.
Engineering Compliance and Certification Pathways
Large diameter SSAW steel pipe exported to the EU must carry CE marking under EN 10219 or EN 10210, while North American projects typically require ASTM A36 or API 5L documentation. The steel grade selection directly affects structural design: Q235 and API 5L GR B serve general structural and low-pressure pipeline applications, while X42 through X70 grades are specified for higher-pressure oil and gas transmission where yield strength and Charpy impact toughness become critical. Third-party inspection via SGS or BV is available per heat, and every pipe is traceable by heat number from slab to finished length. [NEED_CITE: EN 10210 hot-finished structural hollow section certification requirements]
Steel Grade and SSAW Process Fundamentals

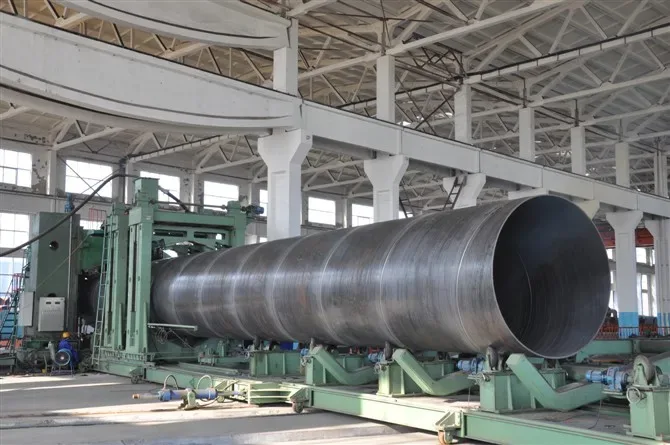

The Q-series (Q235, Q345) follows the Chinese GB standard system where the number indicates minimum yield strength in MPa, making it directly comparable to S-series grades in EN standards and to ASTM A36 in the US system. API 5L GR A, GR B, and X42 through X70 follow a different naming convention but serve the same pipeline engineering function — the X-number indicates minimum yield strength in ksi multiplied by 100. The SSAW process forms the pipe from coiled plate in a continuous spiral, which allows economical production of large diameters up to 3048mm from a single plate width. The spiral submerged arc weld is made from both inside and outside, and the helical seam geometry actually distributes residual stress more evenly than a longitudinal seam in certain loading conditions. Hot rolled surface treatment leaves a mill scale finish suitable for most buried or indoor applications; for aggressive environments, 3PE or epoxy coating can be applied as a secondary operation.
Hidden Costs of Specifying the Wrong Grade or Skipping Certification
Ordering Q235 when the design calls for Q345 or API 5L X42 means the pipe will fail structural verification on site — and replacing installed pipe in a bridge pier or buried pipeline is exponentially more expensive than paying the grade differential at the mill. Missing or mismatched mill test certificates cause customs holds in the EU and Middle East, where port authorities cross-check MTC heat numbers against physical pipe markings. Pipes produced outside the ±1% tolerance band may pass visual inspection but fail ultrasonic testing at the weld seam, forcing costly field repairs or outright rejection. [NEED_CITE: consequences of non-conforming steel grade in structural engineering projects]
Why Procurement Teams Choose Our Mill for Large Diameter SSAW Steel Pipe
We operate three dedicated SSAW production lines covering OD 219–3048mm and wall thickness up to 25.4mm, with in-house physical and chemical laboratories that test every heat for composition, tensile properties, and weld integrity before release. Our mill holds ISO 9001:2015 certification, Lloyd’s Register EU CE marking, and Singapore FPC approval, with additional verification available through SGS and BV. As a factory-direct supplier, we quote without broker margins and provide complete documentation packages — MTC, packing list, bill of lading, and certificate of origin — in a single submission. Custom non-standard lengths, beveled or plain ends, and mixed-size container loading plans are handled by our logistics team, which has shipped to 50+ countries across the EU, North America, Middle East, and Southeast Asia.
Documentation & Compliance
- Mill Test Certificate documenting Q235/Q345 or API 5L GR B through X70 chemical composition, yield strength, tensile strength, and elongation per heat number
- CE certificate under EN 10210 or EN 10219 for shipments entering the European Economic Area
- ISO 9001:2015 quality management system certificate covering the full SSAW production process
- SGS or BV third-party inspection report available per heat, covering dimensional check, weld NDT, and mechanical testing
- Material traceability by heat number stamped on each pipe end, linked to the corresponding MTC
- Customs document package including packing list, bill of lading, and certificate of origin formatted for destination port requirements
Packaging, Loading & Delivery
- Hot rolled SSAW pipes bundled with steel strips and edge protectors to prevent coating damage and maintain bundle integrity during ocean transit
- Plain or beveled ends fitted with plastic caps to protect thread geometry and prevent moisture ingress during storage and shipping

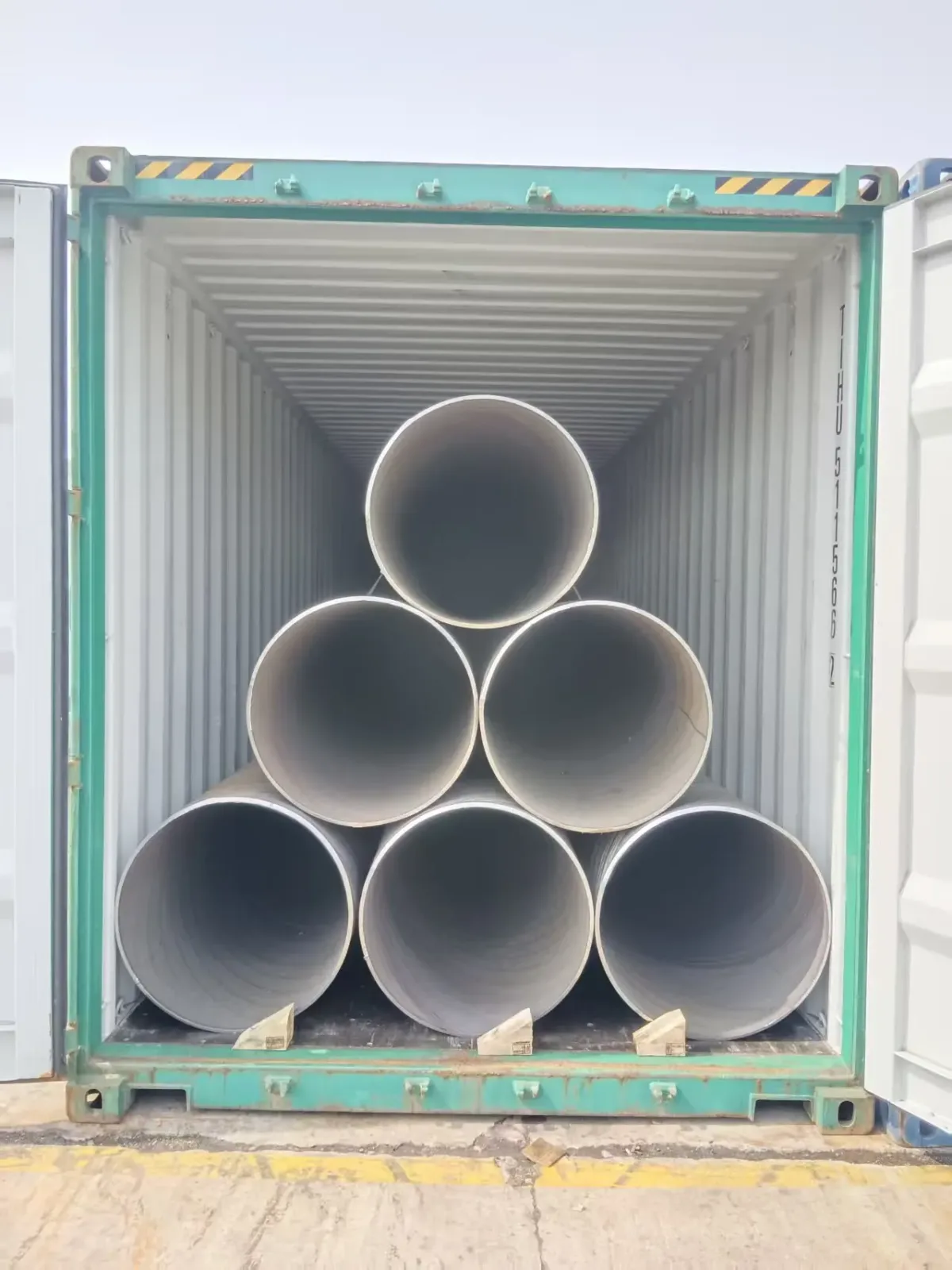

- Mixed-diameter container loading plans optimized for OD 219–3048mm pipes, maximizing payload per 40ft OT or flat rack container
- Custom cut lengths per customer request, with each bundle tagged by heat number, steel grade, and size for site identification
- FOB, CIF, and DDP shipping terms available, with door-to-door logistics coordination to final project site across 50+ countries
Getting a Quote for Your Large Diameter SSAW Steel Pipe Requirement
Submit your specification sheet — including OD, wall thickness, steel grade, length, quantity, and destination port — and our team will return a detailed quotation within 12 hours, complete with unit pricing, production lead time, applicable certification, and mill test certificate confirmation. For non-standard sizes or mixed-grade orders, we provide custom loading plans and technical documentation to ensure smooth customs clearance at your destination.
Frequently Asked Questions
Q: What is the difference between SSAW and LSAW for large diameter pipes?
A: SSAW (Spiral Submerged Arc Welding) forms pipe from coiled plate in a continuous spiral, allowing economical production of large diameters up to 3048mm from a single plate width. LSAW (Longitudinal Submerged Arc Welding) uses a single straight seam and is typically used for diameters above 508mm where straight seam geometry is preferred for certain high-pressure applications. Both processes meet API 5L requirements when properly controlled.
Q: Can you provide API 5L certification for export to North America and the Middle East?
A: Yes. Our large diameter SSAW steel pipe is produced under API 5L specification covering GR A, GR B, and X42 through X70 grades. We provide full mill test certificates with chemical composition and mechanical properties per heat, and third-party inspection via SGS or BV is available for independent verification.
Q: What is the MOQ for custom wall thickness and length requirements?
A: The standard MOQ is 5 Tons. For custom wall thickness within the 5–25.4mm range or non-standard lengths, we can accommodate trial orders and provide technical guidance on feasible specifications based on our production line capabilities.
Q: How do you ensure weld quality and material traceability for pipeline applications?
A: Every SSAW pipe undergoes 100% ultrasonic inspection of the spiral weld seam, and our in-house laboratory tests each heat for chemical composition, tensile properties, and impact toughness. Each pipe end is stamped with the heat number, which links back to the original slab test report and the corresponding mill test certificate.
Q: What surface treatment options are available for corrosion protection in offshore environments?
A: Our standard surface treatment is hot rolled finish with mill scale, suitable for buried or indoor applications. For offshore or corrosive environments, we offer 3PE coating, epoxy coating, or galvanizing as secondary operations, applied after SSAW forming and weld inspection to ensure full coverage including the weld seam.
Get Your Large Diameter SSAW Steel Pipe Quote Today
Send your specifications — OD, wall thickness, steel grade, quantity, and destination — to receive pricing, mill test certificate confirmation, and delivery terms within 12 hours.
