Q235 Q345 SSAW Spiral Welded Steel Pipe API 5L ASTM A252 Supplier

Description

Factory-Direct SSAW Pipe Mill — Dedicated spiral welded lines with in-house physical and chemical laboratories ensure every heat of Q235 and Q345 pipe meets API 5L and ASTM A252 before shipment.

Technical Specifications

Application Suitability

What Negative Tolerance on Wall Thickness Costs at Port Inspection

A single heat failing third-party re-inspection can scrap an entire container at the destination port.

During a piling project in Riyadh, a full shipment of SSAW spiral welded steel pipe arrived and the client’s surveyor measured wall thickness below the allowable negative tolerance. The whole lot was rejected before a single length hit the ground. That kind of rejection does not just mean a refund discussion — it means the project crane is idle, the barge is on demurrage, and the replacement cargo has to cross an ocean again. [NEED_CITE: ASTM A252 dimensional tolerance requirements for spiral welded pile pipe] Global EPC buyers increasingly report that inconsistent mill test certificates and missing traceability by heat number trigger customs holds and compliance failures, especially on API 5L and EN-certified pipeline orders.

Matching Large-Diameter Spiral Pipe to Piling and Pipeline Demands

Outer diameters from 219 mm to 4200 mm cover nearly every piling and transmission pipeline scenario an EPC contractor encounters. The SSAW process produces long continuous lengths with helical weld seams that distribute hoop stress evenly, making these pipes suitable for both load-bearing foundation work and pressurized fluid transport. Beveled ends allow direct butt-welding on site, while plain ends suit mechanical coupling systems. Our in-house laboratory tests every production run against API 5L and ASTM A252 requirements before release, so the mill test certificate matches the physical cargo your surveyor measures at the port.

Engineering Compliance and Certification Pathways

Piling contracts typically specify ASTM A252 Grade 2 or Grade 3, while oil and gas transmission lines demand API 5L PSL1 or PSL2 compliance. Selecting the correct steel grade — Q235 mapping to ASTM A252 Grade 2, Q345 aligning with Grade 3 — determines whether the pipe passes structural load calculations at the design stage. [NEED_CITE: steel grade equivalence mapping between GB/T and ASTM standards] For European market projects, CE certification under EN 10219 confirms dimensional and mechanical compliance for customs clearance. Surface treatment selection between bare and painted finishes depends on the corrosion environment: bare pipe suits driven piles where coating damage is inevitable, while painted finishes protect above-ground structural columns and above-water pipeline sections.

Understanding Steel Grade Selection and SSAW Process Characteristics

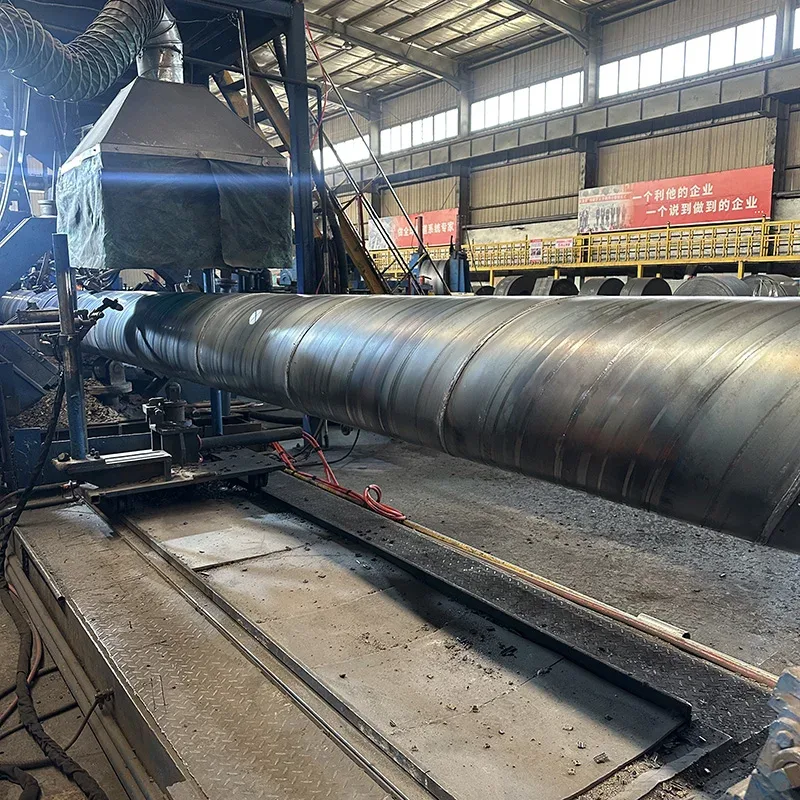

Q235 and Q345 represent the two most widely specified carbon structural grades in Chinese mill production. Q235 provides adequate strength for general piling and low-pressure fluid conveyance, while Q345 delivers higher yield capacity for heavy-load foundation applications and higher-pressure pipeline systems. Both grades map directly to ASTM equivalents — Q235 to A53 Grade B and A252 Grade 2, Q345 to A500 Grade B/C and A252 Grade 3 — simplifying cross-standard specification for international projects. The SSAW spiral welding process forms pipe from coiled steel plate using a helical weld seam, enabling production of large diameters up to 4200 mm that would be impossible with longitudinal ERW mills. [NEED_CITE: SSAW vs LSAW vs seamless pipe manufacturing process comparison] The helical seam geometry distributes residual stress more uniformly than a straight longitudinal weld, which benefits piling applications where the pipe undergoes impact driving forces. Surface treatment options include bare delivery for driven piles, painted finishes for atmospheric corrosion protection, and the pipes can be further coated with 3PE or epoxy by downstream applicators for buried pipeline service.

Hidden Costs When Mill Test Certificates Do Not Match Physical Cargo

Ordering SSAW spiral welded steel pipe based on price alone, without verifying that the mill test certificate corresponds to the actual heat of steel in the container, creates compounding risk. A certificate showing Q345 chemistry while the physical pipe tests as Q235 means the structural engineer’s load calculations are invalid — the foundation may fail inspection, the pipeline may not hold design pressure, and the liability falls on the procurement team who signed off. Missing CE documentation on a European-bound shipment means customs detention, warehouse storage fees, and potential re-export at the buyer’s cost. [NEED_CITE: consequences of non-conforming steel certificates in international construction projects] Third-party inspection by SGS or BV before loading eliminates this risk entirely, because the surveyor measures wall thickness, verifies chemistry, and confirms dimensional tolerance against the stated standard before the container is sealed.

Why Project Procurement Teams Source SSAW Pipe from Xin Jiyuan

Our three dedicated production lines manufacture SSAW spiral welded steel pipe in diameters from 219 mm to 4200 mm, covering the full range from micro-pile casings to major transmission line pipes. The in-house physical and chemical laboratory performs incoming raw material inspection, in-process weld seam testing, and final dimensional verification — every heat receives a mill test certificate documenting chemical composition and mechanical properties before release. We hold CE certification under EN 10210 and EN 10219, ISO 9001:2015 registration, and regular third-party audits by SGS and BV, ensuring documentation satisfies customs and project监理 requirements across 50+ export markets. Our proprietary sharp-corner rectangular tube technology holds 41 invention patents, demonstrating the engineering depth behind our standard pipe production. Custom non-standard diameters and wall thicknesses are available beyond the 2,800+ specification range we maintain in regular production. Professional loading plans optimize container utilization for 6–12 m lengths, and we coordinate FOB, CIF, and DDP logistics to project sites worldwide.

Documentation & Compliance

• Mill test certificate documenting Q235 or Q345 chemical composition and mechanical properties per GB/T 9711-2011 and API 5L, issued per heat number
• CE certificate confirming compliance with EN 10210 and EN 10219 for European market customs clearance and project acceptance
• ISO 9001:2015 quality management system certificate covering the full SSAW spiral welded steel pipe production process
• SGS or BV third-party inspection report verifying wall thickness, outer diameter, and weld seam quality before shipment
• Material traceability documentation linking each pipe length to its heat number, chemical analysis, and tensile test results
• Complete customs document package including packing list, bill of lading, and certificate of origin for destination port clearance

Packaging, Loading & Delivery

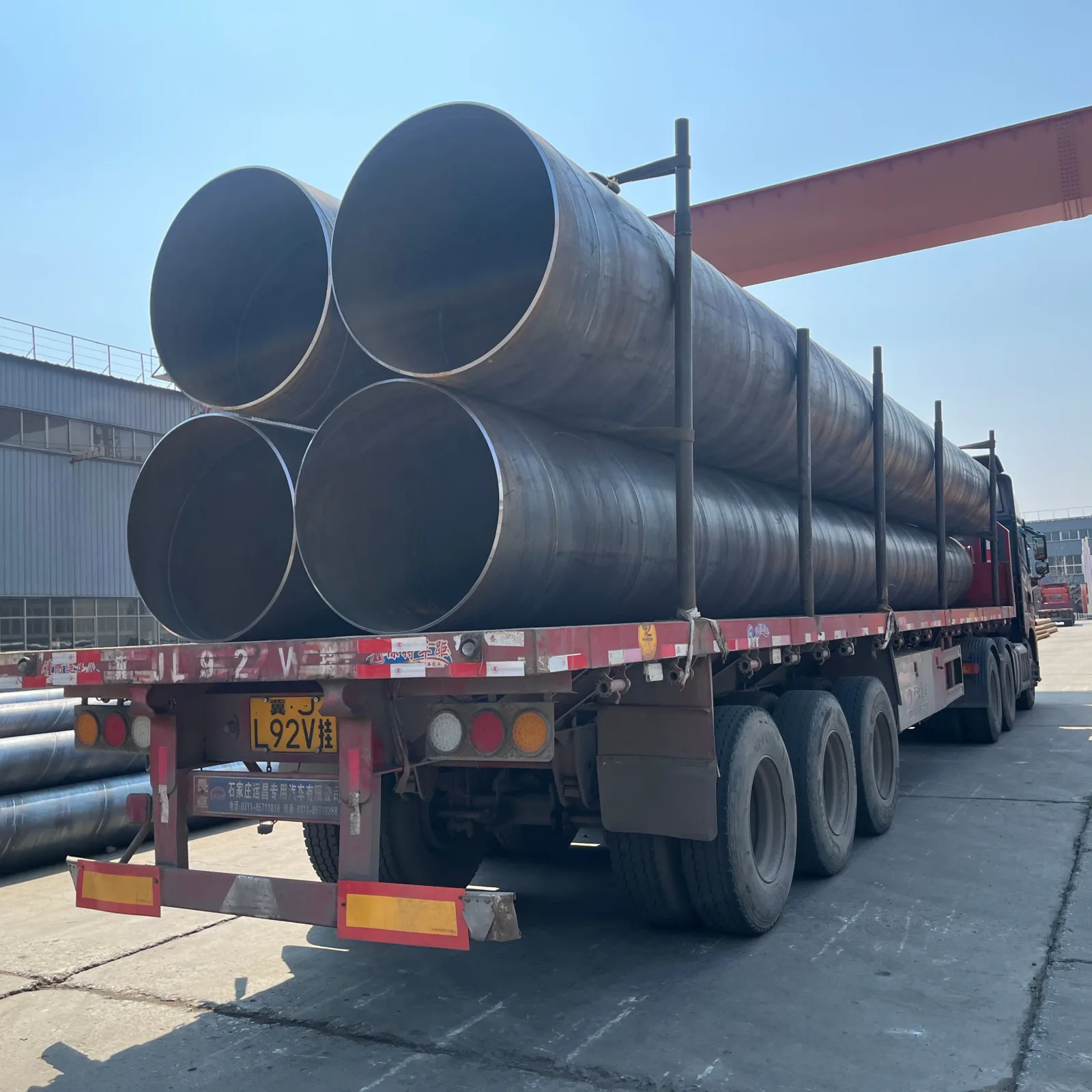

• Bare SSAW spiral welded steel pipe bundled with high-tensile steel strips at intervals suitable for 6–12 m lengths, preventing shifting during ocean transit
• Painted finish pipes receive additional edge protectors and wrapped end caps to preserve surface coating integrity at the beveled or plain ends
• Container loading plans optimized for large-diameter pipe nesting, maximizing payload per 40ft OT or flat rack for diameters above 1000 mm

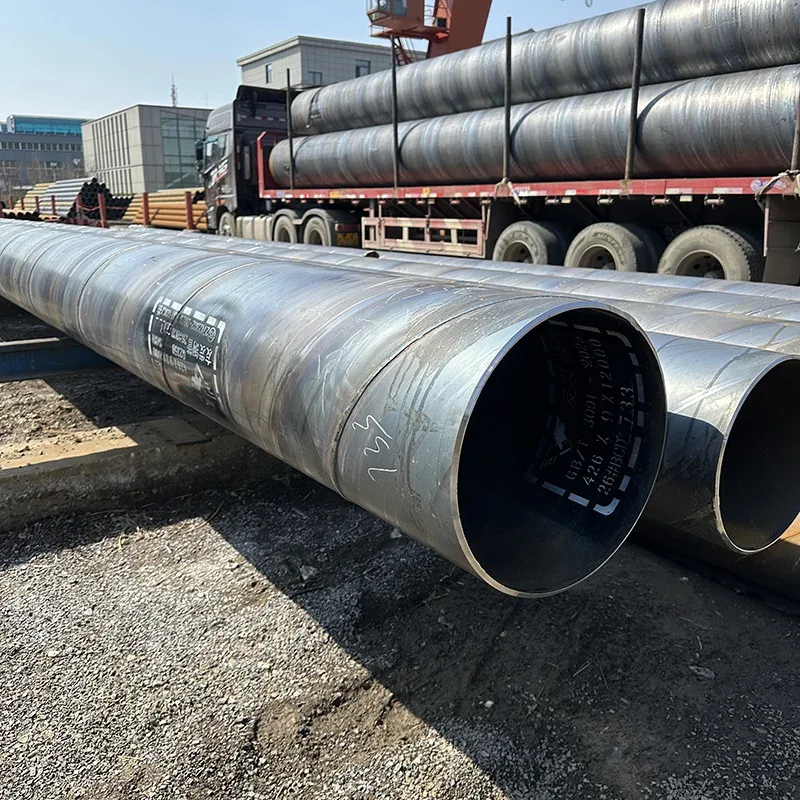

• Heat number and steel grade stenciled on each pipe length in weather-resistant paint, enabling site identification without bundle disassembly
• FOB Jinan or Qingdao port with CIF and DDP options to major project destinations across the Middle East, Southeast Asia, Africa, and South America
• Cut-to-length service available for specific piling or structural requirements within the 6–12 m standard range, reducing on-site waste

Requesting a Quotation with Full Technical Documentation

Submit your required outer diameter, wall thickness, steel grade, quantity, and destination port to receive a detailed quotation including unit pricing, production lead time, and applicable certification scope. We provide original mill test certificates and can arrange SGS or BV third-party inspection before loading to confirm dimensional and chemical compliance. For non-standard diameters or custom lengths outside the 219–4200 mm range, our engineering team reviews feasibility and provides a technical proposal within typical production lead times.

Start Your SSAW Pipe Procurement with Verified Mill Documentation

Send your specification sheet — outer diameter, wall thickness, steel grade, quantity, and destination — to receive a quotation with mill test certificate scope and third-party inspection options.
