Description
Factory-Direct ERW Tubes — Every Q235 and Q345 ERW square rectangular steel tube ASTM standard leaves our Jinan mill with caliper-verified wall thickness and original mill test certificates, eliminating the tolerance surprises that trigger port rejections.
Technical Specifications
| Parameter | Value |
|---|---|

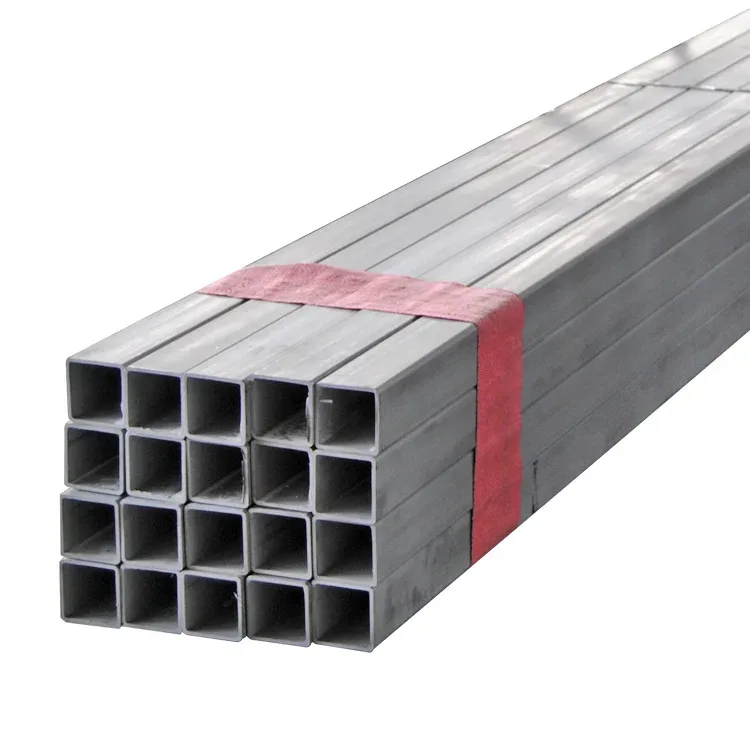

| Designation | Q235/Q345 ERW Square and Rectangular Steel Tube |
| Product Type | Square / Rectangular Steel Tube (Welded / ERW) |
| Steel Grade | Q195, Q215, Q235, Q345 |
| Standard | ASTM, ASTM A213, DIN EN 10217-1 |
| Section Shape | Square / Rectangular |
| Size Range | 300×300mm and custom dimensions per request |
| Length | 6m standard; customer-specific lengths available |
| Technique | ERW (Electric Resistance Welded) |
| Surface Treatment | Hot Rolled; Slightly Oiled |
| Tolerance | ±1% |
| Application | Fluid Pipe, Boiler Pipe, Drill Pipe, Gas Pipe, Oil Pipe, Chemical Fertilizer Pipe, Structure Pipe |
| MOQ | 5 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Fluid and gas transport piping systems for industrial plants and refineries |
| Construction Companies | High-rise building structural frames and bridge support columns |
| Machinery Manufacturers | Conveyor system frameworks and hydraulic equipment support structures |
| Infrastructure Developers | Foundation piling and underground utility conduit systems |
What Negative Tolerance Really Costs on a 300×300 Structural Order
A 0.8mm wall-thickness shortfall on a 300×300 ERW square rectangular steel tube ASTM standard batch can void an entire structural load calculation.
I learned this the hard way years ago when a container of 300×300 tubes arrived at a Middle Eastern port with actual wall thickness measuring 5.2mm against a declared 6mm. The entire shipment was rejected at inspection, dismantled, reloaded, and the port storage fees alone wiped out the margin on that order. Since then, every tube that rolls off our ERW line gets caliper-checked three times before bundling. The ±1% tolerance on our Q235 and Q345 sections is not a marketing line — it is a hard operational discipline born from real losses. [NEED_CITE: EN 10219 dimensional tolerance requirements for cold-formed hollow sections]
How Q235 and Q345 Grades Match Structural Load Requirements
The Q-series grading system follows Chinese national standards where the number indicates minimum yield strength in MPa. For a 300×300 ERW square rectangular steel tube ASTM standard order, Q235 serves general structural framing where moderate load capacity suffices, while Q345 steps up for heavier industrial structures, crane beams, and seismic-zone construction. Our in-house physical and chemical laboratory tests every heat number against both the Chinese standard and the equivalent ASTM or EN designation, so your structural engineer gets data they can sign off on without requesting a second round of independent testing.
Meeting ASTM and EN Compliance for Cross-Border Projects
When your project specification calls for ASTM A213 or DIN EN 10217-1 compliance on ERW welded tubes, the mill test certificate must trace chemical composition and mechanical properties back to the original heat number. Our Q235 and Q345 ERW square rectangular steel tube ASTM standard production runs carry full CE EN 10210/10219 certification for EU market entry, ISO 9001:2015 quality management documentation, and third-party inspection reports from SGS or BV upon request. The hot-rolled surface with slight oiling provides baseline corrosion protection during ocean transit, while the 6-meter定尺 length minimizes on-site cutting waste for standard column and beam configurations. [NEED_CITE: ASTM A213 and EN 10217-1 equivalence for welded steel tubes]
ERW Process, Surface Treatment, and Tolerance — What the Spec Sheet Does Not Tell You
Electric Resistance Welding joins the formed edges through localized heat and pressure without filler metal, producing a clean longitudinal seam suitable for structural and low-to-medium pressure fluid transport. The hot-rolled surface finish on our Q235 and Q345 tubes retains a mill scale layer that, combined with slight oiling, protects against flash rust during typical 30-to-45-day sea freight windows. The ±1% dimensional tolerance means a 300×300 section with 10mm declared wall will measure between 9.9mm and 10.1mm — tight enough for welded moment-frame connections where gap tolerance directly affects joint integrity. For projects requiring sharper corner radii than standard ERW produces, our proprietary sharp-corner rectangular tube technology — one of 41 patented processes — delivers near-90-degree internal corners that improve load transfer at gusset plates and reduce visible gaps in exposed architectural frames.
The Hidden Price of Unverified Wall Thickness and Missing Certificates
Ordering ERW square rectangular steel tube ASTM standard sections without independent mill test verification exposes the project to three failure modes: customs rejection at destination port due to missing CE or ISO documentation, structural load failure when actual wall thickness falls below the negative tolerance threshold allowed by the standard, and project delay when the engineer refuses to sign off on untraceable material. [NEED_CITE: consequences of non-compliant steel imports in international construction projects] A 5-ton MOQ keeps the barrier low, but the cost of a single rejected container — port demurrage, return freight, replacement production — dwarfs any upfront savings from an unverified supplier.
Why Project Procurement Teams Source ERW Tubes from Xin Jiyuan
We operate three dedicated ERW production lines in Jinan with in-house physical and chemical laboratories that test every heat before the tubes leave the mill — no outsourcing the quality gate. Our 2,800+ specification catalog covers standard and non-standard dimensions so your structural engineer does not have to redesign around what happens to be in stock. Factory-direct pricing means no trading company markup, and our export team has shipped ERW square rectangular steel tube ASTM standard orders to 50+ countries across the EU, North America, the Middle East, and Southeast Asia with full customs documentation packages. The proprietary sharp-corner rectangular tube technology fills a gap that standard ERW mills cannot address, and every shipment carries original mill test certificates traceable by heat number.
Documentation & Compliance
- Mill test certificate documenting Q235 and Q345 chemical composition, yield strength, and tensile properties per ASTM A213 and DIN EN 10217-1, traceable by heat number
- CE certificate covering EN 10210 and EN 10219 compliance for EU market customs clearance on welded hollow sections
- ISO 9001:2015 quality management system certificate covering the full ERW production and inspection process
- SGS or BV third-party inspection report available upon request for independent verification of dimensional tolerance and surface quality
- Material traceability documentation linking each bundle to its original heat number, chemical analysis, and mechanical test results
- Full customs document package including packing list, bill of lading, and certificate of origin for destination port clearance
Packaging, Loading & Delivery
- Hot-rolled and slightly oiled Q235/Q345 ERW tubes bundled with steel strips and edge protectors to preserve surface condition during ocean transit
- 6-meter standard length loaded into 20ft or 40ft containers with optimized stowage plans to maximize weight utilization within port road limits
- Heat number and steel grade stenciled on each tube end for on-site identification and traceability verification

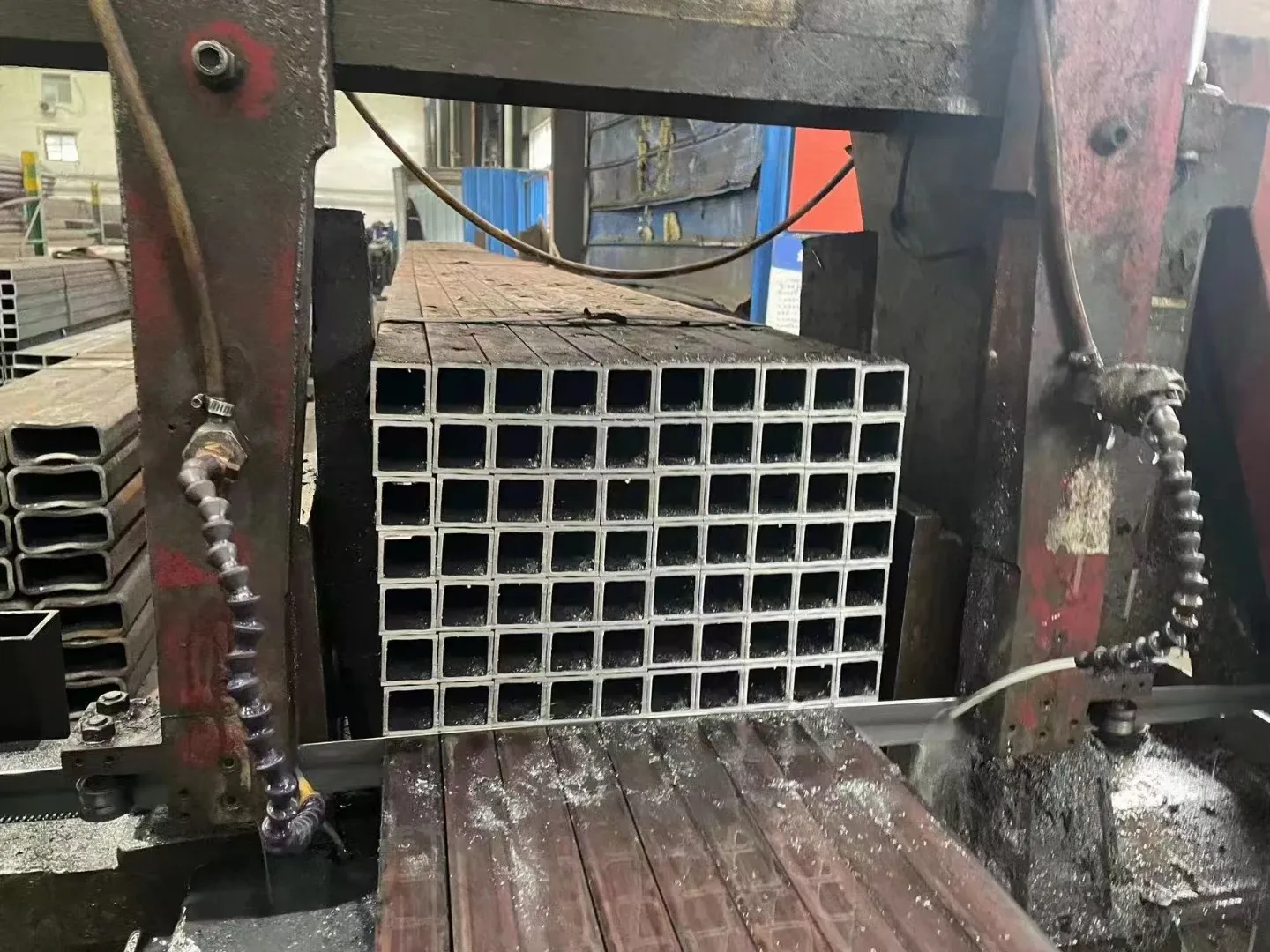

- Custom cut-to-length service available for non-standard project requirements, with kerf loss calculated and quoted upfront
- FOB, CIF, and DDP shipping terms supported with professional loading supervision and real-time container tracking
- Door-to-door logistics coordination for 50+ destination countries with experience handling heavy structural steel cargo
Getting Your ERW Tube Quote Started
Send your specification sheet — section dimensions, wall thickness, steel grade, total tonnage, and destination port — and our team returns a detailed quotation within 12 hours including unit price, production lead time, applicable certifications, and shipping options. For non-standard dimensions or sharp-corner rectangular tube requirements, we provide custom engineering drawings before production begins.
Request Your ERW Square Rectangular Steel Tube ASTM Standard Quotation
Submit your project specifications via email or WhatsApp to receive a detailed quotation with mill test certificate samples and shipping terms.
Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@sdxjysteel.com
Website: www.sdxjysteel.com
Frequently Asked Questions
Q: How do Q235 and Q345 steel grades compare to ASTM A500 or A53 standards?
A: Q235 and Q345 are Chinese national standard grades where the number indicates minimum yield strength in MPa. They have recognized equivalents in ASTM and EN systems, and our mill test certificates provide cross-reference data so your structural engineer can verify compliance with the project specification without requesting additional testing.
Q: Can I request third-party inspection before shipment?
A: Yes. SGS and BV third-party inspection reports are available upon request. The inspection covers dimensional tolerance verification, surface quality assessment, and witness testing of mechanical properties, with the original report included in your shipment documentation package.
Q: What is the minimum order quantity for custom non-standard dimensions?
A: The standard MOQ is 5 tons. For non-standard dimensions outside our 2,800+ specification catalog, we evaluate each request based on production line setup requirements and provide a custom quotation including any additional tooling or adjustment costs.
Q: How does the slight oiling surface treatment protect during shipping?
A: The light oil film applied after hot rolling provides baseline corrosion protection sufficient for typical 30-to-45-day ocean freight windows. For projects requiring extended storage at destination or exposure to marine environments, we can discuss additional surface treatment options including galvanizing or specialized coating systems.
Q: What certifications are included for EU market customs clearance?
A: Every shipment to EU destinations carries CE certification covering EN 10210 and EN 10219 standards for welded hollow sections, ISO 9001:2015 quality management documentation, original mill test certificates, and full customs documents including certificate of origin. Third-party inspection reports from SGS or BV can be added upon request.
