Description
Factory-Direct BS 1387 Galvanized Pipe — Every batch verified in our in-house laboratory before dispatch, with original mill test certificates included for customs and project compliance.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Gr.B Hot Dipped Galvanized ERW Steel Pipe |
| Product Type | Round Steel Pipe (ERW) |
| Steel Grade | Gr.B |
| Standard | BS 1387 |
| Section Shape | Round |
| Size Range | 21.3–273 mm (1/2″–8″, DN15–DN200) |
| Wall Thickness | 1.8–8 mm (catalog); 1–20 mm (general range) |
| Length | 5.8 m / 6 m / 12 m |
| Technique | ERW (Electric Resistance Welded) |
| Surface Treatment | Hot Dipped Galvanized (Zinc Coated Min 300 g/m²) |

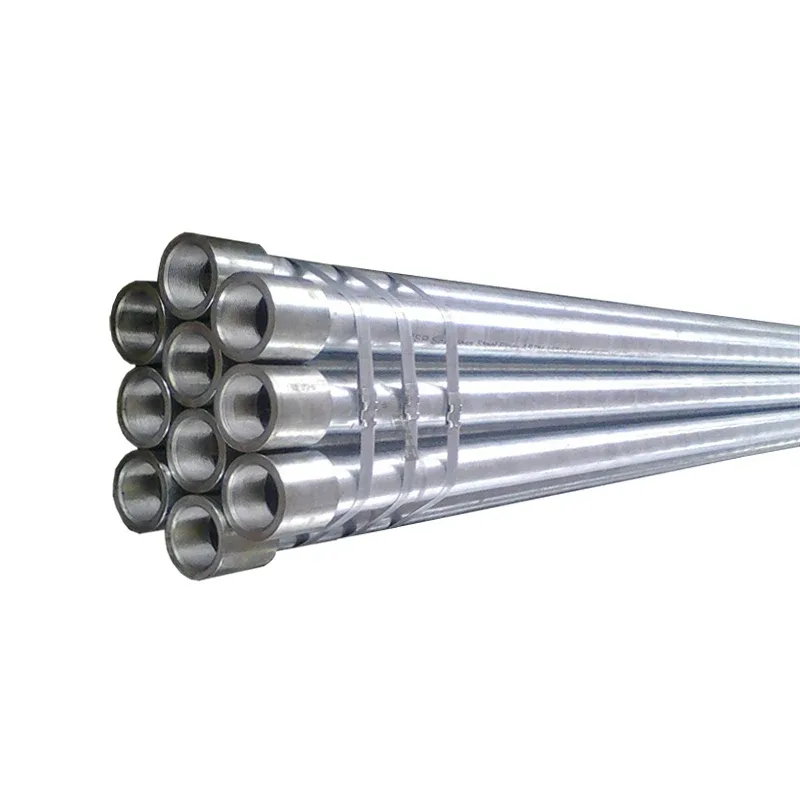

| Ends | Threaded with couplings (NPT / BS) |
| Application | Fluid transport / Gas pipeline / Chemical fertilizer pipeline / Structural applications / Construction |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Fluid and gas pipeline networks for industrial plants and municipal infrastructure |
| Construction Companies | Scaffolding systems, structural frameworks, and handrail supports |
| Machinery Manufacturers | Conveyor frames, equipment supports, and hydraulic line carriers |
| Agricultural & Irrigation | Chemical fertilizer distribution lines and field irrigation mains |
Where Zinc Coating Weight Decides Whether Your Container Clears Customs
Minimum 300 g/m² hot dipped galvanizing is the line between project acceptance and full-container rejection.
I have watched a shipment get flagged at destination port because the zinc coating came in well below BS 1387 requirements. The mill’s own report said one thing; the independent lab at the discharge port said another. The entire container was held, the project timeline slipped, and replacement material had to be air-freighted at multiples of the original freight cost. [NEED_CITE: BS 1387 galvanized pipe zinc coating mass requirements and test methods] When you source a BS 1387 hot dipped galvanized steel pipe supplier, the paper certificate means nothing without physical verification. Coating thickness varies across the pipe body — heavier at the ends, thinner in the mid-span — and only consistent dip-test sampling across multiple positions per batch reveals the real picture.
Matching Gr.B Galvanized ERW Pipe to Pipeline and Structural Demands
Gr.B under BS 1387 is specified for screwed and socketed steel tubes intended for low-pressure fluid conveyance and general structural use. The hot dipped galvanizing process bonds a metallurgical zinc-iron alloy layer to the base steel, delivering corrosion resistance that outperforms electroplated alternatives in outdoor and buried-service environments. Threaded ends with NPT or BS couplings allow field-ready assembly without on-site welding, which matters on scaffold systems and irrigation networks where hot-work permits add cost and delay. As a BS 1387 hot dipped galvanized steel pipe supplier, we produce the full 1/2″ to 8″ range with couplings factory-fitted, so your site crew receives material ready to bolt together.
Engineering Compliance and Certification Requirements for Galvanized Pipe Procurement
BS 1387 governs dimensional tolerances, coating mass, and thread specifications for galvanized steel tubes used in the UK, Middle East, and Commonwealth markets. Project specifications referencing this standard typically require original mill test certificates showing chemical composition and mechanical properties per heat number. For shipments entering the EU, supplementary CE marking under EN 10219 may be required alongside BS 1387 compliance documentation. [NEED_CITE: EN 10219 cold-formed structural hollow sections certification requirements] Third-party inspection through SGS or BV provides independent verification that coating weight, wall thickness, and dimensional tolerances meet the stated standard — and this documentation is often a non-negotiable line item in EPC procurement specifications.
Understanding Gr.B Steel Grade and ERW Manufacturing Process
Gr.B is a mild steel grade specified under BS 1387 for general-purpose screwed and socketed tubes. It offers adequate formability and weldability for low-pressure fluid transport and non-critical structural applications. The ERW (Electric Resistance Welded) process forms the tube by rolling steel strip into a cylinder and fusing the seam through resistive heating — no filler metal is added, producing a consistent weld line with tight dimensional control across the full length. Hot dipped galvanizing follows the welding and sizing stages: the finished tube is cleaned, fluxed, and immersed in a molten zinc bath, creating a coating that metallurgically bonds to the steel surface. The minimum 300 g/m² coating mass specified here provides long-term corrosion protection suitable for outdoor exposure, buried service, and humid industrial atmospheres. Wall thickness tolerance under BS 1387 permits ±15% on lighter gauges, which affects theoretical weight calculations and should be confirmed against your structural engineering requirements before order placement.
The Hidden Cost of Unverified Galvanized Pipe Procurement
Ordering galvanized pipe without independent coating verification creates exposure across multiple failure points. Material that fails to meet the specified zinc coating mass will corrode prematurely in service, leading to early maintenance replacement and potential liability claims on pressurized or structural applications. Missing or inconsistent mill test certificates cause customs holds at destination ports — particularly in markets with strict import inspection regimes across the Middle East and Southeast Asia. [NEED_CITE: steel import customs documentation requirements for galvanized pipe] Wall thickness that falls below the tolerance band specified in your purchase order reduces load-bearing capacity and may trigger rejection during third-party site inspection, forcing costly re-procurement and schedule delays.
Procurement Confidence Through Verified Manufacturing Capability
Every Gr.B BS 1387 hot dipped galvanized steel pipe we produce passes through our in-house physical and chemical laboratory at three stages: incoming raw material inspection, in-process weld and coating checks, and final dimensional and coating mass verification before shipment. Original mill test certificates documenting chemical composition and mechanical properties are issued per heat number, providing full material traceability from coil to container. We maintain the full 1/2″ to 8″ size range in regular production, and our 2,800+ specification catalog covers non-standard wall thicknesses and lengths for project-specific requirements. Third-party inspection through SGS or BV is arranged on request, with reports issued before vessel loading. Our professional loading team optimizes container stowage for mixed-size orders, maximizing payload and minimizing freight cost per meter.
Documentation & Compliance
- Mill test certificate documenting Gr.B chemical composition and mechanical properties per BS 1387, issued per heat number
- ISO 9001:2015 quality management system certificate covering hot dipped galvanized ERW pipe production
- SGS or BV third-party inspection report verifying zinc coating mass, wall thickness, and dimensional tolerances
- CE certificate under EN 10219 available for shipments requiring European structural hollow section compliance
- Material traceability documentation linking each pipe to its heat number, coating batch, and production date
- Full customs document package including packing list, bill of lading, and certificate of origin for BS 1387 galvanized pipe
Packaging, Loading & Delivery

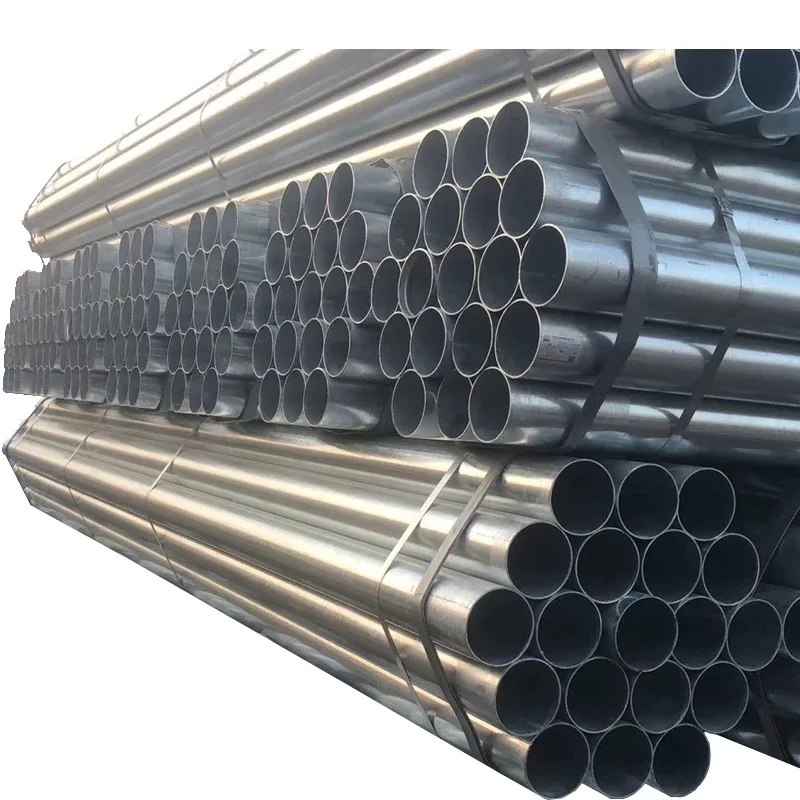

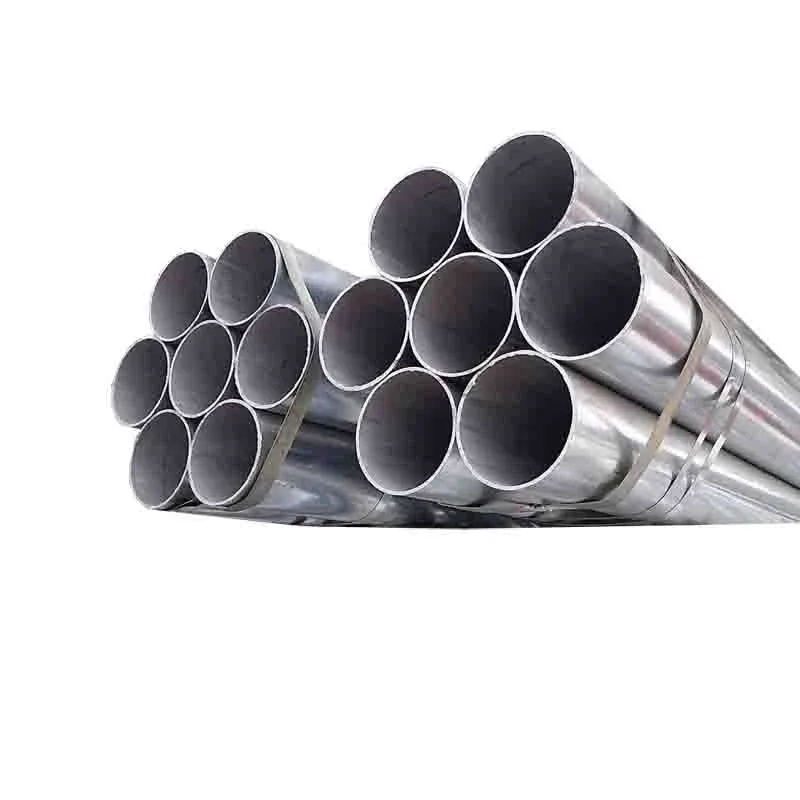

- Gr.B galvanized ERW pipes bundled with steel strips and fitted with edge protectors to preserve the zinc coating during ocean transit
- Threaded ends capped with plastic protectors to prevent damage to NPT/BS threads and coupling engagement surfaces during handling
- Mixed-size container loading plans optimized for 5.8 m, 6 m, and 12 m lengths to maximize payload for 1/2″–8″ diameter ranges

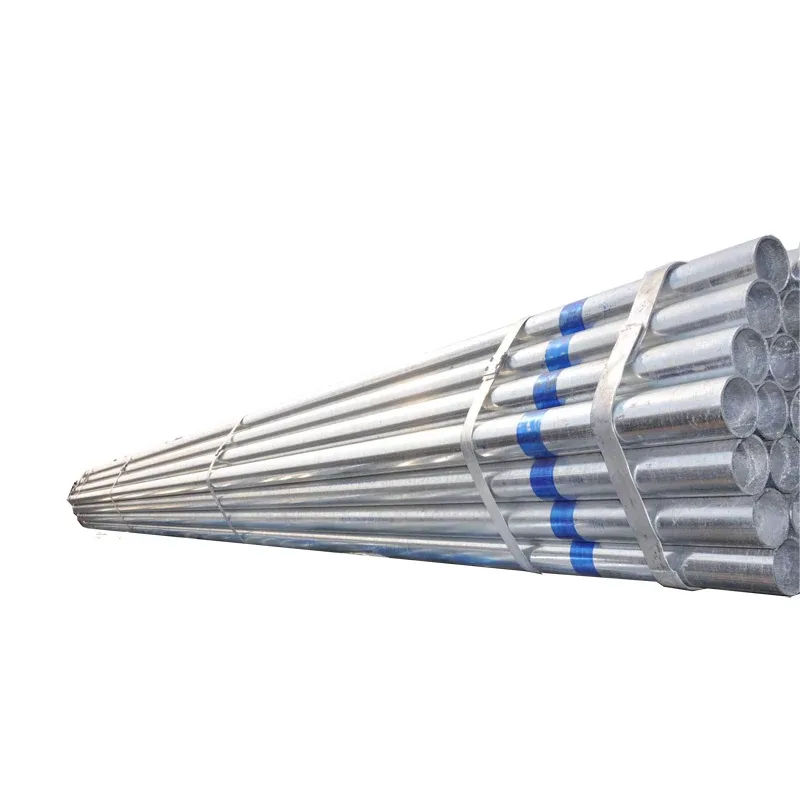

- Heat number and Gr.B grade stenciled on each pipe bundle for site identification and MTC cross-referencing upon arrival
- FOB, CIF, and DDP shipping terms available with real-time tracking from Jinan port to destinations across 50+ countries
- Special packaging arrangements available for project-specific marking requirements and destination-country labeling regulations
Start Your BS 1387 Galvanized Pipe Inquiry
Submit your required sizes, wall thicknesses, total quantity, and destination port to receive a detailed quotation including unit pricing, production lead time, and applicable certification documentation. We respond to all inquiries within 12 hours with complete technical and commercial proposals.
Request Your Quotation and Mill Test Certificate
Send your BS 1387 galvanized pipe specifications via email or WhatsApp to receive pricing, coating verification data, and delivery timelines.
Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Email: admin@sdxjysteel.com
Mobile/WhatsApp: +86 188 5315 7756
Website: www.sdxjysteel.com
Frequently Asked Questions
Q: What is the difference between BS 1387 and ASTM A53 galvanized pipe standards?
A: BS 1387 specifies screwed and socketed steel tubes for low-pressure fluid conveyance with mandatory hot dipped galvanizing and minimum 300 g/m² zinc coating. ASTM A53 covers seamless and welded black and hot-dipped galvanized steel pipe for general mechanical and pressure applications. The two standards differ in dimensional tolerances, thread specifications, and coating mass requirements, so substitution requires engineering approval.
Q: How do you ensure zinc coating thickness meets the minimum 300 g/m² requirement?
A: Every production batch undergoes coating mass testing in our in-house physical and chemical laboratory using gravimetric methods per BS 1387. Samples are taken from multiple positions along the pipe body to verify uniform coverage. Third-party verification through SGS or BV is available upon request for independent confirmation.
Q: Can you provide third-party inspection certificates for customs clearance?
A: Yes. We arrange SGS or BV inspection at our facility before shipment. The inspection report covers zinc coating mass, wall thickness, outer diameter, length, and visual quality. This report is issued alongside the mill test certificate and forms part of the complete customs documentation package.
Q: What are the available end treatments and coupling options for threaded pipes?
A: Gr.B BS 1387 galvanized pipes are supplied with threaded ends fitted with couplings in NPT or BS thread forms. Plastic end caps protect the threads during transit. Plain ends and grooved ends are available for non-standard orders subject to minimum quantity requirements.
Q: How do you handle container loading optimization for mixed-size pipe orders?
A: Our loading team prepares a stowage plan based on your specific size mix and lengths (5.8 m, 6 m, or 12 m). Smaller diameter pipes are nested inside larger diameters where feasible, and bundles are secured with steel strips and edge protectors to prevent zinc coating damage. This approach maximizes container payload and reduces freight cost per meter.
