Description
Factory-direct pricing, no broker markup — Carbon steel sheets processed in-house with laser cutting tolerance held to ±0.1mm, shipped directly from our Jinan facility to your project site.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Carbon Steel Sheet Metal Fabrication |
| Product Type | Machined Steel Product (Plate Cutting and Processing) |
| Steel Grade | Carbon steel, Low carbon steel, Cold rolled steel, Hot rolled steel, Stainless steel (SS201, SS303, SS304, SS316), Aluminum (AL5052, AL6061, AL6063, AL7075), Galvanized steel sheet |
| Technique | Laser cutting, CNC punching, CNC bending, CNC shearing, welding (CO2 gas metal arc, argon arc) |
| Dimensional Tolerance | ±0.1~±0.3mm |
| CNC Punching Max Size | 3000×150mm |
| CNC Cutting | T ≤ 12mm, L ≤ 3000mm |
| Laser Cutting | T ≤ 16mm, 6000×2000mm (max) |
| CNC Bending | T ≤ 1mm, L ≤ 4100mm |
| Surface Treatment | Galvanizing, Electroplating, Painting, Polishing, Sandblasting, Anodizing |
| Drawing Formats | DWG, STEP, JPG, IGS, SLD, SLDPRT, DXF |
| Standard | ISO 9001:2015, CE |
| Application | Electrical control cabinets, Frames, Enclosures, Automotive parts, Medical equipment parts, Machinery and equipment parts, Metal enclosures, Energy storage enclosures |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Energy storage enclosures, electrical control cabinet housings, structural frames for industrial plants |
| Machinery Manufacturers | Precision machine guards, conveyor system frames, equipment base plates, hydraulic component housings |
| Construction Companies | Metal building enclosures, scaffolding connection plates, structural brackets and gussets |
| System Integrators | Automation cell enclosures, control panel boxes, conveyor support structures |
| Automotive & Medical | Vehicle chassis brackets, medical device housings, precision instrument frames |
Where Dimensional Tolerance Decides Whether Your Enclosures Actually Fit
A 0.5mm deviation on a laser-cut panel can cascade into assembly failure across an entire batch of control cabinets.
When you source custom carbon steel sheet metal fabrication from multiple vendors, each shop holds its own tolerance standard. One supplier cuts flanges at +0.3mm, another bends doors at -0.2mm. When those parts meet on your assembly floor, bolt holes misalign, welding gaps exceed code, and rework costs triple. We have seen entire container loads of fabricated enclosures arrive at Latin American job sites where the doors would not close because the bending shop never checked the first article against the drawing. The fix — local plasma re-cutting — ran three times the original part cost [NEED_CITE: laser cutting dimensional tolerance standards for structural steel fabrication].

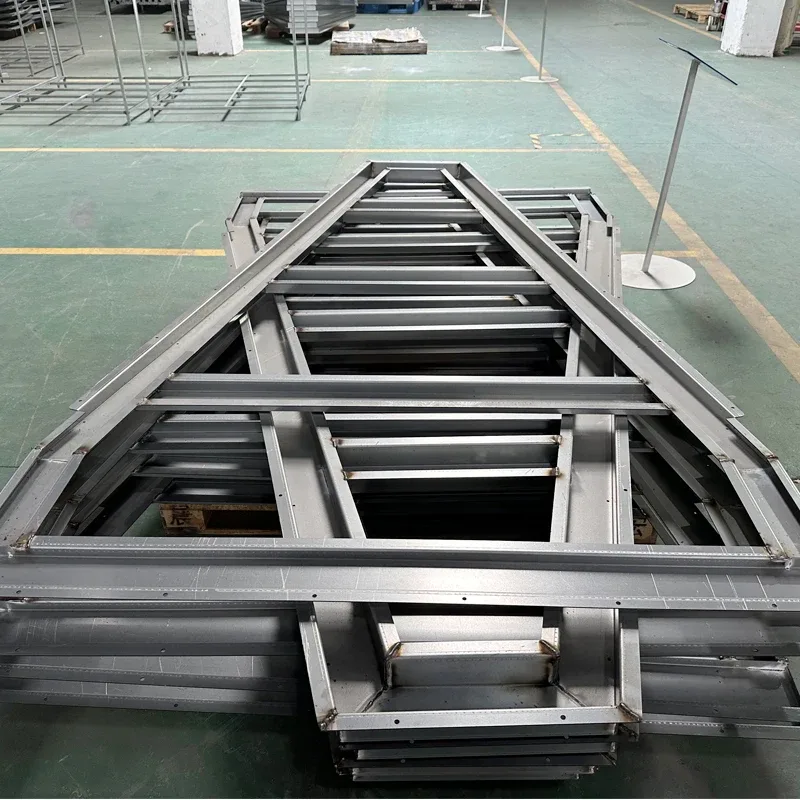

Matching Fabrication Precision to Enclosure and Frame Requirements

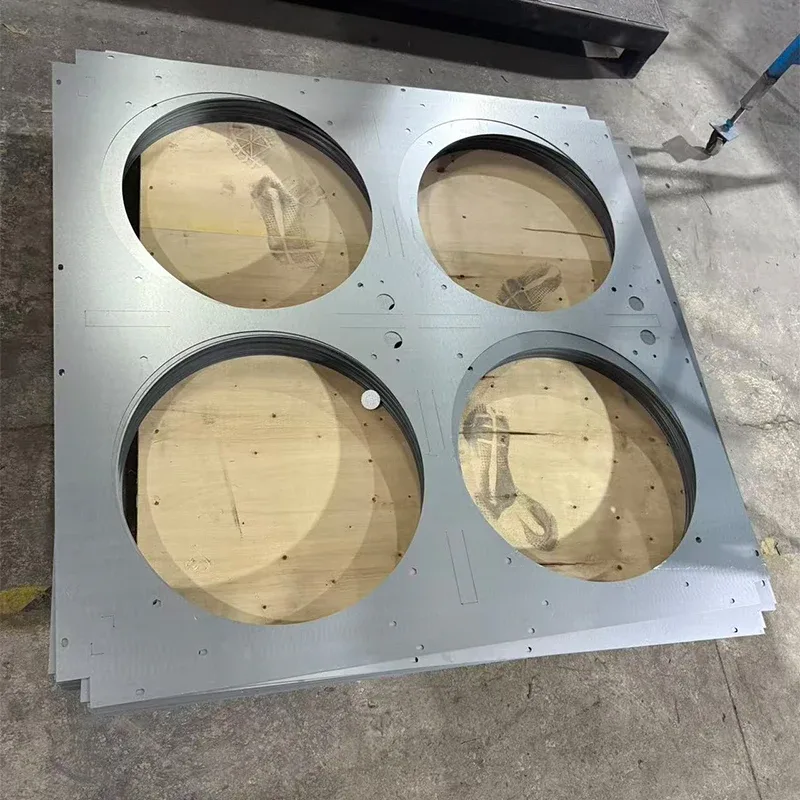

Electrical control cabinets and energy storage enclosures demand tight fit-up between side panels, doors, and mounting rails. Our custom carbon steel sheet metal fabrication process holds laser cutting tolerance at ±0.1mm on sheets up to 16mm thick across a 6000×2000mm work area, ensuring that mating surfaces align without field modification. CNC bending on sheets up to 4100mm long produces consistent flange angles for structural frames, while welding robots maintain repeatable seam quality across production runs of identical enclosure batches.
Engineering Compliance and Surface Protection for Field Deployment
Projects in coastal or industrial environments require surface treatment selection that matches corrosion exposure. Hot rolled carbon steel frames for outdoor infrastructure benefit from galvanizing or sandblasting plus painting, while indoor electrical enclosures may only need cold rolled finish with electroplating. For EU-bound shipments, CE certification under EN 10210/EN 10219 standards validates that fabricated sections meet European structural requirements, preventing customs holds at Rotterdam or Hamburg [NEED_CITE: CE marking requirements for fabricated structural steel components in EU construction]. Material traceability through heat numbers on every cut piece satisfies engineering inspector requirements for load-bearing applications.
Steel Grade Selection and Process Capability Explained
Carbon steel and low carbon steel sheets form the base material for most structural frames and enclosures due to their balance of formability and strength. Cold rolled steel provides tighter surface finish and dimensional consistency for visible enclosure panels, while hot rolled steel suits internal structural members where surface appearance is secondary. Stainless steel grades SS304 and SS316 serve food processing or marine environments where corrosion resistance is critical. Aluminum alloys AL5052 and AL6063 offer weight reduction for portable equipment enclosures. The laser cutting process handles all these materials on the same production line, eliminating the need to qualify separate suppliers for each alloy [NEED_CITE: material selection guide for sheet metal fabrication in industrial applications].
Hidden Costs of Unverified Fabrication Sources
Ordering from shops without in-house quality labs means you cannot verify whether the received material matches the specified grade. A batch of SS304 enclosures that tests as SS201 during site inspection fails compliance, triggers replacement orders, and delays project handover. Missing mill test certificates create customs clearance problems in countries requiring material documentation for structural components. Dimensional tolerance claims that look competitive on paper often reflect negative tolerance practices — material consistently at the low end of spec — which reduces actual load capacity and creates welding gap issues during assembly [NEED_CITE: impact of material certification gaps on construction project compliance].
Why Project Teams Source Carbon Steel Sheet Metal Fabrication Through Us

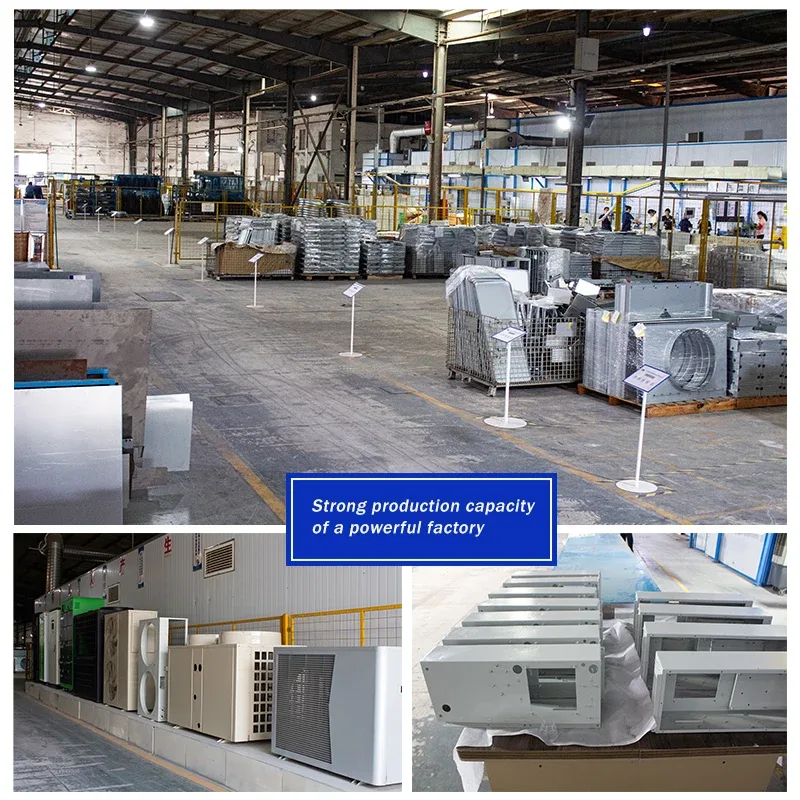

Our Jinan facility operates dedicated laser cutting, CNC punching, and bending lines with in-house physical and chemical laboratories that test every incoming coil against mill certificates before production begins. We hold 41 invention patents including proprietary sharp-corner rectangular tube technology, demonstrating engineering depth beyond basic cutting services. Every shipment includes original mill test certificates documenting chemical composition and mechanical properties, plus third-party inspection reports from SGS or BV when required. We process over 2,800 specifications across carbon steel, stainless, and aluminum on a single production line, consolidating your procurement into one purchase order with unified quality standards. Professional loading plans optimize container utilization for mixed-size fabricated parts, reducing freight cost per piece.
Documentation & Compliance
- Mill test certificate documenting carbon steel chemical composition and mechanical properties per ISO 9001:2015 standards for every heat number
- CE certificate confirming compliance with EN 10210/EN 10219 for structural steel fabrication exported to European Union markets
- ISO 9001:2015 quality management system certificate covering laser cutting, bending, and welding processes
- SGS or BV third-party inspection report available for pre-shipment verification of dimensional tolerance and surface treatment quality
- Material traceability documentation linking each fabricated piece to original coil heat number and mill test certificate
- Complete customs document package including packing list, bill of lading, and certificate of origin for import clearance
Packaging, Loading & Delivery
- Laser-cut carbon steel sheets stacked with interleaving paper and edge protectors to prevent surface scratching during ocean transit
- Galvanized fabricated enclosures wrapped in waterproof film with desiccant packets to preserve zinc coating integrity
- Mixed-size CNC bent parts secured in custom steel frames inside containers to prevent shifting and damage during handling
- Custom cutting to project-specified lengths up to 6000mm reduces on-site waste and cutting labor at destination
- Heat number and steel grade marked on each piece with paint pen for site identification and inspection traceability
- FOB, CIF, and DDP shipping options with professional loading plans that maximize container payload for fabricated frames and enclosures
Request Quotation with Material Certification
Submit your drawing files in DWG, STEP, or DXF format along with material grade, quantity, and destination port. Our engineering team reviews specifications and returns detailed quotation including unit pricing, production timeline, and applicable mill test certificates within 12 hours.
Get Your Custom Fabrication Quote
Send specifications to admin@sdxjysteel.com or contact via WhatsApp at +86 188 5315 7756 for technical consultation and pricing.
Frequently Asked Questions
Q: What drawing formats do you accept and how quickly can you provide quotation?
A: We accept DWG, STEP, JPG, IGS, SLD, SLDPRT, and DXF formats. Our engineering team reviews drawings and returns detailed quotation including pricing, lead time, and material specifications within 12 hours of receiving complete specifications.
Q: What dimensional tolerance can you hold on laser-cut carbon steel parts?
A: Our laser cutting process maintains ±0.1mm to ±0.3mm tolerance on carbon steel sheets up to 16mm thickness across a maximum work area of 6000×2000mm. CNC bending holds consistent angles on sheets up to 4100mm length.
Q: Can you process multiple materials on the same production line?
A: Yes, our facility processes carbon steel, low carbon steel, cold rolled steel, hot rolled steel, stainless steel (SS201, SS303, SS304, SS316), aluminum (AL5052, AL6061, AL6063, AL7075), and galvanized steel sheet on shared laser cutting and bending equipment.
Q: What surface treatment options are available for fabricated parts?
A: We offer galvanizing, electroplating, painting, polishing, sandblasting, and anodizing. Surface treatment selection depends on application environment — galvanized for outdoor corrosion resistance, electroplating for decorative finish, painting for color matching, sandblasting for surface preparation.
Q: What certifications do you provide for international shipments?
A: Every shipment includes mill test certificates documenting material chemical composition and mechanical properties. We provide ISO 9001:2015 quality certificates, CE certificates for EU markets, and third-party inspection reports from SGS or BV upon request. Complete customs documentation including packing list, bill of lading, and certificate of origin is standard.
Request Your Custom Fabrication Quote Today
Email drawings and specifications to admin@sdxjysteel.com or message +86 188 5315 7756 on WhatsApp for engineering consultation and pricing within 12 hours.
