Description

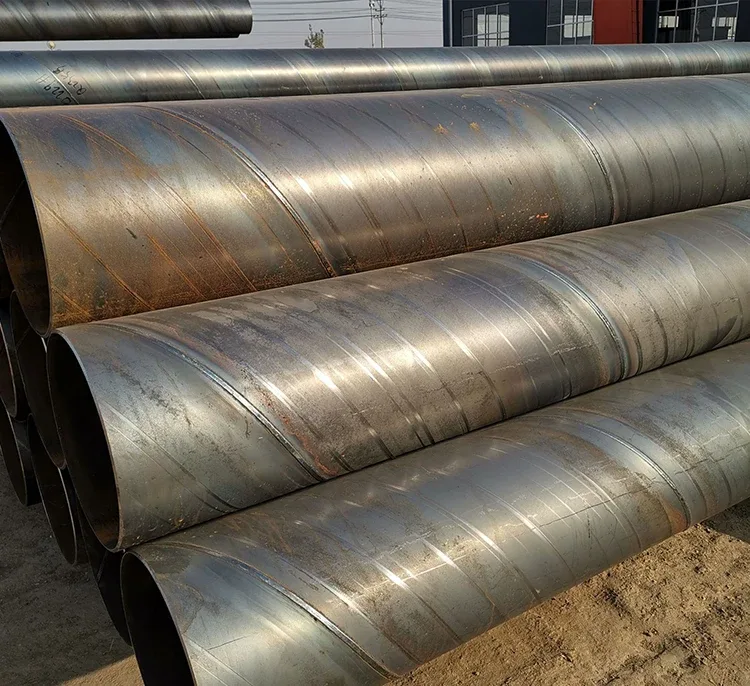

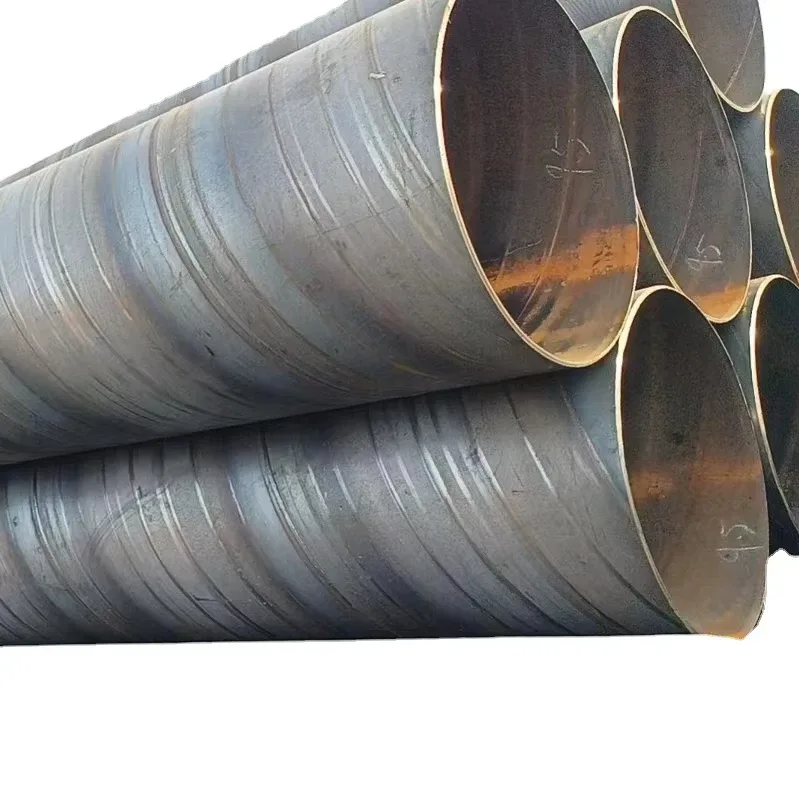

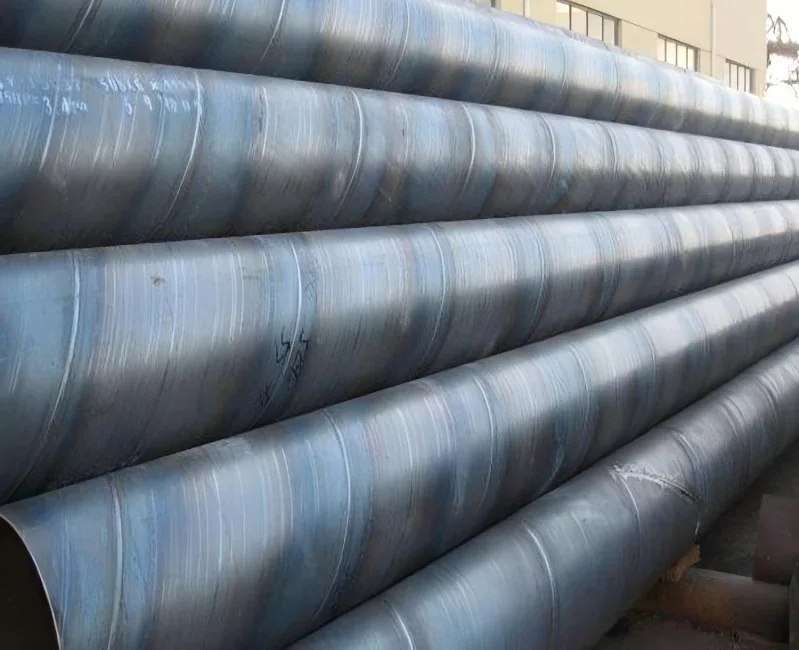

Factory-Direct Large Diameter SSAW Steel Pipe — Every ASTM A36 SSAW steel pipe rolls off our own spiral welding line and ships with full chemistry and tensile data reviewed before release.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A36 SSAW Steel Pipe |
| Product Type | SSAW Steel Pipe / Spiral Submerged Arc Welded Steel Pipe |
| Steel Grade | Q195, Q345, A53, A369, ST35, ST37, ST45, ST52, 25Mn, 27SiMn, E355, SAE1026, STKM13C |
| Standard | ASTM |
| Section Shape | Round |
| Size Range | Large Diameter |
| Wall Thickness | 0.5–40mm |
| Length | 6–12m |
| Technique | SSAW (Spiral Submerged Arc Welded) |
| Surface Treatment | Hot Rolled, Non-oiled |
| Tolerance | ±1% |
| Application | Oil and gas pipeline, water pipeline, fluid transport, sewage transport, boiler, drill pipe, hydraulic pipe, chemical fertilizer pipe, structure pipe |
| MOQ | 25 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Long-distance oil and gas transmission pipelines, cross-country water diversion projects |
| Construction Companies | Municipal water supply mains, urban sewage collection networks, stormwater drainage systems |
| Machinery Manufacturers | Industrial fluid conveyance lines, hydraulic system feed pipes, boiler circulation loops |
| Infrastructure Developers | Bridge foundation piling, port jetty structural supports, piling casings for coastal reclamation |
What Wall-Thickness Tolerance Costs on a Large Diameter SSAW Steel Pipe Order
A ±1% tolerance on a 40mm wall pipe means ±0.4mm — the difference between passing hydrostatic test and failing it at site.
When procurement teams accept loose wall-thickness tolerance on large diameter SSAW steel pipes, the consequences cascade. Thinner-than-specified walls reduce burst pressure margin below design safety factors, triggering rejection during third-party hydrostatic testing. Heavier-than-specified walls inflate project tonnage budgets and create welding fit-up problems at field joints. Inconsistent diameter along the pipe length forces on-site reaming or grinding before girth welding, adding days to critical-path schedules. [NEED_CITE: dimensional tolerance requirements for large diameter welded steel pipe per ASTM A53]
Matching Large Diameter SSAW Steel Pipe to Pipeline Engineering Demands
Large diameter SSAW steel pipe produced to ASTM standards serves as the backbone of pressurized fluid transmission systems where joint integrity and dimensional consistency directly affect commissioning timelines. The spiral welding seam distributes hoop stress across a helical path, providing structural continuity over long unsupported spans typical of cross-country pipeline corridors. Hot rolled non-oiled surface condition accepts field-applied coatings — 3PE, FBE, or coal tar enamel — without additional surface preparation beyond standard blast cleaning. Our production lines hold wall thickness within ±1% across the full 0.5–40mm range, ensuring that every joint meets the dimensional envelope specified by pipeline engineering codes.
Engineering Compliance and Certification Requirements
Pipeline projects governed by ASME B31.4 or B31.8 require documented material traceability from heat number through final mill test certificate. ASTM A36 and A53 grade designations must correspond to verified chemical composition and mechanical test results — not supplier declarations. For projects entering European markets, CE marking under EN 10210 or EN 10219 becomes a customs clearance prerequisite, regardless of whether the pipe meets equivalent ASTM chemistry. [NEED_CITE: EN 10219 cold-formed and hot-formed hollow section compliance for structural applications] Third-party inspection bodies such as SGS or BV conduct independent re-verification at destination ports, and any discrepancy between declared steel grade and actual test results triggers full container rejection.
Steel Grade Selection and Spiral Welding Process Fundamentals
The steel grade range spanning Q195 through Q345 and ASTM A53/A369 series covers low-pressure water conveyance up to high-stress gas transmission applications. Q-series grades follow Chinese national standards with yield strength progression suitable for municipal infrastructure, while ASTM A53 Grade B provides the tensile and elongation profile required by North American pipeline specifications. SSAW spiral submerged arc welding produces a continuous helical seam that allows production of large diameters beyond the practical limits of straight-seam LSAW processes, at lower cost than seamless alternatives for non-critical pressure applications. Hot rolled surface condition retains the mill scale layer formed during final rolling pass, providing baseline corrosion resistance during storage and transit before field coating application.
Hidden Costs of Incorrect Material Procurement
Accepting SSAW steel pipe without verified mill test certificates creates downstream liabilities that dwarf initial purchase savings. Material substitution — receiving Q235 when ASTM A36 was specified — passes visual inspection but fails chemical composition review during third-party testing, triggering container rejection at destination port. Negative tolerance stacking on wall thickness reduces actual burst pressure below design margin, creating structural safety exposure that only surfaces during hydrostatic commissioning. Missing or incomplete documentation delays customs clearance by weeks, generating demurrage charges that exceed the pipe cost itself. [NEED_CITE: material traceability and certification requirements for pressure piping per ASME B31.3]
Procurement Confidence Through Verified Production Capability
Every Large Diameter SSAW Steel Pipe leaves our facility after passing through an in-house physical and chemical laboratory that tests incoming raw material, monitors welding parameters in real time, and conducts final inspection before shipment. Our quality management system holds ISO 9001:2015 certification, and we maintain CE marking under EN 10210/EN 10219 for projects requiring European compliance documentation. With 2,800+ specifications across our product range, we consolidate pipe, plate, and structural steel procurement into a single supply chain, eliminating the coordination overhead of managing multiple vendors. Professional loading plans optimize container utilization for large diameter pipes, and our logistics team coordinates FOB, CIF, and DDP shipment terms to 50+ countries with real-time tracking visibility.
Documentation & Compliance
- Mill test certificate documenting ASTM A36 chemical composition including carbon, manganese, and sulfur content alongside yield strength and tensile test results per ASTM A53
- CE certificate confirming compliance with EN 10210/EN 10219 for projects entering European Union customs territory
- ISO 9001:2015 quality management system certificate covering the full production process from raw material receipt through final inspection
- SGS or BV third-party inspection report available for destination port re-verification of chemistry and dimensional accuracy
- Material traceability by heat number linking each pipe to its original steel coil and production batch record
- Complete customs documentation package including packing list, bill of lading, and certificate of origin for import clearance
Packaging, Loading & Delivery
- Large diameter SSAW steel pipes bundled with steel strip bands at regular intervals to prevent shifting during ocean transit, with end caps protecting beveled or plain ends
- Hot rolled non-oiled surface condition requires no additional rust preventive coating for standard transit durations, though optional oiling available for extended sea freight
- Container loading plans optimized for 6–12m pipe lengths to maximize payload per 40ft open-top or flat-rack container, reducing per-ton freight cost
- Custom cutting to project-specific lengths available before shipment, eliminating on-site cutting waste and reducing installation time
- Heat number and steel grade stenciled on each pipe end for field identification and traceability verification during installation
- FOB, CIF, and DDP shipping terms available with professional port coordination and door-to-door logistics to 50+ countries
Requesting Your Large Diameter SSAW Steel Pipe Quotation
Submit your project specifications including outer diameter, wall thickness, steel grade, total tonnage, and destination port to receive a detailed quotation within 12 hours. Our engineering team reviews dimensional requirements against production capabilities and confirms mill test certificate availability, third-party inspection options, and container loading optimization before contract execution.
