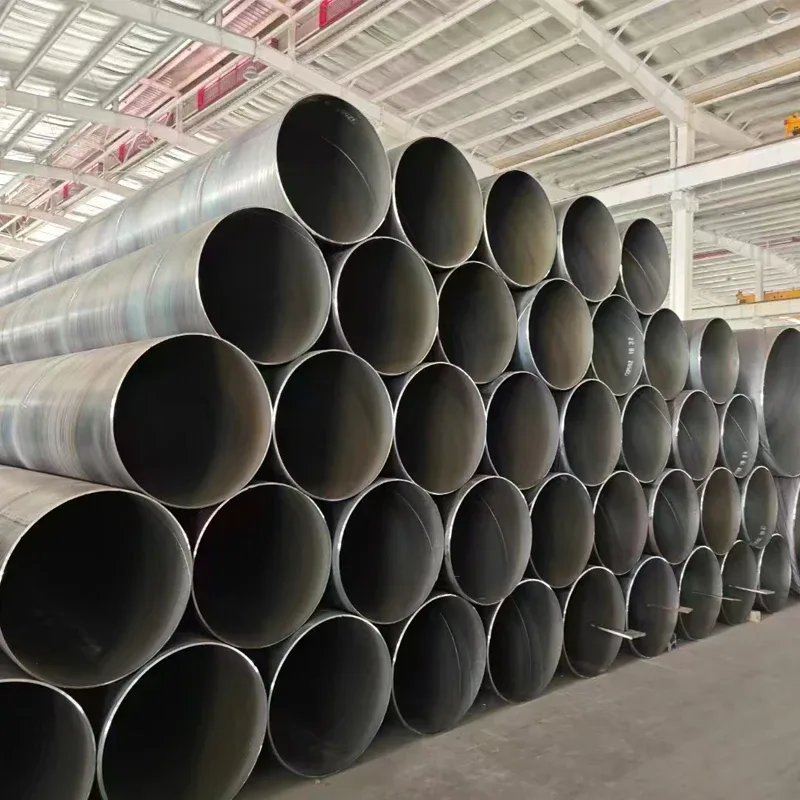

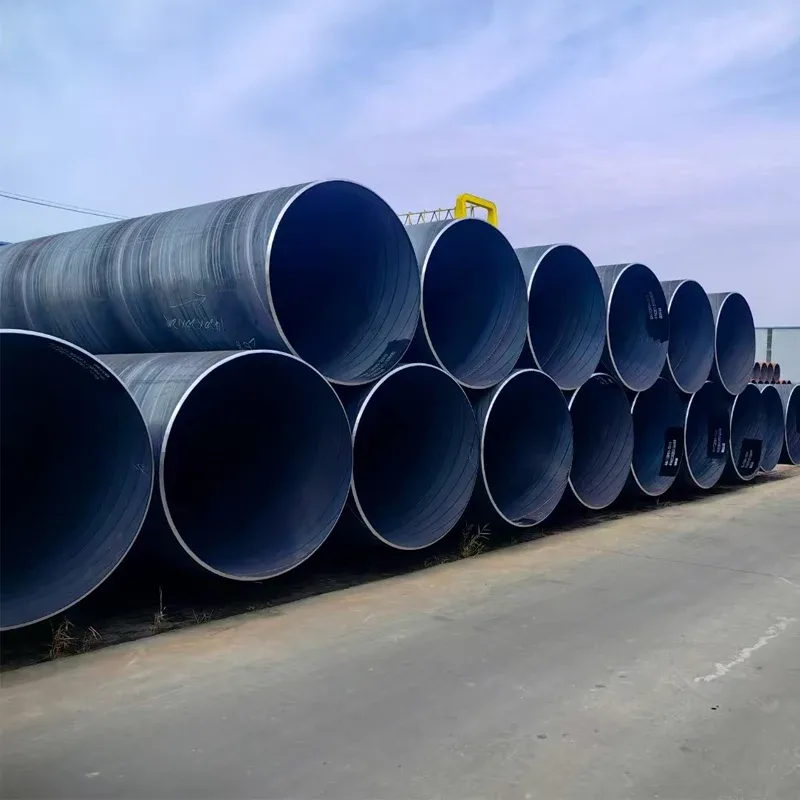

Description
Factory-direct SSAW pipe with full corrosion protection — API 5L X42/X60 grades produced on dedicated spiral welding lines with in-house chemical lab verification for every heat.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | API 5L / ASTM A252 SSAW Spiral Welded Steel Pipe |
| Product Type | SSAW Spiral Welded Steel Pipe (Round) |
| Steel Grade | API 5L (X42, X60), ASTM A252, EN1029 |
| Standard | API 5L, ASTM A252, EN1029, EN, BS, JIS |
| Section Shape | Round |
| Size Range | Large Diameter |
| Wall Thickness | 9–500 mm |
| Length | 6 m / 12 m / Customized |
| Technique | SSAW (Spiral Submerged Arc Welded) |
| Surface Treatment | Galvanized / 3LPE / 3LPP / FBE / Customized |
| Tolerance | Within ±1% – ±20% (varies by parameter) |
| Application | Oil & Gas Pipeline / Fluid Transport / Drill Pipe / Boiler Pipe / Hydraulic Pipe / Structural Pipe / Fertilizer Special Pipe |
| Processing Service | Welding / Punching / Cutting / Decoiling / Bending |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Onshore/offshore oil & gas transmission pipelines, industrial slurry transport systems, foundation piling for port infrastructure |
| Construction Companies | Bridge pier casings, deep foundation piling, large-scale civil drainage networks |
| Machinery & Industrial Manufacturers | Hydraulic cylinder barrels, boiler feed lines, structural frameworks for heavy equipment |
Why Coating Selection Determines Pipeline Service Life Beyond Steel Grade
An API 5L X60 pipe with inadequate 3LPE adhesion will fail in corrosive soil within years regardless of its mechanical properties.
Sourcing large diameter anti-corrosion pipes from fragmented suppliers creates quality uncertainty, missing traceability, and customs compliance risks. When coating thickness varies across the pipe surface or weld seam coverage is incomplete, the entire pipeline segment becomes vulnerable to premature corrosion — leading to costly field replacements and project delays. Our factory-direct API 5L SSAW spiral welded steel pipe solution delivers full certification packages with real mill test reports to eliminate these risks. [NEED_CITE: 3LPE coating adhesion requirements for buried pipelines]
Matching Large Diameter SSAW Pipe to Demanding Infrastructure Projects

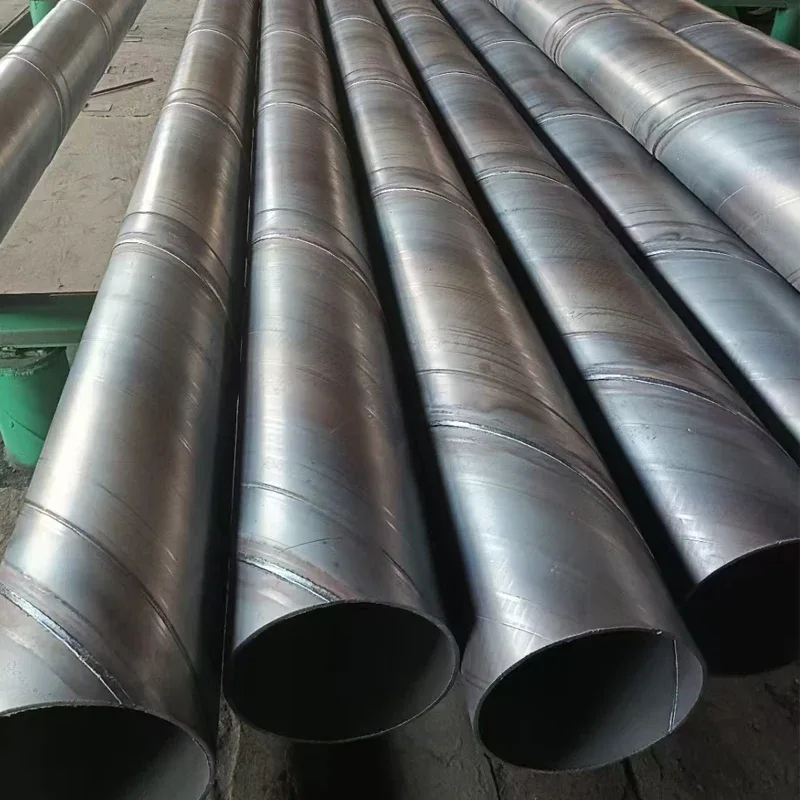

The 9–500 mm wall thickness range of this API 5L SSAW spiral welded steel pipe accommodates high-pressure transmission and deep piling applications where structural integrity cannot be compromised. Spiral submerged arc welding produces continuous helical seams with uniform penetration, critical for large diameter pipes subjected to internal fluid pressure or external soil loads. The full selection of 3LPE, 3LPP, FBE, and galvanized coatings allows engineers to specify corrosion protection matched to service environment — whether aggressive marine conditions, chemical exposure, or standard buried service.
Engineering Compliance and Certification Requirements
Large diameter SSAW pipes for oil & gas or structural piling must conform to API 5L PSL1/PSL2 requirements for chemical composition and mechanical properties, with traceability maintained through heat numbers on every length. For European market projects, CE certification under EN 10210/EN 10219 ensures compliance with regional structural steel directives, while Southeast Asian infrastructure developments often require Singapore FPC documentation. Third-party inspection by SGS or BV provides independent verification before shipment, addressing the certification gaps that frequently cause customs delays. [NEED_CITE: API 5L PSL2 requirements for spiral welded pipe]
Understanding Steel Grade Selection for SSAW Applications
API 5L X42 and X60 represent minimum yield strength designations within the API specification system, with X60 offering higher strength for demanding transmission applications. The ASTM A252 grade covers structural piling pipe where formability and weldability take priority over pressure containment. EN1029 addresses European structural requirements for hollow sections. The SSAW manufacturing process enables production of large diameter pipes beyond the practical limits of seamless manufacturing, with spiral welding providing continuous seam quality suitable for moderate pressure applications. Surface treatment selection directly impacts service life — 3LPE provides excellent mechanical protection for buried pipelines, while FBE offers superior chemical resistance for industrial environments.
Hidden Costs of Compromised Pipe Procurement
Specifying API 5L X60 but receiving material with substandard chemical composition leads to weld cracking during field jointing, requiring complete section replacement. Missing or incomplete mill test certificates trigger customs holds at destination ports, delaying project timelines by weeks. Negative tolerance exceeding specification limits reduces actual wall thickness below design requirements, creating structural safety concerns that only surface during third-party inspection — after the pipe has already been installed. [NEED_CITE: consequences of steel grade non-compliance in pipeline projects]
Procurement Confidence Through Verified Manufacturing Capability
Every API 5L SSAW spiral welded steel pipe undergoes incoming material inspection, in-process weld monitoring, and final dimensional verification in our physical and chemical laboratory. Original mill test certificates documenting chemical composition and mechanical properties accompany each shipment, with EN 10204 3.1/3.2 formats available for European projects. Our 2,800+ specification range covers standard and non-standard sizes, eliminating the need to source from multiple suppliers. Professional loading plans optimize container utilization for 6m and 12m lengths, while FOB/CIF/DDP terms support delivery to 50+ countries with real-time tracking.
Documentation & Compliance
- Mill test certificate documenting API 5L X42/X60 chemical composition and yield strength per API 5L requirements
- CE certificate under EN 10210/EN 10219 for European market structural compliance
- ISO 9001:2015 quality management system certification covering full production process
- SGS or BV third-party inspection report available for pre-shipment verification
- Material traceability maintained through heat number marking on every pipe length
- Complete customs documentation package including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- Large diameter SSAW pipes bundled with steel strips and edge protectors to preserve 3LPE/FBE coating integrity during ocean transit
- Galvanized surface pipes packed with separation materials to prevent zinc coating damage from friction
- Container loading plans optimized for 6m/12m standard lengths, maximizing payload for 9–500 mm wall thickness ranges
- Heat number and API 5L grade marking clearly visible on pipe ends for site identification and traceability
- FOB/CIF/DDP shipping terms available with professional port coordination for destination countries across 50+ markets
- Custom cutting to project-specific lengths available, reducing field modification waste
Request Technical Proposal for Your Pipeline or Piling Project
Submit your API 5L SSAW spiral welded steel pipe requirements including outer diameter, wall thickness, steel grade, coating specification, and destination port to receive detailed quotation with mill test certificate preview. Our technical team provides coating selection guidance based on service environment and confirms certification requirements for your target market customs clearance.
Get Your API 5L SSAW Pipe Quotation with Full Certification Package
Send specifications via email or WhatsApp for factory-direct pricing and delivery confirmation.
Email: admin@sdxjysteel.com
Mobile/WhatsApp: +86 188 5315 7756
Frequently Asked Questions
Q: What is the difference between API 5L X42 and X60 for SSAW pipe applications?
A: API 5L X42 and X60 represent minimum yield strength designations, with X60 providing higher strength for demanding high-pressure transmission pipelines. X42 suits moderate pressure applications where formability and field weldability are priorities. Both grades are available in our SSAW production with full mill test certification.
Q: How do I select between 3LPE, 3LPP, FBE, and galvanized coating for my project?
A: 3LPE provides excellent mechanical protection and cathodic disbondment resistance for buried oil & gas pipelines. 3LPP offers higher temperature resistance for hot service conditions. FBE delivers superior chemical resistance for industrial environments. Galvanized coating suits atmospheric exposure or water transport applications. We provide technical guidance based on your specific service environment.
Q: Can you produce large diameter SSAW pipes beyond standard catalog sizes?
A: Yes, our 2,800+ specification range covers standard and custom non-standard sizes within the 9–500 mm wall thickness capability. Minimum order quantities vary by specification — contact us with your requirements for detailed confirmation.
Q: Do your certifications cover customs clearance for EU, Middle East, and Southeast Asian markets?
A: Our CE certification under EN 10210/EN 10219 covers European Union requirements. Singapore FPC documentation supports Southeast Asian infrastructure projects. ISO 9001:2015 and API 5L certifications are recognized globally. Complete customs documentation packages accompany every shipment.
Q: What delivery terms and logistics support do you provide?
A: We support FOB, CIF, and DDP shipping terms with professional container loading optimization for large diameter pipes. Real-time tracking is available for all shipments. Typical production lead times apply for custom orders — contact us with your destination port for specific delivery confirmation.
