Description
Factory-Direct SSAW Pipes — In-house physical and chemical laboratory verifies every zinc coating batch before shipment.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | SSAW Spiral Steel Pipe |
| Product Type | SSAW Steel Pipe / Spiral Welded Steel Pipe |
| Steel Grade | API 5L GR A, GR B, X42, X46, X52, X56, X60, X65, X70; Q235, Q345; S235, S275, S355 (S275JR, S275J0H, S275J2H, S355JRH, S355J0H, S355J2H); SS400; L210–L485; P195, P235, P265 |
| Standard | API 5L, ASTM A53, ASTM A252, GB/T 9711, SY/T 5037, EN 10219, EN 10217, BS 4360, GB/T 3091, GB/T 13793 |
| Section Shape | Round |
| Size Range | Outer Diameter 219–3048 mm |
| Wall Thickness | 5–25.4 mm |
| Length | 5.8–12 m (customizable up to 22 m) |
| Technique | SSAW (Spiral Submerged Arc Welding) |
| Surface Treatment | Hot Rolled / Zinc Coated (Galvanized) / 3PE Anti-Corrosion / Oiled / Black |
| Tolerance | ±1% |
| Ends | Plain / Beveled |
| Application | Water supply pipeline / Oil & gas pipeline transportation / Gas distribution / Bridge construction / Building construction / Fluid transportation / Structural piling |
| MOQ | 5 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Municipal water supply trunk lines, raw water intake pipelines, industrial cooling water circuits |
| Construction Companies | Bridge piling foundations, deep foundation casing, underground structural supports |
| Steel Distributors | Regional import stock for pipeline and piling projects across Latin America, Southeast Asia, and Middle East |
| Machinery Manufacturers | Large-diameter fluid conveyance systems, hydraulic penstocks, intake structures |
Where Zinc Coating Thickness Determines Project Acceptance on SSAW Spiral Steel Pipe
A coating below specification triggers full batch rejection at the inspection stage — no exceptions.
Early in my career, I stood beside a Brazilian water supply pipeline site when the supervising engineer pulled out a coating thickness gauge and tested a batch of spiral pipes on the spot. The contract required a minimum of 65μm zinc coating; the actual reading came in at 45μm. The entire lot was turned away. That kind of inconsistency in surface treatment is not just a paperwork issue — it means buried pipes corrode years ahead of schedule, and the project owner bears the replacement cost. When sourcing a Zinc Coated SSAW Spiral Steel Pipe Supplier, the gap between mill output and field expectation often lies in whether the factory runs real-time coating verification or relies on spot checks after the fact [NEED_CITE: hot-dip galvanizing coating thickness standards for pipeline steel].
How Large-Diameter SSAW Pipes Match Municipal Water Supply Demands
Municipal water trunk lines typically require outer diameters from 219 mm up to 2000 mm and beyond — a range where SSAW process holds a clear cost advantage over LSAW, because the spiral forming method allows continuous production of large-bore pipes from narrower strip stock. For underground water supply applications, zinc coated or 3PE anti-corrosion surface treatment provides the primary barrier against soil-side corrosion, extending service life well beyond unprotected carbon steel. Our SSAW lines produce these large diameters with internal and external weld bead control, meeting ultrasonic inspection requirements under API 5L and EN 10219, so the pipe arrives at the trench with verified weld integrity across the full spiral seam.
Engineering Compliance and Corrosion Environment Selection
Water supply pipelines crossing varied soil conditions — from coastal saline ground to inland acidic clay — demand deliberate surface treatment selection rather than default assumptions. Zinc coating suits moderate corrosion environments and allows field touch-up during welding and jointing, while 3PE anti-corrosion coating provides superior mechanical protection for rocky backfill or directional drilling installations. Steel grade selection follows the pressure class: API 5L X42 through X60 covers most municipal transmission pressures, while X65 and X70 serve high-pressure inter-basin transfer lines. For projects entering the European market, EN 10219 and EN 10217 compliance with CE marking is non-negotiable at customs [NEED_CITE: EN 10219 cold-formed and hot-formed hollow section requirements for structural and pipeline use]. North American specifications map to ASTM A53 and API 5L, and proper heat number traceability on the mill test certificate closes the documentation loop for project handover.
Steel Grade and SSAW Process Fundamentals
The API 5L grade system — from GR B through X70 — designates minimum yield strength in ksi multiples, where X52 indicates 52 ksi minimum yield and X65 indicates 65 ksi. This grading directly governs design wall thickness under internal pressure calculations per ASME B31.4 or B31.8. The EN equivalent S-series (S235, S275, S355) follows a similar logic in MPa, with S355 offering roughly double the yield of S235 for structurally demanding piling applications. SSAW differs from ERW in that the spiral weld seam distributes forming stress more evenly across the pipe body, making it suitable for diameters above 508 mm where ERW becomes impractical. The submerged arc welding process produces a fully fused joint with internal and external bead reinforcement, which undergoes 100% ultrasonic and X-ray inspection on production lines equipped with in-house laboratories. Zinc coating applied after welding must achieve uniform thickness on both the pipe body and the weld seam — a detail that separates compliant output from field failures.
The Hidden Cost of Incorrect Grade or Missing Certification
Specifying Q235 when the design calls for API 5L X52 may appear to save on unit price, but the lower yield strength forces the engineer to increase wall thickness — erasing any material cost advantage and adding transport weight. More critically, shipping a Zinc Coated SSAW Spiral Steel Pipe without an EN 10204 3.1 or 3.2 mill test certificate, or without CE marking for EU destinations, leads to customs holds that delay the entire project timeline. Coating thickness that fails to meet the specified minimum does not surface during factory inspection — it surfaces at the trench, where pipe replacement costs dwarf the original material savings [NEED_CITE: consequences of non-compliant steel pipe coatings in buried pipeline projects].
Procurement Confidence from a Verified Source
As a factory-direct Zinc Coated SSAW Spiral Steel Pipe Supplier, we eliminate intermediary markups and provide transparent pricing tied to real production capacity. Our in-house physical and chemical laboratory tests every heat for composition and mechanical properties before issuing the mill test certificate, ensuring full traceability from slab to finished pipe. The product range covers outer diameters from 219 mm to 3048 mm and wall thicknesses up to 25.4 mm across API 5L, EN, and GB standards — meaning a single procurement source handles the full bill of materials for mixed-specification pipeline projects. We hold CE certification under EN 10210 and EN 10219, ISO 9001:2015 registration, and third-party verification from SGS and BV, which directly supports customs clearance across 50+ export destinations. Custom non-standard diameters, special lengths up to 22 m, and tailored surface treatment combinations are available against project specifications. Professional loading plans optimize container utilization for large-diameter pipes, and door-to-door logistics coordination covers FOB, CIF, and DDP terms.
Documentation & Compliance
- Mill test certificate documenting API 5L X52 chemical composition and yield strength per GB/T 9711, with heat number traceability for each pipe
- CE certificate under EN 10219 and EN 10210 for spiral welded steel pipes destined for European Union markets
- ISO 9001:2015 quality management certificate covering the full SSAW production and zinc coating process
- SGS or BV third-party inspection report verifying zinc coating thickness and adhesion before shipment
- Material traceability sheet linking each pipe to its heat number, chemical analysis, and mechanical test results
- Customs documentation package including packing list, bill of lading, and certificate of origin for destination-country clearance
Packaging, Loading & Delivery
- Zinc coated SSAW spiral pipes bundled with steel strips and fitted with edge protectors to preserve the zinc coating surface during ocean transit
- Pipe ends capped with plastic or steel protectors to prevent moisture ingress and damage to beveled or plain ends during handling

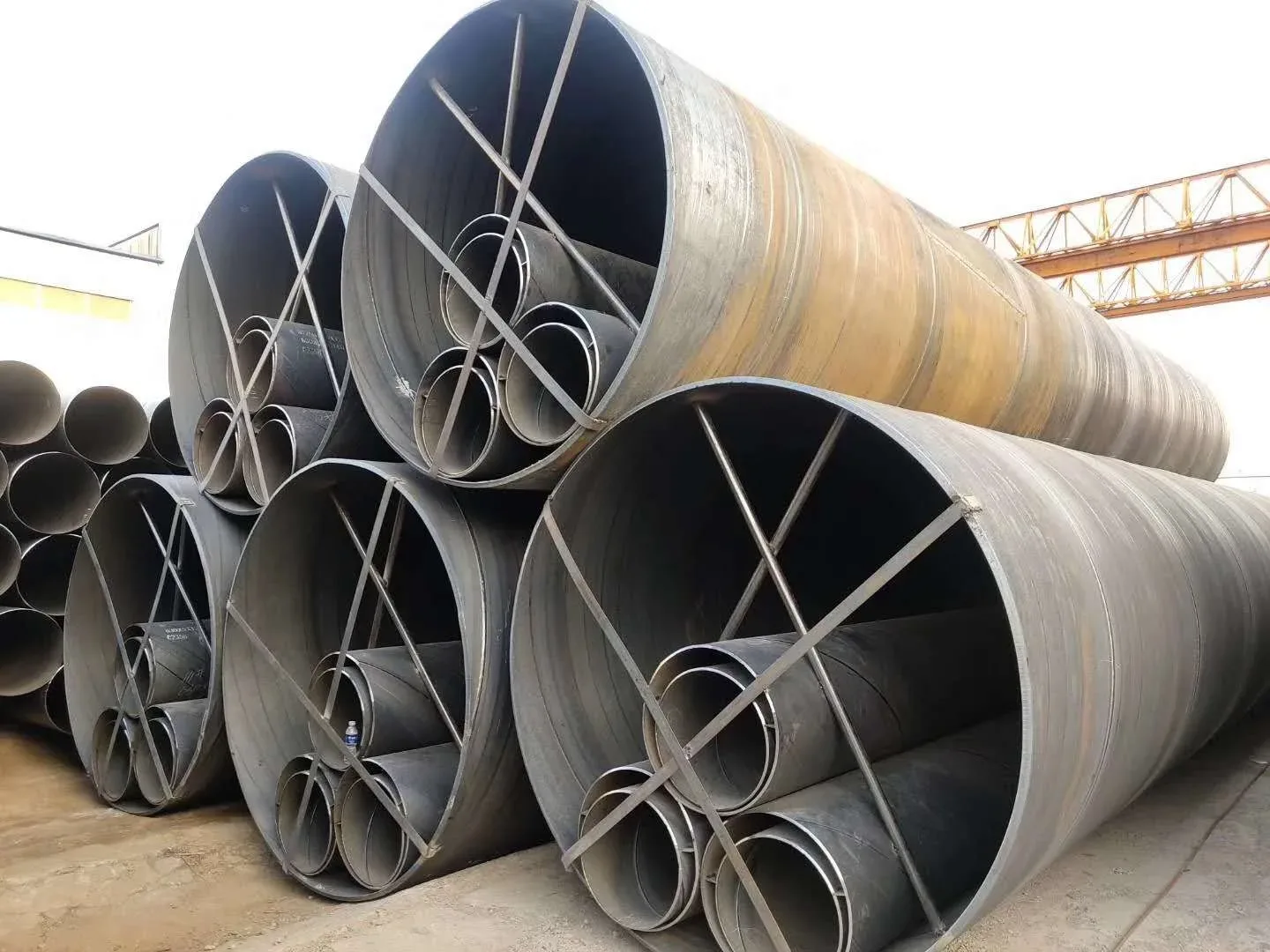

- Large-diameter pipes (above 1000 mm OD) loaded in nested configurations to maximize container or bulk vessel utilization and reduce per-unit freight cost
- Custom cut lengths from 5.8 m to 22 m marked with heat number, steel grade, and outer diameter on each pipe surface for site identification
- Shipment available under FOB, CIF, or DDP terms with professional loading supervision and real-time tracking to ports across Latin America, Southeast Asia, the Middle East, and Europe
How to Initiate a Project Inquiry for SSAW Spiral Pipes
Submit your specification sheet — including outer diameter, wall thickness, steel grade, surface treatment preference, total tonnage, and destination port — and receive a detailed quotation within 12 hours covering unit price, certification scope, production lead time, and logistics options. For non-standard diameters or special coating combinations, our technical team provides a feasibility review and custom production plan. Confirm mill test certificate format, third-party inspection requirements, and loading optimization before contract signing to avoid downstream delays.
Frequently Asked Questions
Q: What is the difference between SSAW, LSAW, and ERW for large-diameter pipeline projects?
A: SSAW uses spiral submerged arc welding to produce large-diameter pipes from narrower strip, making it cost-effective for diameters above 508 mm. LSAW uses longitudinal straight seam welding and suits high-pressure applications with strict weld inspection. ERW is limited to smaller diameters typically below 610 mm. The choice depends on project diameter, pressure class, and applicable standard.
Q: How do I choose between zinc coated and 3PE anti-corrosion surface treatment for buried water pipelines?
A: Zinc coating suits moderate corrosion environments and allows field welding and touch-up during installation. 3PE anti-corrosion coating provides superior mechanical protection for rocky backfill or directional drilling. The selection depends on soil corrosivity, installation method, and design service life.
Q: Can you provide API 5L X52 pipes equivalent to EN or GB standard grades?
A: Yes. We supply pipes manufactured to API 5L, EN 10219, EN 10217, and GB/T 9711 standards. Grade equivalence mapping between API 5L, EN S-series, and GB Q-series is available upon request, and the mill test certificate documents the actual chemical composition and mechanical properties for cross-standard verification.
Q: What is the minimum order quantity and can you produce non-standard diameters?
A: The minimum order quantity is 5 tons. We produce custom non-standard outer diameters and wall thicknesses within the 219–3048 mm and 5–25.4 mm range, with lengths up to 22 m. Lead time for custom specifications is confirmed after technical review.
Q: How do you optimize shipping for large-diameter spiral pipes?
A: Pipes above 1000 mm outer diameter are loaded in nested configurations to maximize vessel or container space. We provide professional loading plans and coordinate FOB, CIF, or DDP logistics to reduce per-unit freight cost and ensure on-time delivery to project sites.
Get Your Zinc Coated SSAW Spiral Steel Pipe Quotation with Full Certification
Send your pipe specifications, steel grade, surface treatment, and destination port to receive a detailed quotation and mill test certificate sample within 12 hours.
