API 5L Gr X42 LSAW Carbon Steel Pipe OD 21.3-762mm WT 4.5-60mm Factory Direct

Description

Factory-Direct LSAW Pipe Supply — Every API 5L Gr X42 LSAW carbon steel pipe rolls from our own submerged arc welding lines, shipped without trading margins or middleman markups.

Technical Specifications

Application Suitability

When Negative Wall Tolerance Turns a Pipeline Order into a Port Dispute

A pipe that passes mill inspection can still fail destination-port SGS复检 if wall thickness drifts beyond ±1%.

I spent years on the rolling floor before moving to export sales. One shipment of API 5L X42 LSAW pipes bound for the Middle East looked perfect on paper — theoretical weight matched the invoice, dimensions sat within catalog range. But the actual wall thickness leaned hard into negative tolerance across multiple heats. When the container reached the discharge port, the client’s third-party inspector pulled random samples and flagged the deviation. The entire shipment sat in the yard for weeks while arguments flew over who absorbed the loss. That kind of quality uncertainty does not just cost money — it erodes the trust an EPC contractor needs to bid on the next project. [NEED_CITE: API 5L dimensional tolerance requirements for line pipe]

Fragmented sourcing makes this worse. When pipes, plates, and fabrication come from different suppliers, no single party owns the tolerance chain. A certified mill with in-house physical and chemical labs, issuing heat-level mill test certificates and accepting SGS/BV pre-shipment inspection, removes that gap entirely.

Matching OD and Wall Thickness to Pressure Transmission Demands

An API 5L Gr X42 LSAW carbon steel pipe in the 21.3–762 mm OD range covers everything from small-bore instrument lines to large-diameter transmission mains. The LSAW process — where the longitudinal seam is formed under submerged arc — produces a weld integrity suited to higher-pressure oil, gas, and fluid service compared to standard ERW. Wall thickness from 4.5 mm to 60 mm, held within ±1% tolerance and verified at incoming, in-process, and final inspection stages in our own laboratory, ensures the pipe meets both API 5L dimensional requirements and the structural expectations of EPC specifiers. Black coated finish provides baseline corrosion protection for indoor or short-term outdoor storage; for aggressive environments, galvanized, PVC coated, or color-painted options are available per project specification.

Engineering Compliance Across API, ASTM, and EN Frameworks

API 5L Gr X42 (also designated L290) sits within a broader grade matrix that includes Q-series (Chinese GB), S-series (European EN), and ASTM grades — allowing cross-standard substitution when project documentation permits. For EU-bound shipments, CE certification under EN 10210 and EN 10219 is often the deciding factor between smooth customs clearance and port-held cargo. [NEED_CITE: EN 10219 cold-formed hollow section certification requirements for EU construction] In North America, ASTM A53 and A523 govern structural and fluid applications respectively, while API 5L remains the baseline for hydrocarbon transmission. Beveled ends ready the pipe for field welding; plain or threaded ends serve mechanical joint systems. Custom cut-to-length from the 5–14 m range reduces on-site welding joints and labor cost for fixed-span installations.

Understanding the LSAW Process and Grade Selection Logic

LSAW (Longitudinal Submerged Arc Welded) pipe is formed by rolling steel plate into a cylindrical shape and welding the longitudinal seam under a flux blanket. This process suits larger diameters and thicker walls where ERW (Electric Resistance Welded) reaches its practical limit. The submerged arc produces a dense, slag-protected weld zone with mechanical properties closely matching the parent metal — critical for pressure-containing applications where weld seam integrity directly affects service life.

API 5L Gr X42 (L290) indicates a minimum yield strength class within the API pipeline grade system. The “X42” designation means the specified minimum yield strength is 42,000 psi (approximately 290 MPa, hence L290 in metric designation). This grade balances formability, weldability, and pressure capacity for moderate-duty transmission and distribution lines. Higher grades (X52, X60, X65, X80) serve higher-pressure or sour-service environments; lower grades (Grade B, X42) suit water, air, and low-pressure gas systems.

Black coated surface treatment — typically a shop primer or anti-rust oil film — protects the pipe during storage and transit without adding cost or thickness. For buried or marine exposure, external coatings such as 3PE (three-layer polyethylene), fusion-bonded epoxy, or hot-dip galvanizing extend service life by isolating the steel from moisture and soil chemistry. The choice between these options depends on installation environment, design life, and project specification — not on catalog defaults.

Wall thickness tolerance of ±1% means that a nominal 10 mm wall will measure between 9.9 mm and 10.1 mm. This tight band matters because theoretical weight invoicing assumes nominal dimensions; excessive negative tolerance shifts the actual weight — and the actual load-bearing capacity — below what the engineering calculation assumed. Our in-house laboratory tests every heat for chemical composition and mechanical properties before release, ensuring the delivered pipe matches both the stated grade and the dimensional tolerance.

The Hidden Cost of Unverified Pipe Procurement

Procuring API-grade pipe without mill test traceability or third-party inspection verification creates risk at multiple points. Material that does not meet the stated grade fails engineering acceptance upon arrival, forcing replacement at the supplier’s origin — weeks of delay on a project timeline. Missing or incomplete CE, ISO, or SGS documentation triggers customs holds, demurrage charges, and in some cases forced re-export. [NEED_CITE: customs documentation requirements for steel pipe imports into EU and GCC countries] Negative tolerance beyond the stated ±1% reduces actual wall thickness, compromising pressure rating and structural safety — a defect that may not surface until hydrostatic testing or in-service loading. The cost of re-inspection, re-shipment, and schedule recovery typically exceeds the price difference between a verified supplier and an unverified one.

Why EPC Contractors and Distributors Source This Pipe From Us

Our three dedicated LSAW and ERW production lines cover over 2,800 specifications in round, square, and rectangular profiles — meaning an API 5L Gr X42 LSAW carbon steel pipe order rarely requires switching to a second supplier for complementary sections, plates, or fabrication. The in-house physical and chemical laboratory performs incoming raw material analysis, in-process weld seam inspection, and final dimensional and mechanical verification, producing the mill test certificate that travels with every shipment. We hold CE certification under EN 10210 and EN 10219, ISO 9001:2015 registration, Singapore FPC approval, and verification by SGS and BV — covering the certification requirements for EU, Southeast Asian, and Middle Eastern markets. Custom non-standard dimensions, cut-to-length service, and special surface treatment are handled in-house rather than outsourced, keeping lead times predictable. Professional loading plans optimize container utilization for the 5–14 m length range, and door-to-door logistics coordination covers FOB, CIF, and DDP terms to ports across 50+ countries.

Documentation & Compliance

• Mill test certificate documenting API 5L Gr X42 (L290) chemical composition and mechanical properties per heat number, issued from our in-house laboratory
• CE certificate under EN 10210 / EN 10219 for structural hollow section compliance in EU construction markets
• ISO 9001:2015 quality management system certificate covering the full production and inspection process
• SGS or BV third-party inspection report available for pre-shipment verification at buyer’s request
• Full material traceability by heat number from steelmaking through final inspection
• Export customs documentation including packing list, bill of lading, and certificate of origin

Packaging, Loading & Delivery

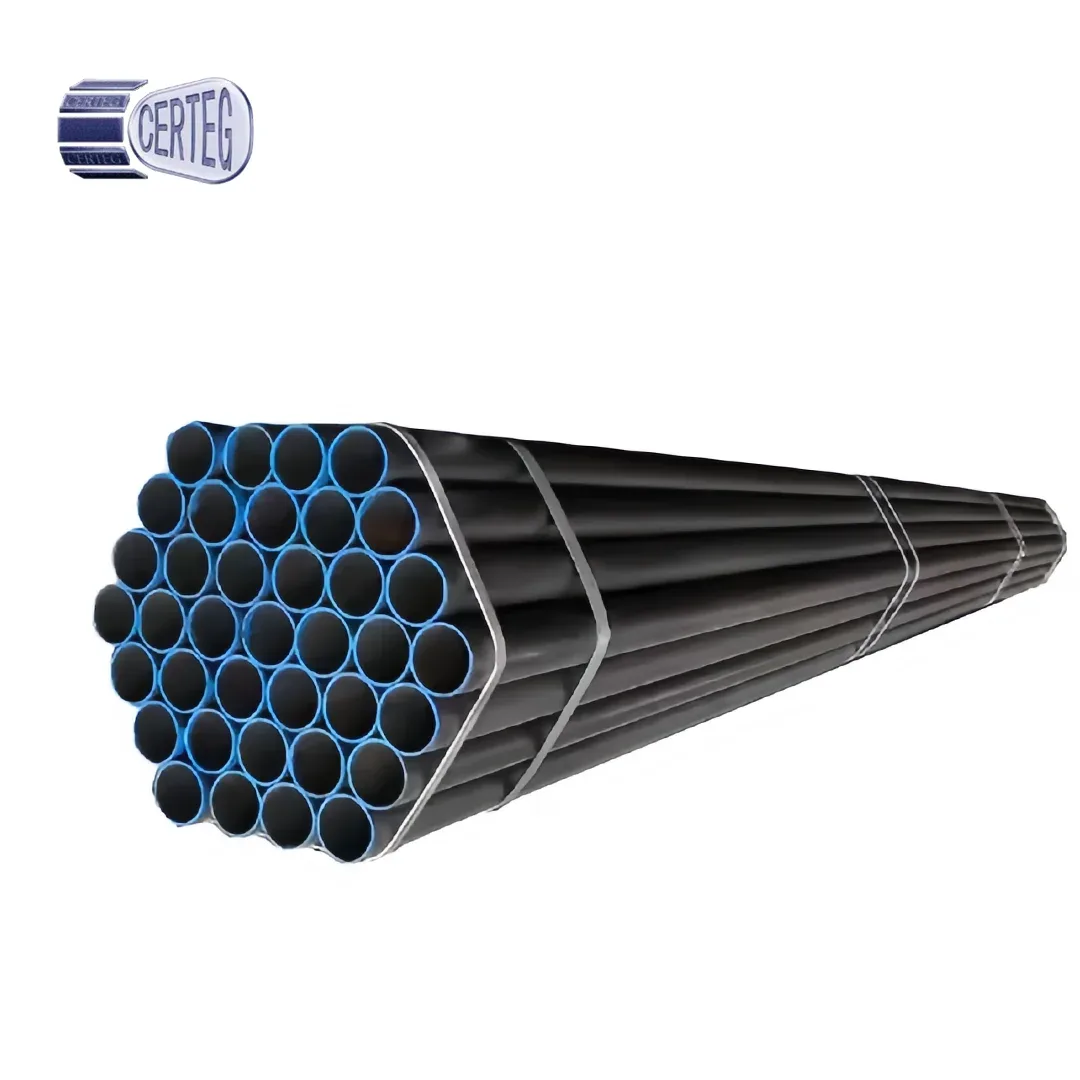

• API 5L Gr X42 LSAW pipes bundled with steel strip ties and seaworthy wrapping, sized to match the 5–14 m random or cut-to-length specification
• Black coated surface protected by anti-rust oil film and edge guards to prevent coating damage during ocean transit
• Container loading plans optimized for the 21.3–762 mm OD range, maximizing weight utilization within standard 20ft and 40ft units
• Heat number and steel grade stenciled on each pipe end for site identification and traceability verification
• FOB, CIF, and DDP shipping terms available with real-time tracking from Jinan port to destination
• Custom packaging and marking per client requirement for project-specific material segregation

Getting a Quote That Matches Your Project Specification

Submit your required outer diameter, wall thickness, length, steel grade, surface treatment, quantity, and destination port — we return a detailed quotation including unit price, delivery timeline, payment terms, and applicable certification within 12 hours. For non-standard dimensions or mixed-specification orders, our technical team provides a custom proposal with feasible alternatives. Mill test certificates, third-party inspection arrangements, and loading plans are confirmed before production begins.

Frequently Asked Questions

Q: What is the difference between API 5L Gr X42 and L290 designation?

A: They refer to the same grade. API 5L uses the “X” series with yield strength in ksi (X42 = 42,000 psi), while the metric equivalent uses the “L” series with yield strength in MPa (L290 = 290 MPa). Both designations appear on mill test certificates for the same material.

Q: Can you provide SGS or BV third-party inspection before shipment?

A: Yes. Third-party inspection by SGS or BV can be arranged for pre-shipment quality verification. The inspection covers dimensional checks, visual examination, wall thickness measurement, and review of mill test certificates against the order specification.

Q: What surface treatment options are available for this LSAW pipe?

A: Standard options include black coated (anti-rust oil or shop primer), hot-dip galvanized, PVC coated, and color painting. The choice depends on the installation environment — black coated suits indoor or short-term outdoor use, while galvanized or painted finishes serve corrosive or buried conditions.

Q: What documentation is provided with each shipment?

A: Each shipment includes the original mill test certificate (chemical composition and mechanical properties per heat number), packing list, bill of lading, and certificate of origin. CE and ISO certificates are available for EU market compliance. Third-party inspection reports are issued when SGS or BV verification is requested.

Q: What is the minimum order quantity for API 5L Gr X42 LSAW pipe?

A: The minimum order quantity is 1 Ton. Mixed specifications and custom non-standard dimensions are accepted within this MOQ, subject to production scheduling.

Secure Your API 5L Gr X42 LSAW Pipe Supply With Verified Documentation

Send your specification sheet — OD, WT, length, grade, quantity, and destination — to receive a factory-direct quotation with mill test certificate preview and certification confirmation.
