Description

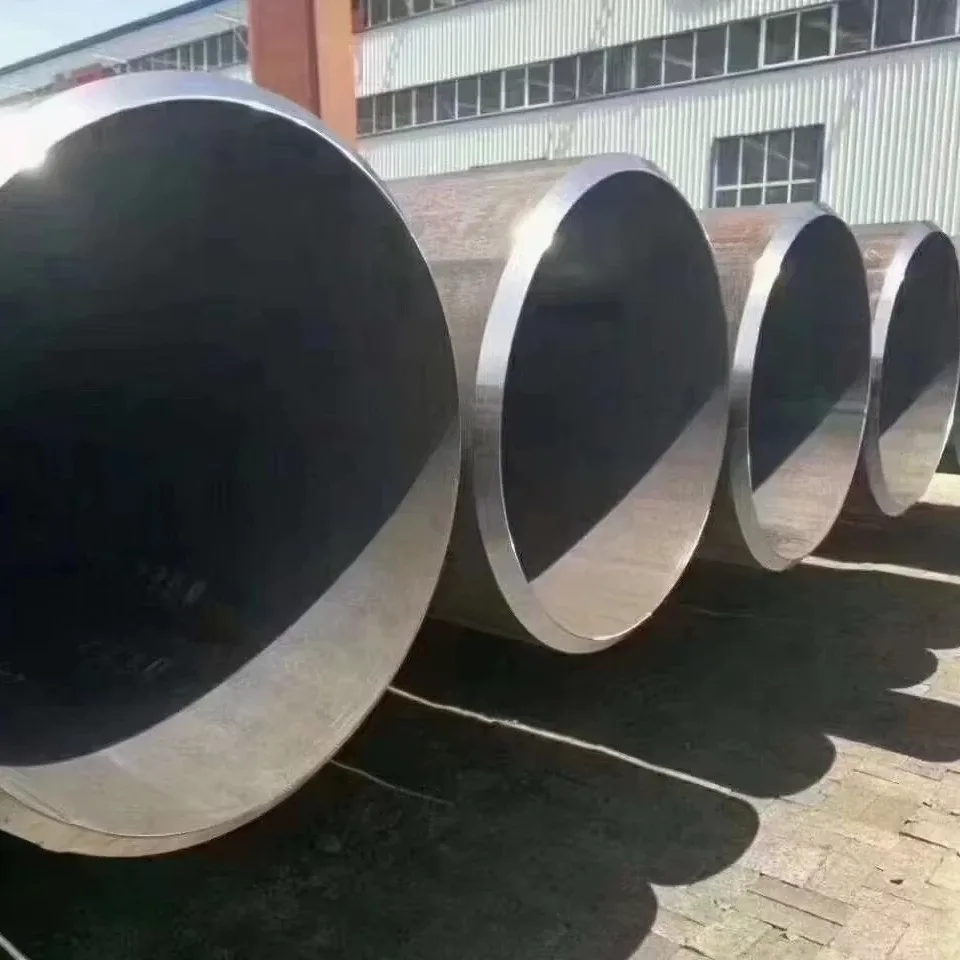

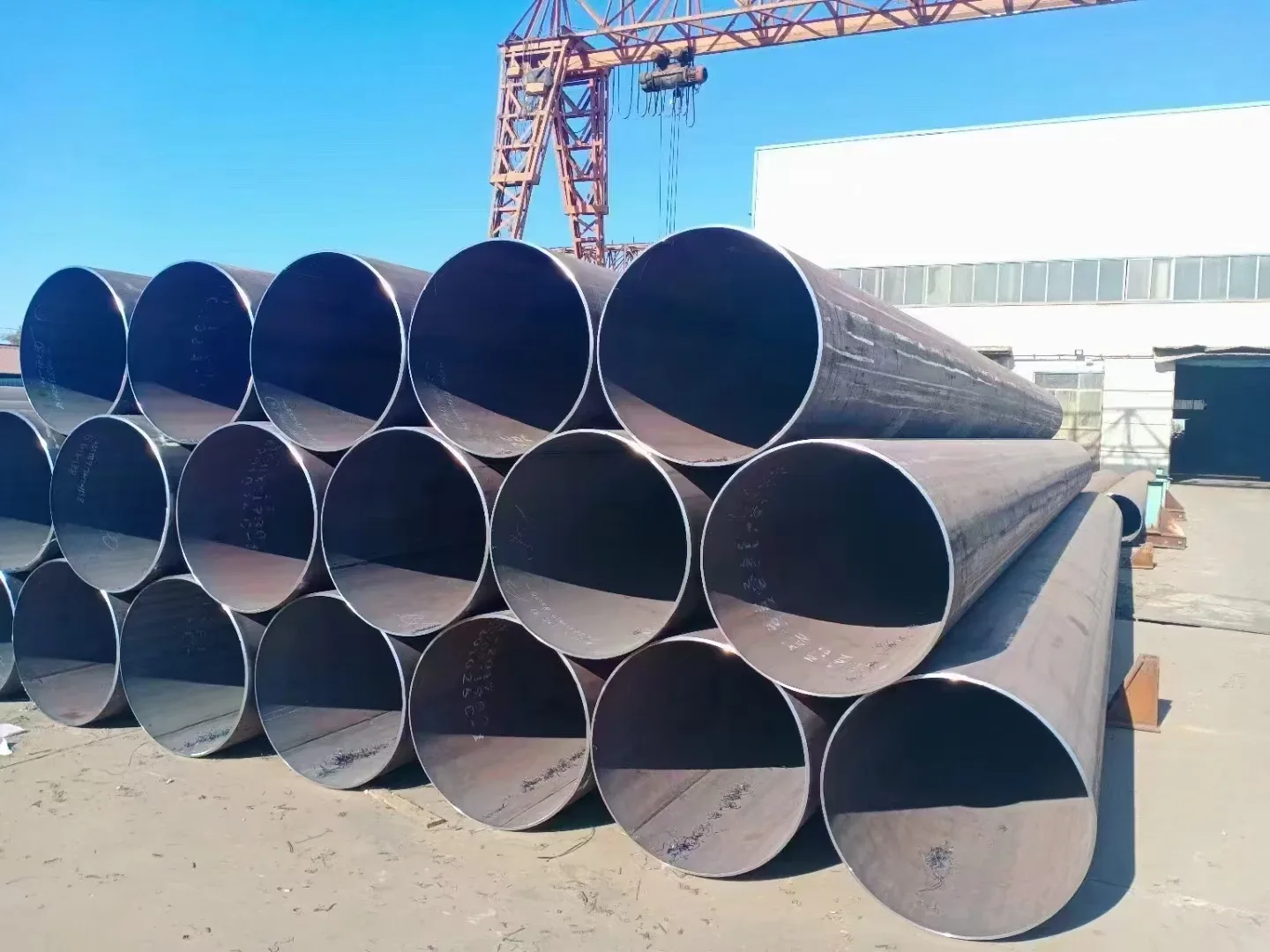

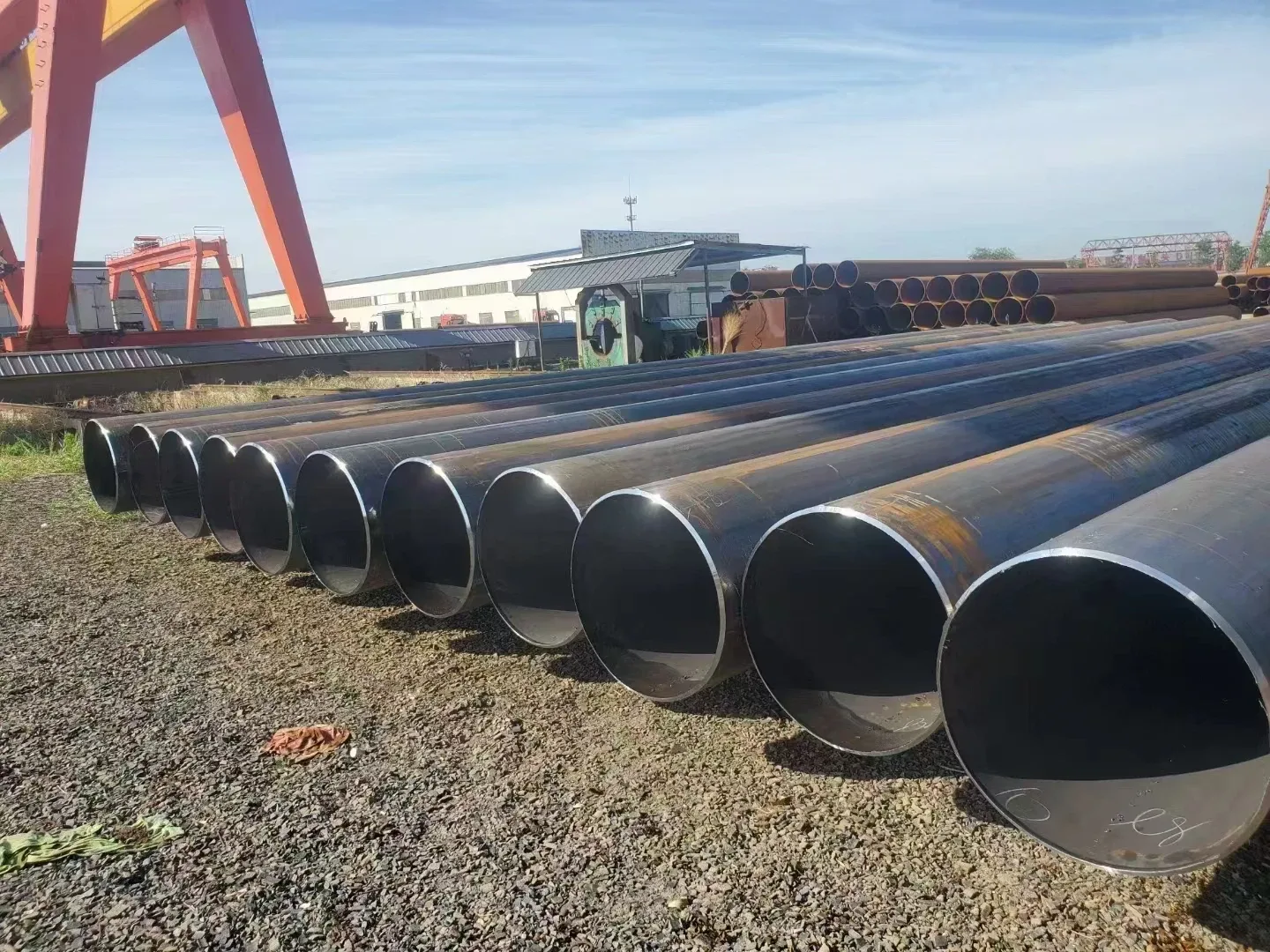

Factory-Direct ERW Pipe — Every batch verified against ultrasonic measurements before shipment
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | API Certified Carbon Welded Steel Pipe |
| Product Type | ERW / Welded Steel Pipe |
| Steel Grade | 10#, 20#, 35#, 45#, Q195, Q215, Q235, Q345, Q345A, Q345C, 16Mn, 40Cr, 15CrMo, 45Mn2, ASTM A53A/A53B, A178C, A106B, API 5L |
| Standard | API, ASTM, BS, DIN, GB, JIS |
| Section Shape | Round |
| Outer Diameter | 21.3–1420 mm |
| Wall Thickness | 2.11–300 mm |
| Length | 6 m / 6.4 m / 12 m |
| Technique | ERW / Welded |
| Surface Treatment | Cold Rolled, Slightly Oiled |
| Tolerance | ±1% |
| Ends | Plain / Beveled / Threaded |
| Processing Services | Welding, Punching, Cutting, Bending |
| Invoicing | By Actual Weight |
| Application | Fluid Pipe, Boiler Pipe, Drill Pipe, Hydraulic Pipe, Gas Pipe, Oil Pipe, Chemical Fertilizer Pipe, Structure Pipe, Machinery Parts, Automobile & Tractor Components, Construction, Industrial Structures |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas EPC | Transmission pipelines, gathering lines, flow lines for onshore and offshore platforms |
| Industrial Construction | Structural columns, truss members, and purlin systems for warehouses and factories |
| Machinery Manufacturing | Hydraulic cylinder barrels, conveyor rollers, and precision shaft sleeves |
| Power & Energy | Boiler tubes, heat exchanger shells, and cooling water circulation pipes |
| Infrastructure | Bridge handrails, sound barrier posts, and foundation pile casings |
What Negative Tolerance Really Costs on a 1420mm OD Pipeline Order
A ±1% tolerance claim means nothing without ultrasonic verification at every stage.
When procurement teams source an API Certified Carbon Welded Steel Pipe for high-pressure fluid transmission, the wall thickness deviation is the single most expensive variable. A batch that reads 12.5mm on paper but measures 11.8mm at the weld seam will fail hydrostatic testing at the discharge port — and by then, the container is already at destination. I once watched a 1500mm lot get flagged by a third-party inspector because the negative tolerance exceeded API limits across the entire shipment. The re-sorting cost and three-week delay on a structural frame project could have been avoided with in-process ultrasonic checks. [NEED_CITE: API 5L dimensional tolerance requirements for welded line pipe]
Matching Wall Thickness to Pressure and Structural Load Requirements
The OD 21.3–1420mm range of this API Certified Carbon Welded Steel Pipe covers everything from small-bore instrument lines to large-diameter transmission mains. For fluid transport under API 5L or ASTM A106 grades, the wall thickness directly determines the maximum allowable working pressure — and the ±1% tolerance ensures that design calculations remain valid across the entire batch. Our in-house physical and chemical laboratory measures every heat at incoming, in-process, and final stages, so the mill test certificate reflects actual ultrasonic readings rather than catalog assumptions.
Engineering Compliance Across International Standards
Projects targeting EU markets require CE certification under EN 10210/EN 10219, while North American EPC contractors typically specify ASTM A53 or API 5L with full material traceability by heat number. The steel grade coverage here — from Q235/Q345 through 40Cr and 15CrMo alloy series — maps to both metric and imperial standard systems, reducing the need for dual sourcing. [NEED_CITE: steel grade equivalence mapping between GB Q-series and ASTM/EN standards] Third-party inspection via SGS or BV before shipment provides independent verification for customs clearance in over 50 destination countries.
Understanding ERW Weld Quality and Steel Grade Selection
ERW welded pipe offers a cost-effective alternative to seamless for applications where the weld seam integrity meets the required pressure rating. The carbon steel grades 10# through 45# provide increasing tensile strength for structural applications, while 16Mn, 40Cr, and 15CrMo introduce alloying elements for enhanced hardenability and high-temperature performance. The cold rolled and slightly oiled surface treatment protects against transient corrosion during ocean transit without interfering with downstream welding or coating operations. Wall thickness up to 300mm accommodates both thin-wall fluid lines and heavy-wall structural columns in a single procurement cycle.
The Hidden Price of Unverified Mill Certificates
Ordering an API Certified Carbon Welded Steel Pipe without independent material verification creates compounding risk. A certificate that lists API 5L Grade B but cannot be traced to a specific heat number will trigger customs holds in the EU. A wall thickness that passes visual inspection but fails ultrasonic measurement at the weld line means hydrostatic test failure at the project site — and the cost of replacing installed pipe far exceeds the original material savings. [NEED_CITE: consequences of material certification gaps in international steel procurement]
Why Engineering Teams Source This Pipe From Our Factory
Every API Certified Carbon Welded Steel Pipe leaving our facility passes through three inspection gates: incoming raw material verification, in-process weld seam ultrasonic testing, and final dimensional and chemical analysis in our own laboratory. The mill test certificate you receive documents actual measured values — not catalog specifications — with full traceability to the original heat number. Our 2,800+ specification range means you can consolidate round pipe, structural section, and plate requirements into a single factory-direct order, eliminating the coordination overhead of fragmented sourcing. The 41 patented technologies in our portfolio include proprietary processes that maintain dimensional accuracy across the full OD 21.3–1420mm range, and our professional loading team optimizes container utilization for 6m, 6.4m, and 12m lengths to reduce per-ton freight costs.
Documentation & Compliance
- Mill test certificate documenting API 5L / ASTM A106 chemical composition and measured wall thickness per heat number
- CE certificate under EN 10210/EN 10219 for structural hollow sections destined for EU markets
- ISO 9001:2015 quality management certificate covering the full production and inspection process
- SGS or BV third-party inspection report available upon request for destination port verification
- Material traceability linking each pipe to its original heat number, chemical analysis, and mechanical test results
- Complete customs documentation including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- Cold rolled and slightly oiled API 5L pipes bundled with steel strips and edge protectors to preserve surface condition during ocean transit
- 12m length pipes loaded with optimized container stowage plans to maximize payload while preventing transit damage
- Beveled and threaded ends individually capped to protect thread integrity and prevent moisture ingress
- Heat number and steel grade stenciled on each pipe for site identification and traceability verification
- FOB, CIF, and DDP shipping options with real-time tracking to 50+ countries across EU, North America, Middle East, and Southeast Asia
- Custom cutting to non-standard lengths available to reduce on-site fabrication waste
Start Your Procurement With Verified Specifications
Submit your required outer diameter, wall thickness, steel grade, and destination port to receive a detailed quotation including unit price, delivery timeline, and applicable certification documents. Our team will confirm material availability, provide sample mill test certificates for your review, and coordinate third-party inspection if your project requires independent verification.
Request a Quotation With Mill Test Certificate
Send your specifications via email to admin@sdxjysteel.com or contact us on WhatsApp at +86 188 5315 7756 to begin your procurement process.
Frequently Asked Questions
Q: How do Q235 and Q345 steel grades map to ASTM and EN standards?
A: Q235 generally corresponds to ASTM A36 and S235JR in European standards, while Q345 maps to ASTM A572 Grade 50 and S355JR/J0/J2. We provide full chemical composition and mechanical property data in the mill test certificate so your engineering team can verify equivalence for your specific design code.
Q: Can you arrange SGS or BV third-party inspection at the destination port?
A: Yes, we coordinate third-party inspection through SGS or BV either at our factory before shipment or at the destination port upon arrival. The inspection scope can include dimensional verification, ultrasonic wall thickness measurement, visual surface inspection, and material traceability checks against the mill test certificate.
Q: What is the minimum order quantity for non-standard outer diameter and wall thickness combinations?
A: The standard MOQ is 1 Ton for catalog specifications within the OD 21.3–1420mm and wall thickness 2.11–300mm range. For custom non-standard dimensions outside our regular production schedule, we will confirm the minimum quantity and production lead time based on your specific requirements.
Q: Do your CE and ISO certificates cover EU and Southeast Asian import requirements?
A: Our CE certification under EN 10210/EN 10219 is issued by Lloyd’s Register and accepted across EU member states for structural steel applications. ISO 9001:2015 certification and Singapore FPC approval support customs clearance in Southeast Asian markets, and we provide complete documentation packages including certificate of origin for each shipment.
Q: How do you optimize container loading for heavy-wall pipes up to 300mm thickness?
A: Our logistics team prepares detailed loading plans that maximize container payload while maintaining weight distribution and preventing transit damage. For heavy-wall pipes in the 20mm–300mm range, we calculate the optimal number of pieces per container based on actual weight rather than theoretical weight, and we use steel strip bundling with wooden cradles to secure the load during ocean freight.
