Description
Factory-Direct SSAW Pipe Supply — API 5L S355J2H spiral welded pipes manufactured in-house with full mill test traceability, shipped directly to 50+ countries without trading intermediaries.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | S355J2H SSAW Spiral Welded Steel Pipe |
| Product Type | SSAW Steel Pipe / Spiral Welded Steel Pipe |
| Steel Grade | S355J2H, Grade B, X42, X46, X52, X56, X60, X65, X70 |
| Standard | API 5L |
| Section Shape | Round |
| Outer Diameter | 406.4–1524 mm (16–60 in) |
| Length | 5.8–12 m |

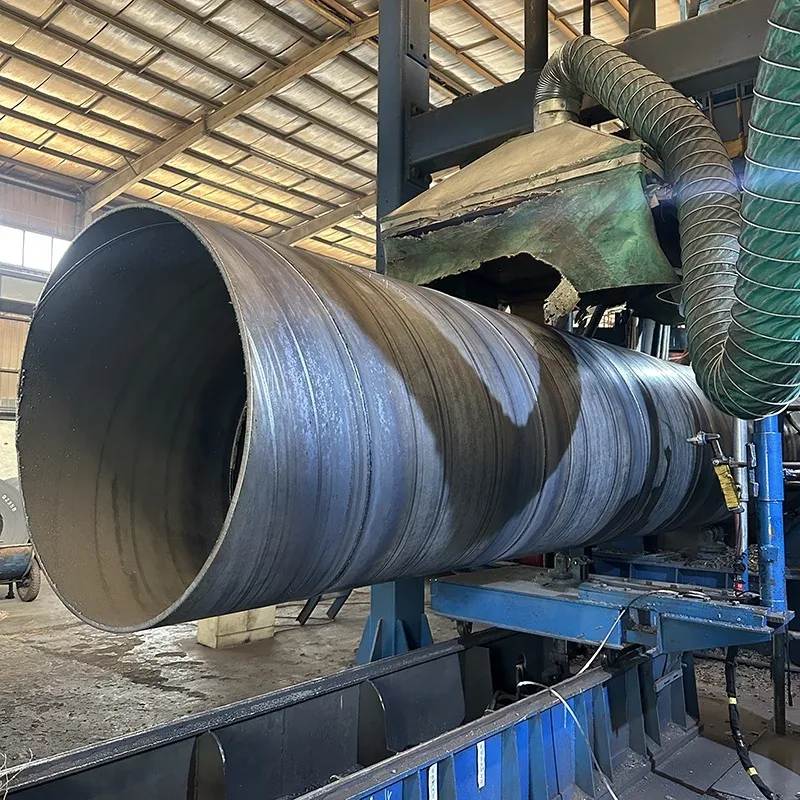

| Technique | SSAW (Spiral Submerged Arc Welding) |
| Surface Treatment | Bare / Oiled / Black Painting / Epoxy Painting / 3LPE / FBE |
| Ends | Bevel end with iron protector |
| Tolerance | ±5% / ±10% |
| Application | Oil & gas transport, sewage transport, piling, bridge piling, port construction, wellbore casing, fluid transmission |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors (Oil & Gas) | Wellbore casing pipes, long-distance fluid transmission pipelines, offshore platform support structures |
| Infrastructure & Civil Engineering | Bridge piling foundations, port quay wall construction, highway sound barrier posts |
| Municipal Engineering | Sewage transport mains, water well drilling casings, underground drainage systems |
| Industrial Fabricators | Structural columns for industrial sheds, conveyor support frames, equipment mounting bases |
What Negative Wall Tolerance Costs on a Piling Contract
A 0.8 mm wall deviation on a 12 mm nominal thickness pipe can invalidate an entire foundation batch.
On a Middle East bridge piling project, the contractor received a shipment of large-diameter spiral pipes where the actual wall thickness fell below the minimum specified by the purchase order. Third-party inspectors flagged the negative tolerance exceedance. The pipes had already been driven partially before the rejection — meaning the contractor faced not only material replacement costs but also foundation redesign delays and re-mobilization of piling rigs. For S355J2H SSAW spiral welded steel pipe used in load-bearing piling, wall thickness directly governs buckling resistance and axial capacity. When suppliers quote theoretical weight without guaranteeing measured thickness, the risk transfers entirely to the buyer. [NEED_CITE: API 5L dimensional tolerance requirements for wall thickness]
Matching Large-Diameter SSAW Pipe to Piling and Casing Environments
Large-diameter SSAW pipes in the 406–1524 mm OD range serve two fundamentally different roles: structural piling that must resist soil lateral pressure and axial compression, and wellbore casing that must maintain roundness under hydrostatic and formation loads. The S355J2H grade provides higher yield strength than standard S235 alternatives, making it suitable for deeper pile driving and heavier structural loads. Our in-house physical and chemical laboratory tests every heat — wall thickness, tensile properties, and impact toughness — before issuing the mill test certificate. For marine piling or buried casing in corrosive soil, we apply 3LPE or FBE coating per project specification, with coating thickness verified before dispatch.
Engineering Compliance and Certification Requirements
Piling and casing pipes for international projects must comply with the dimensional and chemical requirements of API 5L, which governs the S355J2H grade designation used across oil, gas, and civil infrastructure sectors. [NEED_CITE: API 5L specification for line pipe steel grades and testing] For EU-bound shipments, CE certification under EN 10219 or EN 10210 may be required by the main contractor’s quality plan, and our factory holds Lloyd’s Register EU CE certification covering these standards. Steel grade traceability by heat number is mandatory for third-party inspection — SGS and BV verification is available upon request. Bevel ends with iron protectors ensure the welding preparation is preserved during ocean freight, avoiding costly re-beveling at the project site.
Steel Grade Selection and SSAW Process Fundamentals
The S355J2H grade belongs to the non-alloy structural steel family, offering higher yield strength than S235 or S275 grades — a critical advantage when pile driving depth increases or when casing strings must withstand higher formation pressures. The “J2” suffix indicates impact testing at -20°C, confirming toughness in cold-climate or offshore environments, while the “H” designation confirms suitability for hollow structural sections. API 5L further extends the grade range to X42 through X70 for higher-pressure pipeline applications. The SSAW (spiral submerged arc welding) process forms the pipe by helically winding steel coil and welding both inner and outer seams simultaneously — this allows production of large diameters (up to 1524 mm) from relatively narrow coil widths, reducing material cost compared to LSAW for the same OD. However, the spiral weld seam requires full ultrasonic inspection to ensure integrity under cyclic loading conditions typical in piling and casing service.
Hidden Costs of Procuring Without Verified Mill Data
Purchasing S355J2H SSAW spiral welded steel pipe based solely on price comparison — without verified mill test certificates — exposes projects to three categories of hidden cost. First, material substitution: a lower grade shipped under a higher-grade label will pass visual inspection but fail mechanical testing at the project lab, triggering full-batch rejection. Second, customs complications: shipments missing CE documentation or proper heat-number traceability are held at port, incurring demurrage charges that can exceed the pipe cost itself. [NEED_CITE: customs clearance requirements for steel pipe imports with CE marking] Third, structural liability: wall thickness below specification reduces load capacity, and if discovered after pile driving, the remediation cost includes extraction, redesign, and schedule delay — far exceeding any initial price saving.
Why Source S355J2H SSAW Spiral Welded Steel Pipe From Xin Jiyuan

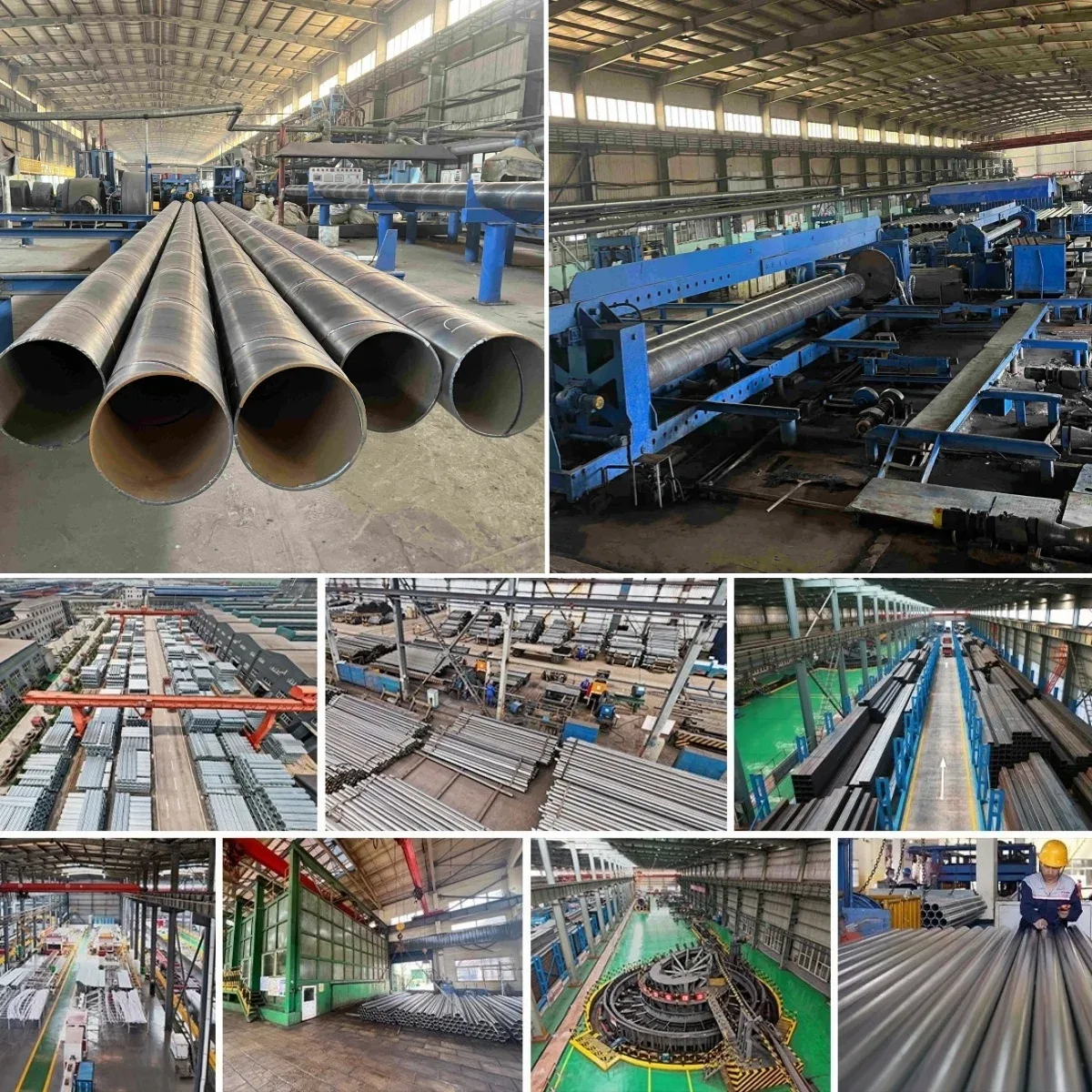

Our factory operates three dedicated production lines capable of manufacturing SSAW pipes from 406 mm to 1524 mm OD, with wall thickness up to 40 mm — covering the full range required for piling, casing, and pipeline projects. Every production batch undergoes incoming material inspection, in-process weld monitoring, and final dimensional and mechanical testing in our on-site laboratory before the mill test certificate is issued. We hold ISO 9001:2015 certification, Lloyd’s Register EU CE certification, and Singapore FPC approval, with SGS and BV third-party inspection available for any order. As a designated supplier for multiple state-owned enterprises and listed companies, we have exported to over 50 countries across the EU, North America, the Middle East, and Southeast Asia. Our professional loading team optimizes container and bulk vessel stowage for large-diameter pipes, minimizing freight cost and preventing transit damage. Custom non-standard sizes and lengths are available, with typical production lead times confirmed upon order placement.
Documentation & Compliance
- Mill Test Certificate documenting S355J2H chemical composition, yield strength, and impact test results per API 5L, with heat number traceability for every pipe
- CE Certificate under EN 10210 / EN 10219 issued by Lloyd’s Register for EU market compliance on structural piling applications
- ISO 9001:2015 quality management system certificate covering the full SSAW pipe manufacturing process
- SGS or BV third-party inspection report available upon request, covering dimensional verification, weld seam ultrasonic testing, and coating thickness measurement
- Material traceability sheet linking each pipe to its heat number, coil batch, and production date for project quality audit compliance
- Full customs documentation package including packing list, bill of lading, and certificate of origin for import clearance in destination country
Packaging, Loading & Delivery
- Bare S355J2H SSAW pipes bundled with steel strips and edge protectors, with bevel ends fitted with iron caps to prevent damage during ocean transit
- 3LPE or FBE coated pipes wrapped with protective film and separated by rubber pads to preserve coating integrity throughout container loading and unloading

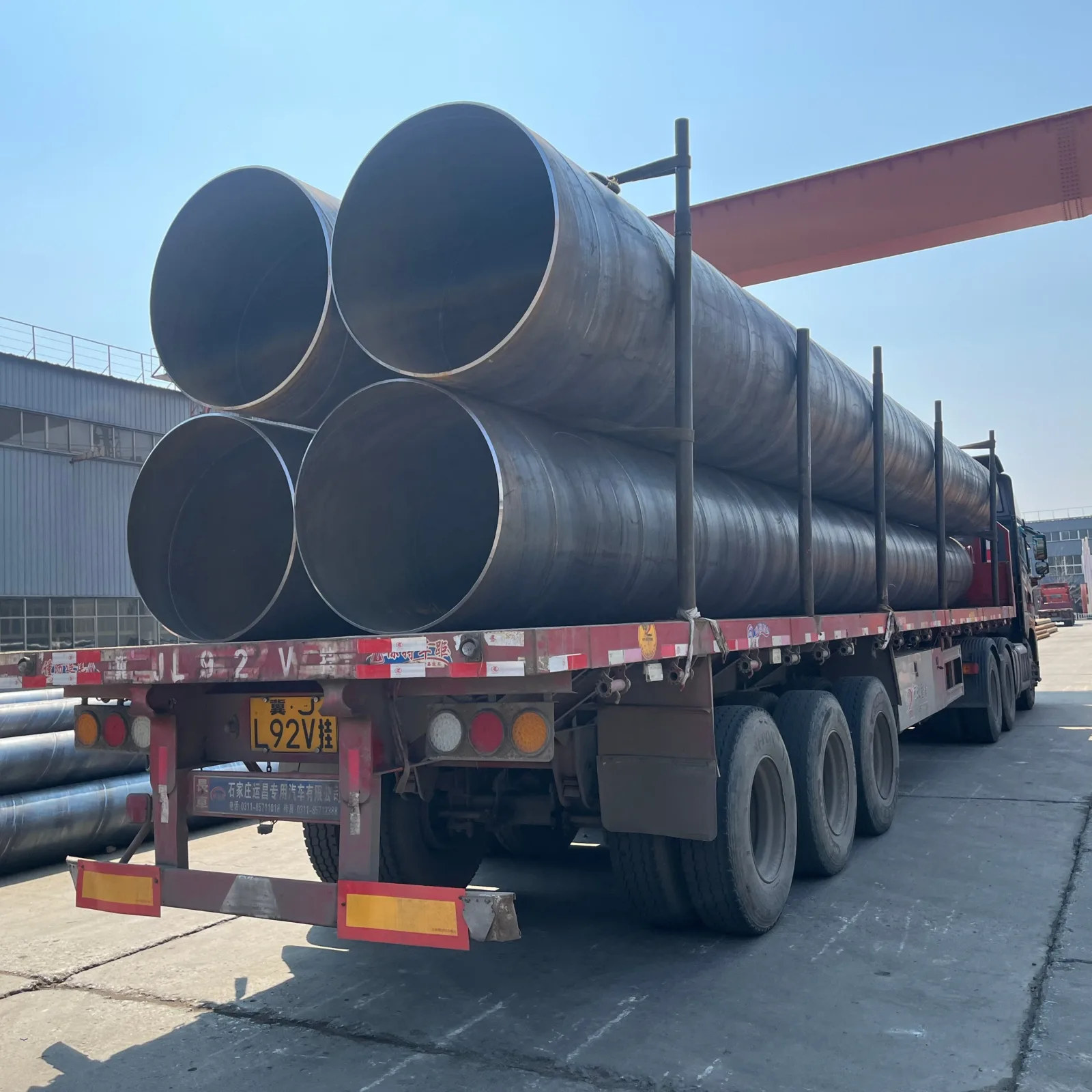

- Large-diameter pipes (OD above 1000 mm) loaded individually in open-top containers or on flat racks with welded steel cradles to prevent rolling during vessel transit
- Standard length 5.8–12 m pipes optimized for 40ft open-top container loading, with nesting arrangements for smaller diameters to maximize payload per shipment

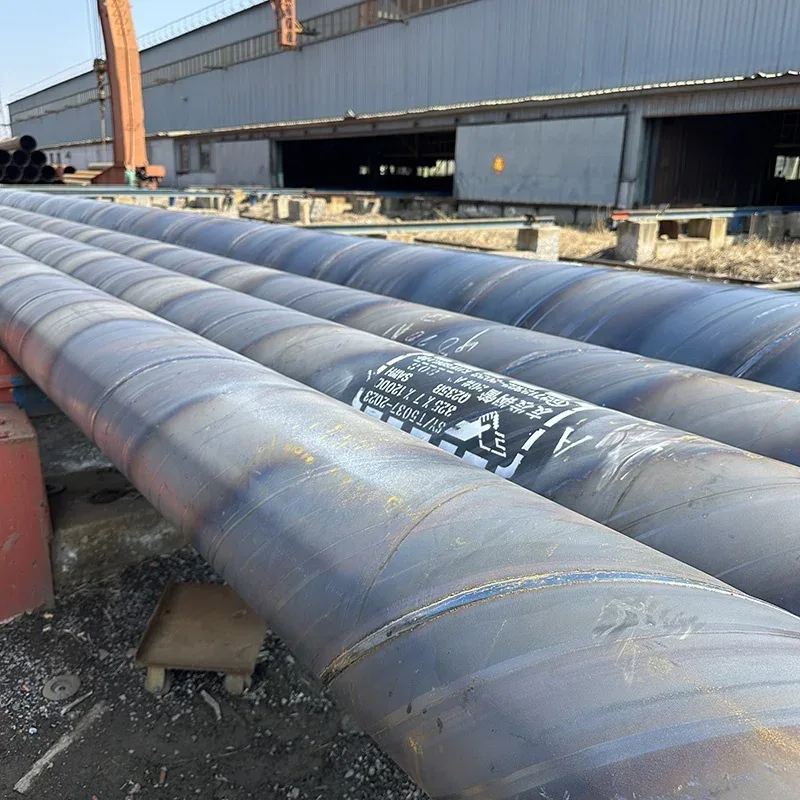

- Each pipe marked with heat number, steel grade (S355J2H / X42 / X52 etc.), OD, wall thickness, and length for on-site identification and traceability
- Shipping terms available including FOB, CIF, and DDP with door-to-door logistics coordination to project site or stockyard in 50+ countries
Ready to Procure S355J2H SSAW Spiral Welded Steel Pipe?
Submit your project specifications — including outer diameter, wall thickness, steel grade, quantity, surface coating requirement, and destination port — and receive a detailed quotation with mill test certificate sample, delivery schedule, and loading plan within 12 hours. For non-standard sizes or custom coating specifications, our technical team will provide a feasibility assessment and production timeline.
Get Your S355J2H SSAW Pipe Quotation with Mill Test Certificate
Send your inquiry via email at admin@sdxjysteel.com or contact us via WhatsApp at +86 188 5315 7756 with your pipe specifications and project requirements.
Frequently Asked Questions
Q: What is the difference between SSAW and LSAW for large-diameter pipes?
A: SSAW (spiral submerged arc welding) forms the pipe by helically winding steel coil, allowing production of large diameters up to 1524 mm from narrower coil widths at lower cost. LSAW (longitudinal submerged arc welding) uses a single straight seam and is typically used for diameters above 500 mm where straight-seam integrity is preferred for high-pressure pipeline service. SSAW is widely accepted for piling, casing, and low-to-medium pressure fluid transport applications.
Q: How to verify API 5L steel grade through Mill Test Certificate?
A: The mill test certificate for S355J2H SSAW spiral welded steel pipe includes chemical composition (carbon, manganese, silicon, sulfur, phosphorus content), mechanical properties (yield strength, tensile strength, elongation), and impact test results. Each pipe is traceable to its heat number, which corresponds to the steel coil batch. Third-party inspection by SGS or BV can be arranged to verify the certificate against actual test results.
Q: Which surface coating is suitable for buried piling versus offshore applications?
A: For buried piling in normal soil conditions, black painting or epoxy coating provides adequate corrosion protection. For marine environments, offshore platforms, or aggressive soil conditions, 3LPE (three-layer polyethylene) or FBE (fusion-bonded epoxy) coating is recommended due to superior moisture resistance and cathodic disbondment performance. Bare or oiled pipes are suitable for temporary casing or internal applications where corrosion is not a concern.
Q: How are large-diameter SSAW pipes loaded and secured for container or bulk vessel shipment?
A: Pipes with OD above 1000 mm are loaded individually in open-top containers or on flat racks with welded steel cradles to prevent movement. Smaller diameters are nested to maximize container payload. Bevel ends are protected with iron caps, and coated pipes are separated with rubber pads. Our loading team prepares stowage plans based on pipe dimensions and destination port requirements to minimize freight cost and transit damage.
Q: What is the MOQ and lead time for custom OD and wall thickness?
A: MOQ and lead time depend on the specific diameter, wall thickness, steel grade, and quantity required. For standard API 5L sizes in S355J2H or X-grade steels, typical production lead times apply. Custom non-standard sizes are available based on our production line capabilities. Submit your specifications for a detailed quotation including delivery schedule.
