Description
Factory-Direct Galvanized ERW Tubes — Shandong Xin Jiyuan Special Steel Tube Co., Ltd operates three dedicated ERW lines producing Q195–Q345B galvanized welded square and rectangular steel tubes under GB standard, eliminating middlemen for global EPC and construction buyers.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B/Q345B Welded Square and Rectangular Steel Tube |
| Product Type | Welded Square and Rectangular Steel Tube (Hollow Section) |
| Steel Grade | Q195, Q235, Q235B, Q345, Q345B, St37, St37-2, St35, St35.4, St42, St52.4 |
| Standard | GB |
| Section Shape | Square / Rectangular / Round |
| Length | 6 m / 12 m |
| Technique | ERW (Electric Resistance Welded) |
| Surface Treatment | Galvanized Coating |
| Tolerance | ±1% |
| Processing Service | Cutting, Welding, Punching, Bending |
| Invoicing | By Theoretical Weight |
| Oiled or Non-oiled | Non-oiled |
| Application | Fluid transport / Gas pipe / Oil pipe / Chemical fertilizer pipe / Boiler pipe / Drill pipe / Hydraulic pipe / Structural applications |
| MOQ | 25 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Structural frames and support systems for industrial plants, solar mounting structures, conveyor gantries |
| Construction Companies | Building frames, scaffolding uprights, structural hollow sections for warehouses and commercial complexes |
| Machinery Manufacturers | Equipment frames, hydraulic cylinder housings, material handling system components |
What Negative Wall Tolerance Really Costs on a Galvanized Structural Frame Order
A ±1% tolerance on galvanized welded square and rectangular steel tube means the difference between passing site inspection and scrapping an entire container at port.
I once watched a full container of 100×100×5 welded tubes get held at Lagos port because the actual wall thickness measured 4.2 mm — the supplier had pushed negative tolerance to the edge. Third-party re-inspection failed, the cargo sat for weeks, and the buyer paid air freight for replacement stock out of their own margin. That is what happens when a supplier invoices by theoretical weight but ships at the floor of tolerance. On galvanized welded square and rectangular steel tube orders, the zinc coating adds another layer of risk: if the base metal is under-gauge, the galvanized layer cannot compensate, and corrosion protection life drops accordingly. [NEED_CITE: EN 10219 cold-formed welded structural hollow section tolerance requirements]
Matching Q235B and Q345B Grades to Structural Load Paths
Galvanized welded square and rectangular steel tube in Q235B serves general structural framing where moderate load capacity suffices — scaffolding, light industrial sheds, and non-critical support members. When the design calls for higher yield strength, Q345B steps in for primary load-bearing columns, crane runway beams, and heavy equipment frames. The galvanized coating on both grades provides uniform corrosion resistance across the full exterior and interior surfaces, making these tubes suitable for outdoor exposure, coastal environments, and chemical plant perimeters without additional painting.
Engineering Compliance and Certification Requirements
Structural hollow sections used in load-bearing frames must conform to recognized dimensional and material standards — GB for domestic Chinese projects, with EN 10210 and EN 10219 governing European market deliveries. [NEED_CITE: steel grade equivalence mapping between GB Q-series and EN S-series] CE certification under EN 10210/EN 10219 is mandatory for customs clearance across EU member states, and project specifiers frequently require third-party inspection by SGS or BV before shipment. For galvanized welded square and rectangular steel tube, the zinc coating mass must also meet minimum thickness requirements per ISO 1461 or equivalent, and mill test certificates must document both base metal chemistry and coating weight.
Understanding ERW Welding and Galvanized Surface Treatment
ERW (Electric Resistance Welded) forming welds the tube seam by passing high-frequency current through the steel strip edges under pressure, producing a clean, narrow weld bead suitable for structural and low-to-medium pressure fluid applications. Compared to seamless pipe, ERW offers tighter dimensional control and lower cost at standard wall thicknesses, which is why galvanized welded square and rectangular steel tube in ERW process dominates structural framing and scaffolding markets. The hot-dip galvanized coating applied after forming creates a metallurgical zinc-iron bond layer that resists chipping during transport and installation, providing corrosion protection that outlasts painted or oiled finishes in humid and marine environments. Q195 through Q345B grades cover a yield strength range from general-purpose to higher-load structural use, with European equivalents St37 through St52 available for projects specifying EN or DIN designations. [NEED_CITE: hot-dip galvanizing process and coating adhesion on ERW welded tubes]
Hidden Costs of Buying Unverified Galvanized Tubes
Ordering galvanized welded square and rectangular steel tube without verified mill test certificates risks three failure modes at destination: customs rejection due to missing CE documentation, structural non-conformance when actual chemistry deviates from declared grade, and premature corrosion when zinc coating mass falls below specification. [NEED_CITE: consequences of missing EN 10219 certification for structural hollow sections in EU construction] Rejected shipments at port incur demurrage, re-inspection fees, and emergency air freight for replacement — costs that routinely exceed the original purchase price.
Procurement Advantages of Direct Factory Supply
Shandong Xin Jiyuan Special Steel Tube Co., Ltd operates three dedicated ERW production lines with in-house physical and chemical laboratories that test every heat before release. The factory holds 41 invention patents including proprietary sharp-corner rectangular tube technology, and maintains a catalog of over 2,800 specifications covering square, rectangular, and round sections with wall thickness up to 40 mm. CE certification under EN 10210/EN 10219, ISO 9001:2015 registration, and third-party verification by SGS and BV ensure that galvanized welded square and rectangular steel tube orders ship with complete documentation for EU, North American, and Middle Eastern customs. Professional loading plans optimize container utilization for 6 m and 12 m lengths, and the export team coordinates FOB, CIF, and DDP shipments to over 50 countries.
Documentation & Compliance
- Mill Test Certificate documenting Q235B/Q345B chemical composition and mechanical properties per GB standard, issued per heat number
- CE certificate confirming compliance with EN 10210/EN 10219 for galvanized welded structural hollow sections destined for European markets
- ISO 9001:2015 quality management system certificate covering ERW welding, galvanizing, and dimensional inspection processes
- SGS or BV third-party inspection report available upon request for independent verification of wall thickness, zinc coating mass, and dimensional tolerance
- Material traceability by heat number stamped on each tube bundle, cross-referenced to mill test certificate
- Customs document package including packing list, Bill of Lading, and Certificate of Origin formatted for destination port requirements
Packaging, Loading & Delivery

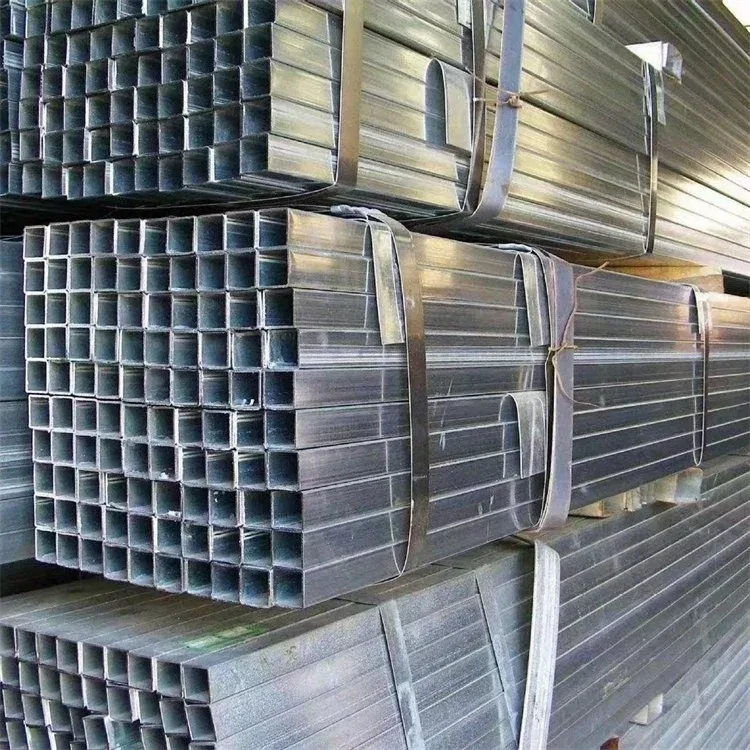

- Galvanized welded square and rectangular steel tube bundled with steel strips and edge protectors to preserve the zinc coating during ocean transit
- Non-oiled surface condition requires moisture barrier wrapping for container shipments to prevent white rust formation in humid climates
- 6 m and 12 m lengths loaded with optimized stowage plans maximizing container payload while preventing bundle shift during vessel motion
- Heat number and steel grade stenciled on each tube end for site identification and traceability verification during installation
- FOB, CIF, and DDP shipping terms available with professional port coordination and door-to-door logistics to over 50 countries
- Custom cutting to project-specific lengths available before galvanizing to ensure full zinc coverage on cut ends
Requesting a Quotation for Your Structural Tube Requirement
Submit your specification sheet listing section dimensions, wall thickness, steel grade, total tonnage, and destination port to receive a detailed quotation including unit price, production lead time, and applicable certification package. For non-standard dimensions or custom processing including cutting, punching, and bending, share your fabrication drawing and the engineering team will confirm feasibility and pricing within one working day.
Frequently Asked Questions
Q: How do Q235B and Q345B grades compare to European S235JR and S355JR designations?
A: Q235B and Q345B are Chinese GB standard carbon and low-alloy structural steel grades that correspond broadly to S235JR and S355JR in the EN system. We supply both Chinese and European equivalent grades including St37, St37-2, St42, and St52.4 for projects requiring DIN or EN compliance, and our mill test certificates document the specific grade chemistry and mechanical properties for your specification review.
Q: Can you arrange third-party inspection before shipment?
A: Yes. We coordinate SGS and BV third-party inspections at our facility to independently verify wall thickness, dimensional tolerance, zinc coating mass, and mechanical properties. The inspection report is issued before container loading and included in your customs documentation package.
Q: Do you offer cutting, punching, and bending services for welded tubes?
A: Our factory provides cutting, welding, punching, and bending processing services on galvanized welded square and rectangular steel tube to reduce on-site fabrication costs. Custom processing is quoted separately based on your fabrication drawing and quantity.
Q: What surface treatment options are available besides galvanized?
A: We supply ERW welded square and rectangular steel tube in galvanized, black (non-oiled), and oiled finishes. Hot-dip galvanizing provides the longest corrosion protection life for outdoor and marine applications, while black and oiled finishes suit indoor structural use or projects where the buyer applies their own coating system.
Q: What are your shipping terms and typical lead times?
A: We offer FOB, CIF, and DDP shipping terms with professional container loading optimization. Typical production lead times apply once the deposit is received and the specification is confirmed. Our export team coordinates port clearance and door-to-door logistics to destinations across the EU, North America, Middle East, Southeast Asia, and Africa.
Secure Your Galvanized ERW Tube Supply with Verified Documentation
Send your specification, steel grade, quantity, and destination port to receive a detailed quotation with mill test certificate preview and certification package confirmation.
