Description
Factory-Direct Galvanized Channels — No middlemen, full mill test traceability per heat number.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B/Q345B Galvanized C/U/Z Steel Channel |
| Product Type | C / U / Z Channel |
| Steel Grade | Q235, Q235B, Q345, Q345B, SS400, ST37-2, A36, S235JRG1 |
| Standard | AISI, GB |
| Section Shape | C / U / Z Channel |
| Technique | Hot Rolled |
| Surface Treatment | Galvanized |
| Tolerance | ±1% |
| Length | Customer’s Requirements |
| Perforated | Not Perforated |
| Invoicing | By Theoretical Weight |
| Application | Construction / Building frameworks / Industrial structures / Metal construction |
| MOQ | 10 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Steel structure frameworks for industrial plants and warehouses |
| Construction Companies | Purlin and beam systems for commercial buildings and infrastructure |
| System Integrators | Support structures for conveyor and automation installations |
| Machinery Manufacturers | Equipment frames requiring precision structural channels |
Dimensional Tolerance Is Where Channel Orders Either Fit or Fail
A ±1% tolerance on a hot rolled galvanized channel means the difference between bolt holes aligning on-site and entire purlin runs getting rejected.
Structural engineers sign off on framing layouts measured in millimeters, not inches of guesswork. When a container of C channels arrives with flanges out of tolerance, the zinc coating scraped bare from transit shift, and slots bent beyond the drawing spec, the project stops cold [NEED_CITE: dimensional tolerance requirements for hot rolled structural steel channels]. Buyers who source channels from trading companies without in-house physical and chemical laboratories often discover the tolerance gap only after customs clearance — when re-inspection reveals inconsistencies that no amount of email negotiation can fix.
Matching Galvanized Channels to Structural Frame Requirements
Hot rolled galvanized C, U, and Z channels in Q235B and Q345B grades carry the grain structure uniformity needed for load-bearing purlin systems and bracing members. The galvanized surface treatment provides corrosion resistance for outdoor industrial environments where painted alternatives would require recurring maintenance cycles. As a Galvanized C U Z Steel Channel supplier, we produce each profile on dedicated section steel lines with in-house gauge checks before crating — because I once watched a full 40HQ of C purlins get rejected at a Monterrey warehouse when the channels shifted during transit and the zinc scraped bare.
Engineering Compliance and Certification Pathways
Structural channels for EU-bound projects must conform to EN 10210/10219 dimensional and material requirements, while North American specifiers reference ASTM A36 and A572 grade equivalences [NEED_CITE: steel grade equivalence between GB Q series and ASTM A36/A572]. The Q235B grade maps closely to S235JRG1 and A36 in yield behavior, while Q345B aligns with S355JR and A572 Grade 50 for higher-load applications. CE certification under EN 10210/10219 clears EU customs without delay, and third-party inspection via SGS or BV provides the independent verification that project owners and structural engineers demand before releasing payment milestones.
Steel Grade Selection and Hot Rolling Process Fundamentals
The Q-series grades (Q235B, Q345B) follow the Chinese GB system where the number indicates minimum yield strength in MPa — Q235B delivers adequate strength for standard purlin and secondary framing, while Q345B serves primary load-bearing members in warehouses and industrial sheds. SS400 and ST37-2 cover Japanese and German standard requirements respectively, allowing a single Galvanized C U Z Steel Channel order to serve multi-region EPC projects without splitting procurement across suppliers. Hot rolling produces a uniform grain structure throughout the channel cross-section, which matters for weldability and consistent mechanical behavior under dynamic loads. The galvanized coating, applied after forming, seals the surface against atmospheric corrosion and extends service life in humid or coastal construction environments without the recurring cost of field painting.
The Hidden Cost of Unverified Channel Procurement
Ordering channels without original mill test certificates means accepting material that may not match the specified grade — a Q345B order that arrives with Q235B chemistry will pass visual inspection but fail structural load calculations under engineer review [NEED_CITE: consequences of steel grade mismatch in structural construction projects]. Missing CE documentation on EU-bound shipments triggers customs holds that delay project timelines by weeks, while negative tolerance abuse — where actual wall thickness falls below the theoretical specification — reduces load capacity and voids engineering sign-off. The cost of re-procurement, air-freight replacement, and project delay routinely exceeds the initial price difference between verified factory-direct supply and the cheapest quote on a trading platform.
Procurement Confidence Backed by In-House Verification
Every Galvanized C U Z Steel Channel we ship carries a mill test certificate generated by our own physical and chemical laboratories — not a broker’s reprint. Our three dedicated production lines cover over 2,800 specifications across square and rectangular tubes, round pipes, plates, and section steel, meaning your channel order ships alongside matching beams and fabrication from a single source rather than three separate vendors. We hold CE certification under EN 10210/10219, ISO 9001:2015, and Singapore FPC, with SGS and BV third-party inspection available per shipment. Our professional loading team designs custom container plans for each order — because I learned in Monterrey that a 40HQ of channels loaded without edge protectors and bracing will arrive with bent flanges and scraped zinc, no matter how good the mill output was.
Documentation & Compliance
- Mill test certificate documenting Q235B/Q345B chemical composition and mechanical properties per GB standard, issued per heat number
- CE certificate under EN 10210/10219 for EU market compliance and customs clearance
- ISO 9001:2015 quality management system certificate covering all section steel production lines
- SGS or BV third-party inspection report available upon request for pre-shipment verification
- Material traceability by heat number stamped on each channel for on-site identification
- Full customs document package including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

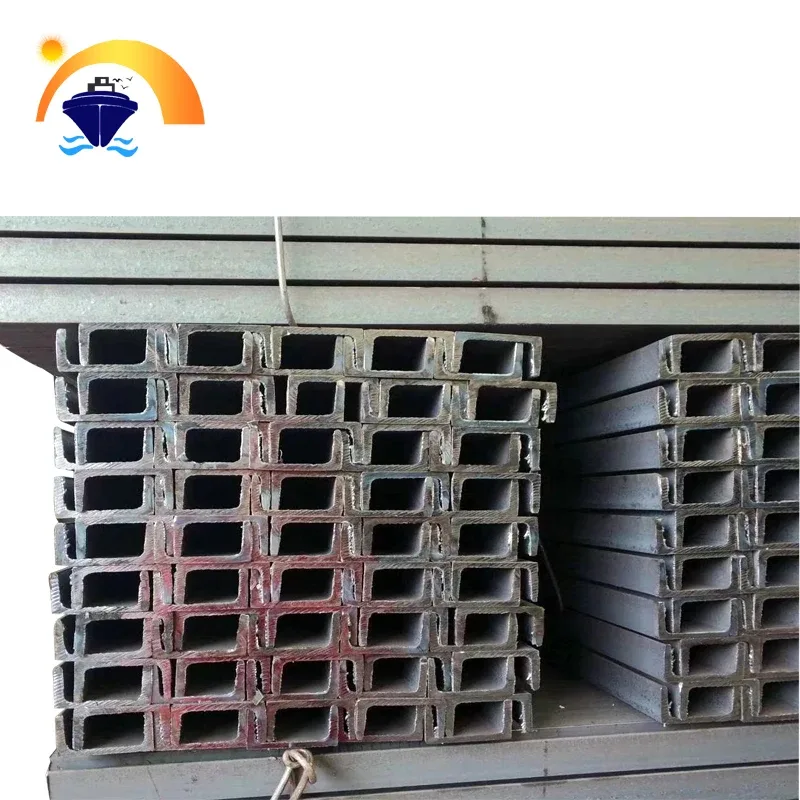

- Hot rolled galvanized C/U/Z channels bundled with steel strips and edge protectors to preserve the zinc coating during ocean transit
- Custom loading plans designed per container to prevent channel shift and flange deformation across 10-ton minimum orders
- Cut-to-length service available per customer requirements, with theoretical weight invoicing matching project BOM specifications
- Heat number and steel grade marked on each bundle for on-site traceability and engineer verification
- FOB, CIF, and DDP logistics options with professional port coordination for 50+ destination countries
- Seaworthy packaging with moisture barriers for galvanized surfaces to prevent white rust during extended transit
Start Your Channel Procurement with Verified Specifications
Submit your required steel grade, section profile, dimensions, quantity, and destination port — we respond within 12 hours with a detailed quotation including unit price, delivery timeline, payment terms, and applicable certification documentation. Request non-standard cut-to-length options or third-party inspection arrangements at the inquiry stage to lock compliance before production begins.
Get Your Galvanized Channel Quote with Mill Test Certification
Send your specifications to admin@sdxjysteel.com or reach us via WhatsApp at +86 188 5315 7756 for a detailed quotation and sample mill test certificate within 12 hours.
