Description
Factory-Direct ERW Pipes — Dedicated ERW lines with in-house lab verification on every Q235B batch.
Technical Specifications
| Parameter | Value |
|---|---|

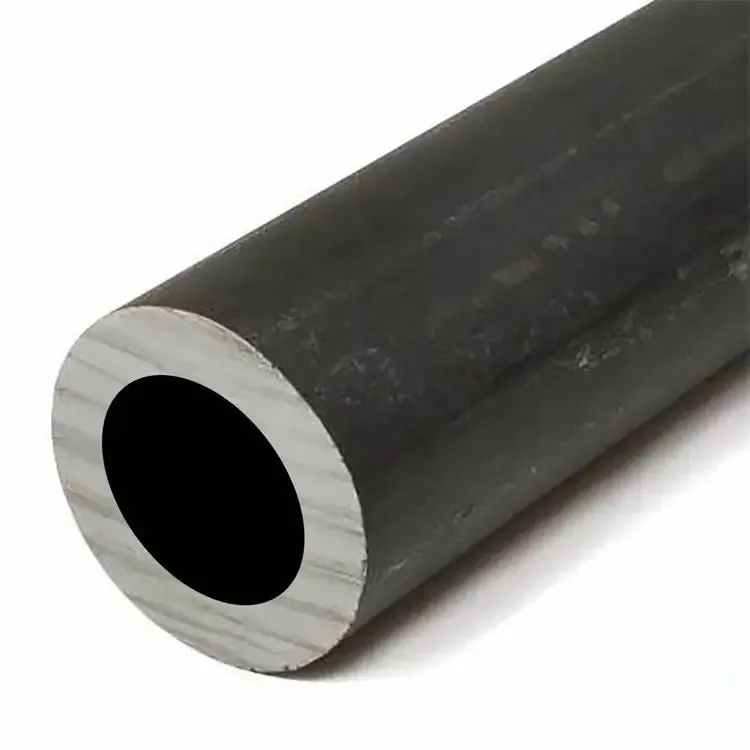

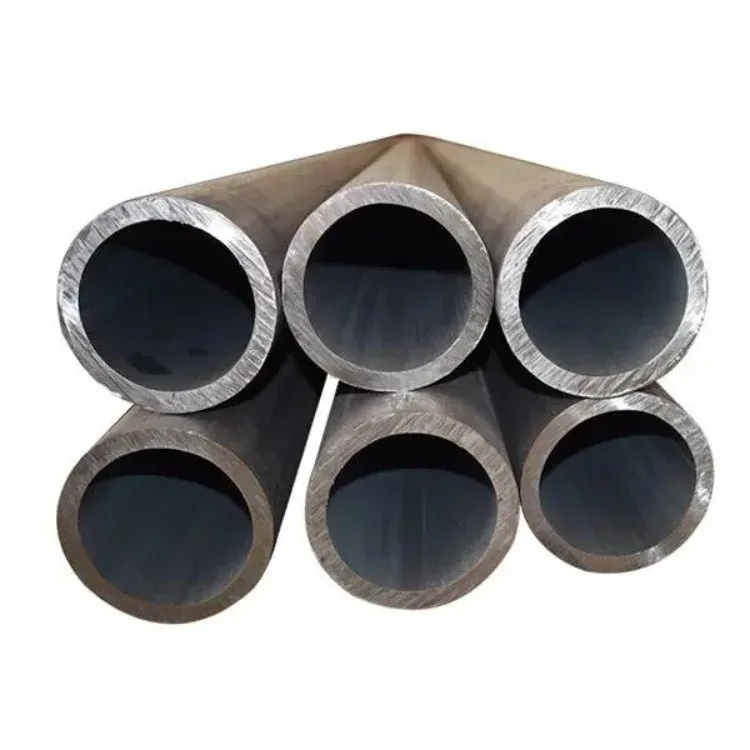

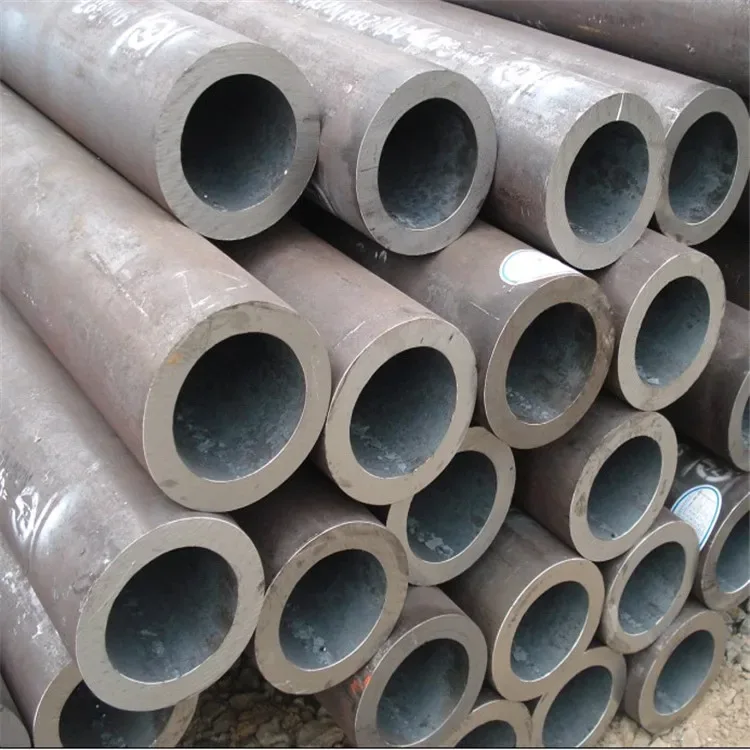

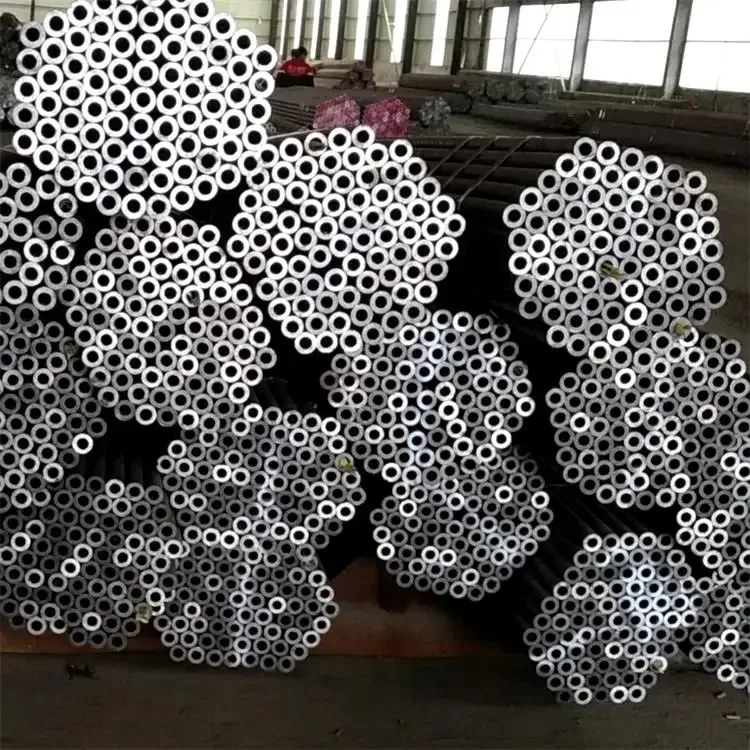

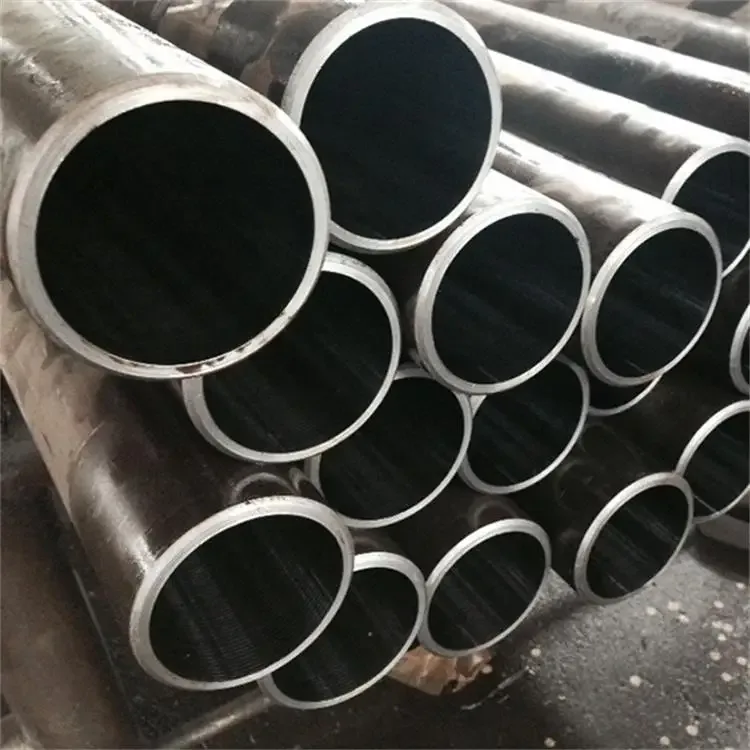

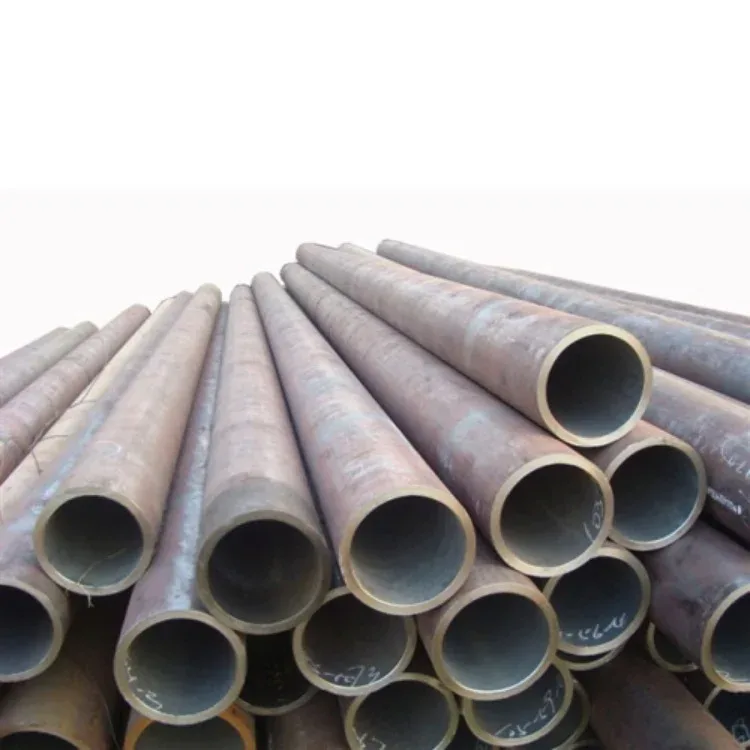

| Designation | Q235B ERW Welded Round Steel Pipe |
| Product Type | ERW Welded Round Steel Pipe |
| Steel Grade | Q195, Q215, Q235, Q235B, Q345, #20, #45, S275, S275JR, A53, ST37 |
| Standard | ASTM A53, EN, BS, JIS, ISO 9001 |
| Section Shape | Round |
| Size Range | OD 10–3048 mm |
| Wall Thickness | 0.8–12.75 mm |
| Length | 6m / 12m / Customized |
| Technique | ERW (Hot Rolled / Cold Rolled) |
| Surface Treatment | Cold Rolled / Oiled / Non-oiled / Customized |
| Tolerance | ±1% |
| Ends | Plain / Customized |
| Application | Fluid transport, structural engineering, greenhouse structure, building construction, fencing, gas pipeline, oil pipeline |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors & Construction | Building frames, scaffolding uprights, structural columns, roof trusses |
| Machinery & Industrial Manufacturing | Hydraulic system lines, fluid conveyance, equipment support structures |
| Agricultural & Infrastructure | Greenhouse frames, perimeter fencing, gas and oil pipeline networks |
| Furniture & Light Structure | Furniture frames, handrails, agricultural equipment supports |
Where Wall-Thickness Tolerance Decides Acceptance on a Q235B ERW Welded Round Steel Pipe Order
A 0.3mm negative deviation on a thin-wall ERW pipe can void an entire structural inspection.
On a mid-rise project in Southeast Asia, a contractor received a container of welded round pipes where wall thickness fell below the specified minimum on nearly every piece. The third-party inspector rejected the full batch. The replacement shipment had to be air-freighted — at a cost that dwarfed the original pipe price. That kind of failure does not come from malice; it comes from suppliers who treat tolerance as a suggestion rather than a specification. When you source a Q235B ERW welded round steel pipe, dimensional accuracy must be verified at the mill, not discovered at the job site [NEED_CITE: EN 10219 dimensional tolerance requirements for cold-formed welded hollow sections].
Matching Structural Load Paths and Connection Methods
A Q235B ERW welded round steel pipe in the OD 200–500mm range with wall thickness above 4mm handles primary structural columns and beam-to-column connections in portal-frame buildings. The ERW weld seam, when properly controlled, delivers uniform strength along the full circumference — critical when pipes are drilled, welded, or bolted at connection nodes. For greenhouse and fencing applications in the OD 10–80mm range, the same production line supplies lighter-wall tubes that cut and bend cleanly without seam splitting. Our dedicated ERW lines run dimensional checks at every coil change, which is why project engineers across 50+ countries specify our pipes for load-bearing frames.
Engineering Compliance and Certification Requirements
Structural applications governed by EN 1993 or AISC require documented material traceability back to the heat number. A Q235B ERW welded round steel pipe shipped to the EU must carry CE marking under EN 10219; the same pipe going to North America typically falls under ASTM A53. Surface treatment selection matters for corrosion resistance — oiled finish suits indoor structural use, while projects in coastal or industrial zones may require additional coating or galvanizing after delivery. Third-party inspection by SGS or BV before loading closes the gap between mill output and site acceptance [NEED_CITE: CE marking requirements for structural steel hollow sections under EN 10219].
Understanding Q235B, S275JR, and A53 in the ERW Process
Q235B belongs to the Chinese GB/T 700 carbon structural steel system, widely specified across Southeast Asia and the Middle East for general structural and fluid conveyance work. S275JR follows the European EN 10025 system with higher minimum yield strength, making it the default for load-bearing frames in EU projects. ASTM A53 covers both Type E (ERW) and Type S (seamless) for American-spec piping. The ERW process itself — forming a flat strip into a round profile and welding the seam through high-frequency electric current — produces a cost-effective pipe with consistent wall thickness across large diameters up to 3048mm. Hot-rolled strip delivers heavier walls for structural work; cold-rolled strip provides tighter surface finish for applications where appearance matters. Wall thickness tolerance of ±1% on our ERW lines keeps theoretical weight calculations aligned with actual delivered weight — a detail that matters when project budgets are calculated per ton.
The Hidden Cost of Unverified Mill Test Certificates
A Q235B ERW welded round steel pipe without a valid mill test certificate creates risk at every downstream step. Customs authorities in the EU and Middle East increasingly reject steel shipments lacking proper documentation, regardless of physical quality. On-site, an inspector who cannot verify chemical composition against the heat number will halt installation — delaying the entire project timeline. Worse, pipes with actual chemistry outside the Q235B range may pass visual inspection but fail under load testing, creating structural safety liability that traces back to the procurement decision [NEED_CITE: material traceability requirements for structural steel per EN 10204].
Procurement Confidence from Mill to Job Site
Our Jinan factory operates three dedicated ERW production lines covering the full OD 10–3048mm and wall thickness 0.8–12.75mm range in a single facility — eliminating the need to source round pipes, plates, and sections from separate suppliers. Every Q235B ERW welded round steel pipe passes through our in-house physical and chemical laboratory for incoming raw material inspection, in-process weld seam verification, and final dimensional checks before shipment. We hold CE certification under EN 10210/EN 10219, ISO 9001:2015, and Singapore FPC, with third-party verification available through SGS and BV. Custom non-standard lengths, end treatments, and surface finishes are produced on the same lines — no separate subcontractor lead times. Professional loading plans optimize container utilization for long-length pipes, and our export team handles documentation for FOB, CIF, and DDP shipments to 50+ countries.
Documentation & Compliance
- Mill test certificate documenting Q235B chemical composition (C, Si, Mn, P, S) and mechanical properties per GB/T 700, traceable to heat number
- CE certificate under EN 10219 for cold-formed welded structural hollow sections, required for EU market customs clearance
- ISO 9001:2015 quality management system certificate covering the full ERW production process
- SGS or BV third-party inspection report verifying dimensional tolerance, weld seam quality, and surface condition before loading
- Material traceability sheet linking each pipe bundle to its heat number, coil batch, and production date
- Full customs document package including packing list, bill of lading, and certificate of origin for destination-country clearance
Packaging, Loading & Delivery
- Q235B ERW welded round steel pipes bundled with galvanized steel strips at intervals matched to pipe diameter, preventing bundle separation during ocean transit
- Oiled surface pipes wrapped with waterproof cloth and edge protectors to preserve the anti-rust coating through humid port storage and tropical shipping routes
- Container loading plans optimized for 6m and 12m standard lengths, with nested smaller-diameter pipes inside larger OD tubes to maximize payload per container
- Custom cut-to-length service available for non-standard project dimensions, with cut ends deburred and protected against edge corrosion
- Each bundle marked with heat number, steel grade Q235B, OD, wall thickness, and length for immediate site identification
- FOB, CIF, and DDP shipping terms with real-time tracking from Jinan inland depot through discharge port to final destination
Getting Your Q235B ERW Welded Round Steel Pipe Quote Ready for Review
Submit your specification sheet — including OD, wall thickness, length, steel grade, quantity, and destination port — and our team responds within 12 hours with unit pricing, production lead time, applicable certifications, and a sample mill test certificate for your review. For non-standard dimensions or custom surface treatment, we provide a technical proposal with feasibility confirmation before contract signing.
Request Your Q235B ERW Welded Round Steel Pipe Quotation with Mill Test Certificate
Send your specifications, steel grade, quantity, and destination port to receive a detailed quote with certification and delivery timeline.
