Description

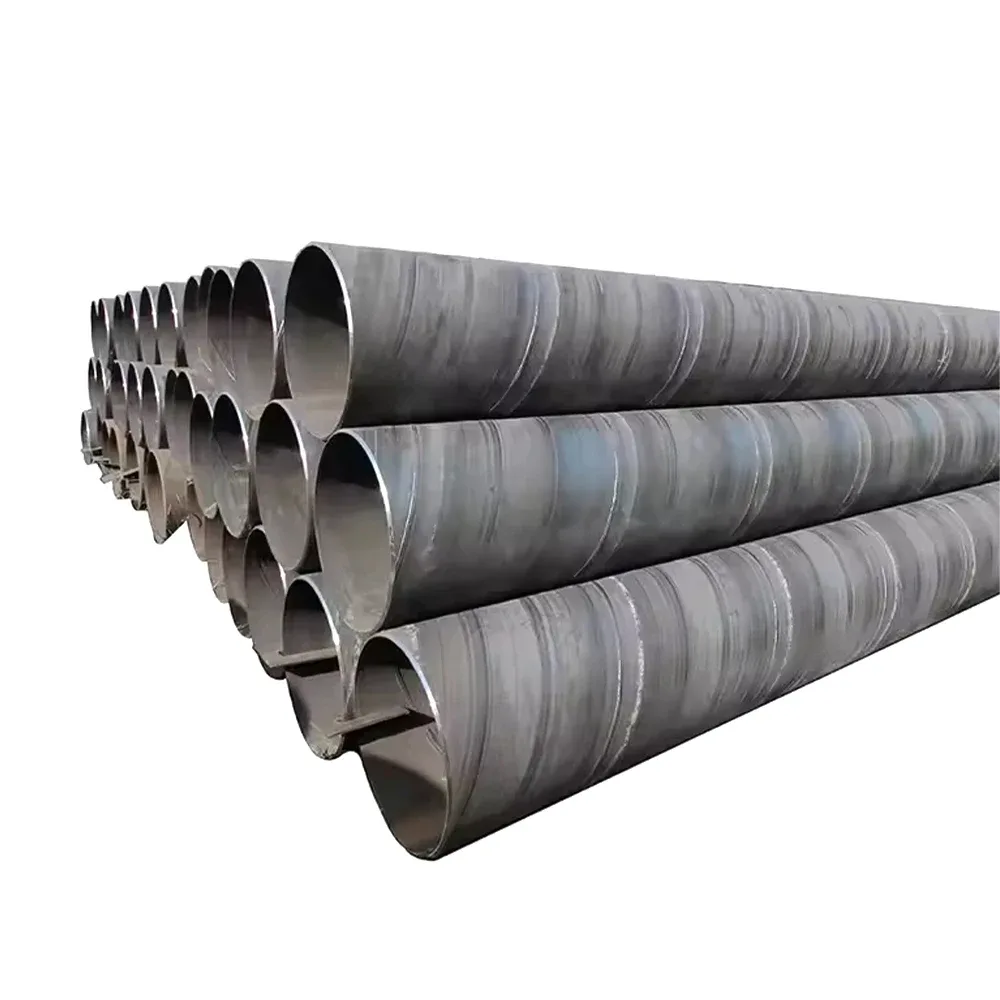

Factory-Direct SSAW Spiral Steel Pipe Supply — We manufacture and ship large-diameter SSAW spiral steel pipe directly from our own production lines in Jinan, eliminating middlemen and ensuring full traceability from raw plate to finished pipe.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | SSAW Spiral Steel Pipe for Piling & Water Transmission |
| Product Type | SSAW Steel Pipe / Spiral Submerged Arc Welded Steel Pipe |
| Steel Grade | Q235, Grade B, X42, X52, X60, X70, L245, L290, L360, L390, L415, ASTM A252 |
| Standard | API 5L, ASTM A252, GB/T 9711 |
| Section Shape | Round |
| Size Range | Outer Diameter 10–1000 mm |
| Wall Thickness | 1–80 mm |
| Length | 6–12 m (or customized) |
| Technique | SSAW / Spiral Submerged Arc Welded |
| Surface Treatment | Black Painting / Hot Rolled / Non-oiled |
| Ends | Plain / Beveled |
| Application | Piling / Water Transmission / Fluid Delivery / Construction / Structural / Curtain Wall / Machinery Parts |
| MOQ | 5 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors / Infrastructure | Bridge foundations, retaining walls, quay piles, sheet pile cofferdams |
| Municipal Engineering | Raw water intake pipelines, potable water transmission mains, drainage outfalls |
| Construction | High-rise building pile foundations, industrial plant column bases, temporary shoring |
| Machinery & Structural | Conveyor support columns, equipment base frames, greenhouse structural frames |
What Happens When Wall-Thickness Tolerance Fails on a Piling Site
A pipe that measures under-spec at the weld seam can fail load testing before it ever carries a kilogram of structural weight.
When EPC contractors order a SSAW spiral steel pipe for deep foundation piling, they calculate bearing capacity based on nominal wall thickness. If the actual thickness falls below tolerance — especially near the spiral weld — the pile may buckle during driving or fail static load tests. The result is not just a rejected batch; it is weeks of delay, remobilization of piling rigs, and redesign of foundation loads. [NEED_CITE: API 5L dimensional tolerance requirements for spiral welded pipe]
How Large-Diameter SSAW Pipe Matches Piling and Water Transmission Engineering Demands
Deep foundation piling requires pipe that can withstand high driving stresses without buckling at the weld line — which is why the spiral submerged arc welding process, with its continuous helical seam and uniform heat input, is specified for diameters beyond what ERW can reliably produce. For water transmission mains operating under internal pressure, the SSAW spiral steel pipe in API 5L X42 to X70 grades provides the hoop strength needed for buried service, while black painting or 3PE coating protects against soil-side corrosion over decades of underground exposure. Our dedicated SSAW lines produce these pipes with in-house physical and chemical testing at every stage, so project engineers receive verified data rather than assumed compliance.
Engineering Compliance and Certification Requirements for Spiral Welded Pipe
Piling specifications in North America typically reference ASTM A252 Grade 1, 2, or 3, while international infrastructure projects governed by API standards require API 5L PSL1 or PSL2 compliance — and customs authorities in the EU and Middle East increasingly demand CE marking under EN 10210 or EN 10219 before releasing structural steel at the port. [NEED_CITE: CE marking requirements for structural hollow sections under EN 10210] Selecting the correct steel grade — Q235 for light structural use, X52 or X60 for pressure-rated water transmission, X70 for high-stress piling in marine environments — directly affects both structural design calculations and approval timelines. Our factory holds CE certification under EN 10210/10219, ISO 9001:2015, and accepts SGS or BV third-party inspection at any production stage, ensuring that the mill test certificate you receive matches the material that arrives on your barge.
Steel Grade Selection and Spiral Welding Process Explained
The API 5L grade system — from Grade B through X42, X52, X60, to X70 — designates minimum yield strength in ksi multiplied by ten, meaning X52 pipe must achieve at least 52 ksi (359 MPa) yield, making it suitable for pressurized water mains where hoop stress is the governing design factor. ASTM A252 grades for piling follow a different logic: Grade 2 (35 ksi yield) handles most driven pile applications, while Grade 3 (45 ksi yield) is specified when driving stresses are high or when the pile must also serve as a permanent structural column. The SSAW process itself — forming steel coil into a helix and welding both inside and outside seams simultaneously under flux — allows production of large diameters up to 1000 mm from relatively narrow coil widths, reducing material cost compared to seamless or JCOE alternatives while maintaining weld integrity through dual-sided submerged arc deposition. Surface treatment selection matters equally: hot-rolled finish suits temporary piling where the pipe will be encased in concrete, black painting provides short-term corrosion protection for storage and transit, and 3PE anti-corrosion coating extends service life for buried water transmission lines in aggressive soil conditions. [NEED_CITE: API 5L grade equivalence and mechanical property requirements]
The Hidden Cost of Procuring Non-Conforming Spiral Welded Pipe
Choosing a supplier who cannot provide heat-number traceability or whose mill test certificate does not match the delivered steel grade creates downstream liabilities that dwarf the initial purchase price difference. Pipes with wall thickness below tolerance may pass visual inspection at the mill but fail ultrasonic testing at the project site, triggering rejection of the entire shipment. Missing or forged CE certificates cause customs holds at destination ports — sometimes for weeks — while demurrage charges accumulate and project schedules slip. [NEED_CITE: consequences of non-compliant steel imports on project timelines] The cost of remobilizing a piling rig or redesigning a foundation because material properties do not match engineering assumptions is measured in tens of thousands of dollars, not in the cents-per-kilogram saved by buying uncertified pipe.
Why Global Buyers Source SSAW Spiral Steel Pipe From Our Factory
We operate three dedicated production lines with in-house physical and chemical laboratories, meaning every heat of steel is tested for composition and mechanical properties before the pipe ever leaves Jinan — and the mill test certificate you receive is generated from actual test data, not copied from a template. Our product range covers over 2,800 specifications across square, rectangular, round, and section steel, so when your project requires both SSAW piling pipe and hot-rolled H-beams in a single shipment, you consolidate procurement through one factory rather than coordinating multiple suppliers with incompatible delivery schedules. We hold 41 invention patents — including proprietary sharp-corner rectangular tube technology — and participated in drafting China’s cold-formed steel industry standards, demonstrating technical depth beyond basic manufacturing. CE certification under EN 10210/10219, ISO 9001:2015, and Singapore FPC certification ensure compliance across EU, Middle Eastern, and Southeast Asian markets, while SGS and BV third-party inspections are welcomed at any stage. Our professional loading team calculates container optimization for heavy large-diameter pipe — a skill learned from costly mistakes — ensuring that 48-inch SSAW pipes arrive at Jebel Ali or Singapore without deformation or coating damage. We export to over 50 countries with door-to-door logistics capability under FOB, CIF, or DDP terms.
Documentation & Compliance
- Mill Test Certificate documenting Q235, X42–X70, or ASTM A252 Grade chemical composition and mechanical properties per heat number, generated from in-house laboratory test data
- CE Certificate of Conformity under EN 10210 / EN 10219 for structural hollow sections, required for EU market customs clearance
- ISO 9001:2015 Quality Management System certificate covering full production process from raw material incoming inspection to final pipe testing
- SGS or BV Third-Party Inspection Report available for incoming material, in-process weld examination, and final dimensional verification
- Material Traceability documentation linking each pipe to its heat number, coil batch, and production date for project audit compliance
- Customs Documentation package including commercial invoice, packing list, bill of lading, and certificate of origin for destination port clearance
Packaging, Loading & Delivery
- Large-diameter SSAW spiral steel pipe bundled with steel strip ties and segregated by diameter and wall thickness to prevent transit damage during ocean freight
- Black-painted or hot-rolled surface finish protected with plastic end caps and anti-rust oil coating to prevent corrosion during storage and sea transit
- Container loading plan optimized for heavy 1000 mm OD pipe, with wooden cradles and steel wire bracing calculated to prevent shifting and ovalization during vessel motion
- Custom cut-to-length service available for 6–12 m standard lengths, with beveled or plain ends prepared per project welding procedure specifications
- Heat number and steel grade stenciled on each pipe end with weather-resistant marking paint for site identification and traceability verification
- FOB Jinan/Qingdao, CIF destination port, or DDP door-to-door delivery options with real-time shipment tracking and professional port coordination
How to Request a Quotation for Your Piling or Water Transmission Project
Submit your technical requirements — outer diameter, wall thickness, steel grade, total tonnage, and destination port — and our engineering team responds within hours with a detailed quotation including unit price, production lead time, applicable certifications, and preliminary loading plan. For non-standard dimensions or custom surface treatment specifications, we provide engineered solutions with clear MOQ and lead time parameters before you commit. Confirm your mill test certificate requirements and third-party inspection preferences at the inquiry stage so that documentation is prepared in parallel with production, not after the pipe is already at the port.
Frequently Asked Questions
Q: What is the difference between API 5L and ASTM A252 grades for SSAW spiral steel pipe?
A: API 5L grades (Grade B through X70) are designed primarily for pressure-rated pipeline service including water transmission, specifying minimum yield strength and chemical composition for weldability and pressure containment. ASTM A252 grades (Grade 1, 2, 3) are specified for steel piling applications, focusing on driving stress resistance and structural bearing capacity rather than internal pressure. The two standards serve different engineering functions and are not interchangeable without project engineer approval.
Q: How do you verify material traceability and provide certified mill test certificates?
A: Every SSAW spiral steel pipe we produce is linked to a unique heat number recorded during steelmaking. Our in-house physical and chemical laboratory tests each heat for composition and mechanical properties, and the mill test certificate is generated from actual test data — not templates. Third-party inspection by SGS or BV can witness testing at any stage, and the final report accompanies the shipment.
Q: Can you produce non-standard outer diameters or wall thicknesses outside your published range?
A: Yes. Our dedicated SSAW production lines and in-house tooling allow custom non-standard diameters and wall thicknesses beyond the 10–1000 mm OD and 1–80 mm WT published range. MOQ and lead time for custom specifications depend on the deviation from standard tooling, and we provide engineered proposals with clear parameters before order confirmation.
Q: What surface treatment options are available for corrosive environments such as marine piling or buried water mains?
A: Standard surface treatments include black painting for short-term protection, hot-rolled finish for pipes to be encased in concrete, and non-oiled condition for further processing. For aggressive environments including marine piling and buried water transmission lines, we apply 3PE anti-corrosion coating systems that provide long-term protection against soil-side and water-side corrosion. Surface treatment selection should match the project’s design service life and environmental classification.
Q: How do you handle loading optimization and logistics for heavy large-diameter SSAW pipe?
A: Large-diameter SSAW spiral steel pipe requires calculated loading plans to prevent ovalization, coating damage, and container weight limit violations. Our professional loading team prepares stowage plans with wooden cradles, steel wire bracing, and weight distribution calculations specific to the pipe diameter and wall thickness. We offer FOB, CIF, and DDP terms with real-time shipment tracking and port coordination across over 50 countries.
Get Your SSAW Spiral Steel Pipe Quotation With Verified Mill Test Certificates
Send your project specifications — diameter, wall thickness, steel grade, quantity, and destination — to receive a detailed quotation with production timeline, certification package, and loading plan.
