Description

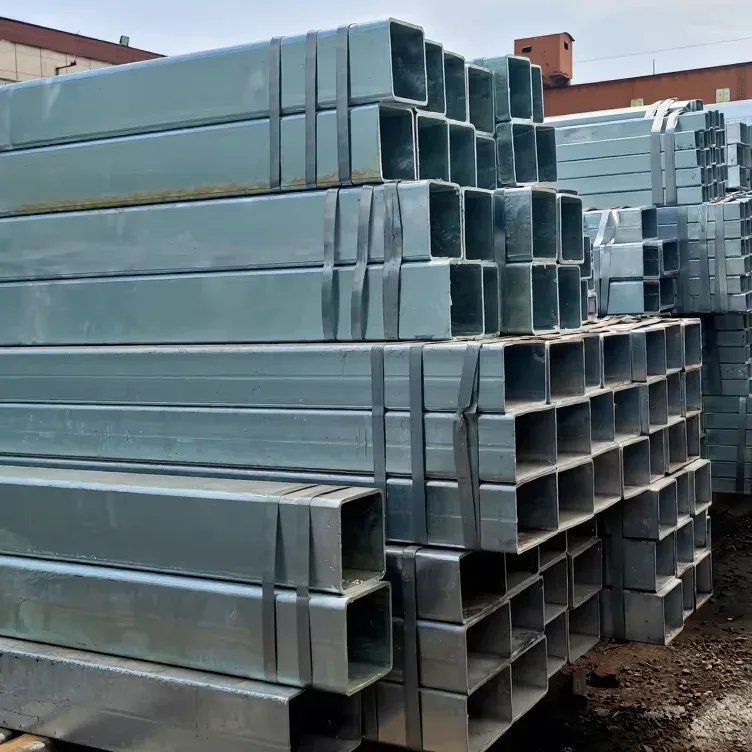

Factory-Direct Hot Dipped Galvanized Square Steel Tube ASTM DIN Supplier — Three dedicated production lines with in-house physical and chemical laboratory ensure every batch meets ASTM and DIN dimensional and coating requirements before shipment.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q195-Q460 Hot Dipped Galvanized Square/Rectangular Steel Tube |
| Product Type | Welded Square and Rectangular Steel Tube (Galvanized) |
| Steel Grade | Q195, Q235, Q235B, Q345, Q345B, Q460, SS330, SS400, SS540 |
| Standard | ASTM, DIN, JIS, API, CE, ISO 9001 |
| Section Shape | Square / Rectangular / Round |
| Wall Thickness | 0.5–200 mm |
| Length | 6 m / 6.4 m / 12 m (customizable) |
| Technique | Cold Rolled / Hot Rolled + Hot Dipped Galvanized |
| Surface Treatment | Hot Dipped Galvanized (Zinc Coated) |
| Tolerance | ±1% |
| Ends | Plain (default) |
| Application | Steel structures / Construction frames / Drilling / Welding fabrication / Fluid pipelines / Machinery manufacturing / Petrochemical / Marine development |
| MOQ | 5 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors & Construction | Structural frames for warehouses, high-rise buildings, and bridge support columns |
| Machinery Manufacturing | Conveyor system frames, crane booms, and equipment base structures |
| Petrochemical & Marine | Offshore platform handrails, pipe rack supports, and fluid transport conduits |
| Infrastructure & Drilling | Drilling rig masts, solar mounting structures, and foundation piling cages |
What Zinc Coating Thickness Costs You on a Galvanized Structural Frame Order
A 15-micron difference between quoted and actual zinc thickness can turn a routine delivery into a port-side detention.
I once shipped a batch of 100×100×4 mm galvanized square tubes to a Riyadh housing project. The mill ran the zinc bath at 45 microns instead of the 60-micron floor we now enforce. The client’s third-party inspector at Jebel Ali rejected the entire lot. Two weeks of demurrage, re-galvanizing costs, and a damaged reputation — all because nobody checked the coating before loading. That is the kind of loss no price discount can offset. [NEED_CITE: hot dip galvanizing coating thickness standards for structural hollow sections] When you source a Hot Dipped Galvanized Square Steel Tube ASTM DIN Supplier, the real question is not what the certificate says on paper, but what the coating actually measures on the steel.
Matching Galvanized Hollow Sections to Corrosive and Structural Environments
Hot dipped galvanizing deposits a metallurgical zinc-iron alloy layer that bonds to the steel substrate, providing both barrier protection and cathodic sacrifice. For EPC contractors building in coastal or industrial atmospheres, this dual mechanism extends service life far beyond painted or pre-galvanized alternatives. Our Hot Dipped Galvanized Square Steel Tube ASTM DIN Supplier production covers wall thicknesses from 0.5 mm to 200 mm, meaning the same zinc coating process applies whether you need light-gauge purlins or heavy-wall column sections. The ±1% dimensional tolerance ensures that connection plates and welded joints fit without on-site reaming — critical when your erection crew is working against a crane-day rate.
Engineering Compliance and Certification for Cross-Border Delivery
Structural hollow sections destined for EU markets must conform to EN 10219 cold-formed welded hollow section requirements, including dimensional tolerances, chemical composition limits, and impact energy values at specified test temperatures. [NEED_CITE: EN 10219 cold-formed hollow section requirements] For North American projects, ASTM A500 Grade B or C governs yield and tensile thresholds. Our production lines carry CE certification under EN 10210 and EN 10219, ISO 9001:2015 quality management, and Singapore FPC — meaning the mill test certificate you receive will satisfy customs officers in Rotterdam, Houston, or Singapore without supplementary paperwork. Steel grades Q235B and Q345B map closely to S235JR and S355JR under European designation, simplifying cross-standard specification. [NEED_CITE: steel grade equivalence between Chinese GB and European EN standards]
Understanding the Steel Grade Spectrum from Q195 to Q460
The Q-series grades follow the Chinese GB/T standard system, where the number after “Q” indicates minimum yield strength in MPa. Q195 serves light structural and fencing applications where formability matters more than load-bearing capacity. Q235 and Q235B are the workhorse grades for general construction frames and welded fabrication. Q345 and Q345B step up to higher yield for crane girders, bridge components, and heavy machinery bases. Q460 enters the high-strength territory, suitable for structures where weight reduction and load capacity are both critical. The Japanese SS series — SS330, SS400, SS540 — follows a similar progression and is frequently specified for machinery exports to Southeast Asia. Hot rolling produces the base tube, followed by cold rolling for tighter dimensional control, and finally hot dip galvanizing for corrosion protection. Each process stage affects the final surface quality and coating adhesion.
Hidden Costs of Procuring Galvanized Tubes Without Verified Coating Data
When a supplier quotes a galvanized square tube at a price that seems too competitive, the zinc layer is almost always where the cost was cut. Electro-galvanized coatings at 10–15 microns will pass visual inspection but fail salt-spray testing within months in outdoor applications. Worse, missing or forged mill test certificates cause customs holds that delay entire project timelines. [NEED_CITE: consequences of non-compliant steel certificates in international trade] A structure built with under-galvanized or mislabeled steel grade tubes faces accelerated corrosion at weld zones and connection points, leading to premature maintenance or, in extreme cases, structural safety concerns during acceptance inspection. The cost of third-party verification at the source is always lower than the cost of rejection at destination.
Why SD XJY Steel Is a Different Tier of Hot Dipped Galvanized Square Steel Tube ASTM DIN Supplier
We operate three dedicated production lines covering over 2,800 specifications — from thin-wall decorative sections to 200 mm heavy-wall structural tubes — all under one roof. Our in-house physical and chemical laboratory tests every heat number for composition and mechanical properties before the tube ever reaches the galvanizing bath. We hold 41 invention patents, including proprietary sharp-corner rectangular tube technology that eliminates the radius gap at corners, giving you flush contact surfaces for bolted and welded connections. CE certification under EN 10210 and EN 10219, Lloyd’s Register, SGS, and BV verification ensure your documentation clears customs in over 50 countries. Custom non-standard sizes, cutting, punching, and bending services are handled in-house, so your fabricated components arrive dimensionally verified rather than relying on your workshop to correct mill tolerances.
Documentation & Compliance
- Mill test certificate documenting Q195–Q460 chemical composition and mechanical properties per ASTM and DIN standards, traceable by heat number
- CE certificate under EN 10210 and EN 10219 for EU market structural compliance and customs clearance
- ISO 9001:2015 quality management system certificate covering the full production and galvanizing process
- SGS or BV third-party inspection report available upon request for coating thickness, adhesion, and dimensional verification
- Material traceability documentation linking each bundle to its heat number, production date, and galvanizing batch
- Complete customs document package including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

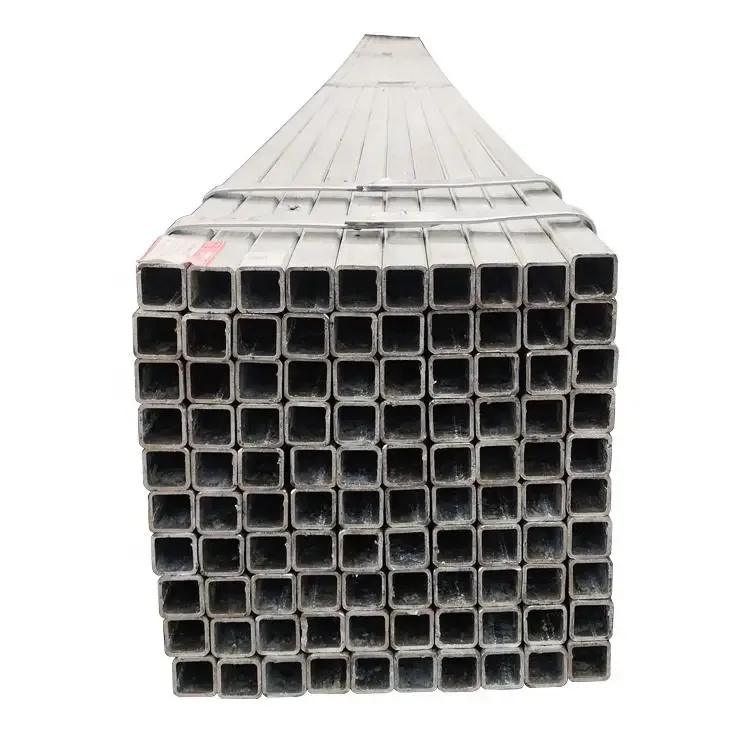

- Hot dipped galvanized square and rectangular tubes bundled with steel strips and edge protectors to prevent zinc coating damage during handling and ocean transit
- Seaworthy packaging with waterproof wrapping for Q195–Q460 grade tubes, protecting the zinc surface from moisture-induced white rust during container shipping
- Container loading optimized for 6 m, 6.4 m, and 12 m lengths with professional stowage plans to maximize payload per 20ft and 40ft containers
- Custom cutting to project-specific lengths available before galvanizing, reducing on-site waste for construction frame and machinery applications
- Heat number and steel grade stenciled on each tube end for on-site identification and traceability verification
- FOB, CIF, and DDP shipping options with door-to-door logistics coordination to ports and project sites across 50+ countries
Getting Your Galvanized Tube Order Priced and Verified
Send your specification sheet — including section dimensions, wall thickness, steel grade, total tonnage, and destination port — and receive a detailed quotation within 12 hours covering unit price, production lead time, applicable certifications, and shipping terms. If your project requires non-standard dimensions or custom fabrication, we provide a technical review and feasibility confirmation before contract signing. All orders include original mill test certificates and can be arranged for SGS or BV third-party inspection prior to loading.
Frequently Asked Questions
Q: What is the difference between hot dipped galvanized and electro-galvanized steel tubes?
A: Hot dipped galvanizing immerses the steel tube in a molten zinc bath, producing a metallurgical zinc-iron alloy coating typically 60–80 microns thick that provides both barrier and cathodic protection. Electro-galvanizing uses an electrical current to deposit a thinner zinc layer of 10–15 microns, suitable for indoor or decorative applications but insufficient for long-term outdoor or corrosive environments.
Q: Can you provide CE and ISO certificates for EU customs clearance?
A: Yes. Our production carries CE certification under EN 10210 and EN 10219, and our quality management system is certified to ISO 9001:2015. These documents are included in the standard delivery package for EU-destined orders and satisfy customs and structural compliance requirements.
Q: What is the MOQ for custom non-standard sizes and lengths?
A: The standard MOQ is 5 tons. For custom non-standard dimensions or special lengths outside our regular 6 m / 6.4 m / 12 m range, we review feasibility based on your drawing and confirm the minimum production quantity during the quotation stage.
Q: How do you ensure galvanizing coating thickness and adhesion quality?
A: Every batch is tested in our in-house laboratory using a coating thickness gauge at multiple points per tube. Tubes measuring below 60 microns are returned for re-galvanizing before shipment. Adhesion is verified through bend and impact tests per the applicable standard. Third-party inspection by SGS or BV is available for additional verification.
Q: What are the loading and shipping options for heavy gauge square tubes?
A: We offer FOB, CIF, and DDP terms. Professional loading plans optimize container payload for heavy-wall tubes in 6 m, 6.4 m, and 12 m lengths. Door-to-door logistics coordination is available to project sites across 50+ countries, with real-time shipment tracking.
Request Your Hot Dipped Galvanized Square Steel Tube ASTM DIN Quotation
Submit your section dimensions, steel grade, quantity, and destination port to receive a detailed quotation with mill test certificate preview within 12 hours.
