Description

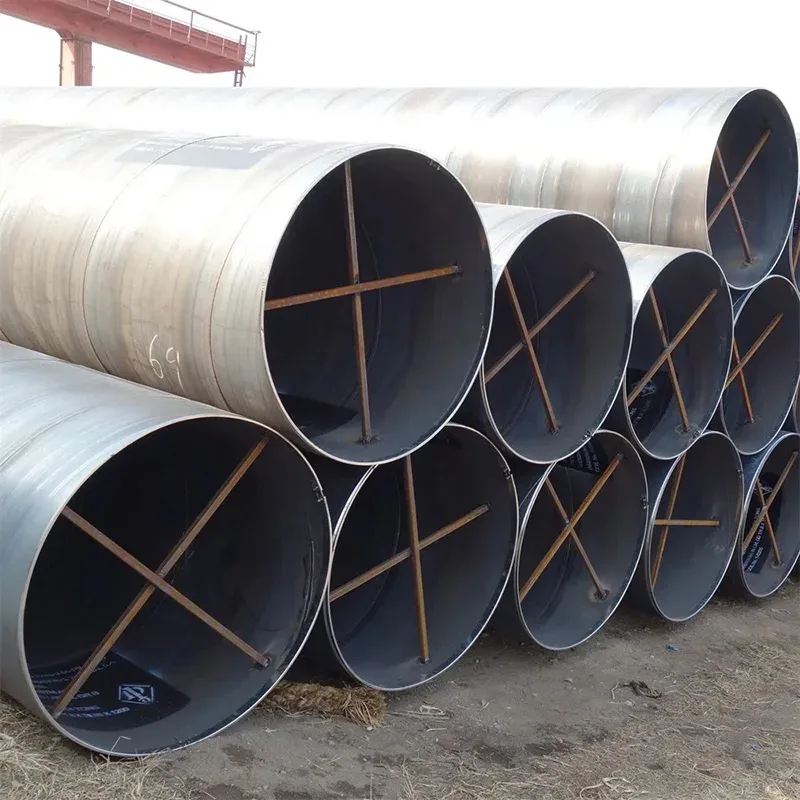

Factory-direct pricing with no middlemen — L320N SSAW spiral steel pipe produced on dedicated lines with in-house physical and chemical laboratories for every heat.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | L320N SSAW Spiral Steel Pipe |
| Product Type | SSAW Welded Steel Pipe (Spiral Submerged Arc Welded Pipe) |
| Steel Grade | L320N (API 5L X46 equivalent), Q195–Q345, ASTM/AISI grades |
| Standard | API 5L, ASTM A252, EN 10219, BS, ISO 9001, CE, SGS |
| Section Shape | Round |
| Size Range | Outer Diameter 219 mm – 3620 mm |
| Wall Thickness | 5 mm – 25 mm |
| Length | Customizable (cut-to-length service) |
| Technique | SSAW (Spiral Submerged Arc Welded) |
| Surface Treatment | 3PE Coated / Hot-dip Galvanized (≥85μm zinc layer) / Epoxy-lined |
| Tolerance | ±1% |
| Ends | Plain / Beveled (cut-to-length available) |
| Application | Oil & gas pipelines, water supply systems, bridge foundations, construction piling, high-pressure fluid transport, sewage transport |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas EPC | High-pressure transmission pipelines, gathering lines, offshore platform risers |
| Municipal Infrastructure | Urban water supply mains, sewage discharge networks, stormwater drainage |
| Bridge & Civil Engineering | Bridge pier piling, foundation caissons, retaining wall support |
| Industrial Construction | Factory structural piling, heavy equipment support columns, conveyor system foundations |
Why Coating Adhesion Fails Before the Pipe Reaches the Trench
Third-party coating inspection at the jobsite reveals what paper certificates cannot.
I once watched an entire lot of 3PE coated spiral pipes get rejected at a Middle East water pipeline project — the mill test certificates were flawless, every chemical composition value checked out, but when the client’s inspector ran the peel adhesion test, the 3PE layer separated from the steel substrate like cheap wallpaper. The project slipped six weeks. The root cause was never the steel grade; it was the coating process control between the shot-blasting stage and the polyethylene extrusion. When buyers source L320N SSAW spiral steel pipe from fragmented suppliers, the coating facility may be a subcontractor two provinces away from the pipe mill, with no shared quality protocol. [NEED_CITE: 3PE coating adhesion requirements per DIN 30670 / ISO 21809]
Matching Large-Diameter Spiral Pipe to Pipeline and Piling Demands
The helical weld geometry of SSAW pipe distributes circumferential stress more evenly than straight-seam alternatives, making L320N SSAW spiral steel pipe particularly suited to high-pressure fluid transport and deep foundation piling where axial load and external soil pressure combine. For oil and gas transmission lines, the L320N grade (equivalent to API 5L X46) provides the yield strength baseline required by API 5L for onshore gathering and distribution systems. Municipal water and sewage projects benefit from the 3PE or hot-dip galvanized surface options, which resist corrosion in buried or submerged conditions without requiring field-applied wrap systems. Our dedicated production lines handle outer diameters from 219 mm to 3620 mm with wall thicknesses up to 25 mm, covering the full range from branch-line connections to main trunk pipelines — all verified by our in-house laboratory before shipment.
Engineering Compliance and Certification Pathways
Large-diameter spiral pipe used in structural piling or pressure containment must satisfy both material standards and regional construction codes. For EU-bound projects, CE certification under EN 10210/EN 10219 is mandatory for customs clearance and engineer approval — missing this document alone can hold an entire container at port. [NEED_CITE: CE marking requirements for structural steel hollow sections under EN 10210] North American piling specifications typically reference ASTM A252, while API 5L governs pipeline-grade material including L320N. The helical submerged arc welding process produces a continuous spiral seam that requires ultrasonic inspection along the full weld length; our in-house lab performs both incoming raw material verification and final dimensional checks, with original mill test certificates issued per heat number. Custom cut-to-length service eliminates field cutting waste on piling projects where driving lengths must match geotechnical specifications exactly.
Understanding L320N Grade and the SSAW Process
L320N belongs to the API 5L pipeline steel family, where the “N” suffix indicates normalized delivery condition — meaning the steel has been heat-treated to refine grain structure and improve toughness, particularly at lower service temperatures. This grade sits between basic carbon steel grades like Q235 and higher-strength pipeline grades like L360/L415, offering a practical balance of weldability, formability, and pressure containment for medium-pressure transmission and piling applications. The SSAW manufacturing process forms the pipe by helically winding steel coil and welding the seam through submerged arc welding on both inner and outer surfaces simultaneously. This produces a longer weld line per unit of pipe length compared to straight-seam methods, but the helical geometry means the principal stress direction aligns favorably with the weld orientation under internal pressure — a mechanical advantage for pipeline applications. [NEED_CITE: helical weld stress distribution advantage in SSAW pipe] Surface treatment selection depends on the service environment: 3PE coating (three-layer polyethylene with fusion-bonded epoxy primer) provides the highest corrosion resistance for buried pipelines in aggressive soils, while hot-dip galvanizing with a minimum 85μm zinc layer suits above-ground or splash-zone applications, and epoxy lining protects internal surfaces carrying corrosive fluids or potable water.
Hidden Costs When Material Traceability Breaks Down
Procuring large-diameter spiral pipe without verified heat-number traceability creates compounding risks downstream. If the mill test certificate cannot be correlated to the physical pipe through stamped heat numbers, third-party inspectors will flag the entire lot — regardless of whether the material itself meets specification. For EU projects, CE documentation gaps trigger customs holds that delay not just the steel but the entire construction sequence dependent on that shipment. Coating failures discovered after delivery require either costly field repair or complete lot rejection, with reorder lead times pushing project milestones by weeks. [NEED_CITE: material traceability requirements under EN 10219 and API 5L] The true cost of incorrect wall thickness tolerance extends beyond theoretical weight discrepancies — it affects structural load calculations, connection fit-up, and ultimately the engineer’s sign-off on as-built compliance.
Procurement Confidence Through Vertical Integration
Our factory operates three dedicated SSAW production lines with in-house physical and chemical laboratories, meaning every heat of L320N SSAW spiral steel pipe undergoes incoming material verification, in-process weld inspection, and final dimensional and coating checks before release — no outsourced testing, no separated coating subcontractors. We hold CE certification under EN 10210/EN 10219 for EU market compliance, Singapore FPC certification, and ISO 9001:2015 quality management, with SGS and BV third-party inspection available before shipment at buyer’s request. The product range covers over 2,800 specifications across six major steel categories, allowing EPC contractors to consolidate pipe, plate, and structural steel procurement under a single purchase order with unified documentation. As a national high-tech enterprise that participated in drafting China’s cold-formed steel industry standards in 2018, we hold 41 invention patents including proprietary sharp-corner rectangular tube technology. Professional loading plans optimize container utilization for large-diameter pipe, with FOB, CIF, and DDP shipping options and real-time tracking to ports across 50+ countries.
Documentation & Compliance
- Mill Test Certificate documenting L320N chemical composition and mechanical properties per API 5L, with heat number traceability to each pipe
- CE certificate under EN 10210/EN 10219 for structural hollow section compliance in EU member states
- ISO 9001:2015 quality management system certificate covering the full SSAW production process
- SGS or BV third-party inspection report available upon request, covering dimensional checks, coating thickness, and weld quality
- Material traceability report linking each pipe to its heat number, coil origin, and production date
- Customs documentation package including packing list, Bill of Lading, and Certificate of Origin for destination-country clearance
Packaging, Loading & Delivery
- L320N SSAW spiral steel pipe bundled with steel strips and edge protectors to preserve 3PE coating integrity during ocean transit
- Hot-dip galvanized pipes separated by rubber spacers within bundles to prevent zinc surface damage from friction
- Container loading plans optimized for large-diameter pipe (OD 219–3620 mm), nesting smaller diameters inside larger sections where specification allows
- Cut-to-length service available to match project piling or pipeline joint lengths, reducing field cutting waste
- Heat number and steel grade stenciled on each pipe end for jobsite identification and inspector verification
- FOB, CIF, and DDP shipping terms with professional port coordination and real-time tracking to destination
Securing Your Quote with Complete Specification Data
Submit your L320N SSAW spiral steel pipe requirements including outer diameter, wall thickness, surface treatment preference, total quantity, and destination port — our team responds within 12 hours with unit pricing, applicable certification documentation, and production lead time. For non-standard dimensions or custom cut-to-length requirements, we provide technical evaluation and feasibility confirmation before contract. Third-party inspection (SGS/BV) and original mill test certificates are confirmed at quotation stage so customs and project compliance are settled before production begins.
Frequently Asked Questions
Q: What is the difference between L320N and API 5L X46, and how do they compare to ASTM grades?
A: L320N is the ISO 3183 designation, while API 5L X46 is the equivalent grade under the API 5L standard — both specify the same minimum yield strength and chemical composition requirements for pipeline service. For ASTM equivalence, these grades align broadly with ASTM A53 Grade B and ASTM A252 Grade 2 in terms of application scope, though exact chemical and mechanical requirements differ by standard. We provide cross-reference documentation at quotation stage to support engineer approval.
Q: Can you provide third-party inspection and original mill test certificates for customs clearance?
A: Yes. SGS and BV third-party inspections are available before shipment, covering dimensional verification, coating thickness measurement, weld quality, and visual inspection. Original mill test certificates are issued per heat number, documenting chemical composition and mechanical properties per API 5L or EN 10219 as specified. These documents are included in the standard customs documentation package.
Q: What surface treatment options are available for corrosive environments?
A: Three options are available: 3PE coating (three-layer polyethylene with fusion-bonded epoxy primer) for buried pipelines in aggressive soils; hot-dip galvanizing with a minimum 85μm zinc layer for above-ground or splash-zone exposure; and internal epoxy lining for corrosive fluid transport or potable water service. The selection depends on soil resistivity, service temperature, and whether the pipe is buried, submerged, or exposed.
Q: What is the MOQ for custom non-standard diameters and wall thicknesses?
A: The standard MOQ is 1 Ton. For non-standard outer diameters or wall thicknesses outside the 219–3620 mm and 5–25 mm range, we evaluate feasibility based on our production line capabilities and provide confirmation during the quotation stage.
Q: How do you handle logistics for large-diameter spiral pipes?
A: We develop professional loading plans that optimize container or breakbulk vessel utilization, nesting smaller-diameter pipes inside larger sections where specifications permit. Shipping terms include FOB, CIF, and DDP with real-time tracking. For project cargo requiring flat rack or open-top containers, we coordinate port handling and destination delivery.
Get Your L320N SSAW Spiral Steel Pipe Quote with Full Certification Package
Send your specification sheet — OD, wall thickness, surface treatment, quantity, and destination — to receive pricing, mill test certificate confirmation, and production scheduling within 12 hours.
