Factory-Direct Gr.B Galvanized ERW Pipe — Every DN15 PN10 galvanized steel pipe rolls off our own ERW and hot-dip galvanizing lines, backed by in-house chemical analysis and original mill test certificates before container sealing.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Gr.B ERW Galvanized Round Steel Pipe |
| Product Type | Round Steel Pipe (ERW) |
| Steel Grade | Gr.B (API 5L) |
| Standard | BS 1387, API |
| Section Shape | Round |
| Size Range | OD 21.3–660 mm (DN15–DN200) |
| Wall Thickness | 1.8–20 mm |
| Length | 5.8–12 m |
| Technique | ERW (Electric Resistance Welded) |
| Surface Treatment | Hot Dip Galvanized (Zinc coated min 300 g/m²) |
| Ends | Threaded with couplings (NPT / BS) |
| Tolerance | ±5% / ±10% / ±15% |
| Application | Fluid transport / Gas pipeline / Oil pipeline / Boiler / Chemical fertilizer pipeline / Structural pipe / Construction |
| Invoicing | By Theoretical Weight |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Water supply networks, gas distribution mains, chemical fertilizer plant piping, oil & gas gathering lines |
| Construction Companies | Structural columns, scaffolding uprights, handrails, fire protection risers in high-rise builds |
| Machinery Manufacturers | Boiler feed lines, hydraulic conveyance, cooling circuits, fertilizer equipment frames |
| Infrastructure Developers | Bridge drainage systems, culvert linings, utility tunnel supports, irrigation networks |
Why Zinc Coating Weight Decides Whether a DN15 PN10 Galvanized Steel Pipe Passes Site Inspection
Hot-dip galvanizing at ≥300 g/m² is the single most disputed variable on water and gas pipeline tenders across the Middle East and Africa.
Third-party inspectors routinely reject shipments where zinc mass falls below contract thresholds, even when wall thickness and diameter are within tolerance. Buyers sourcing from trading companies often receive material with electro-galvanized or spray-coated surfaces misrepresented as hot-dip, leading to accelerated corrosion in humid coastal or buried soil environments. Missing or forged mill test certificates compound the problem — customs authorities in Nigeria, Kenya, and Saudi Arabia increasingly demand EN 10204 3.1 or 3.2 format documentation tied to heat numbers, and generic “quality certificates” no longer clear the port. [NEED_CITE: hot-dip galvanizing coating mass requirements per BS 1387 and ISO 1461]
Matching Gr.B ERW Pipe to Pressurized Fluid and Structural Applications
The Gr.B grade under API 5L and BS 1387 delivers adequate tensile performance for low-to-medium pressure fluid conveyance and non-load-critical structural roles. When a DN15 PN10 galvanized steel pipe is specified for water reticulation or gas distribution on an EPC site, the combination of ERW seam integrity, hot-dip zinc protection, and threaded NPT/BS ends allows direct installation without field welding — cutting joint preparation time and eliminating weld-line corrosion vulnerabilities. Our production lines cover the full OD 21.3–660 mm range in a single procurement cycle, so contractors sourcing both small-bore distribution pipes and larger trunk lines avoid splitting orders across multiple mills.
Engineering Compliance and Certification Requirements for Galvanized ERW Pipe
Pressurized pipeline projects typically require conformity to BS 1387 for threaded galvanized tubes or API 5L for line pipe applications, with material traceability back to the original heat number. For European market access, CE marking under EN 10210 (seamless) or EN 10219 (welded) confirms that the hollow section meets harmonized structural performance declarations — a prerequisite for public works tenders in the EU and several Middle Eastern specification authorities. [NEED_CITE: CE marking requirements for structural hollow sections under EN 10219] Wall thickness tolerance directly affects theoretical weight invoicing and structural load calculations; specifying ±5% rather than ±15% tolerance narrows the gap between delivered weight and design assumptions, reducing the risk of under-capacity members in scaffold or frame applications. Third-party inspection by SGS or BV before shipment provides independent verification of zinc coating mass, dimensional accuracy, and mechanical test results — documentation that customs brokers and project owners increasingly treat as mandatory rather than optional.
Understanding Gr.B Steel Grade and ERW Galvanizing Process
Gr.B under API 5L is a mild steel grade with moderate carbon content, offering good weldability and formability for fluid transport and general structural use. Compared to higher-strength grades like X42 or X52, Gr.B prioritizes ductility and ease of field threading over ultimate pressure capacity — making it the default choice for water supply, low-pressure gas, and scaffolding applications where extreme internal pressures are absent. The ERW (Electric Resistance Welded) process forms the pipe by rolling steel strip into a cylinder and welding the seam through electrical resistance heating, producing a consistent longitudinal weld suitable for pressures up to PN10–PN16 in standard wall thicknesses. Hot-dip galvanizing immerses the finished ERW pipe in molten zinc at approximately 450°C, creating a metallurgical bond between the zinc and steel substrate that provides barrier and sacrificial corrosion protection simultaneously. The minimum 300 g/m² coating mass specified here exceeds standard electro-galvanized outputs and ensures adequate service life in moderately corrosive atmospheres, buried conditions, or outdoor exposure without additional painting. [NEED_CITE: API 5L Gr.B mechanical properties and ERW weld seam inspection standards]
Hidden Costs of Procuring Non-Conforming Galvanized Pipe
Specifying Gr.B but receiving off-grade material with inconsistent carbon or manganese content can cause threaded ends to crack during coupling make-up, forcing joint replacement and delaying pipeline pressure testing. Zinc coating below 300 g/m² may pass visual inspection at the mill but fails ultrasonic or magnetic thickness measurement on site, triggering rejection of entire container loads after ocean freight costs are already sunk. Missing heat-number traceability on mill test certificates leads to customs holds or outright rejection in markets requiring EN 10204 3.2 third-party certification — a compliance gap that trading companies frequently cannot resolve because they lack access to the original production records. [NEED_CITE: consequences of non-conforming galvanized coating on pipeline service life]
Why Global Buyers Source Gr.B Galvanized ERW Pipe Directly from Our Mill
Our factory operates three dedicated ERW and galvanizing lines covering over 2,800 specifications in round, square, and rectangular hollow sections — meaning a single purchase order for DN15 PN10 galvanized steel pipe can be consolidated with structural sections, plates, and custom fabrication without coordinating multiple suppliers. Every shipment is tested in our in-house physical and chemical laboratory before release, with original mill test certificates issued per heat number and available for SGS or BV third-party verification at the port. We hold ISO 9001:2015, Lloyd’s Register EU CE (EN 10210/EN 10219), and Singapore FPC certifications, ensuring that documentation meets the compliance requirements of European, Middle Eastern, and Southeast Asian project owners. Our professional loading team optimizes container stowage for threaded pipe with couplings, protecting zinc coating integrity during ocean transit and reducing damage-related claims. With exports to over 50 countries including EU, North America, India, Southeast Asia, and the Middle East, we understand the specific certification, packaging, and logistics requirements of each destination market.
Documentation & Compliance
- Mill test certificate documenting Gr.B chemical composition and mechanical properties per API 5L / BS 1387, traceable to original heat number
- CE certificate under EN 10219 for welded structural hollow sections, required for EU public works and Middle Eastern tenders
- ISO 9001:2015 quality management system certificate covering ERW welding, hot-dip galvanizing, and final inspection processes
- SGS or BV third-party inspection report verifying zinc coating mass (≥300 g/m²), dimensional tolerance, and threaded end accuracy
- Material traceability sheet linking each pipe to heat number, production date, and galvanizing batch for project handover dossiers
- Customs documentation package including packing list, bill of lading, and certificate of origin formatted for destination port requirements
Packaging, Loading & Delivery

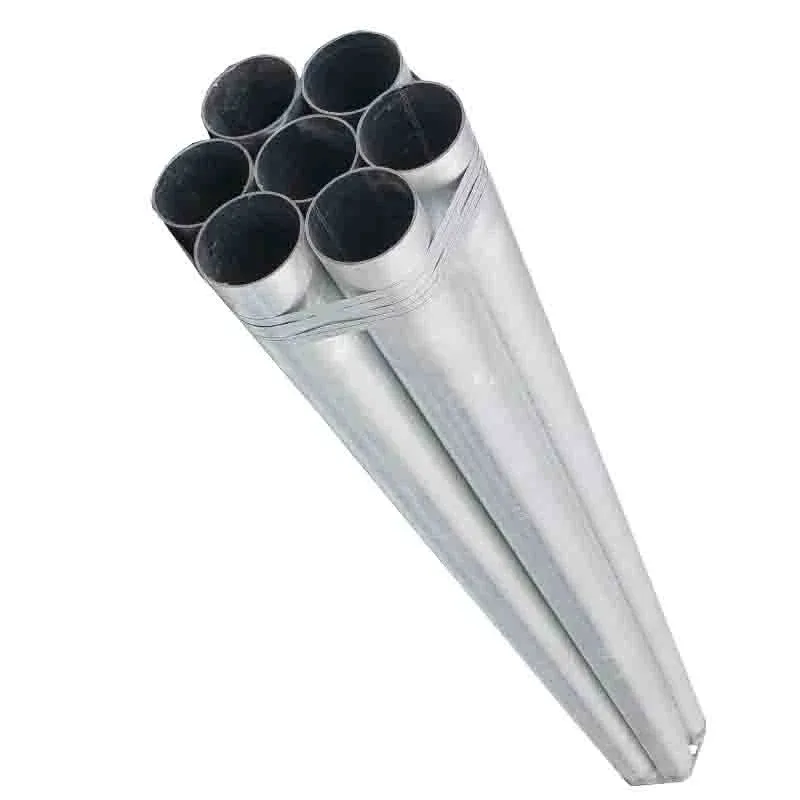

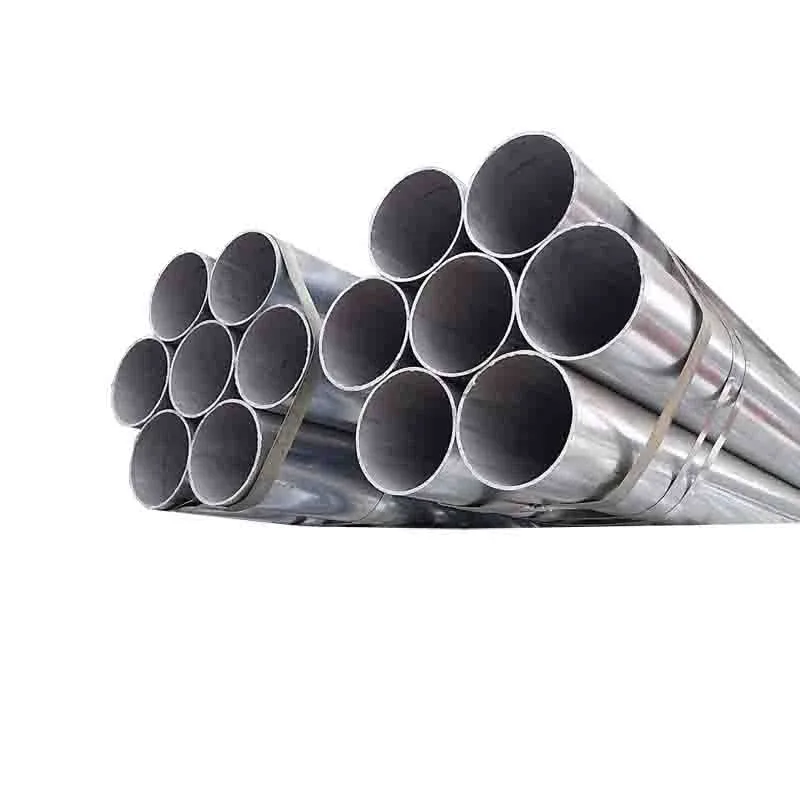

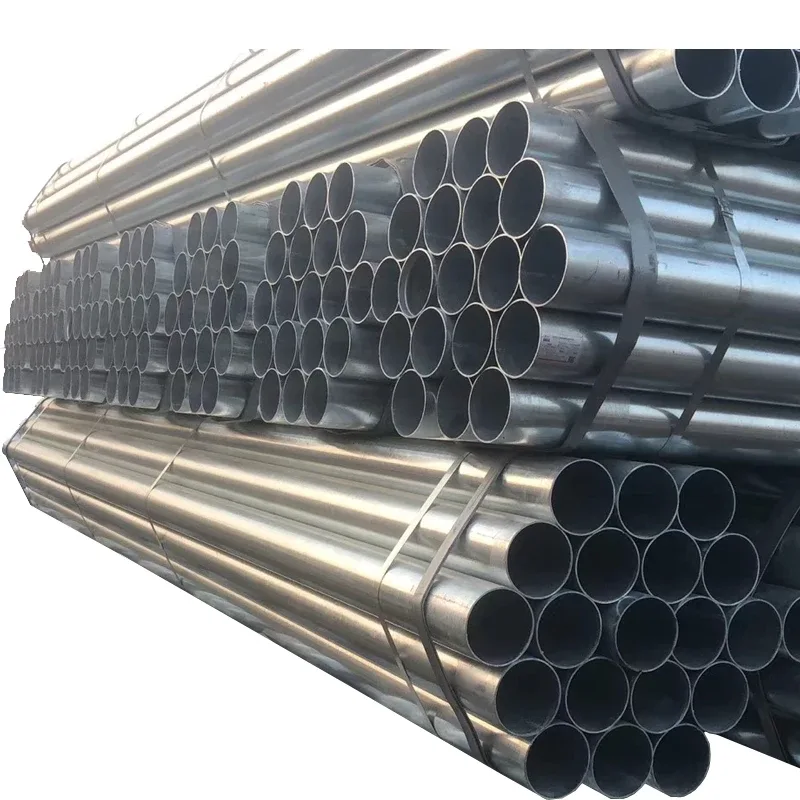

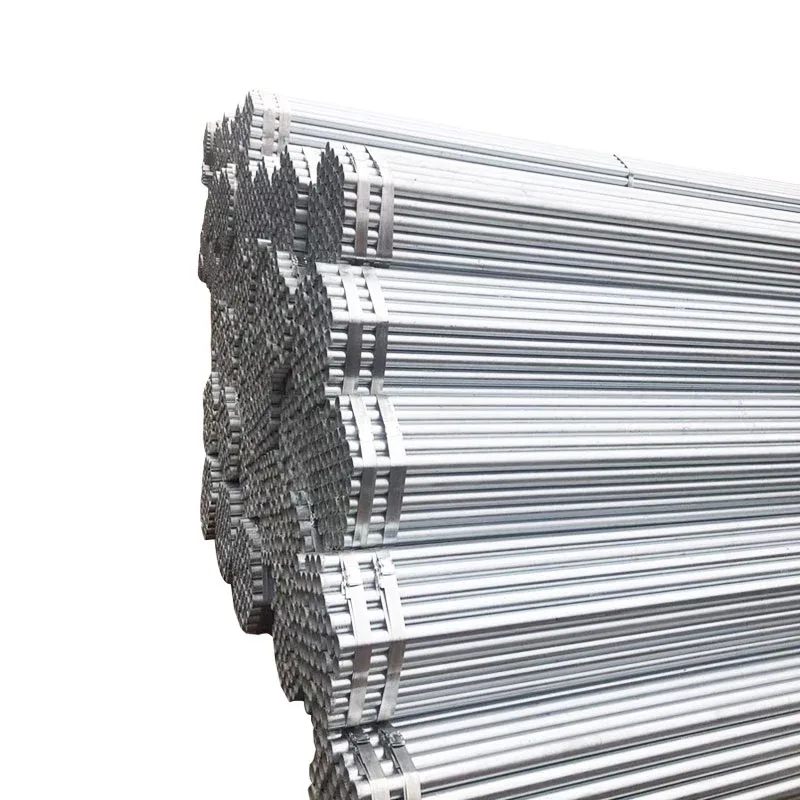

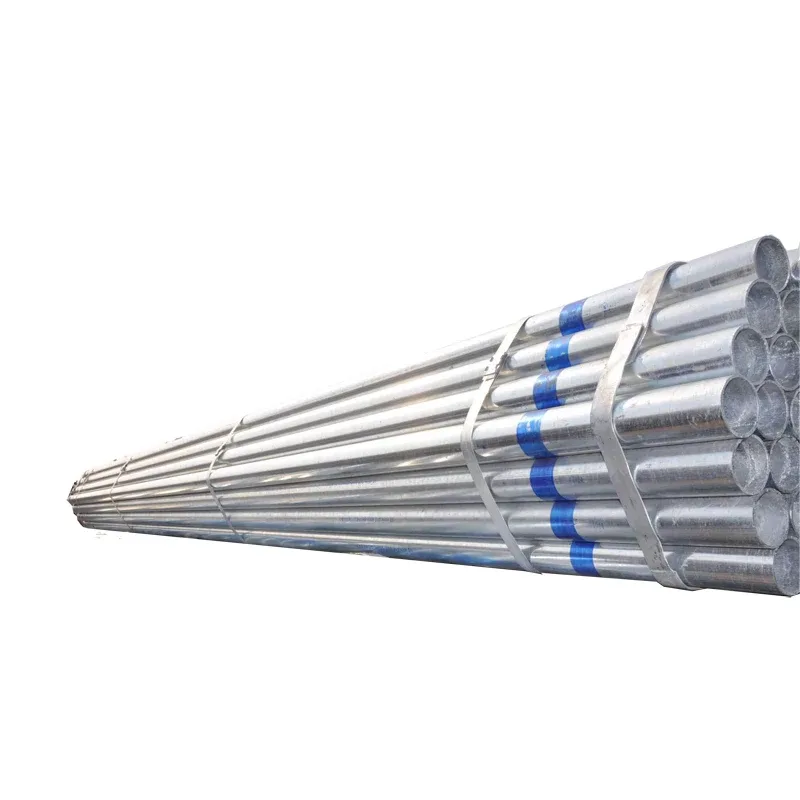

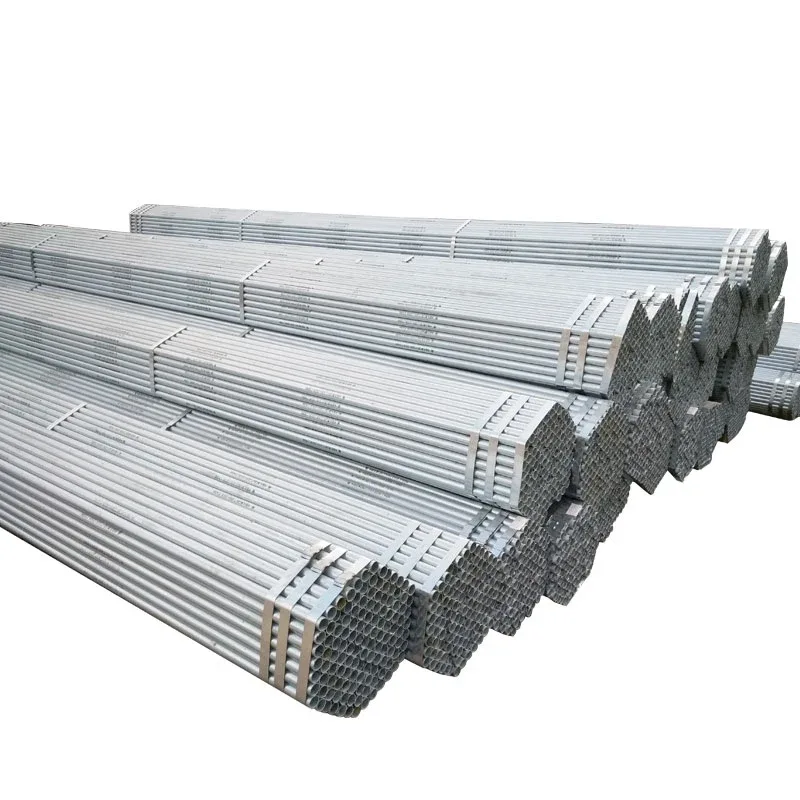

- Gr.B galvanized ERW pipes bundled with steel strips and edge protectors to preserve the hot-dip zinc coating during handling and ocean transit
- Threaded ends with NPT/BS couplings individually capped to prevent thread damage and zinc flaking during container loading
- Container stowage optimized for 5.8–12 m lengths, maximizing payload per 20ft or 40ft unit while maintaining weight distribution for crane offloading
- Cut-to-length service available for DN15–DN200 pipes, reducing on-site welding and threading labor for EPC contractors
- Heat number and Gr.B grade stenciled on each pipe bundle for site traceability and inspector verification
- FOB, CIF, and DDP shipping options with professional port coordination for destinations across the Middle East, Africa, Southeast Asia, and EU
Requesting a Quotation for DN15 PN10 Galvanized Steel Pipe
Submit your required outer diameter, wall thickness, total tonnage, steel grade (Gr.B per API 5L or BS 1387), and destination port to receive a detailed quotation including unit price, production lead time, payment terms, and applicable certification scope. We provide original mill test certificates and can arrange SGS or BV third-party inspection before shipment to confirm zinc coating mass and dimensional compliance.
Get Your Gr.B Galvanized ERW Pipe Quote with Mill Test Certificate
Send your DN15 PN10 galvanized steel pipe specifications, quantity, and destination to receive factory-direct pricing and full documentation within 12 hours.
