Description

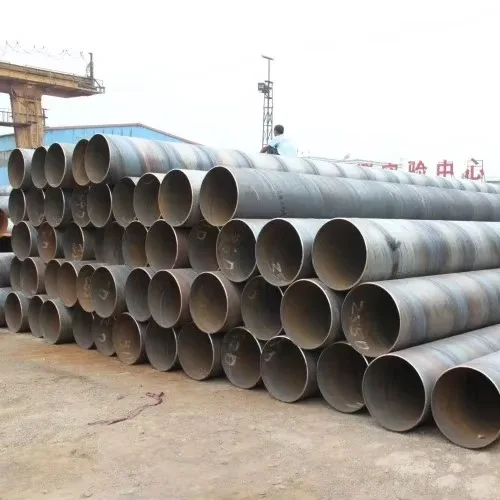

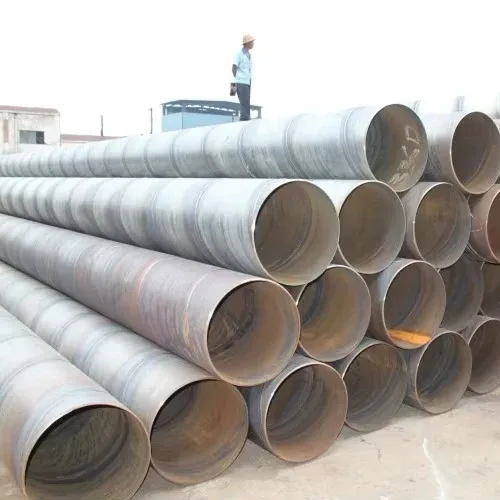

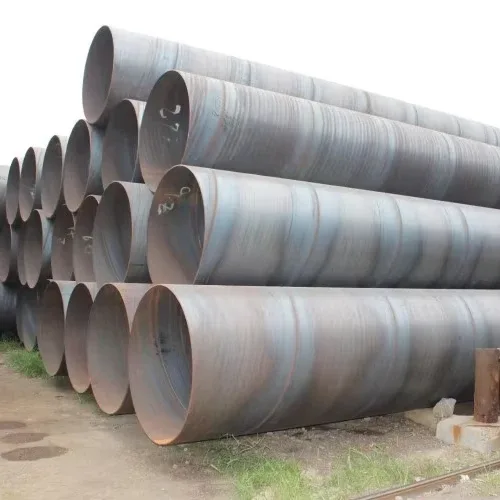

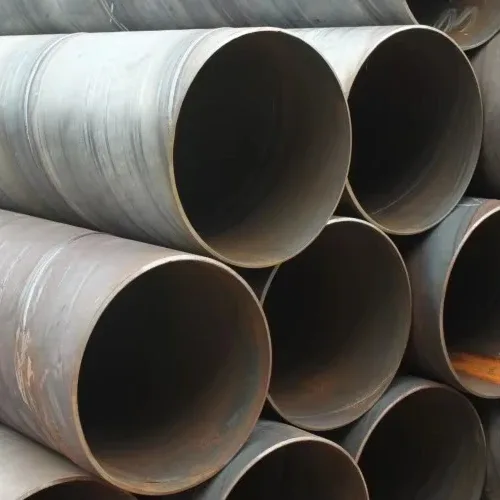

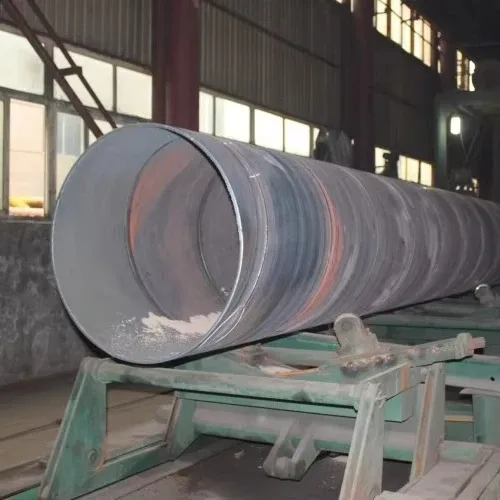

Factory-Direct SSAW Spiral Welded Steel Pipe Supply — Shandong Xin Jiyuan manufactures large-diameter SSAW spiral welded steel pipe from 219mm to 3520mm OD under API 5L, eliminating middlemen and ensuring mill-direct pricing for piling and structural projects.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | SSAW Spiral Welded Steel Pipe |
| Product Type | SSAW Steel Pipe |
| Steel Grade | Carbon Steel |
| Standard | API 5L / GB/T 9711.1-1997 / SY/T 5037-2000 |
| Section Shape | Round |
| Outer Diameter | 219–3520mm |
| Wall Thickness | 5–30mm |
| Technique | SSAW (Spiral Submerged Arc Welded) |
| Surface Treatment | Bare / Black Painted / PE Coated / Epoxy Coating |
| Application | Fluid Pipe / Structural Pipe / Steel Pipe Pile / Concrete Reinforcement |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Foundation piling for port infrastructure, bridge abutment support, offshore platform substructures |
| Construction Companies | High-rise building deep foundation piles, retaining wall reinforcement, basement structural columns |
| Machinery Manufacturers | Heavy equipment base frames, crane mast support structures, industrial platform legs |
| System Integrators | Conveyor system main supports, material handling framework, silo and tank structural legs |
What Wall-Thickness Deviation Costs on a Piling Foundation Order
Negative tolerance beyond standard limits triggers batch rejection at third-party inspection, causing weeks of project delay and remanufacturing costs.
When sourcing large-diameter SSAW spiral welded steel pipe for deep foundation piling, buyers often discover that wall thickness measured on-site falls below the minimum specified in API 5L or project drawings. A single batch of 200-ton piling pipes rejected by SGS inspection due to sub-standard wall thickness can halt an entire port construction timeline. Beyond the obvious material cost, the hidden expenses include re-mobilization of piling rigs, extended equipment rental, and penalty clauses from project owners. [NEED_CITE: API 5L dimensional tolerance requirements for spiral welded pipe]
Matching Large-Diameter SSAW Pipe to Heavy Foundation Loads
The 219–3520mm outer diameter range of our SSAW spiral welded steel pipe covers virtually every piling and structural support scenario encountered in Southeast Asian port and bridge projects. Wall thickness from 5mm to 30mm allows engineers to select the appropriate load-bearing capacity without over-specifying material grade. The spiral submerged arc welding process produces continuous helical seams that distribute stress evenly around the pipe circumference, making it particularly suitable for driven piles subjected to impact loading during installation.
Engineering Compliance and Corrosion Protection for Marine Environments
Piling pipes driven into coastal or riverbed soils face aggressive corrosion from saltwater, sulfate-bearing soils, and stray electrical currents. Our SSAW spiral welded steel pipe offers multiple surface treatment options — bare pipe for temporary structures, black painted coating for inland applications, PE coating for moderate corrosion environments, and epoxy coating for submerged marine conditions. [NEED_CITE: corrosion protection standards for steel pipe piles in marine environments] For projects requiring CE certification or compliance with specific national building codes, we provide full documentation packages including mill test certificates and third-party inspection reports from SGS or BV to satisfy customs and engineering approval requirements.
Understanding SSAW Manufacturing and Carbon Steel Grade Selection
The spiral submerged arc welding process forms pipe by helically winding steel coil and welding both inner and outer seams simultaneously under flux coverage. This method enables production of large diameters up to 3520mm from relatively narrow coil widths, offering cost advantages over straight-seam alternatives for sizes above 508mm. Carbon steel grades used in SSAW pipe production conform to API 5L specifications, providing adequate strength for structural piling and fluid transport without the premium pricing of high-strength low-alloy grades. Wall thickness selection directly influences both load-bearing capacity and theoretical weight — a 30mm wall pipe at 2000mm diameter weighs substantially more per meter than a 10mm wall equivalent, affecting both material cost and transportation logistics.
Hidden Costs of Procuring Non-Compliant Piling Pipe
Purchasing SSAW spiral welded steel pipe without verified mill test certificates creates risk exposure across multiple project phases. Material that fails to meet API 5L chemical composition requirements may pass visual inspection but crack during driving operations or under long-term cyclic loading. Pipes with wall thickness below minimum tolerance face rejection at third-party inspection points, forcing complete batch replacement and schedule delays. [NEED_CITE: consequences of sub-standard steel pipe in foundation engineering] Certification gaps also create customs clearance obstacles — shipments lacking proper documentation may be held at port for weeks, incurring storage fees and demurrage charges that exceed the original material cost savings from choosing an unverified supplier.
Why Global EPC Contractors Source SSAW Pipe from Shandong Xin Jiyuan
Our in-house physical and chemical laboratory tests every production batch for chemical composition, tensile strength, and dimensional accuracy before release, ensuring full compliance with API 5L and project specifications. The factory operates three dedicated production lines covering over 2,800 specifications, allowing us to fulfill both standard catalog orders and custom non-standard dimensions from a single source. We hold ISO 9001:2015 certification alongside Lloyd’s Register EU CE marking and Singapore FPC approval, with verification reports available from SGS and BV for projects requiring independent third-party validation. Professional loading plans optimize container utilization for large-diameter pipe shipments, reducing per-unit freight costs for overseas buyers across 50+ countries.
Documentation & Compliance
- Mill test certificate documenting Carbon Steel chemical composition and mechanical properties per API 5L for each heat number
- API 5L certification confirming compliance with spiral welded pipe manufacturing standards
- ISO 9001:2015 quality management system certificate covering production and inspection processes
- SGS or BV third-party inspection report available upon request for wall thickness, dimensional tolerance, and weld quality verification
- Material traceability documentation linking each pipe to specific heat number and production batch
- Complete customs documentation package including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- SSAW spiral welded steel pipe bundled with steel strips and edge protectors to prevent coating damage during handling and ocean transit
- Surface treatment protection: PE coated and epoxy coated pipes wrapped with protective film; bare and black painted pipes coated with anti-rust oil for temporary corrosion prevention
- Container loading optimization: large-diameter pipes (above 1000mm OD) shipped in breakbulk or flat rack containers; smaller diameters nested to maximize 40ft GP utilization
- Custom cutting services available for non-standard lengths to reduce on-site welding and secondary processing
- Heat number and steel grade markings stenciled on each pipe end for site identification and traceability
- FOB, CIF, and DDP shipping terms available with door-to-door logistics coordination to major ports worldwide
Initiating Your SSAW Pipe Procurement Process
Submit your project specifications including outer diameter, wall thickness, steel grade, quantity, surface treatment preference, and destination port to receive a detailed quotation with delivery timeline. We provide mill test certificates and arrange third-party inspection coordination before shipment to ensure compliance with your project requirements. Our technical team reviews specifications for dimensional feasibility and offers alternative solutions when non-standard sizes require custom production scheduling.
Frequently Asked Questions
Q: What is the difference between SSAW and LSAW steel pipes?
A: SSAW pipe is manufactured by spirally winding steel coil and welding with submerged arc process, enabling larger diameters from narrower coil widths. LSAW pipe uses straight longitudinal seams and is typically produced from plate. SSAW offers cost advantages for large diameters above 508mm while LSAW provides tighter dimensional tolerance for critical structural applications.
Q: Can you provide third-party inspection certificates for customs clearance?
A: Yes, we coordinate SGS and BV third-party inspections covering dimensional verification, wall thickness measurement, weld quality examination, and mechanical testing. Inspection reports are issued before shipment and included in the documentation package for customs clearance and project compliance requirements.
Q: What surface treatment options are available for corrosion protection?
A: We offer bare pipe, black painted coating, PE coating, and epoxy coating options. Bare pipe suits temporary applications; black painted provides basic protection for inland use; PE coating offers moderate corrosion resistance; epoxy coating delivers superior protection for submerged marine and aggressive soil environments.
Q: What is the production lead time for large-diameter SSAW pipes?
A: Standard specifications typically ship within typical production lead times after deposit confirmation. Custom non-standard sizes or special surface treatment requirements may require extended scheduling. We confirm exact delivery timelines upon receipt of complete specifications and order deposit.
Q: Do you offer FOB, CIF, or DDP shipping terms?
A: We provide FOB, CIF, and DDP shipping options based on buyer preference and destination port accessibility. Our logistics team develops professional loading plans to optimize container utilization and minimize freight costs for large-diameter pipe shipments to ports across 50+ countries.
Request Your SSAW Spiral Welded Steel Pipe Quotation
Send specifications including diameter, wall thickness, steel grade, quantity, and destination to receive pricing with mill test certificate documentation.
