Description
Factory-Direct Pricing, No Middlemen — Every ASTM A53 Grade B ERW welded steel pipe ships from our own mill in Jinan, backed by in-house chemical and physical lab testing before container sealing.
Technical Specifications
| Parameter | Value |
|---|---|

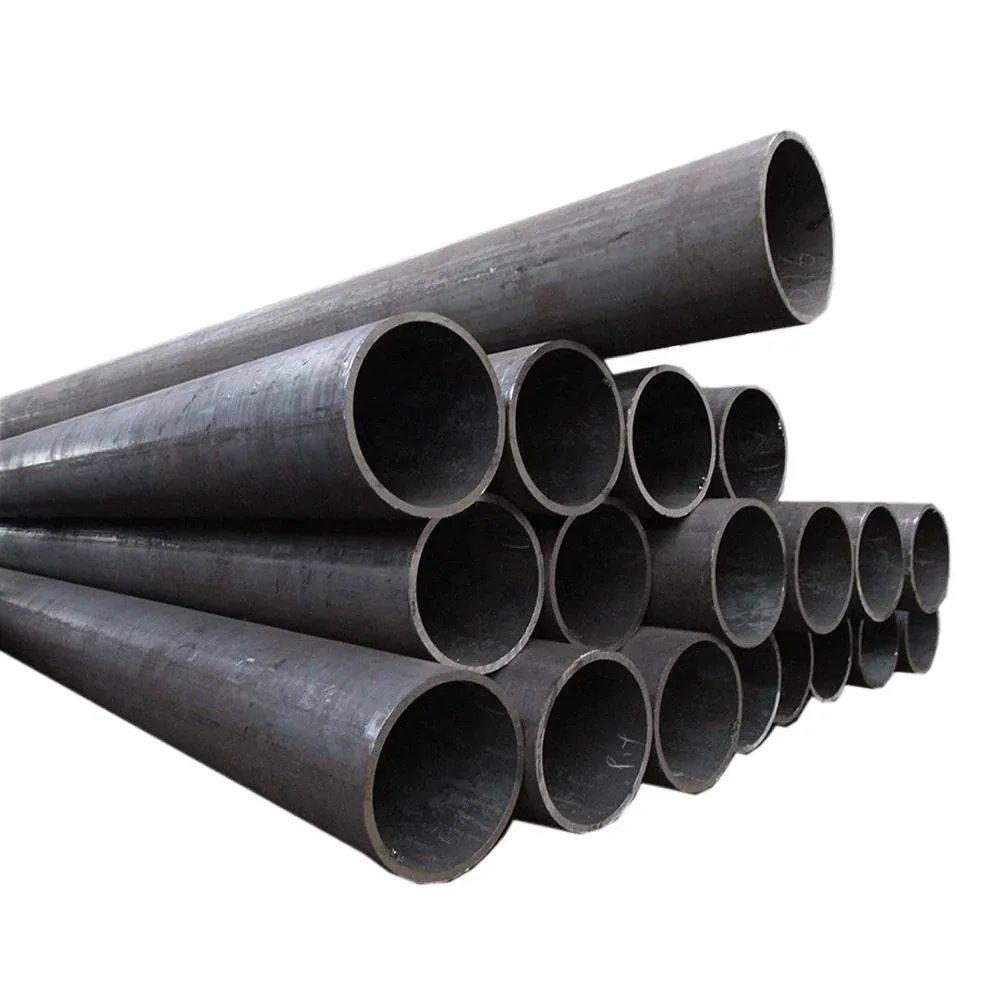

| Designation | ASTM A53 Grade B ERW Welded Steel Pipe |
| Product Type | ERW Welded Steel Pipe / Round Steel Pipe |
| Steel Grade | Grade B, X42, X52, X65, Q195, Q235B, Q345B, S235JR, S355JR |
| Standard | ASTM A53, API 5L, GB/T 9711, SY/T 5037 |
| Section Shape | Round |
| Technique | ERW (Electric Resistance Welded) |
| Surface Treatment | Black Coated / Bright / Galvanized / Painted |
| Length | Customized |
| Ends | Plain / Beveled (available upon request) |
| Packing | Standard Seaworthy Packing |
| Application | Scaffolding Construction, Fluid Transport, Oil & Gas Pipeline, Sewage Transport, Structural Support |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Scaffolding | Scaffold tube systems, temporary structural frames, shoring towers |
| Oil & Gas | Low-pressure fluid transmission lines, gathering pipelines, sewage outfall |
| EPC Industrial Projects | Process piping racks, conveyor support structures, plant structural columns |
| Infrastructure | Bridge handrails, culvert reinforcement, drainage systems |
What Negative Wall Tolerance Costs on a Scaffolding Order
A sub-millimeter wall deviation can fail third-party inspection and stall an entire job site.
I once shipped a container of ERW scaffolding pipe to Southeast Asia — Schedule 40, ASTM A53 Grade B. The buyer’s third-party inspector pulled random samples and found wall thickness consistently below the minimum allowed. The full container was quarantined at the construction yard. The root cause was a supplier who let rolling tolerances drift without lab verification. Since then, every ASTM A53 Grade B ERW welded steel pipe we produce goes through dimensional checks in our own physical laboratory, with heat-by-heat data recorded and shipped alongside the cargo [NEED_CITE: ASTM A53 dimensional tolerance requirements for ERW pipe]. Quality uncertainty is the single most expensive hidden cost in international steel procurement — and it is entirely preventable.
Matching ERW Welded Pipe to Structural and Fluid Service Demands
ASTM A53 Grade B ERW welded steel pipe serves two distinct engineering functions: structural load-bearing in scaffolding and frames, and low-to-medium pressure fluid conveyance in pipeline networks. The ERW process produces a clean, controlled weld seam that maintains uniform strength along the pipe body — critical when scaffolding tubes must carry vertical loads and lateral bracing forces simultaneously. For corrosive environments such as coastal construction sites or sewage systems, galvanized or painted surface treatments extend service life without changing the structural grade. Our production lines cover the full schedule range, allowing project teams to source both structural and process piping from a single mill order.
Engineering Compliance and Certification Requirements
Structural applications demand compliance with recognized engineering codes. ASTM A53 Grade B meets the material requirements referenced by AISC and is widely accepted across North American and Middle Eastern projects. For European markets, the same ERW pipe can be produced under EN 10219 with CE marking, ensuring customs clearance without documentation disputes [NEED_CITE: CE marking requirements for structural hollow sections under EN 10219]. Steel grade selection directly affects load capacity — Grade B provides adequate yield strength for scaffolding and general structural use, while X42 through X65 grades serve pipeline applications requiring higher pressure ratings. Beveled ends are available for field welding in pipeline installations, and customized lengths reduce on-site cutting waste.
Understanding Steel Grade Selection and ERW Welding Integrity
The ASTM A53 system designates Grade B as the standard carbon steel grade for general mechanical and pressure applications. In API 5L designations, X42, X52, and X65 represent progressively higher minimum yield strengths for pipeline service. Chinese grades Q195 through Q345B and European grades S235JR through S355JR offer equivalent or alternative specifications depending on the project’s governing code. The ERW welding process uses electric resistance to fuse the pipe seam without filler metal, producing a narrow heat-affected zone and consistent mechanical properties. This makes ERW pipe cost-effective for structural and low-pressure fluid applications where seamless pipe is not required. Surface treatment choices — black coated for indoor or temporary use, galvanized for outdoor corrosion resistance, painted for specific environmental protection — are determined by the service environment and project specifications.
The Hidden Price of Unverified Material Claims
Ordering steel pipe without verified mill test certificates creates a chain of risk: customs authorities may reject shipments lacking proper documentation, engineers cannot confirm material traceability, and structural connections designed for a specific grade may become safety liabilities. A pipe stamped Grade B that does not meet the chemical composition or tensile requirements of ASTM A53 will fail inspection — and the cost of replacement, remobilization, and schedule delay far exceeds any initial price saving. Third-party inspection by SGS or BV provides independent verification, but it must be specified at the time of order, not after the cargo arrives [NEED_CITE: importance of mill test certificates in international steel trade compliance].
Why Project Procurement Teams Source from Our Mill
Every ASTM A53 Grade B ERW welded steel pipe leaves our facility with a mill test certificate generated by our own physical and chemical laboratory — not a trading company’s re-issued document. We maintain 2,800+ specifications across our product range, meaning scaffolding pipe, pipeline grade, and structural tube can be consolidated into a single shipment, reducing freight cost and coordination overhead. Our 41 patented technologies include proprietary welding and forming processes that ensure dimensional consistency across production runs. We hold CE certification under EN 10210 and EN 10219, ISO 9001:2015 registration, and Singapore FPC approval, covering the major certification requirements across our export markets spanning 50+ countries. Professional container loading plans optimize weight distribution and maximize payload per shipment, with FOB, CIF, and DDP terms available based on the buyer’s logistics preference.
Documentation & Compliance
- Mill test certificate documenting Grade B chemical composition and mechanical properties per ASTM A53, traceable by heat number
- CE certificate under EN 10219 for structural hollow sections exported to European Union markets
- ISO 9001:2015 quality management system certificate covering the full ERW welding and finishing process
- SGS or BV third-party inspection report available upon request for independent dimensional and material verification
- Material traceability documentation linking each pipe to its heat number, chemical analysis, and tensile test results
- Complete customs documentation package including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- ERW welded round pipes bundled with steel strips and edge protectors to prevent surface damage to galvanized or painted coatings during ocean transit
- Black coated pipes lightly oiled to prevent rust formation during storage and shipping in humid climates
- Container loading plans optimized by our logistics team based on pipe OD, wall thickness, and length to maximize payload within weight limits
- Customized cut lengths available to match project-specific requirements, reducing on-site cutting waste and labor cost
- Heat number and steel grade stenciled on each pipe end for field identification and inspection traceability
- FOB, CIF, and DDP shipping terms supported with real-time tracking from Jinan mill to destination port or project site
Starting Your Procurement Inquiry
Submit your required specifications — OD, wall thickness or schedule, steel grade, surface treatment, quantity, and destination port — and receive a detailed quotation within 12 hours, including unit pricing, production lead time, applicable certifications, and mill test certificate confirmation. For non-standard dimensions or custom length requirements, our engineering team will provide a feasibility assessment and production schedule.
Request Your ASTM A53 Grade B Quotation with Mill Test Certificate
Send your specifications via email to admin@sdxjysteel.com or contact us directly at +86 188 5315 7756 (WhatsApp/WeChat available) to begin your procurement process.
Frequently Asked Questions
Q: What is the difference between ASTM A53 Grade B and API 5L grades, and how do I choose?
A: ASTM A53 Grade B is a general-purpose carbon steel grade for mechanical and pressure applications, commonly used in scaffolding and structural support. API 5L grades (X42, X52, X65) are specifically designed for pipeline transportation of oil, gas, and water, with higher minimum yield strengths for pressure containment. The choice depends on your project’s governing code and service conditions.
Q: Can you provide Mill Test Certificates and third-party inspection reports for customs clearance?
A: Yes. Every shipment includes an original mill test certificate documenting chemical composition and mechanical properties per the applicable standard (ASTM A53, API 5L, etc.), traceable by heat number. Third-party inspection by SGS or BV is available upon request and can be arranged before shipment to meet your customs or project compliance requirements.
Q: What surface treatment options are available, and how do I select the right one for my environment?
A: We offer black coated (suitable for indoor or temporary use), bright finish, galvanized (for outdoor or corrosive environments), and painted coatings. Selection depends on the service environment — galvanized is recommended for coastal construction or sewage applications, while black coated is sufficient for indoor scaffolding or temporary structural support.
Q: What is the production lead time, and how do you optimize container loading for cost savings?
A: Typical production lead times depend on order quantity and specification complexity. Our logistics team develops container loading plans based on your pipe dimensions and lengths to maximize payload per container, reducing per-unit freight cost. We support FOB, CIF, and DDP terms based on your preference.
Q: Do you support FOB, CIF, and DDP shipping terms to my destination country?
A: Yes. We export to 50+ countries across the EU, North America, Middle East, Southeast Asia, and South America. FOB, CIF, and DDP terms are all available, with professional loading plans and real-time shipment tracking from our Jinan facility to your destination port or project site.
