Description

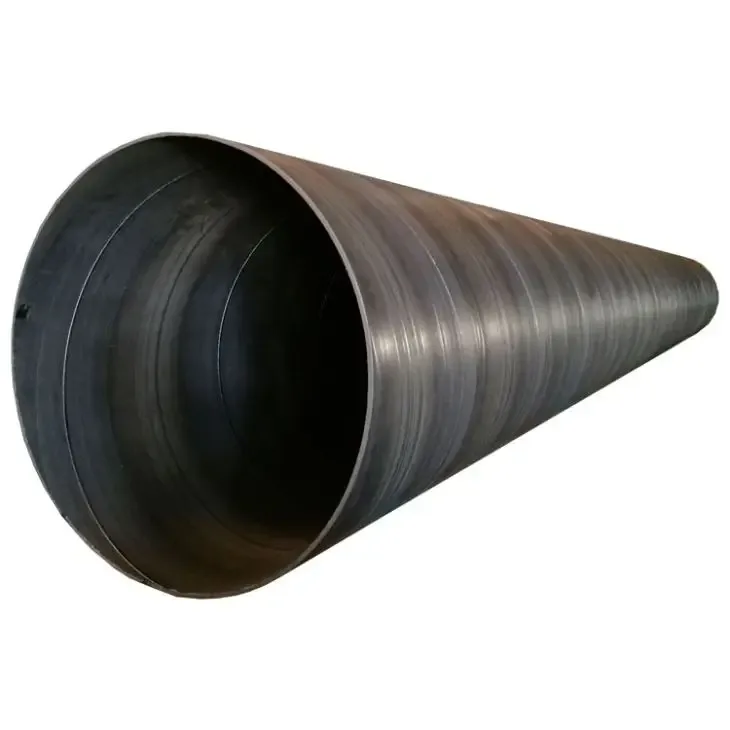

Factory-Direct SSAW Piling Pipe — Every ASTM A252 GR.3 spiral steel pipe rolls off our own mill with heat-number traceability and in-house lab verification before shipment.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A252 GR.3 Spiral Steel Pipe |
| Product Type | Spiral Welded Steel Pipe (SSAW) |
| Steel Grade | Q235, Q345, L175, L210, L245, L320, Grade B, X42, X52, X60, X70, L290, S320, L360, L390, L415 |
| Standard | GB/T 9711.1, GB/T 9711.2, SY/T 5037, SY/T 5040, API 5L, ASTM A252 |
| Section Shape | Round |
| Size Range | OD 219–3000 mm |
| Wall Thickness | 6–24.5 mm |
| Length | Standard or as per customer requirement |
| Technique | Spiral Welded (SSAW) |
| Surface Treatment | Hot Rolled / Non-oiled |
| Tolerance | ±1% |
| Ends | Plain / Beveled (per standard) |
| Application | Foundation piling / Bridge construction / Building construction / Fluid transportation / Gas pipeline / Structural support |
| MOQ | 2 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Foundation piling for high-rise buildings, industrial plant support structures, port terminal load-bearing columns |
| Construction Companies | Bridge pier casings, retaining wall anchoring, deep foundation driven piles |
| Machinery Manufacturers | Heavy equipment base frames, crane boom support sleeves, conveyor system structural columns |
| Infrastructure Developers | Highway sound barrier foundations, railway bridge substructure piles, waterfront revetment piles |
What Negative Tolerance Costs on a Piling Pipe Order
A mill cert that looks clean on paper means nothing when the caliper tells a different story at the job site.
I have watched an entire container of large-diameter piling pipe sit at a Southeast Asian port for weeks because the third-party inspector measured wall thickness well below the stated nominal — the negative tolerance had been pushed far beyond acceptable limits. The contractor faced crane standby charges, a rescheduled pile-driving crew, and a customs hold that rippled through the entire project timeline. When you source an ASTM A252 GR.3 spiral steel pipe from fragmented suppliers without verified mill data, the real cost is not the unit price difference — it is the rework, the delay penalties, and the structural doubt that lingers long after the pile is driven. [NEED_CITE: ASTM A252 structural steel piling specification requirements]
Matching Large-Diameter SSAW Pipe to Foundation Engineering Demands
Piling applications demand pipe that can withstand driving stresses, lateral soil pressure, and long-term corrosion in aggressive ground conditions. An ASTM A252 GR.3 spiral steel pipe with OD up to 3000 mm and wall thickness reaching 24.5 mm provides the section modulus required for deep foundation work in high-rise and bridge projects. The spiral submerged arc welding process produces a continuous helical seam that distributes stress evenly across thick-wall sections — critical when a pile hammer delivers repeated impact loads during installation. Our in-house physical and chemical laboratory tests every heat before the pipe leaves the mill, so the mill test certificate you receive matches the actual material sitting on the flatbed.
Engineering Compliance and Certification Pathways
Foundation piling for infrastructure projects typically falls under structural design codes that require documented material conformity. For European market projects, CE certification per EN 10210 and EN 10219 is often a customs and site-acceptance prerequisite — missing paperwork means the shipment does not clear the port. [NEED_CITE: EN 10210 hot-finished structural hollow section compliance] North American EPC contractors specifying ASTM A252 GR.3 need original mill test certificates with heat number traceability that their structural engineer can sign off on without requesting supplementary testing. Beveled ends per standard allow field welding for pile splicing, while custom cut-to-length orders reduce on-site cutting waste and welding time. Third-party inspection through SGS or BV can be arranged before loading to satisfy the most stringent project quality plans.
Steel Grade Selection and Spiral Welding Process Logic
The ASTM A252 specification covers three grades — GR.1, GR.2, and GR.3 — with GR.3 requiring the highest minimum yield strength among them, making it the default choice for structural piling where load-bearing capacity is the primary design driver. When your project also involves pressure-rated fluid transport, the API 5L grades in our range — X42, X52, X60, X70 — cover the higher-pressure end of the spectrum, and we can supply both piling and pipeline grades from a single procurement order. [NEED_CITE: steel grade equivalence between ASTM A252 and API 5L specifications] The spiral submerged arc welding technique used for SSAW pipe allows production of large diameters up to 3000 mm from narrower coil stock, which keeps costs lower than equivalent seamless or LSAW alternatives at these sizes. Hot rolled, non-oiled surface finish is standard for piling applications where the pipe will be driven into ground or encased in concrete — additional coatings such as 3PE, epoxy, or bitumen can be applied when the pipe is exposed to corrosive soil or marine environments.
Hidden Costs of Sourcing Piling Pipe Without Verified Data
Choosing a supplier based on the lowest quoted price per ton becomes expensive fast when the delivered pipe fails dimensional inspection at the project site. Material that does not match the certified grade triggers structural engineer rejection, forcing either costly supplementary testing or full shipment replacement. Missing or incomplete mill test certificates cause customs delays in markets that require documented proof of conformity before release. [NEED_CITE: import documentation requirements for structural steel piling materials] Negative tolerance abuse — where actual wall thickness drifts systematically below nominal — reduces the pile’s load-bearing section and may compromise the structural design assumptions the engineer relied on. These are not theoretical risks; they are recurring problems on projects where procurement is disconnected from quality verification.
Why Global EPC Contractors Source ASTM A252 GR.3 Spiral Steel Pipe From Us
Every pipe we ship as an ASTM A252 GR.3 spiral steel pipe rolls through our own three dedicated production lines — there is no trading company margin layered on top of the mill price. Our in-house physical and chemical laboratory performs incoming raw material inspection, in-process weld verification, and final dimensional and mechanical testing before any shipment leaves the facility. With over 2,800 specifications across our full product range, we consolidate piling pipe, structural tube, plate, and section steel into a single shipment — eliminating the coordination overhead of managing multiple vendors. We hold CE certification per EN 10210/10219 for European projects, ISO 9001:2015 for quality management, and we arrange SGS or BV third-party inspection for clients who require independent verification. Our professional loading team optimizes container stowage for large-diameter pipe, nesting smaller OD pipes inside larger ones where possible to reduce freight cost per ton. Nearly 20 years of export experience means we handle customs documentation, port coordination, and DDP delivery to over 50 countries as standard practice — not as a special request.
Documentation & Compliance
- Mill test certificate documenting ASTM A252 GR.3 chemical composition and mechanical properties per heat number, issued from our in-house laboratory
- CE certificate per EN 10210/10219 for structural hollow sections shipped to European Union markets
- ISO 9001:2015 quality management system certificate covering the full production and inspection process
- SGS or BV third-party inspection report available upon request for project-specific quality plan compliance
- Full material traceability from coil heat number through welding, forming, and final testing for every ASTM A252 GR.3 spiral steel pipe
- Complete customs document package including packing list, bill of lading, and certificate of origin for destination-country clearance
Packaging, Loading & Delivery
- ASTM A252 GR.3 spiral steel pipe bundled with steel strip ties and seaworthy packaging, with end protectors on beveled ends to prevent damage during ocean transit
- Hot rolled non-oiled surface condition requires no additional coating protection for standard piling applications, reducing packaging weight and cost

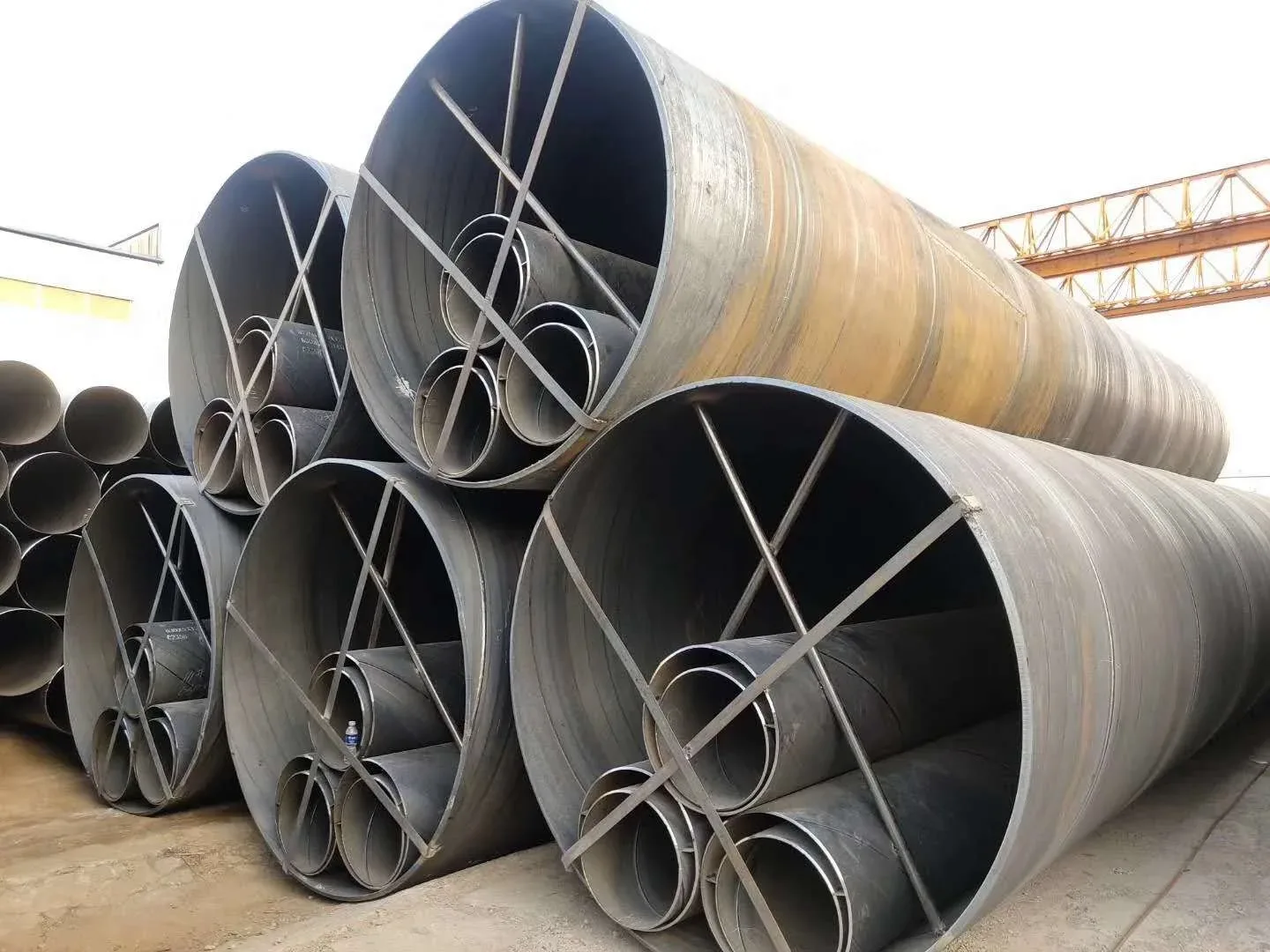

- Large-diameter pipe (OD above 1000 mm) shipped as individual pieces with wooden cradle supports; smaller OD pipes nested inside to maximize container utilization
- Cut-to-length service available per customer requirement, with each piece marked with heat number, steel grade, and dimensional identity for site traceability
- FOB, CIF, and DDP shipping terms offered with professional loading plans optimized for the specific OD and wall thickness combination ordered
- Door-to-door logistics coordination to ports and project sites across EU, North America, Southeast Asia, Middle East, and Africa
Ready to Lock In Your Piling Pipe Specification?
Send us your ASTM A252 GR.3 spiral steel pipe requirements — outer diameter, wall thickness, steel grade, quantity, and destination port — and we return a detailed quotation with unit price, delivery timeline, payment terms, and applicable certification within 12 hours. If your project requires non-standard dimensions, beveled ends, or third-party inspection, we build that into the proposal from the start.
Request Your ASTM A252 GR.3 Quotation with Mill Test Certificate
Submit your specifications via email or WhatsApp and receive a factory-direct quote with full documentation within 12 hours.
Company: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.sdxjysteel.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@sdxjysteel.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What is the difference between ASTM A252 GR.3 and API 5L X52 for piling applications?
A: ASTM A252 GR.3 is specifically written for structural steel piling and defines minimum yield and tensile strength suited to driven pile applications. API 5L X52 is a line pipe grade designed for pressure containment in oil and gas transmission. Both can serve piling roles depending on the structural engineer’s specification, and we supply both grades from the same SSAW production line with full mill test certificates for each.
Q: Can you arrange third-party inspection before shipment?
A: Yes. We coordinate SGS or BV inspection at our facility before loading. The inspector verifies dimensional accuracy, wall thickness, weld quality, and reviews the mill test certificate against the production heat. The inspection report is included in the shipping document package.
Q: What anti-corrosion coating options are available for SSAW piling pipe used in marine environments?
A: For marine or aggressive soil conditions, we offer 3PE coating, epoxy lining, and bitumen coating on the outer surface of the ASTM A252 GR.3 spiral steel pipe. The coating specification should be confirmed at the inquiry stage so we can integrate it into the production schedule and provide accurate pricing.
Q: What certification do I need for customs clearance in the European Union?
A: European Union importers typically require CE certification per EN 10210 or EN 10219 for structural steel hollow sections. We hold both certifications and include the CE declaration of conformity in every document package for EU-bound shipments.
Q: How do you optimize container loading for large-diameter piling pipe?
A: For OD above 1000 mm, pipes are loaded individually with wooden cradle supports to prevent rolling and deformation. Smaller OD pipes can be nested inside larger diameters to fill void space, which reduces the number of containers needed and lowers freight cost per ton. Our loading team prepares a stowage plan before packing begins.
