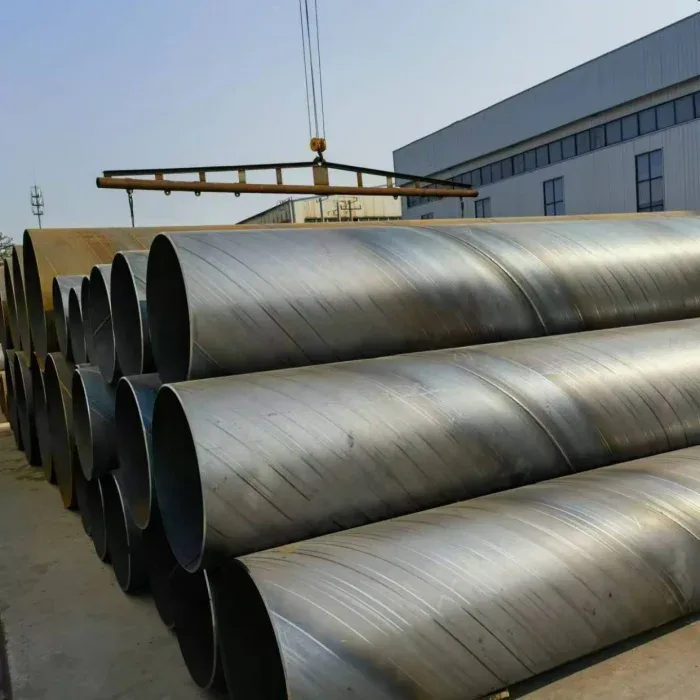

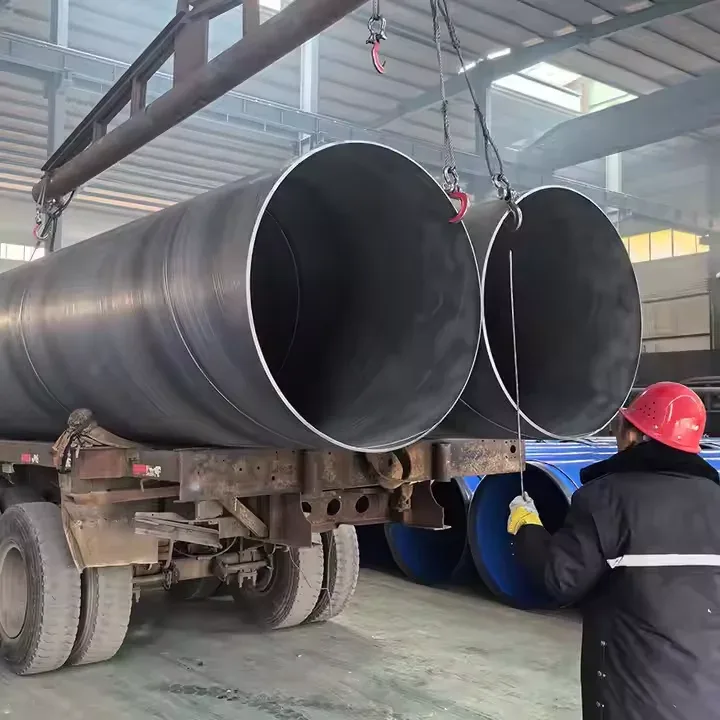

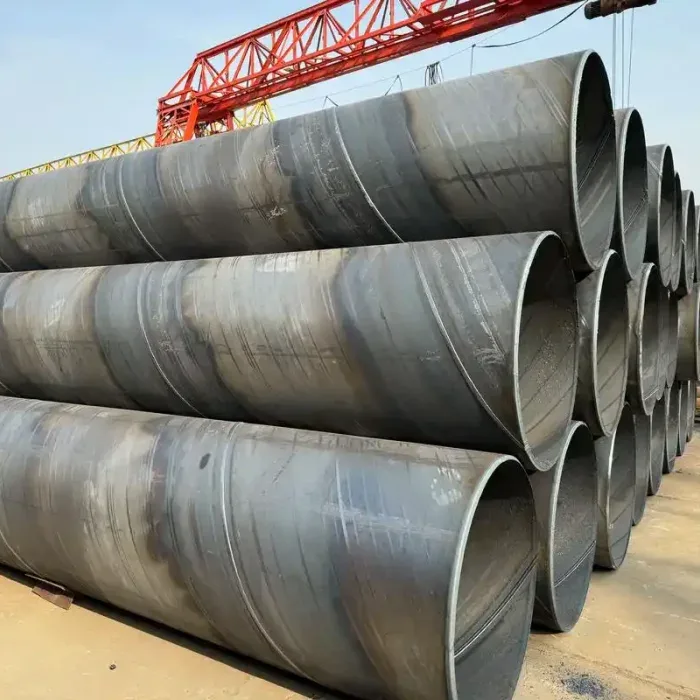

API 5L X65 X52 SSAW Steel Pipe OD 100-2000mm WT 60mm Factory Supplier

Description

Factory-Direct SSAW Pipe Supply — Dedicated production lines with in-house physical and chemical laboratories verify every API 5L X65 X52 SSAW steel pipe before loading, eliminating middleman markups and quality blind spots.

Technical Specifications

Application Suitability

What Negative Tolerance Really Costs on a Pipeline Order

A ±1% wall thickness deviation on a 2000 mm OD pipe can shift hydrostatic test results from pass to reject across an entire batch.

When sourcing API 5L X65 X52 SSAW steel pipe for transmission projects, inconsistent wall thickness is the single most common reason shipments fail third-party inspection. I have seen containers held at port for weeks because the mill cert showed X52 chemistry but the actual yield behavior pointed to a lower grade — the chemistry passed, the mechanical performance did not. Fragmented sourcing from traders who cannot run their own tensile tests means you discover the mismatch only after the pipe reaches the job site. [NEED_CITE: API 5L PSL1 mechanical testing requirements for pipeline steel]

Matching Large-Diameter Spiral Welded Pipe to Pipeline and Piling Specs

Large-diameter SSAW pipe in API 5L X42 through X80 grades serves two distinct engineering demands: pressure containment for fluid transmission and structural load-bearing for piling. The spirally submerged arc welding process produces a continuous helical seam that distributes stress more evenly than longitudinal welds, making it suitable for OD 100–2000 mm applications where field welding efficiency matters. Bevel-ended pipes in X52 and X65 grades weld directly into girth joints on pipeline spreads, while plain-ended heavy-wall sections drive into pile foundations without seam damage. Our dedicated SSAW lines produce wall thickness up to 60 mm with ±1% tolerance, verified by in-house chemical and mechanical testing before any pipe leaves the mill.

Engineering Compliance and Certification Requirements Across Markets

Pipeline projects in the Middle East and Southeast Asia typically require API 5L PSL1 compliance with full heat-number traceability, while European structural piling contracts demand CE marking under EN 10210 or EN 10219 frameworks. North American buyers reference ASTM A53 and A106 for fluid transport, and many EPC contractors now require third-party re-inspection by SGS or BV before container sealing. Missing or incomplete mill test certificates cause customs holds that delay project timelines — a compliance gap that traders without in-house laboratories cannot resolve quickly. [NEED_CITE: CE marking requirements for structural steel hollow sections under EN 10210] Steel grade selection directly affects both load capacity and weldability: higher grades like X65 deliver greater pressure ratings but require controlled welding procedures to avoid hydrogen-induced cracking in the heat-affected zone.

Steel Grade Selection and SSAW Process Fundamentals

API 5L X52 and X65 belong to the high-strength low-alloy pipeline steel family, where the number indicates minimum yield strength in ksi (52 ksi and 65 ksi respectively). These grades achieve their mechanical properties through controlled rolling and microalloying with niobium, vanadium, and titanium — not through heat treatment — which preserves weldability for field girth welding. The SSAW process forms pipe from hot-rolled coil by helical forming and submerged arc welding both inside and outside the seam, allowing production of large diameters up to 2000 mm from relatively narrow coil widths. This contrasts with ERW, which is limited to smaller diameters, and seamless, which cannot economically exceed 660 mm OD. Hot-rolled with slight oiling provides baseline corrosion protection during storage and transit; for aggressive soil or marine environments, external 3PE coating is applied after pipe fabrication. [NEED_CITE: microalloying elements in API 5L high-strength pipeline steel grades]

Hidden Costs of Procuring Without Verified Mill Test Documentation

Pipes supplied without original mill test certificates or with certificates that do not match heat numbers create compounding risks: customs authorities in the EU, Africa, and South America increasingly reject steel shipments lacking proper CE, SONCAP, or SABS documentation. Beyond clearance delays, material substitution — where a lower grade is sold as X52 or X65 — passes initial visual inspection but fails hydrostatic testing under operating pressure, forcing complete line replacement at many times the original pipe cost. Engineering specifications for API 5L X65 X52 SSAW steel pipe demand full chemical and mechanical traceability per heat, and accepting pipes without this documentation transfers all liability to the buyer. [NEED_CITE: API 5L PSL1 chemical composition and mechanical property verification]

Why EPC Contractors and Distributors Source SSAW Pipe From Us

We operate three dedicated production lines with in-house physical and chemical laboratories that test every heat for chemical composition, tensile strength, and dimensional tolerance before loading — the same checks I now require after watching a mismatched shipment stall a Gulf pipeline project. Our catalog covers over 2,800 specifications across square, rectangular, round, and section steel, so pipeline contractors can consolidate pipe, plate, and structural steel procurement into a single purchase order rather than coordinating five separate suppliers. We hold 41 invention patents including proprietary sharp-corner rectangular tube technology, and our factory-direct pricing eliminates trader markups that typically add 8–15% to landed cost. All products carry ISO 9001:2015, Lloyd’s Register EU CE (EN 10210/10219), and Singapore FPC certification, with SGS and BV third-party inspection available on request. Custom non-standard OD, wall thickness, and length are produced to order with typical lead times matching standard catalog items, and our logistics team prepares professional container loading plans for FOB, CIF, and DDP shipments from Tianjin, Qingdao, and Shanghai ports.

Documentation & Compliance

• Mill test certificate documenting API 5L X52 and X65 chemical composition, yield strength, and tensile properties per heat number
• CE certificate under EN 10210/EN 10219 for structural hollow sections exported to European Union markets
• ISO 9001:2015 quality management system certificate covering full production and inspection process
• SGS or BV third-party inspection report available for pre-shipment verification of dimensions, surface quality, and mechanical properties
• Full material traceability from coil heat number through forming, welding, and final testing
• Customs documentation package including packing list, bill of lading, and certificate of origin for destination-country clearance

Packaging, Loading & Delivery

• API 5L X65 X52 SSAW steel pipe bundled with steel strips and edge protectors to prevent coating damage and maintain bundle integrity during ocean transit
• Hot-rolled and oiled surface treatment applied before bundling to prevent rust formation during storage and shipping in humid climates
• Professional container loading plans optimized for 6 m, 6.4 m, and 12 m lengths to maximize payload per 20-foot and 40-foot containers
• Custom cut-to-length service available for 0.5–12 m requirements, with cut ends deburred and marked per heat number
• Each pipe stenciled with steel grade, OD, wall thickness, heat number, and manufacturer identification for site traceability
• FOB, CIF, and DDP shipping terms available from Tianjin, Qingdao, and Shanghai ports with real-time container tracking

Request a Quotation With Full Mill Test Documentation

Submit your API 5L X65 X52 SSAW steel pipe requirements including outer diameter, wall thickness, length, steel grade, quantity, and destination port — we respond within 12 hours with pricing, typical production lead times, and available certification. For non-standard dimensions or custom end finishes, our engineering team provides fabrication-ready specifications before you commit to a deposit.

Get Your API 5L SSAW Pipe Quote With Mill Test Certificates

Send your specifications to admin@sdxjysteel.com or contact us via WhatsApp at +86 188 5315 7756 to receive pricing, available mill test certificates, and delivery timelines for your next pipeline or piling project.
