Description

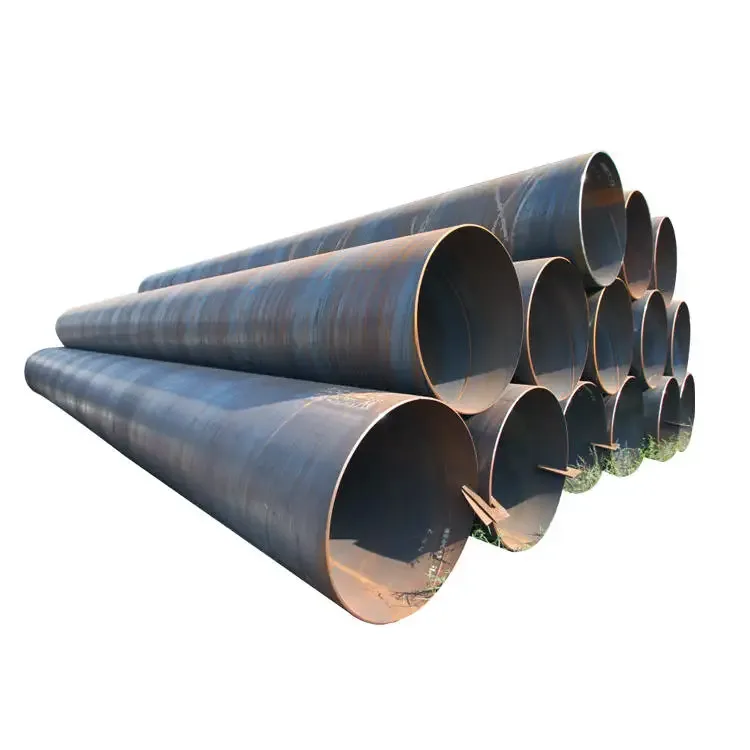

Factory-Direct Mill Pricing — Every API 5L X65 SSAW steel pipe rolls off our own spiral welding line, eliminating trader markups before it reaches your project site.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | API 5L X65 SSAW Steel Pipe |
| Product Type | SSAW Welded Steel Pipe |
| Steel Grade | Q235B, Q345B, St37-2, St52, SS400, ASTM A53, S235JR |
| Standard | API 5L, GB/T3091, ASTM A53, DIN 2444, ISO 9001 |
| Section Shape | Round |
| Size Range | OD 219–2030 mm |
| Wall Thickness | Thick Wall (API Pipe) |
| Length | 1–12 m |
| Technique | SSAW (Spirally Submerged Arc Welding) |
| Surface Treatment | Hot Rolled / Slightly Oiled |
| Tolerance | ±1% |
| Ends | Plain / Beveled (per API 5L) |
| Application | Fluid transport, Oil & gas pipeline, Water supply, Pipe piles, Dredge pipeline, Structural piling |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas EPC | Long-distance transmission pipelines, gathering line networks, offshore platform risers |
| Municipal Infrastructure | Raw water intake mains, treated water distribution, stormwater drainage outfalls |
| Civil Engineering | Bridge foundation pipe piles, highway sound barrier post bases, retaining wall anchoring |
| Marine & Dredging | Cutter suction dredge discharge lines, jetty fender pile sleeves, subsea intake conduits |
What Missing Mill Test Certificates Cost on an API Pipeline Order
A rejected heat at port customs delays the entire spread spread-out schedule by weeks.
When procurement teams source large-diameter spiral welded pipes from multiple traders, the mill test certificate often arrives as a photocopy of a photocopy — or worse, a template filled with the wrong heat number. On an API 5L X65 SSAW steel pipe order destined for a Middle East gas transmission project, we once saw a competitor’s batch held at Jebel Ali for 18 days because the MTC listed S355JR chemistry instead of X65. The importer had to fly a third-party inspector to verify, pay demurrage, and reschedule the welding crew. Traceability is not paperwork; it is the legal backbone of pressure-rated pipeline integrity. [NEED_CITE: API 5L specification requirements for MTC and heat traceability]
Matching Large-Diameter SSAW Pipe to Heavy-Duty Pipeline and Piling Loads
The OD 219–2030 mm range of our API 5L X65 SSAW steel pipe covers everything from municipal water transmission mains to offshore jacket foundation piles. The spirally submerged arc welding process produces a continuous helical seam that distributes hoop stress more evenly than a straight longitudinal weld, making it particularly suited for high-pressure fluid transport and deep-driven pipe piles where soil bearing loads are extreme. Beveled ends per API 5L allow field welders to achieve full-penetration butt joints without additional machining, cutting down on-site preparation time for EPC contractors working across 50+ export destinations.
Engineering Compliance Across API, ASTM, and GB Standards
Large-diameter SSAW pipes serving oil and gas transmission must conform to API 5L PSL2 requirements, which govern not only chemistry and tensile properties but also hydrostatic testing and non-destructive examination of the weld seam. For structural piling applications in European markets, the same pipe geometry may need to carry CE marking under EN 10219, requiring a separate factory production certificate and design code alignment with Eurocode 3. [NEED_CITE: EN 10219 cold-formed and SSAW hollow section compliance for structural piling] Our in-house physical and chemical laboratory tests every heat for composition, yield, tensile, and Charpy impact before release, ensuring that a single API 5L X65 SSAW steel pipe order can satisfy both the pipeline engineer’s pressure rating and the structural engineer’s buckling calculation without dual sourcing.
Steel Grade Selection and Spiral Welding Process Fundamentals
The API 5L X65 grade designation indicates a minimum yield strength class within the API pipeline steel system, where the “X” prefix and trailing number distinguish high-strength low-alloy grades from conventional carbon structural steels like Q235B or S235JR. For projects requiring dual-certification flexibility, our production covers Q235B, Q345B, St37-2, St52, SS400, and ASTM A53 on the same SSAW line, allowing procurement to consolidate structural and pipeline grades into one mill relationship. The SSAW process itself forms the pipe by helically winding steel coil and submerging the seam under flux, which shields the molten weld pool from atmospheric contamination and produces a deposit with mechanical properties approaching the parent plate. [NEED_CITE: SSAW vs LSAW vs seamless pipe manufacturing process comparison] Surface options — hot-rolled black, slightly oiled for transit corrosion prevention, or 3PE/epoxy coating for buried service — are selected based on the soil resistivity and design life of the installation environment.
The Hidden Cost of Wall Thickness Deviation on Large-Diameter Pipe
When a supplier ships API 5L X65 SSAW steel pipe with wall thickness at the lower edge of minus tolerance, the theoretical weight drops but so does the hydrostatic burst pressure and the buckling resistance of a driven pile. On a Southeast Asian dredging project, a batch of 1420 mm OD pipes arrived with actual wall thickness 0.6 mm below the ordered nominal — enough to fail the client’s ultrasonic audit and trigger a full replacement at the supplier’s cost, plus three weeks of idle dredger time. [NEED_CITE: API 5L tolerance limits for wall thickness and OD on SSAW pipe] Our ±1% tolerance policy, verified by the in-house lab on every length, ensures that the pipe you ordered is the pipe that gets welded into the line.
Why Engineering Procurement Teams Source from Xin Jiyuan
Our spiral welding line produces API 5L X65 SSAW steel pipe in ODs up to 2030 mm with wall thicknesses reaching 40 mm — a range that eliminates the need to split a single pipeline order across three different mills. Every heat is tested in our own physical and chemical laboratory, and the resulting MTC travels with the pipe to port, not as an afterthought but as a controlled document tied to the heat number stamped on each length. We hold 41 invention patents, including proprietary sharp-corner rectangular tube technology, and our quality system is certified under ISO 9001:2015, Lloyd’s Register CE (EN 10210/10219), and Singapore FPC, with SGS and BV third-party inspection available before loading. For EPC contractors sourcing across 50+ countries, we provide professional container optimization and bulk vessel loading plans that account for the 12 m length of heavy-wall SSAW pipe, reducing freight cost per ton and eliminating the damage that occurs when oversized pipes are stuffed into containers without proper cradling.
Documentation & Compliance
- Mill Test Certificate documenting API 5L X65 chemical composition, yield strength, tensile strength, and elongation per heat number, issued before shipment
- CE certificate under EN 10210/EN 10219 for structural piling applications entering EU and Singapore markets
- ISO 9001:2015 quality management system certificate covering the full SSAW production and inspection process
- SGS or BV third-party inspection report available upon request, covering dimensional audit, weld seam NDE, and coating thickness
- Full material traceability from coil heat number through forming, welding, hydrostatic test, and final dispatch
- Customs document package including packing list, ocean Bill of Lading, and certificate of origin for preferential tariff claims
Packaging, Loading & Delivery
- API 5L X65 SSAW steel pipe bundled with galvanized steel strips at intervals matched to the 1–12 m length, with soft edge protectors preserving the beveled end geometry
- Hot-rolled / slightly oiled surface protected by waterproof wrapping for ocean transit, preventing flash rust on the bare steel before field coating
- Container loading optimized for 20’GP (5.8 m pipe length) and 40’GP (11.8 m pipe length), with bulk vessel and break-break options for OD above 1200 mm
- Custom cut-to-length service available for non-standard project lengths, reducing on-site cutting waste and weld joint count
- Each length stenciled with heat number, steel grade, OD, wall thickness, and manufacturer mark for site-level traceability
- FOB, CIF, and DDP shipping terms supported, with door-to-door logistics coordination to ports across the EU, North America, Middle East, and Southeast Asia
Requesting a Project-Specific Quotation for Large-Diameter SSAW Pipe
Submit your required OD, wall thickness, steel grade, total tonnage, and destination port, and our engineering team returns a detailed quotation within 12 hours — including unit price, applicable certification, production lead time, and a preliminary loading plan. For non-standard dimensions or dual-certification requirements, we provide a technical proposal cross-referencing API 5L, ASTM A53, and EN specifications before production begins.
Frequently Asked Questions
Q: Can API 5L X65 SSAW steel pipe be supplied with 3PE anti-corrosion coating for buried pipeline service?
A: Yes. We offer hot-rolled black, slightly oiled, 3PE, and epoxy coating options on the same SSAW line, selected based on soil resistivity and design life. Coating thickness and adhesion are tested per DIN 30670 or project specification before dispatch.
Q: How do you verify material authenticity and prevent heat number substitution?
A: Every heat is tested in our in-house physical and chemical laboratory, and the original Mill Test Certificate is issued with the heat number stamped on each pipe length. Third-party inspection by SGS or BV is available before loading to independently verify chemistry and dimensions.
Q: What is the maximum outer diameter and wall thickness available on your SSAW line?
A: Our SSAW production covers OD 219–2030 mm with wall thickness up to 40 mm, including custom non-standard sizes. MOQ and lead time depend on the specific dimension and steel grade requested.
Q: How do you optimize container loading for 12 m long large-diameter pipes?
A: For 20’GP containers, we load pipe lengths up to 5.8 m; for 40’GP, up to 11.8 m. For OD above 1200 mm or project volumes exceeding container capacity, we arrange bulk vessel or break-bulk shipping with professional lashing and cradling to prevent ovality damage.
Q: Can you provide dual certification for the same pipe under both API 5L and EN 10219?
A: Dual certification is possible when the chemical composition and mechanical properties of the ordered steel grade satisfy both standards simultaneously. We review the project specification before production to confirm feasibility and issue the corresponding certificates.
Get Your API 5L X65 SSAW Pipe Quotation with Full Mill Documentation
Send your specification sheet — including OD, wall thickness, steel grade, quantity, and destination — to receive a detailed quotation and Mill Test Certificate sample within 12 hours.
