Description
Factory-Direct SSAW Pipes — Produced on dedicated spiral welding lines with in-house physical and chemical laboratories, eliminating middlemen margins on every API 5L X52 X70 SSAW steel pipe supplier order.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | API 5L SSAW Steel Pipe |
| Product Type | SSAW Welded Round Steel Pipe |
| Steel Grade | API 5L Gr.A, Gr.B, X42, X46, X52, X56, X60, X65, X70; ASTM A53, ASTM A139, ASTM A252 Grade 1/2/3; EN10217-1, EN10217-5, EN10219-1, EN10208; AS/NZS 1163; SY/T 5037, SY/T 5040; GB/T 9711.1, GB/T 9711.2, GB/T 14291, GB/T 3091, GB/T 13793 |
| Standard | API 5L PSL1/PSL2, ASTM A53, ASTM A139, ASTM A252, EN10217-1, EN10217-5, EN10219-1, EN10208, AS/NZS 1163, SY/T 5037, SY/T 5040, GB/T 9711, GB/T 14291, GB/T 3091, GB/T 13793 |
| Section Shape | Round |
| Size Range | OD 219–4064 mm |
| Wall Thickness | 3.2–40 mm |
| Length | 5.8 / 6 / 11.8 / 12 m |
| Technique | SSAW (Spirally Submerged Arc Welding) |
| Surface Treatment | Black Painting / Yellow Jacket / Galvanized |
| Tolerance | ±1% / ±5% (per standard) |
| Ends | Plastic Caps / Steel Protectors (Plain / Beveled available) |
| Application | Oil / Gas / Water transmission pipelines; Piling support / Bridge support; Construction & structural parts; Industrial fluid transport |
| Invoicing | By Actual Weight |
| Packing | Break Bulk Bundle |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Long-distance oil and gas transmission pipelines, water intake and discharge pipelines for power plants |
| Construction Companies | Piling foundations for high-rise buildings, bridge piers, retaining wall supports |
| Machinery Manufacturers | Industrial fluid conveyance systems, cooling water circulation pipelines, structural columns |
| Infrastructure Developers | Municipal water supply networks, drainage culverts, underground cable protection conduits |
What Material Traceability Gaps Cost on a Pipeline Project
Every API 5L X52 X70 SSAW steel pipe supplier order must ship with heat-number-linked mill test certificates — without them, customs holds the cargo and the project stalls.
I once loaded a full vessel of large-diameter spiral welded pipes for a Southeast Asian gas transmission project. The steel grade was marked X70 on the surface, but third-party复检 at the destination port showed yield strength barely reaching X52 levels. Wall thickness negative tolerance also exceeded allowable limits — ultrasonic testing failed across multiple joints. The entire shipment was rejected at port. [NEED_CITE: API 5L PSL2 chemical composition and mechanical property requirements] Since then, every batch leaving our facility carries original MTCs tied to specific heat numbers, verified by our in-house lab before the pipe even reaches the loading area.
Matching Large-Diameter Spiral Welded Pipe to Pipeline and Piling Demands
OD 219–4064 mm covers everything from municipal water mains to cross-country hydrocarbon transmission lines. Wall thickness up to 40 mm handles the internal pressure ratings required by API 5L PSL2 for X65 and X70 grades in high-pressure gas service. For piling applications, the spiral weld seam geometry distributes driving stress more evenly than longitudinal seams, reducing the risk of weld-line cracking during installation into dense soil or rock formations.
Engineering Compliance and Corrosion Environment Selection
Pipeline projects crossing coastal or offshore zones require 3PE yellow jacket anti-corrosion coating to resist chloride-induced degradation over decades of buried service. [NEED_CITE: EN 10217-5 submerged arc welded steel tubes for pressure purposes] For European market procurement, CE certification under EN 10210 and EN 10219 is non-negotiable — missing documentation triggers customs rejection regardless of physical product quality. ASTM A53 and A252 grades serve North American piling and structural codes, while API 5L PSL1/PSL2 governs onshore and offshore transmission pipeline specifications globally. Fixed lengths of 11.8 m and 12 m minimize field welding joints on long-distance runs, reducing both labor cost and potential leak points.
Understanding SSAW Process and Steel Grade Selection
Spirally submerged arc welding forms the helical seam under flux blanket, producing a weld bead with penetration depth and fusion uniformity comparable to the parent plate — critical when the pipe must withstand internal pressures exceeding 10 MPa in X70 gas transmission service. The SSAW process allows production of large diameters (up to 4064 mm) from relatively narrow steel plate, reducing raw material cost compared to LSAW which requires plate width matching the pipe circumference. [NEED_CITE: comparison of SSAW LSAW and seamless pipe manufacturing processes] API 5L X52 offers moderate strength suitable for onshore water and low-pressure gas lines, while X70 delivers higher yield strength for long-distance high-pressure gas transmission where wall thickness reduction translates directly to weight and cost savings. Black painting provides short-term corrosion protection for indoor or temporary installations; galvanized coating extends service life in humid or mildly corrosive atmospheres; 3PE yellow jacket is specified for buried pipelines in aggressive soil conditions.
Hidden Costs of Procuring Without Verified Certification
Pipes shipped without proper MTCs or with falsified grade markings create cascading failures: customs authorities impound the cargo, project engineers cannot verify structural compliance, and re-inspection or replacement delays commissioning by months. Negative wall thickness tolerance beyond standard limits reduces pressure containment capacity — a pipe specified at 12.7 mm WT arriving at 11.2 mm may pass visual inspection but fails hydrostatic proof testing. [NEED_CITE: consequences of non-compliant steel pipe documentation in international trade] The cost of replacing rejected pipe at the project site — including demurrage, remobilization of welding crews, and schedule penalties — typically exceeds the original purchase price by several multiples.
Why Global EPC Contractors Source SSAW Pipes From Us
Our three dedicated SSAW production lines cover OD 219–4064 mm with wall thickness up to 40 mm across API 5L Gr.B through X70 — no need to split orders across multiple suppliers for different diameter ranges. The in-house physical and chemical laboratory tests every heat for composition, tensile strength, charpy impact, and hydrostatic pressure before release, generating MTCs that satisfy EN 10204 3.1 and 3.2 requirements. We hold CE certification under EN 10210 and EN 10219 for European projects, ISO 9001:2015 for quality management, and accept SGS or BV third-party inspection at buyer’s request. Our 41 invention patents include proprietary sharp-corner rectangular tube technology — though for round SSAW pipes, the relevant capability is our proven track record producing to API 5L PSL2 with consistent charpy toughness at sub-zero temperatures. Professional loading plans optimize container utilization for 11.8 m and 12 m lengths, reducing freight cost per ton.
Documentation & Compliance
- Mill test certificate documenting API 5L X52 or X70 chemical composition, yield strength, tensile strength, and elongation per heat number
- CE certificate under EN 10210 / EN 10219 for European Union market customs clearance
- ISO 9001:2015 quality management system certificate covering SSAW pipe production
- SGS or BV third-party inspection report available upon request before shipment
- Material traceability linking each pipe to specific heat number, plate batch, and welding parameters
- Customs document package including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

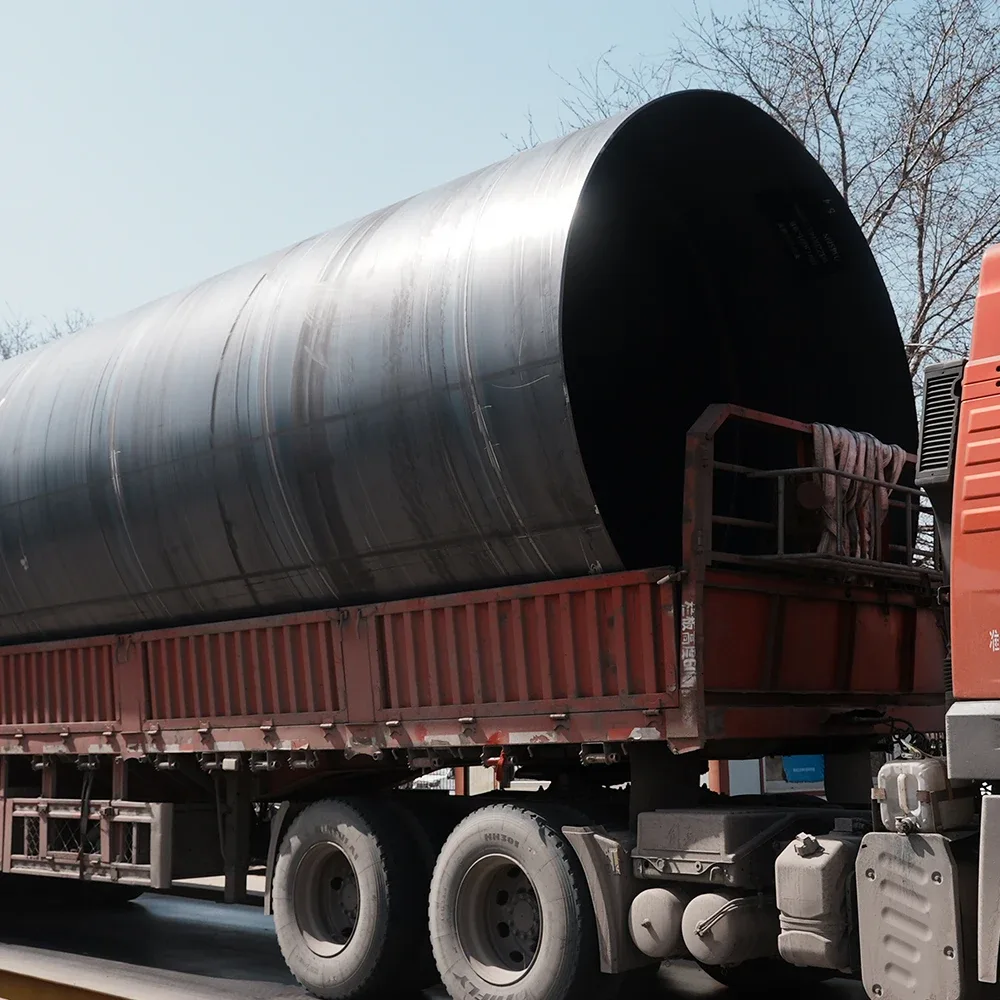

- Break bulk bundles secured with steel strips, sized to match 11.8 m or 12 m fixed lengths for efficient container stowage
- Black painted pipes receive end caps to prevent moisture ingress during ocean transit; galvanized pipes include edge protectors to preserve zinc coating integrity
- Loading plans optimize 40ft open-top or flat-rack containers for large-diameter pipes exceeding standard container width
- Beveled ends protected by steel caps to prevent damage to weld preparation geometry during handling
- Heat number and steel grade stenciled on each pipe for on-site traceability verification
- FOB, CIF, and DDP logistics options with real-time tracking for project-critical delivery schedules
Getting Your SSAW Pipe Quotation Started
Submit your required OD, wall thickness, steel grade (API 5L X42–X70 or other standard), quantity, and destination port — we respond within 12 hours with unit pricing, production lead time, and applicable certification documentation. For non-standard OD/WT combinations or project-specific length requirements, our technical team provides custom feasibility assessment. Confirm mill test certificate format, third-party inspection preference, and Incoterms before contract signing.
Frequently Asked Questions
Q: What is the difference between API 5L PSL1 and PSL2, and which should I specify for my pipeline project?
A: PSL2 imposes stricter requirements on chemical composition, mechanical properties, and non-destructive testing compared to PSL1 — including mandatory charpy impact testing and tighter tolerances on yield and tensile strength. For high-pressure gas transmission or offshore applications, PSL2 is typically specified; for low-pressure water or structural piling, PSL1 may suffice.
Q: How do you ensure material traceability and provide valid mill test certificates for customs clearance?
A: Every pipe is linked to its specific heat number from steelmaking through final inspection. Our in-house laboratory generates MTCs conforming to EN 10204 3.1 format, documenting chemical composition and mechanical test results. Third-party inspection by SGS or BV is available to verify compliance before shipment.
Q: SSAW vs LSAW vs Seamless — which manufacturing process suits my diameter, pressure, and budget requirements?
A: SSAW is cost-effective for large diameters (above 508 mm) and moderate pressures, using helical welding from narrower plate. LSAW suits critical high-pressure applications requiring longitudinal seam integrity. Seamless pipe handles the highest pressures but at premium cost and limited large-diameter availability.
Q: Can you produce non-standard OD and wall thickness combinations, and what is the MOQ policy?
A: We produce custom non-standard sizes within our OD 219–4064 mm and WT 3.2–40 mm capability range. MOQ depends on specification rarity and production scheduling — contact us with your exact requirements for project-specific assessment.
Q: How do you handle loading optimization and logistics for heavy large-diameter pipe shipments?
A: Our logistics team prepares container loading plans maximizing weight utilization for 11.8 m and 12 m lengths. For pipes exceeding container dimensions, we arrange break bulk or flat-rack shipping. FOB, CIF, and DDP terms are available with real-time shipment tracking.
Secure Your API 5L SSAW Pipe Supply With Verified Certification
Send your specification sheet — OD, WT, grade, quantity, destination — and receive a detailed quotation with mill test certificate confirmation within 12 hours.
