Description
Factory-Direct API 5L PSL2 SSAW Pipe — Every heat is tested in our in-house lab before shipment, with full chemical and mechanical traceability from mill to port.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | API 5L PSL2 SSAW Steel Pipe |
| Product Type | SSAW Steel Pipe / Spiral Submerged Arc Welded Steel Pipe |
| Steel Grade | Q195, Q235, Q345, S235JR, S275JR, S355JR, GR.B, ST52, ST42, ST35, ST45, X42, X52, X56, X60, X70, X85 |
| Standard | API 5L, API 5CT, API 5DP, EN 10219, EN 10217, ASTM A53, ASTM A106, ASTM A513, ASME B36.19M, BS 1387, BS 6363, DIN 1626, DIN 1629, DIN EN 10217-1, GB/T 8162, GB 13296, GB 18248, ANSI B36 |
| Section Shape | Round |
| Size Range | OD 219–3620 mm (8″–142″) |
| Wall Thickness | 5–30 mm |
| Length | 6 m / 12 m (SRL 3–5.8 m, DRL 10–11.8 m, or as requested) |
| Technique | SSAW (Spiral Submerged Arc Welded) |
| Surface Treatment | Black Painted / 3PE / 3LPE / Varnish / Oil / Galvanized / Anti-corrosion Coated |
| Ends | Beveled Ends with Plastic Caps (small OD) / Iron Protector (large OD) |
| Tolerance | ±1% |
| Application | Fluid transport / Gas delivery / Oil pipeline / Liquid delivery / Structure pipe / Submarine pipeline / Long distance pipeline |
| MOQ | 2 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors – Oil & Gas | Long-distance crude oil and natural gas transmission pipelines, subsea tie-back lines |
| EPC Contractors – Infrastructure | Municipal water mains, industrial cooling water distribution networks |
| Construction Companies | Structural piling for bridge foundations, offshore platform support legs |
| Machinery Manufacturers | Hydraulic cylinder bodies, large-diameter fluid conveyance in processing plants |
| Steel Distributors | Regional pipeline inventory for onshore gas distribution and irrigation projects |
Why PSL2 Chemistry Requirements Decide Whether Your Pipeline Passes Final Inspection
API 5L PSL2 demands tighter chemical ceilings, mandatory impact testing, and full heat-by-heat traceability that PSL1 simply does not require.
When an EPC contractor sources an API 5L PSL2 SSAW steel pipe supplier for a subsea or long-distance transmission project, the most common rejection at final acceptance is not dimensional — it is missing or non-conforming mill test certificates. PSL2 adds compulsory Charpy impact energy values, restricts carbon equivalent formulas, and requires that every heat number traces back to the original slab chemistry. Buyers who accepted “PSL2” labels without verifying the underlying MTC often discover too late that impact test data was absent or that sulfur and phosphorus exceeded PSL2 ceilings. [NEED_CITE: API 5L PSL2 supplementary requirements for impact testing and CEV limits] This gap between paperwork and reality is exactly what causes customs holds and on-site rejections across Middle East and Southeast Asian ports.
Matching Large-Diameter SSAW Pipe to Subsea and Onshore Pipeline Environments
Our API 5L PSL2 SSAW steel pipe supplier capability covers OD up to 3620 mm with wall thickness reaching 30 mm, which places these pipes squarely in the diameter range required for major transmission and submarine pipeline scopes. The spiral welding geometry distributes hoop stress more evenly across the weld seam compared to straight-seam alternatives at large diameters, while the availability of 3PE and 3LPE anti-corrosion coatings per DIN 30670 or CSA Z245.21 standards addresses the corrosion protection demands of buried and subsea service. We have supplied X52 and X60 grade pipes with 3PE coating to EPC contractors working on cross-border gas transmission projects, where the coating adhesion and cathodic disbondment resistance had to meet client-specified acceptance criteria before loading.
Engineering Compliance and Certification Pathways for Pipeline Procurement
Pipeline projects operating under EN 1993 or ASME B31.4/B31.8 design codes require material documentation that demonstrates conformity to the specified grade — whether that is API 5L X42 through X85 or EN 10217 equivalent designations. [NEED_CITE: ASME B31.4 and B31.8 material requirements for pipeline steel] For EU-bound projects, CE certification under EN 10210 or EN 10219 is often a customs prerequisite, while Singapore FPC certification opens doors across Southeast Asian infrastructure tenders. Our production holds CE (EN 10210/10219), ISO 9001:2015, and Singapore FPC, and we routinely arrange SGS or BV third-party inspection at the buyer’s request. Fixed-length delivery at 6 m or 12 m with beveled ends and iron protectors simplifies field welding preparation and reduces secondary cutting costs at the construction site.
Understanding Steel Grade Selection and SSAW Process Fundamentals
The API 5L grade system progresses from X42 through X85 in defined yield strength increments, with each step representing a higher pressure containment capability for the same wall thickness. Selecting X52 over X42 for a given design pressure allows either a thinner wall or a higher operating margin — but it also changes the welding procedure qualification and demands tighter control of carbon equivalent to avoid hydrogen-induced cracking in the spiral weld. The SSAW process itself forms the helical seam through continuous submerged arc welding, which enables production of large diameters from relatively narrow strip stock — a cost advantage over plate-based LSAW at diameters above 508 mm. Surface treatment selection then depends on the service environment: black painted or varnished finishes suit temporary or indoor structural use, 3PE and 3LPE coatings provide long-term corrosion resistance for buried pipelines, and galvanized finishes apply where atmospheric corrosion is the primary concern. Wall thickness tolerance of ±1% means that a nominal 12 mm wall could measure between 11.88 mm and 12.12 mm — within API 5L permissible limits, but buyers calculating theoretical weight by actual weight invoicing should confirm whether the mill ships at nominal or minimum guaranteed thickness.
Hidden Costs When Material Certificates Do Not Match Physical Reality
Accepting a shipment without independent verification of chemistry and mechanical properties can lead to consequences far beyond the pipe price itself. If the actual yield strength falls below the PSL2 minimum for the specified grade, the entire pipeline section may fail hydrostatic testing — requiring excavation, replacement, and schedule delays that dwarf the original material savings. Missing or falsified heat numbers break the traceability chain that project owners and insurers require, potentially voiding coverage. [NEED_CITE: consequences of non-conforming pipeline steel on hydrostatic test acceptance] Customs authorities in the EU and GCC states increasingly cross-check MTC claims against CE certificates and mill declarations; discrepancies trigger inspection holds that delay container release by weeks.
Procurement Confidence Built on Verified Production Controls
Every API 5L PSL2 SSAW steel pipe we produce passes through our in-house physical and chemical laboratory, where incoming raw material, in-process weld samples, and finished pipe are tested against the applicable standard before any shipment authorization. We do not broker — our three dedicated production lines and proprietary quality control infrastructure mean that the price you receive is factory-direct, with no intermediary markup or specification dilution. Our range covers over 2,800 specifications across square and rectangular tubes, round pipes, plates, coils, and section steel, so when your project scope requires both SSAW line pipe and structural hollow sections from a single procurement package, coordination stays under one roof. We hold 41 invention patents including sharp-corner rectangular tube technology, and our participation in drafting China’s cold-formed steel industry standards reflects the technical depth behind our production. CE (EN 10210/10219), ISO 9001:2015, Singapore FPC, and SGS/BV third-party inspection acceptance ensure that documentation matches physical product — a requirement we learned the hard way years ago when a third-party rejection at destination port taught us that certificates alone mean nothing without real lab data behind them.
Documentation & Compliance
- Mill Test Certificate documenting API 5L X42–X85 chemical composition, yield strength, tensile strength, and Charpy impact values per heat number
- CE certificate under EN 10210/EN 10219 for EU project customs clearance and structural compliance
- ISO 9001:2015 quality management system certificate covering full production and inspection workflow
- SGS or BV third-party inspection report available upon buyer nomination, covering dimensional, visual, and NDT checks
- Full material traceability from slab heat number through finished pipe, recorded in MTC and marked on each pipe end
- Customs document package including packing list, Bill of Lading, and Certificate of Origin formatted to destination country requirements

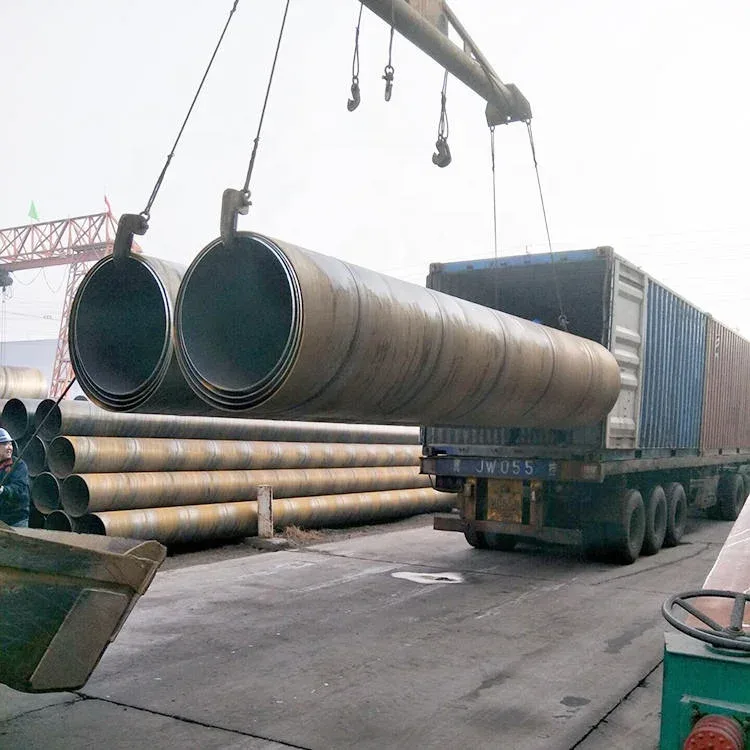

Packaging, Loading & Delivery
- SSAW pipes bundled with high-tensile steel strips and separated by rubberized cradles to protect 3PE and 3LPE anti-corrosion coatings from abrasion during ocean transit
- Beveled ends fitted with plastic caps for smaller OD or welded iron protectors for large-diameter pipes to prevent edge damage and moisture ingress
- Container loading plans optimized for 12 m and 6 m fixed lengths, maximizing payload per 40ft OT or flat-rack container while maintaining weight distribution
- Heat number, steel grade, and size stamped on each pipe end with durable paint markers for on-site identification and traceability verification
- FOB, CIF, and DDP shipping terms available with professional port coordination at Qingdao and Tianjin ports for destinations across the Middle East, Southeast Asia, EU, and Americas
- Custom cut-to-length service available for SRL and DRL requirements outside standard 6 m / 12 m, with kerf loss calculated and communicated before order confirmation
Start Your Pipeline Procurement With Verified Data
Submit your API 5L PSL2 SSAW steel pipe requirements — including OD, wall thickness, grade, coating specification, quantity, and destination port — and receive a detailed quotation with delivery timeline within 12 hours. We will attach sample MTC format, confirm third-party inspection availability, and provide a loading plan preview before you commit to production.
Request Your API 5L PSL2 SSAW Pipe Quotation and Mill Test Certificate Today
Send your specifications by email or WhatsApp, and our technical team will return a factory-direct price with full documentation preview.
Email: admin@sdxjysteel.com
Mobile / WhatsApp / WeChat: +86 188 5315 7756
Tel: +86 531 8573 6315
Frequently Asked Questions
Q: What is the difference between API 5L PSL1 and PSL2 for pipeline projects?
A: PSL2 adds mandatory Charpy impact testing, tighter chemical composition limits including carbon equivalent restrictions, compulsory hydrostatic testing for every pipe, and full heat-by-heat traceability. PSL1 does not require impact testing and allows broader chemistry ranges. For subsea, sour service, or high-pressure transmission projects, PSL2 is typically specified by the project owner.
Q: SSAW vs LSAW vs Seamless — which process suits long-distance pipelines?
A: SSAW offers a cost advantage at large diameters above 508 mm because it forms the helical seam from coiled strip, while LSAW uses plate and is preferred for very thick walls. Seamless pipe has no weld seam and is specified for high-pressure or sour service where weld integrity is critical. For onshore gas transmission at moderate pressures, SSAW is widely accepted under API 5L.
Q: Can you provide 3PE or 3LPE anti-corrosion coating per DIN 30670 or CSA Z245.21?
A: Yes. We apply 3PE and 3LPE coatings in accordance with DIN 30670, CSA Z245.21, or client-specified standards. Coating thickness, adhesion strength, and cathodic disbondment resistance are tested and documented in the inspection report before shipment.
Q: What documentation is included for customs clearance and project compliance?
A: Each shipment includes Mill Test Certificate with heat number traceability, packing list, Bill of Lading, and Certificate of Origin. CE certificate under EN 10210/EN 10219 is provided for EU destinations, and ISO 9001:2015 certificate covers the production system. SGS or BV third-party inspection reports are available when nominated by the buyer.
Q: What is the MOQ and lead time for custom OD, wall thickness, and length combinations?
A: The MOQ is 2 Tons. Standard sizes ship within typical production lead times, while non-standard OD, wall thickness, or cut-to-length requirements are quoted individually after we confirm mill schedule and raw material availability.
