Description

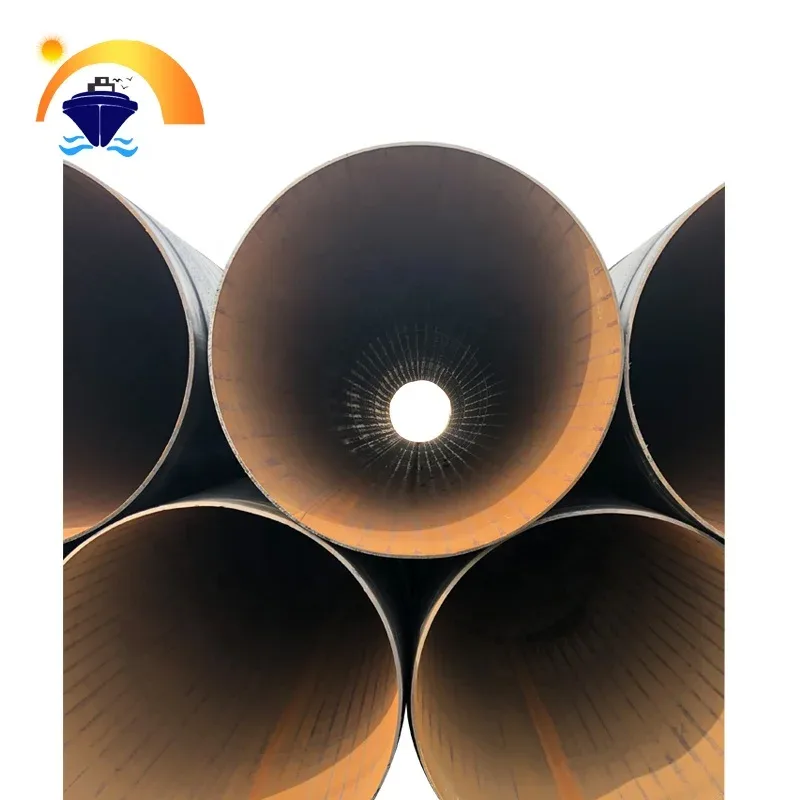

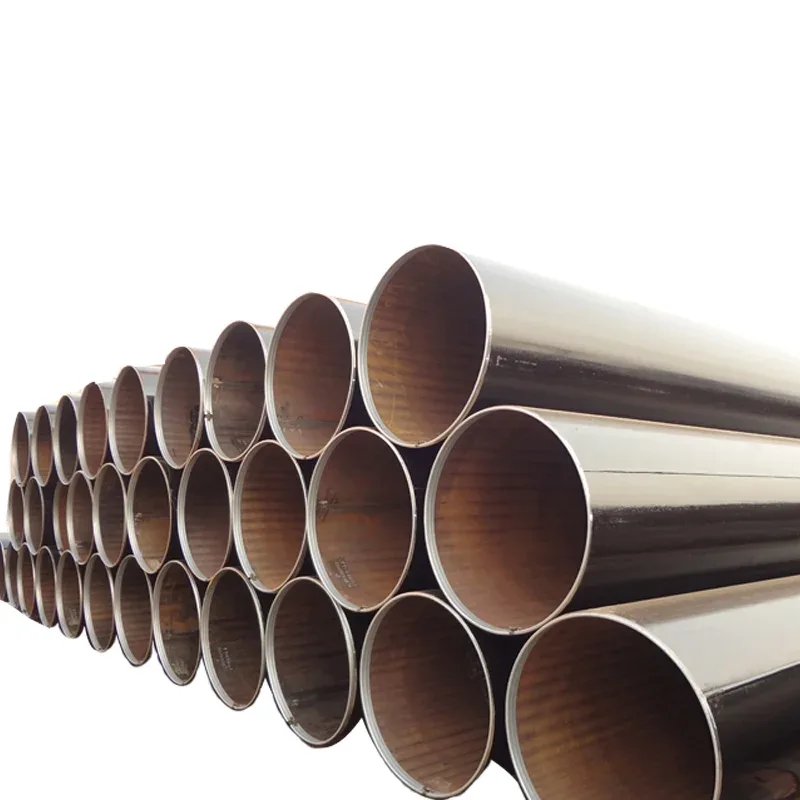

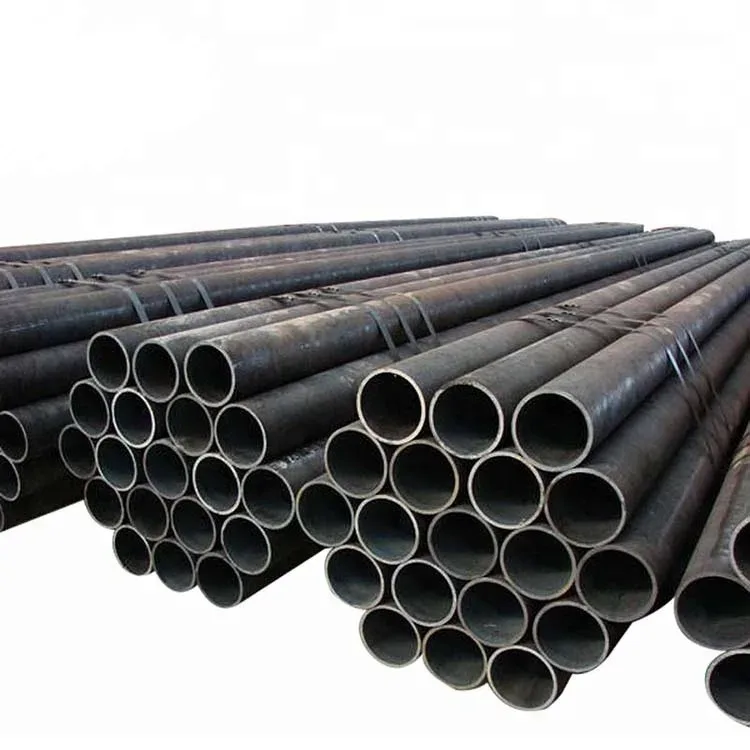

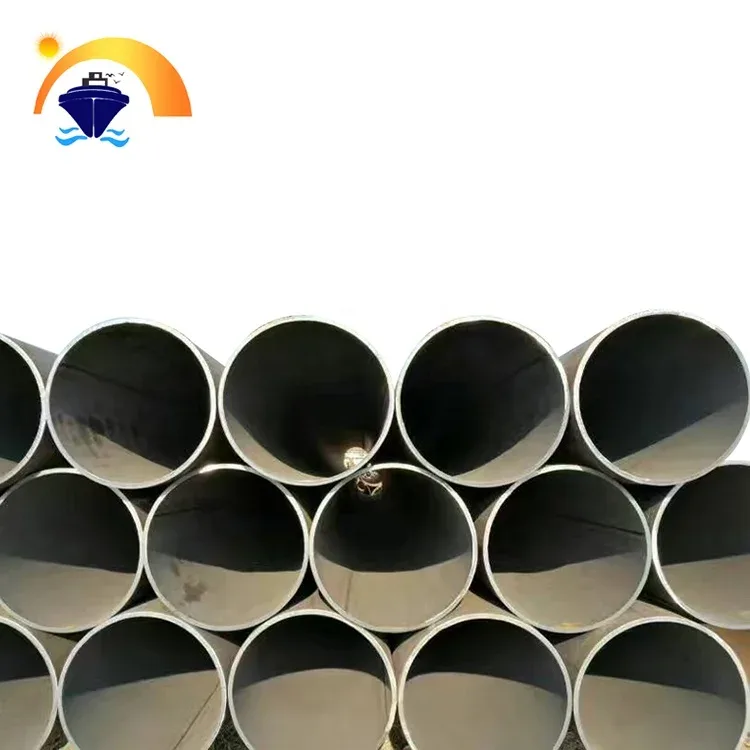

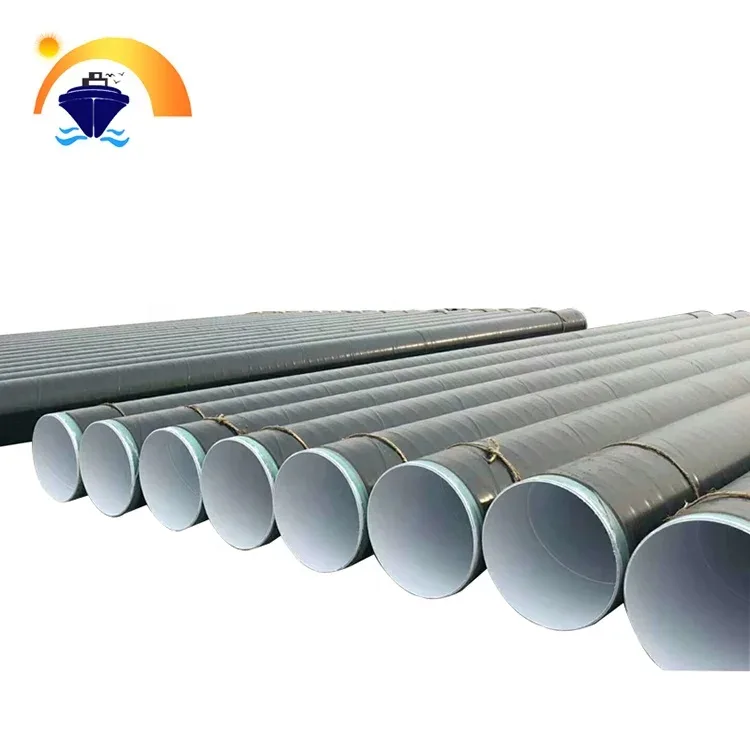

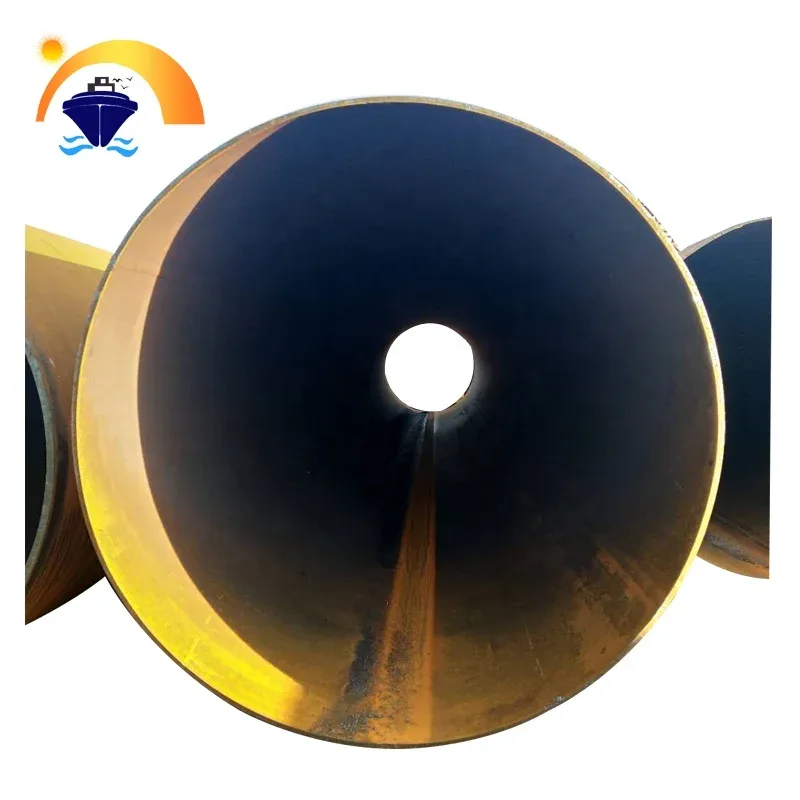

Factory-Direct API 5L Grade B SSAW Spiral Welded Steel Pipe — Produced on dedicated SSAW lines with in-house ultrasonic thickness verification before every shipment, eliminating third-party markup and quality uncertainty.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | API 5L Grade B SSAW Spiral Welded Steel Pipe |
| Product Type | SSAW Spiral Welded Steel Pipe |
| Steel Grade | API 5L Grade B |
| Standard | API 5L |
| Section Shape | Round |
| Technique | SSAW (Spiral Submerged Arc Welded) |
| Surface Treatment | Black Painted |
| Tolerance | ±1% |
| Length | Custom (Customers’ Request) |
| Application | Oil Pipe / Transmission of Gas, Water, Petroleum |
| Delivery Time | 15-21 days |
| Packing | Standard Packing |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas EPC | Long-distance crude oil and natural gas transmission pipelines |
| Municipal Infrastructure | Urban water supply networks and drainage systems |
| Construction & Piling | Foundation piling and structural support columns |
| Industrial Plant | Process water and cooling water circulation lines |
Dimensional Tolerance Control Determines Whether Your Pipeline Passes Third-Party Inspection
±1% wall thickness tolerance on API 5L Grade B SSAW pipe ensures every joint meets API 5L dimensional requirements before leaving the mill.
Large diameter spiral welded pipe for oil and gas projects often arrives at site with wall thickness drifting into negative tolerance territory. When a Middle East pipeline project received a batch of SSAW pipe years ago, third-party复检 at the port found wall thickness sitting right at the edge of acceptable negative deviation — the entire shipment nearly faced rejection. Since then, ultrasonic thickness testing on every single pipe before loading has become non-negotiable. Inconsistent dimensional control leads to weld joint misalignment, pressure rating disputes, and costly re-inspection at destination. [NEED_CITE: API 5L dimensional tolerance requirements for spiral submerged arc welded pipe]
Matching Large Diameter SSAW Pipe to Pipeline Transmission Demands
API 5L Grade B SSAW spiral welded steel pipe serves medium-pressure oil, gas, and water transmission where large diameter and cost efficiency matter. The spiral submerged arc welding process produces continuous helical seams that distribute stress evenly across the pipe body, making it suitable for long-distance transmission lines. Black painted surface treatment provides baseline corrosion protection during storage and ocean transit, while custom lengths reduce field weld joints and installation time.
Engineering Compliance and Certification Requirements for SSAW Pipeline Projects
Pipeline projects operating under API 5L standards require verified chemical composition and mechanical properties documented through original mill test certificates. For shipments entering EU markets, additional CE marking and EN compliance documentation may be required alongside API certification. Material traceability by heat number ensures each pipe section can be traced back to its original steel coil, satisfying both engineering specifications and customs clearance requirements. Third-party inspection through SGS or BV provides independent verification for projects demanding additional quality assurance layers. [NEED_CITE: API 5L material certification requirements for oil and gas pipelines]
Understanding API 5L Grade B and Spiral Submerged Arc Welding Process
API 5L Grade B represents a carbon steel grade specifically developed for pipeline transportation of oil, gas, and water. The “B” designation indicates minimum yield strength suitable for medium-pressure transmission systems. SSAW (Spiral Submerged Arc Welded) technology forms the pipe from steel coil through continuous spiral forming, with both inner and outer weld seams completed by submerged arc welding. This process allows production of large diameter pipe from relatively narrow coil width, offering material efficiency advantages over straight-seam alternatives for diameters above certain thresholds. The black painted finish provides temporary rust prevention during storage and transit, with field coating applied based on specific soil conditions and service environment.
Hidden Costs of Procuring SSAW Pipe Without Proper Documentation
Purchasing API 5L Grade B SSAW spiral welded steel pipe without verified mill test certificates creates downstream risks that far exceed initial price savings. Material traceability gaps mean failed pressure tests cannot be traced to specific heat numbers, forcing entire pipeline sections to be replaced. Missing or incomplete customs documentation causes port delays that cascade into construction schedule overruns. Wall thickness outside tolerance range triggers rejection during third-party inspection, requiring expensive return shipping or on-site downgrading to lower-pressure service. [NEED_CITE: consequences of non-compliant pipeline materials in oil and gas projects]
Why Source API 5L Grade B SSAW Pipe From Our Mill
As a factory-direct supplier, we eliminate trading company margins while maintaining full control over production quality. Our dedicated SSAW production lines feature in-house physical and chemical laboratories conducting incoming material inspection, in-process weld monitoring, and final dimensional verification. Every API 5L Grade B pipe ships with original mill test certificates documenting chemical composition and mechanical properties per API 5L requirements. We hold ISO 9001:2015 certification and can arrange third-party inspection through SGS or BV for projects requiring independent verification. Custom length cutting reduces field welding requirements, while professional loading plans optimize container utilization for ocean shipments to 50+ countries.
Documentation & Compliance
- Original Mill Test Certificate documenting API 5L Grade B chemical composition (carbon, manganese, silicon, sulfur, phosphorus) and mechanical properties per API 5L specifications
- Material traceability report linking each pipe to specific heat number and steel coil identification
- Third-party inspection certificate from SGS or BV available upon request for projects requiring independent quality verification
- Complete customs documentation package including commercial invoice, packing list, bill of lading, and certificate of origin
- API 5L compliance declaration confirming manufacturing process and testing procedures meet standard requirements
Packaging, Loading & Delivery
- API 5L Grade B SSAW pipes bundled with steel strips and protected by edge guards to prevent black paint coating damage during handling and transit
- Custom length pipes cut to project specifications and clearly marked with heat number, steel grade, and dimensional information on each piece
- Professional loading plans optimize container space utilization for large diameter pipe, minimizing shipping costs per unit
- Black painted surface receives additional protective wrapping for ocean freight to prevent moisture contact during extended transit periods
- FOB, CIF, and DDP shipping terms available with real-time tracking provided from mill departure through port arrival
- Standard export packing suitable for container and break-bulk shipment to ports across Middle East, Southeast Asia, and other destination markets
Request Your API 5L Grade B SSAW Pipe Quotation
Submit your project specifications including pipe diameter, wall thickness, total quantity, steel grade confirmation, and destination port to receive detailed pricing with mill test certificate inclusion. Our technical team reviews requirements within hours and provides customized length recommendations to minimize field welding. Confirmation of API 5L compliance documentation and third-party inspection arrangements ensures smooth customs clearance at your destination.
Get Factory-Direct Pricing With Full API 5L Documentation
Send your API 5L Grade B SSAW spiral welded steel pipe specifications via email or WhatsApp to receive quotation with mill test certificate and delivery timeline.
Contact: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Email: admin@sdxjysteel.com
WhatsApp: +86 188 5315 7756
Frequently Asked Questions
Q: What is the difference between API 5L Grade A and Grade B for spiral welded pipe?
A: API 5L Grade B offers higher minimum yield strength compared to Grade A, making it suitable for medium-pressure oil, gas, and water transmission pipelines. Grade A serves lower-pressure applications where reduced strength requirements allow cost optimization.
Q: Can you provide third-party inspection reports (SGS/BV) for material verification?
A: Yes, we arrange third-party inspection through SGS or BV upon request. These independent inspections verify chemical composition, mechanical properties, dimensional accuracy, and weld quality before shipment, providing additional assurance for projects requiring external quality validation.
Q: What is the typical production lead time for custom length SSAW pipes?
A: Standard production lead time for API 5L Grade B SSAW pipes is 15-21 days from order confirmation and deposit receipt. Custom length cutting and specific packaging requirements may affect timeline, which we confirm during quotation stage.
Q: How do you ensure weld seam quality in spiral submerged arc welding?
A: Our SSAW production lines employ submerged arc welding with both inner and outer seam passes completed under flux coverage. In-house quality control includes visual inspection, ultrasonic testing, and hydrostatic pressure testing per API 5L requirements to verify weld integrity before shipment.
Q: What documentation is required for customs clearance in EU and Middle East markets?
A: Standard customs documentation includes commercial invoice, packing list, bill of lading, certificate of origin, and mill test certificate. EU destinations may require additional CE marking documentation, while Middle East countries often require certificate of origin authentication. We prepare complete documentation packages based on specific destination requirements.
