Description

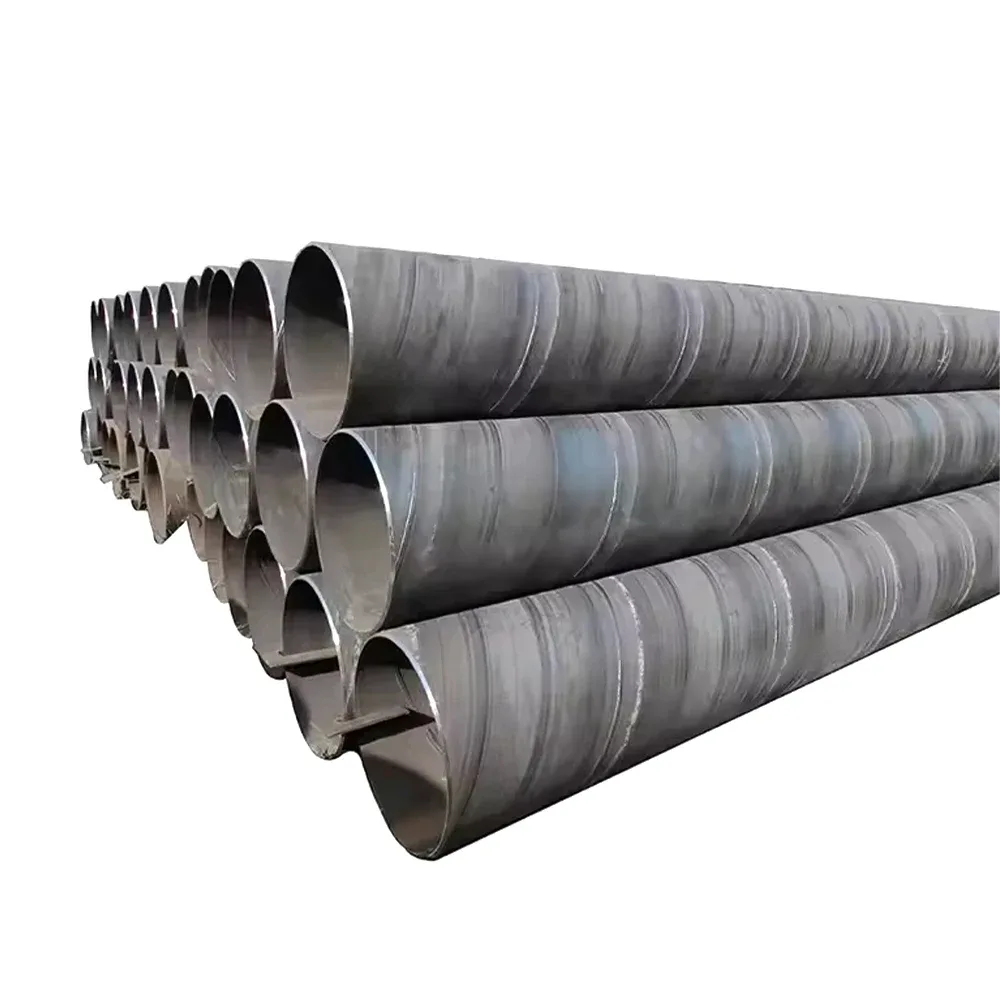

Factory-Direct Spiral Welded Pile Pipe — Every heat of API 5L GR.B spiral welded pile pipe rolls off our own SSAW lines with full chemical and mechanical traceability, shipped with original mill test certificates to 50+ countries.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | API 5L GR.B / ASTM A252 Spiral Welded Pile Pipe |
| Product Type | Spiral Welded Steel Pipe (SSAW) |
| Steel Grade | Grade B, X42, X52, X60, X70, L245, L290, L360, L390, L415, Q195, Q235A-B, Q345A-E, 20#, 10#, 16Mn, ASTM A36, ASTM A53, ASTM A106, SS400, St37, St52, S235JR, S355JR |
| Standard | API 5L, ASTM A252, ASTM A53, ASTM A106, ASTM A36, GB/T 3091, GB/T 13912, BS 1387, ASTM F1083 |
| Section Shape | Round |
| Size Range | OD 10–1000 mm |
| Wall Thickness | 1–80 mm |
| Length | 6–12 m (or customized) |
| Technique | Hot Rolled / Spiral Welded |
| Surface Treatment | Black Painting / Oiled or Non-oiled |
| Tolerance | ±1% |
| Ends | Plain / Beveled (per standard) |
| Application | Pile foundations / Fluid transport / Construction structures / Machinery parts / Greenhouse structures / Fence posts / Curtain walls / Chemical fertilizer pipelines / Boiler systems / Drill pipes / Hydraulic systems |
| MOQ | 5 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Pile foundations for bridge piers, port wharves, and industrial plant substructures |
| Construction Companies | Deep foundation support for high-rise buildings, retaining wall backfill piles, and infrastructure underpinning |
| Machinery Manufacturers | Hydraulic cylinder barrels, crane boom sections, and heavy equipment structural cores |
| Steel Distributors | Stocking standard-length pile pipe for regional foundation and dewatering well projects |
| System Integrators | Conveyor support columns, automation line structural frames, and pipeline sleeper beams |
What Negative Tolerance Costs on a Pile Foundation Order
A ±1% wall-thickness tolerance on API 5L GR.B spiral welded pile pipe means the difference between passing a third-party re-inspection and watching an entire container get rejected at the job site.
I once saw a batch of ASTM A252 pile pipe arrive at an Indonesian port where the third-party inspector flagged wall thickness falling below the minimum specified — the entire shipment was returned for rework, delaying the project by two months. When you source a API 5L GR.B spiral welded pile pipe supplier without in-house physical and chemical laboratories, you are gambling that every coil meets the declared gauge. Fragmented sourcing from multiple traders compounds the risk: one supplier sends pipes with inconsistent weld seam quality, another ships without proper mill test certificates, and customs holds the cargo for missing documentation. [NEED_CITE: ASTM A252 dimensional tolerance requirements for steel sheet piling]
Matching Pile Pipe to Foundation Engineering Demands
Large-diameter spiral welded pile pipe in OD 10–1000 mm and WT 1–80 mm serves as load-bearing columns driven into soil strata for high-rise and bridge foundations. The SSAW process enables production of diameters beyond what seamless mills can economically deliver, while the spiral weld seam — when properly inspected via ultrasonic testing — provides structural continuity across the full pipe length. Our API 5L GR.B spiral welded pile pipe supplier capability covers grades from Grade B through X70, letting engineers specify higher-strength steel for deeper pile penetrations without increasing wall thickness and weight.
Structural Compliance and Corrosion Protection in the Field
Pile foundations operate in aggressive underground and subsea environments where soil chemistry, groundwater salinity, and stray electrical currents accelerate external corrosion. Black painting provides short-term protection during storage and driving; for long-term buried service, specifiers often require supplementary coatings such as 3PE or epoxy — applied downstream after delivery. Steel grade selection directly affects load capacity: Q345 and S355JR grades deliver higher yield strength than Q235 or S235JR, reducing the cross-sectional area needed for the same design load. For EU projects, CE certification under EN 10210 / EN 10219 ensures the pipe meets European structural hollow section standards and clears customs without delay. [NEED_CITE: EN 10219 cold-formed welded structural hollow sections compliance]
Understanding Spiral Welded Process and Grade Selection
The SSAW (submerged arc spiral welded) process forms steel coil into a helical seam, enabling large-diameter production up to 1000 mm OD from a single production line — a cost advantage over seamless pipe for non-pressure structural applications. API 5L Grade B and X42–X70 grades follow the API pipeline specification system, where the number after “X” indicates minimum yield strength in ksi; ASTM A252 covers steel sheet piling for foundation applications with its own dimensional and mechanical requirements. The Chinese Q-series (Q195, Q235, Q345) and European S-series (S235JR, S355JR) represent equivalent strength tiers in their respective national standards, allowing cross-referencing for international projects. Surface treatment choice — black painting for temporary protection, oiled for transit corrosion prevention, or non-oiled for immediate downstream coating — depends on the project timeline and environmental exposure during storage.
Hidden Costs of Procuring the Wrong Grade or Unverified Material
Specifying API 5L GR.B but receiving material that fails chemical composition limits means the pipe cannot be used for pressure-containing applications — and may not even meet structural requirements if manganese or carbon content deviates. Missing mill test certificates force costly third-party re-testing at the destination port, while certification gaps (no CE mark for EU, no SGS verification for international tenders) trigger customs holds and project delays. Negative tolerance beyond ±1% reduces the actual load-bearing capacity of each pile, potentially requiring additional piles or redesign — costs that far exceed the initial price difference between verified and unverified suppliers. [NEED_CITE: API 5L chemical composition and mechanical property requirements]
Why Engineers Source API 5L GR.B Spiral Welded Pile Pipe from Our Mill
Our factory operates three dedicated SSAW production lines with in-house physical and chemical laboratories that test every heat for composition, tensile strength, and weld integrity before release — no trading company buffer between your specification and our mill data. We hold 41 patented technologies including proprietary sharp-corner rectangular tube processes, and our 2,800+ specification range covers every standard and non-standard size from 10 mm OD to 1000 mm OD with wall thickness up to 80 mm. Full certification under ISO 9001:2015, Lloyd’s Register EU CE (EN 10210/10219), Singapore FPC, and third-party verification by SGS and BV ensures your cargo clears customs and meets project compliance requirements in 50+ export destinations. Custom non-standard sizes, cut-to-length options, and professional container loading optimization eliminate the coordination overhead of fragmented sourcing from multiple suppliers.
Documentation & Compliance
- Mill test certificate documenting API 5L GR.B chemical composition (C, Mn, Si, P, S) and mechanical properties (yield strength, tensile strength, elongation) per heat number
- CE certificate under EN 10210 / EN 10219 for structural hollow sections, required for EU market customs clearance and project acceptance
- ISO 9001:2015 quality management system certificate covering the full production process from coil incoming inspection to final dimensional verification
- SGS or BV third-party inspection report available upon request, covering dimensional checks, visual weld inspection, and witness testing
- Material traceability by heat number stamped on each pipe end, linking back to the original mill test certificate and coil chemistry
- Complete customs document package including packing list, bill of lading, certificate of origin, and commercial invoice
Packaging, Loading & Delivery
- Black painted or oiled API 5L GR.B spiral welded pile pipe bundled with steel strips and edge protectors to prevent coating damage during ocean transit
- OD 10–1000 mm pipes loaded with professional stowage plans optimizing container space for 6–12 m lengths, minimizing freight cost per ton
- Surface protection matched to project timeline: oiled finish for short-term transit, black painting for extended outdoor storage, non-oiled for immediate downstream coating application
- Heat number and steel grade stenciled on each pipe end for site identification and traceability verification during foundation installation
- FOB, CIF, and DDP shipping terms available with real-time tracking and door-to-door logistics coordination to 50+ countries
- Custom cut-to-length service available for 6–12 m standard lengths, with beveled or plain ends per project specification
Start Your Pile Pipe Procurement with Verified Data
Submit your specification sheet — including OD, wall thickness, length, steel grade, quantity, and destination port — and receive a detailed quotation with unit price, delivery timeline, and applicable certification documentation within 12 hours. Request original mill test certificates for review before placing your deposit, and confirm third-party inspection arrangements if your project requires SGS or BV verification.
Request a Quotation with Mill Test Certificate
Send your API 5L GR.B spiral welded pile pipe requirements to admin@sdxjysteel.com or contact us via WhatsApp at +86 188 5315 7756 for factory-direct pricing and complete technical documentation.
