Description
Factory-Direct A335 P11 Alloy Pipe — In-house physical and chemical laboratory verifies every heat of chromium-molybdenum composition before shipment, eliminating third-party re-inspection surprises at destination ports.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | A335 P11 Alloy Seamless Pipe |
| Product Type | Alloy Seamless Steel Pipe |
| Steel Grade | A335 P11, 10#, 20#, 45#, 16Mn, 40Cr, 15CrMo, 45Mn2, Q195, Q235, Q345 |
| Standard | ASME B36.10M, ASTM A335, ASTM A53, ASTM A106, API 5L, GB, DIN, BS, JIS |
| Section Shape | Round |
| Size Range (OD) | 21.3–1420 mm |
| Wall Thickness | 2.11–300 mm |
| Length | 6 m / 6.4 m / 12 m (or as required) |
| Technique | Seamless |
| Surface Treatment | Cold Rolled / Slightly Oiled |
| Ends | Beveled End (BE) |
| Tolerance | ±1% |
| Invoicing | By Actual Weight |
| Application | Boiler, Fluid transport, Oil & Gas pipeline, Chemical fertilizer, Drill, Hydraulic system, Structural engineering, Machinery parts, Automobile & tractor stress parts |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Power Generation (EPC) | Superheater tubes, reheater pipelines, high-temperature steam headers in coal-fired and combined-cycle power plants |
| Oil & Gas | High-temperature process lines, refinery furnace tubes, heat exchanger bundles |
| Chemical & Fertilizer | Reactor feed lines, ammonia synthesis loop piping, sulfuric acid recovery systems |
| Machinery Manufacturing | Hydraulic cylinder barrels, precision-machined shaft sleeves, high-pressure pump bodies |
| Structural Engineering | Boiler support frames, high-temperature ductwork supports, industrial furnace structures |
Where Chromium-Molybdenum Content Decides Boiler Safety Compliance
A335 P11 demands 1.00–1.50% Cr and 0.45–0.65% Mo — even marginal deviations trigger weld cracking under creep conditions.
When procurement teams source high-temperature alloy pipe without verified mill chemistry, the risk extends far beyond paperwork. A heat that reads “P11” on a certificate but tests at 0.8% Cr will fail creep rupture testing at 500°C service temperatures — and the failure often surfaces only after field welding and hydrostatic testing, when replacement costs multiply exponentially. Fragmented sourcing from multiple traders compounds this: each supplier’s certificate format differs, heat numbers cannot be cross-referenced, and destination-port customs labs increasingly reject shipments lacking EN 10204 3.2 third-party endorsement [NEED_CITE: EN 10204 inspection document types for metallic products].
Matching P11 Chemistry to High-Temperature Engineering Environments
A335 P11 alloy seamless steel pipe delivers creep resistance specifically engineered for continuous service between 450°C and 580°C — the operating window of most utility boiler superheater sections. The 1.25% Cr addition stabilizes the ferritic microstructure against graphitization, while molybdenum provides solid-solution strengthening at elevated temperatures. Beveled ends conform to ASME B36.10M welding preparation standards, allowing direct field butt-welding without secondary machining. Our in-house laboratory performs optical emission spectrometry on every heat before the pipe leaves the mill, ensuring Cr and Mo readings align with ASTM A335 Table 1 — a practice that prevents the chemistry mismatch incidents that have stranded entire project shipments at destination customs.
Engineering Code Compliance and Certification Pathways
High-temperature alloy piping for power and process applications must satisfy ASME Section I (power boilers) or Section VIII (pressure vessels) design codes, which mandate documented material traceability from slab to finished pipe. The seamless manufacturing process eliminates the longitudinal weld seam found in ERW alternatives, providing uniform hoop stress distribution critical for high-pressure steam service. For European market projects, equivalent compliance requires EN 10216-2 material certification with elevated temperature proof strength values [NEED_CITE: EN 10216-2 seamless steel tubes for pressure purposes]. Our production carries Lloyd’s Register EU CE certification under EN 10210/10219, and we provide SGS or BV third-party inspection reports upon request — documentation that clears customs in EU, Middle East, and Southeast Asian ports without delay.
Understanding the Seamless Process for Alloy Pressure Applications
Seamless manufacturing for A335 P11 begins with rotary piercing of solid round billets, followed by elongation and sizing through continuous mandrel mills. This process produces a homogeneous grain flow around the pipe circumference — essential for withstanding the combined internal pressure and thermal cycling of boiler service. Unlike welded alternatives, seamless pipe carries no weld-line risk for hydrogen-induced cracking in sour service environments. The cold-rolled surface finish achieved after final annealing provides dimensional accuracy within ±1% tolerance across the 21.3–1420 mm OD range, while slight oiling protects against atmospheric corrosion during ocean transit. Wall thicknesses from 2.11 mm to 300 mm cover standard schedules through XXH, accommodating both instrument-line miniatures and heavy-wall pressure vessel nozzles.
The Hidden Cost of Unverified Alloy Chemistry
Specifying A335 P11 while accepting pipe with unconfirmed Cr-Mo content creates downstream liabilities that dwarf the initial price difference. Field welds on marginal chemistry material require re-qualification, delaying project commissioning by weeks. More critically, if a pressure vessel or boiler tube fails in service due to creep rupture from incorrect alloy content, the liability investigation traces back to procurement records — and missing or questionable mill test certificates become legal evidence of negligence [NEED_CITE: ASME BPVC material traceability requirements]. The cost of proper chemistry verification at origin is fractional to the expense of post-installation rejection, project delay penalties, or catastrophic failure liability.
Procurement Confidence Through Vertical Integration
As a factory-direct supplier operating three dedicated production lines, we eliminate the trading-layer opacity that leaves buyers unable to verify material origin. Our in-house physical and chemical laboratory — equipped with optical emission spectrometers, tensile testing machines, and impact testing at sub-zero temperatures — performs incoming billet inspection, in-process dimensional checks, and final mechanical testing before any A335 P11 alloy seamless steel pipe leaves our facility. We maintain over 2,800 specification combinations in stock, covering the full OD and wall-thickness range documented above, so non-standard project requirements do not trigger minimum-order surcharges. Our 41 patented technologies include proprietary processes for tight-tolerance alloy pipe production, and our participation in drafting China’s cold-formed steel industry standards reflects technical credibility recognized at the national level. Every shipment includes complete documentation packages — mill certificates, packing lists, bills of lading, and certificates of origin — prepared by our export team with nearly 20 years of experience serving EPC contractors across 50+ countries.
Documentation & Compliance
- Mill Test Certificate documenting A335 P11 chemical composition (C, Mn, Si, Cr 1.00–1.50%, Mo 0.45–0.65%) and mechanical properties per ASTM A335
- CE certificate under EN 10210/10219 for European pressure equipment directive compliance
- ISO 9001:2015 quality management certificate covering full production traceability
- SGS or BV third-party inspection report available per EN 10204 3.2 for destination-port customs clearance
- Heat number traceability from billet to finished pipe, marked on each piece and documented in MTC
- Customs documentation package: packing list, bill of lading, certificate of origin, and commercial invoice
Packaging, Loading & Delivery

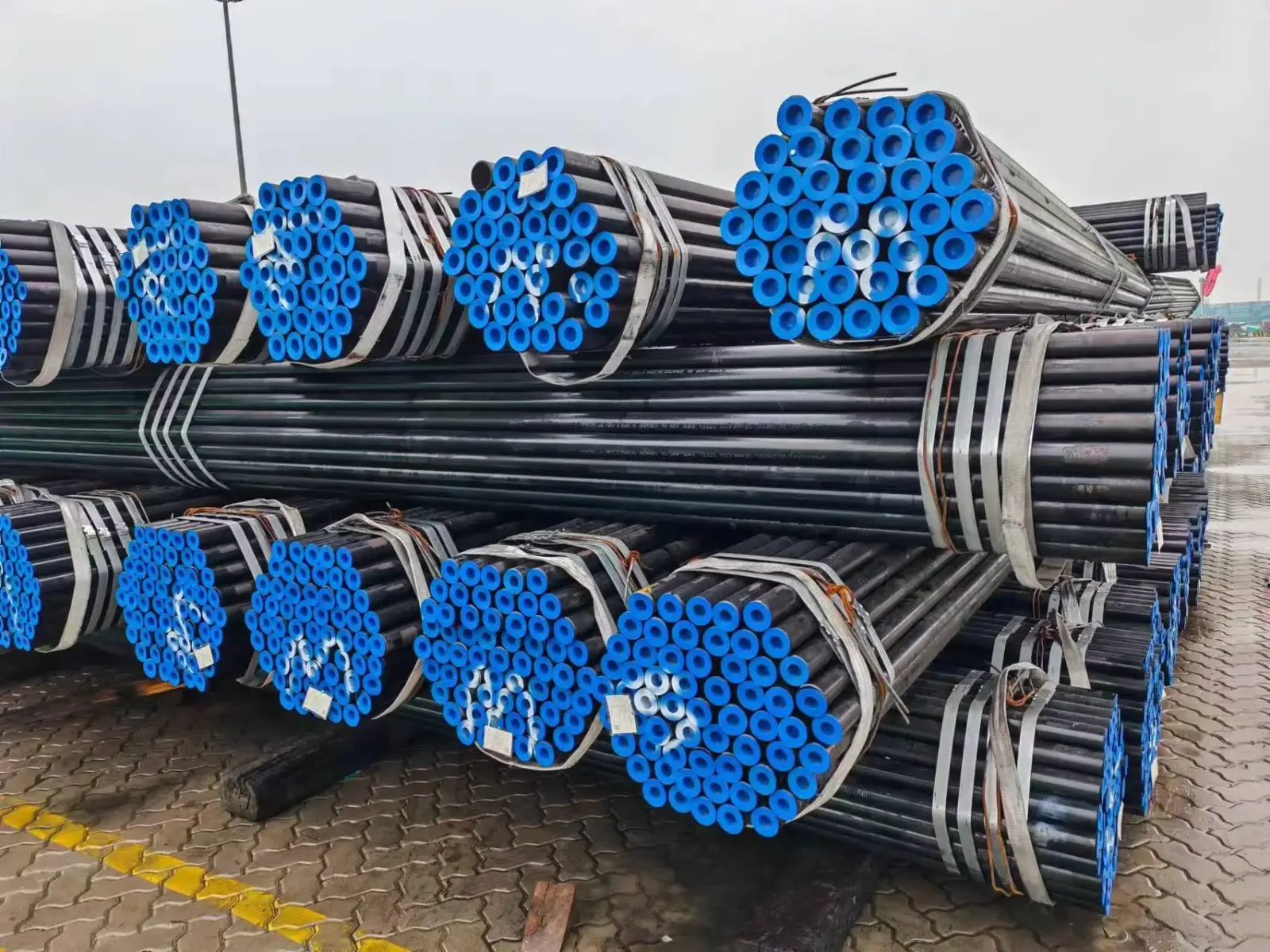

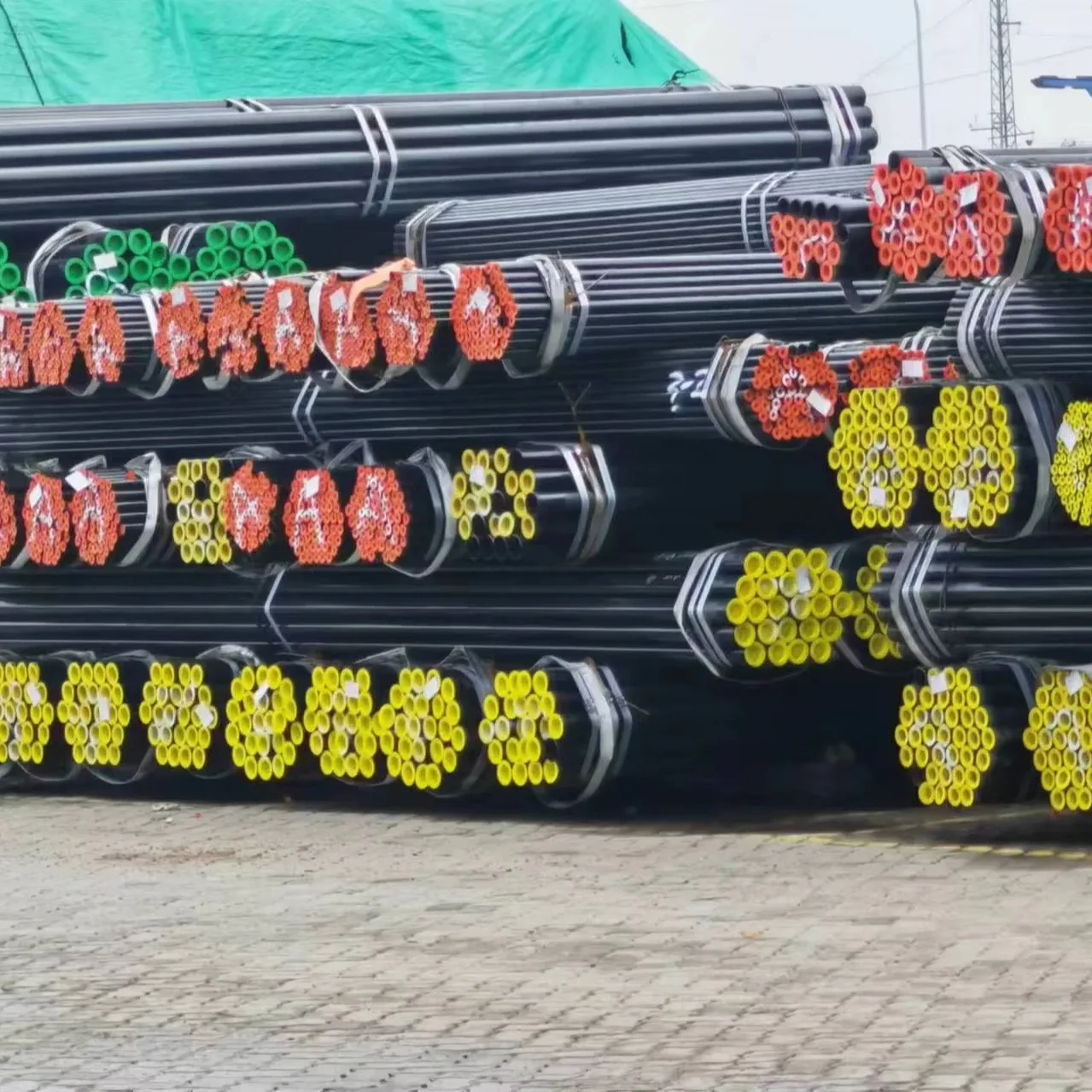

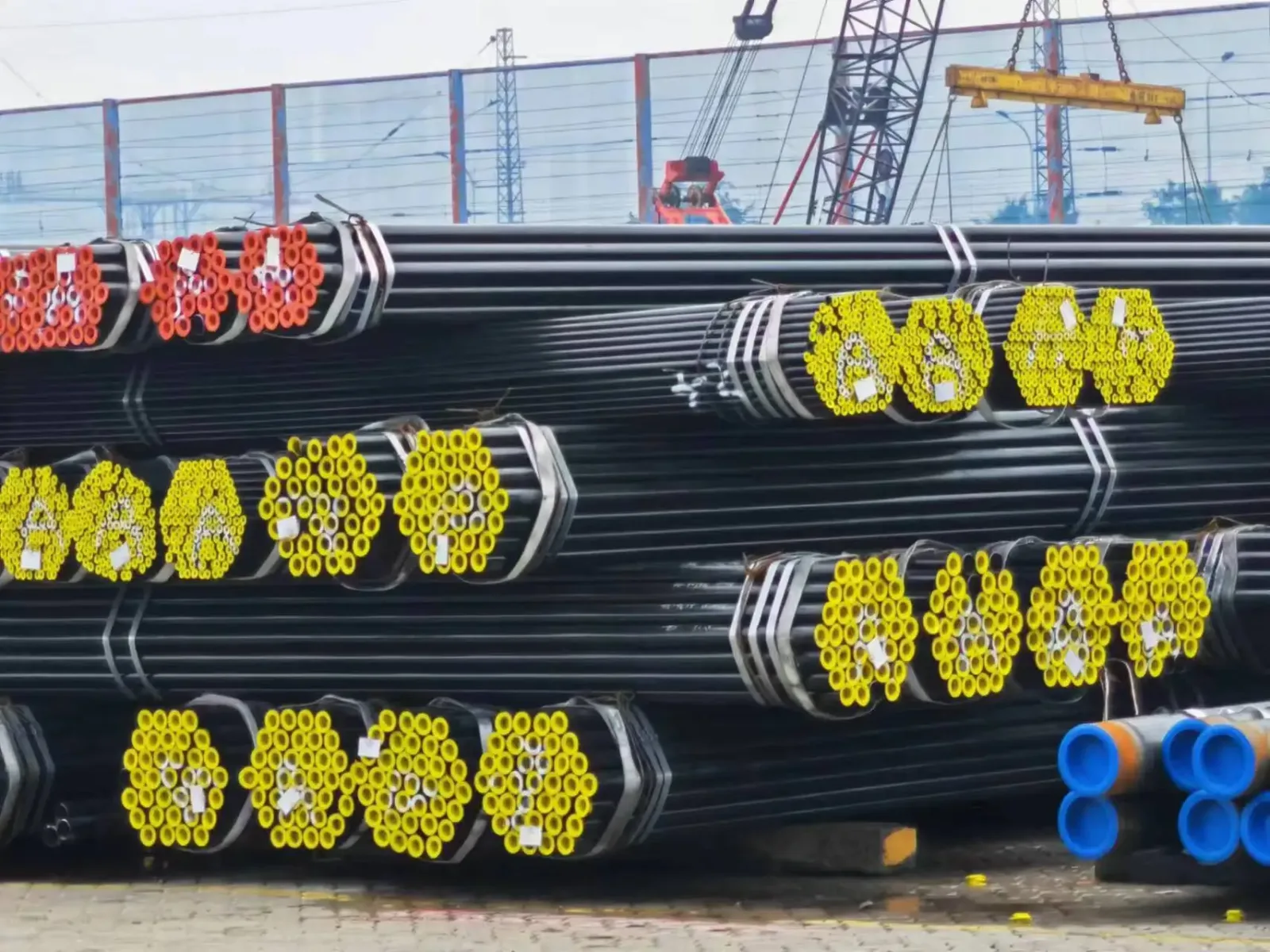

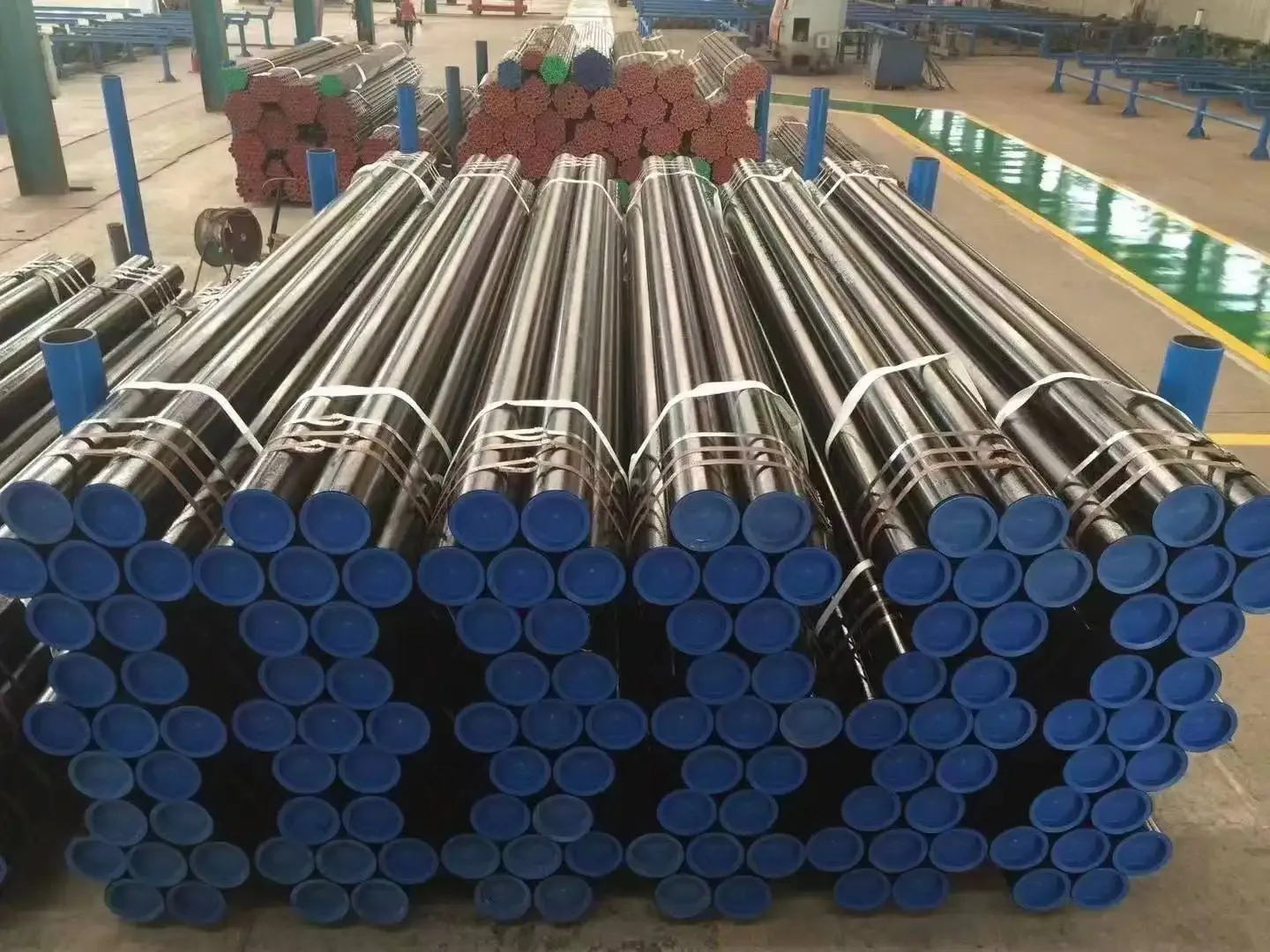

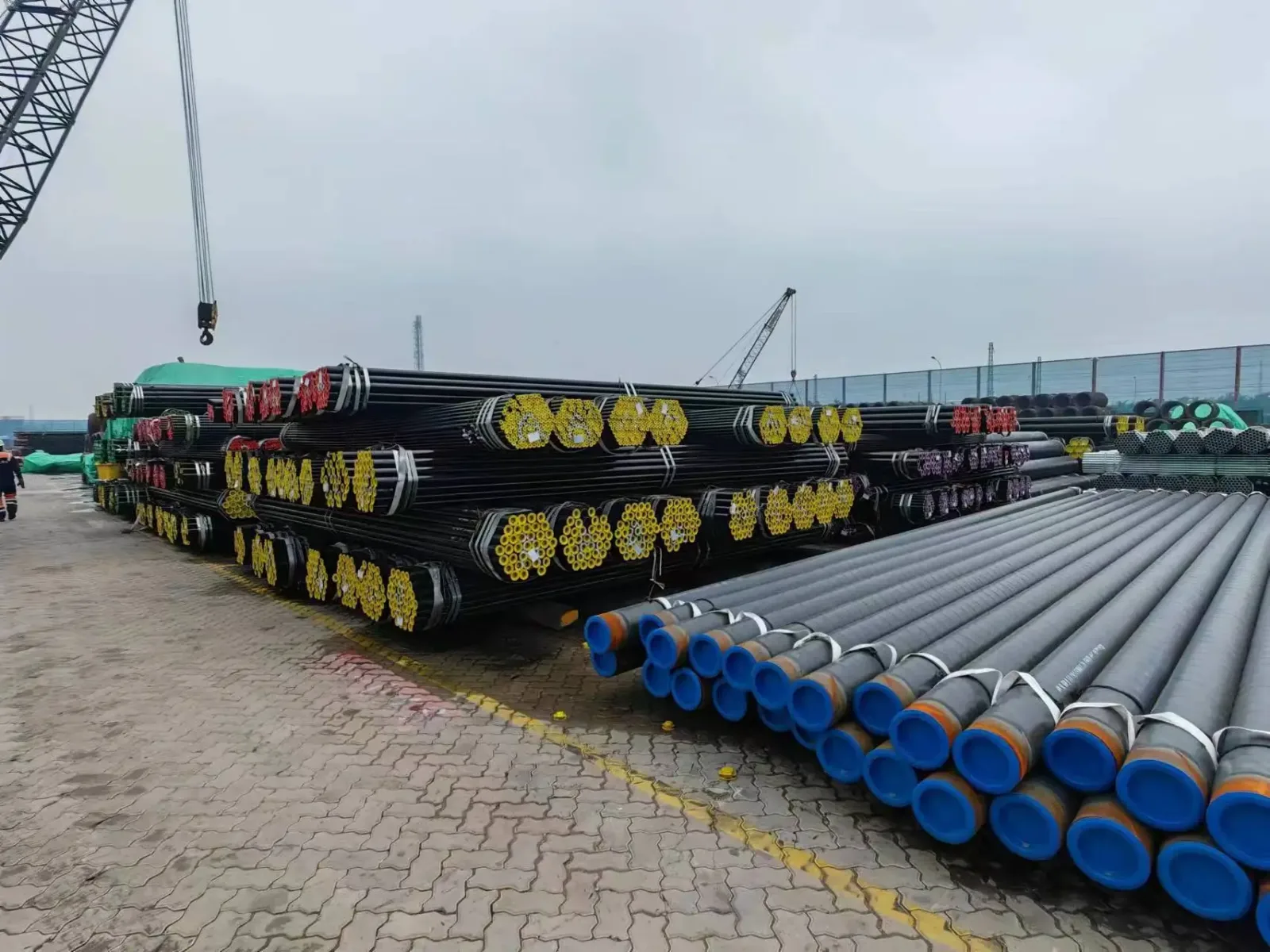

- A335 P11 alloy seamless pipes bundled with steel strips and edge protectors, preserving beveled-end geometry during ocean transit
- Slight oil surface treatment applied before bundling to prevent atmospheric corrosion on cold-rolled finish during extended sea freight
- Container loading optimized for 6 m and 12 m lengths, with wooden cradles preventing point-load deformation on thin-wall sections above 600 mm OD
- Heat number and steel grade stenciled on each pipe end, matching mill test certificate for field verification upon arrival
- FOB, CIF, and DDP shipping terms available, with professional logistics coordination to major ports across EU, North America, Middle East, and Southeast Asia
- Custom cutting to project-specific lengths available, reducing on-site welding joints and installation time
Initiate Your A335 P11 Procurement With Verified Chemistry
Submit your project specifications — OD, wall thickness, length, quantity, and destination port — and receive a detailed quotation within 12 hours, including unit pricing, production lead time, and applicable certification documentation. We provide original mill test certificates and can arrange SGS or BV third-party inspection before shipment, giving your engineering team complete chemistry verification confidence. For non-standard dimensions outside the 21.3–1420 mm OD range, our technical team reviews custom feasibility and provides alternative solutions within the same inquiry cycle.
Frequently Asked Questions
Q: What is the difference between A335 P11, P22, and P91 for boiler applications?
A: A335 P11 contains 1.25% Cr and 0.5% Mo, suitable for service temperatures up to approximately 580°C. P22 increases chromium to 2.25% for higher temperature resistance, while P91 adds vanadium and niobium for 9% Cr martensitic strength at temperatures exceeding 600°C. Grade selection depends on your specific steam temperature and pressure design parameters.
Q: Can you provide third-party inspection before shipment?
A: Yes, we arrange SGS or BV third-party inspection at our facility before container loading. The inspection covers visual examination, dimensional verification, chemical composition analysis, and mechanical testing, with reports issued per EN 10204 3.2 requirements for destination-port customs clearance.
Q: What is the minimum order quantity for non-standard wall thickness?
A: Our MOQ is 1 Ton, and we maintain over 2,800 specification combinations in our production program. Non-standard wall thicknesses within the 2.11–300 mm range can be accommodated without triggering special minimum-order surcharges, subject to technical review of your specific requirements.
Q: How do you ensure Cr-Mo chemistry matches ASTM A335 requirements?
A: Every heat of A335 P11 undergoes optical emission spectrometry analysis in our in-house laboratory before the pipe leaves the mill. The original mill test certificate documents actual Cr and Mo percentages, and we can arrange third-party re-verification by SGS or BV if your project specification requires independent confirmation.
Q: What surface treatment options are available for corrosion protection during storage?
A: Standard delivery includes cold-rolled finish with slight oiling for atmospheric protection during ocean transit. For extended outdoor storage or aggressive environments, we can apply black paint, varnish coating, or 3PE anti-corrosion coating per your project requirements, with pricing quoted separately.
Get Your A335 P11 Alloy Seamless Steel Pipe Quote With Full Mill Test Certification
Send your specifications — OD, wall thickness, length, quantity, and destination — to receive pricing, production schedule, and chemistry verification documentation within 12 hours.
