Description
Factory-direct seamless pipe sourcing — every heat batch lab-verified before container loading.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | 20# 45# Seamless Carbon Steel Pipe |
| Product Type | Seamless Steel Pipe |
| Steel Grade | 20#, 45#, ASTM A106 Grade A, ASTM A106 Grade B |
| Standard | API 5CT, API 5L, ASTM A106, BS, JIS, DIN |
| Section Shape | Round |
| Outer Diameter | 10–609 mm |
| Wall Thickness | 1.65–59.54 mm |
| Technique | Seamless (Hot Rolled / Cold Rolled / Cold Drawn) |
| Surface Treatment | Oiled / Non-oiled |
| Tolerance | ±5% (general) / ±1% (precision) |
| Ends | Plain / Beveled / Threaded |
| Processing Service | Cutting, Welding, Punching, Bending |
| Application | Fluid transport, Boiler systems, Oil & gas pipelines, Hydraulic systems, Mechanical structural parts, Chemical fertilizer pipelines |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas EPC | Drilling fluid transport, wellhead piping, production line manifolds |
| Power & Boiler | Superheater tubes, steam headers, high-temperature feedwater lines |
| Machinery & Hydraulic | Hydraulic cylinder barrels, precision machined shafts, conveyor rollers |
| Chemical Processing | Fertilizer plant piping, process fluid transfer, heat exchanger tubes |
When Wall Thickness Variance Becomes a Project Liability
A 1.5 mm shortfall on a thick-wall pipe can void an entire pressure test.
Procurement teams sourcing ASTM A106 20# 45# seamless steel pipe supplier products for high-pressure service have learned this the hard way. Mill certificates arrive looking perfect — chemical composition within spec, tensile values in range — yet the physical pipe on the dock tells a different story. Wall thickness runs under tolerance on multiple pieces, and the discrepancy only surfaces when the third-party inspector measures at the weld prep zone. At that point the container is already at port, the project schedule is exposed, and half the shipment may need to be scrapped. [NEED_CITE: ASTM A106 dimensional tolerance requirements for seamless carbon steel pipe]
Matching Grade and Wall Range to High-Pressure Service
The 20# and 45# grades sit at the core of ASTM A106 high-temperature service requirements. When an EPC contractor specifies seamless pipe for a boiler header or a gas transmission manifold, the outer diameter range of 10–609 mm and wall thickness up to 59.54 mm cover virtually every line size on the P&ID. As an ASTM A106 20# 45# seamless steel pipe supplier, we produce both hot rolled and cold drawn routes — hot rolled for thicker walls where cost efficiency matters, cold drawn when tighter dimensional tolerance and smoother surface finish are needed for hydraulic cylinder applications. Each production route is matched to the end-use pressure rating and machining requirement, not simply listed on a catalog page.
Engineering Compliance Across Markets
Project specifications in the Gulf typically call for API 5L or API 5CT certification for oilfield piping, while EU-based EPC contractors require CE marking under EN 10210 or EN 10219 for structural hollow sections. The ASTM A106 20# 45# seamless steel pipe supplier must therefore hold multiple certification bodies simultaneously — not just for the pipe itself, but for the mill test documentation that travels with every heat number. Missing or incomplete certificates cause customs holds at Jebel Ali, Rotterdam, or Singapore, regardless of whether the physical product is perfectly sound. [NEED_CITE: CE marking requirements for pressure equipment under PED 2014/68/EU] Our in-house physical and chemical laboratory tests every heat before release, and third-party inspection through SGS or BV can be arranged before shipment to satisfy client-side QA protocols.
Grade Equivalence and Production Route Selection
The Chinese grade 20# corresponds closely to ASTM A106 Grade A in carbon content and mechanical behavior, while 45# aligns with Grade B — the most widely specified grade for high-temperature service across North America and the Middle East. Both grades deliver reliable performance under sustained temperatures up to approximately 450°C, with 45# offering higher carbon content for improved strength at the cost of reduced weldability. Hot rolled seamless pipe suits wall thicknesses above 6 mm where the priority is structural integrity and economy; cold drawn seamless pipe achieves the ±1% precision tolerance required for hydraulic bore applications where internal surface finish directly affects seal life. Surface treatment is limited to oiled or non-oiled conditions — oiled for transit corrosion protection during ocean freight, non-oiled when the pipe will undergo further coating or lining at the fabrication shop.
The Hidden Cost of Unverified Pipe Procurement
Pricing a ASTM A106 20# 45# seamless steel pipe supplier quote solely on per-ton cost ignores the downstream expenses that materialize at project handover. A pipe that fails hydrostatic testing at the spool fab yard triggers weld re-inspection across the entire batch. Missing mill test certificates delay customs clearance and incur port storage charges measured in thousands of dollars per day. Wall thickness below minimum tolerance forces the engineer to either reject the shipment or issue a concession — neither of which comes without schedule impact. [NEED_CITE: consequences of dimensional non-compliance in pressure piping per ASME B31.3] These are not theoretical risks; they are the routine outcomes when buyers source from traders who cannot control production or verify material before loading.
Why Procurement Teams Return to Xin Jiyuan
We operate three dedicated seamless pipe production lines with in-house physical and chemical laboratories — every heat is tested for chemical composition, tensile strength, and dimensional accuracy before it leaves the mill. Our catalog covers over 2,800 specifications across seamless, welded, and galvanized products, meaning a single purchase order for pipe, plate, and structural section can be consolidated into one shipment rather than coordinated across four different vendors. We hold 41 invention patents, including proprietary sharp-corner rectangular tube technology, and our quality system is certified under ISO 9001:2015, Lloyd’s Register EU CE, and Singapore FPC. Third-party inspection through SGS and BV is arranged on-site before container sealing. Professional loading plans optimize container utilization for mixed-size orders, and we ship FOB, CIF, or DDP to over 50 countries with full documentation packages.
Documentation & Compliance
- Mill test certificate documenting 20# and 45# chemical composition, tensile properties, and hydrostatic test results per ASTM A106, issued by heat number
- CE certificate under EN 10210/EN 10219 for EU market compliance on structural and pressure applications
- ISO 9001:2015 quality management certificate covering the full production and inspection process
- SGS or BV third-party inspection report available upon request, conducted at our facility before shipment
- Full material traceability from raw billet heat number through final dimensional and surface inspection
- Customs documentation package including packing list, bill of lading, and certificate of origin for destination port clearance
Packaging, Loading & Delivery

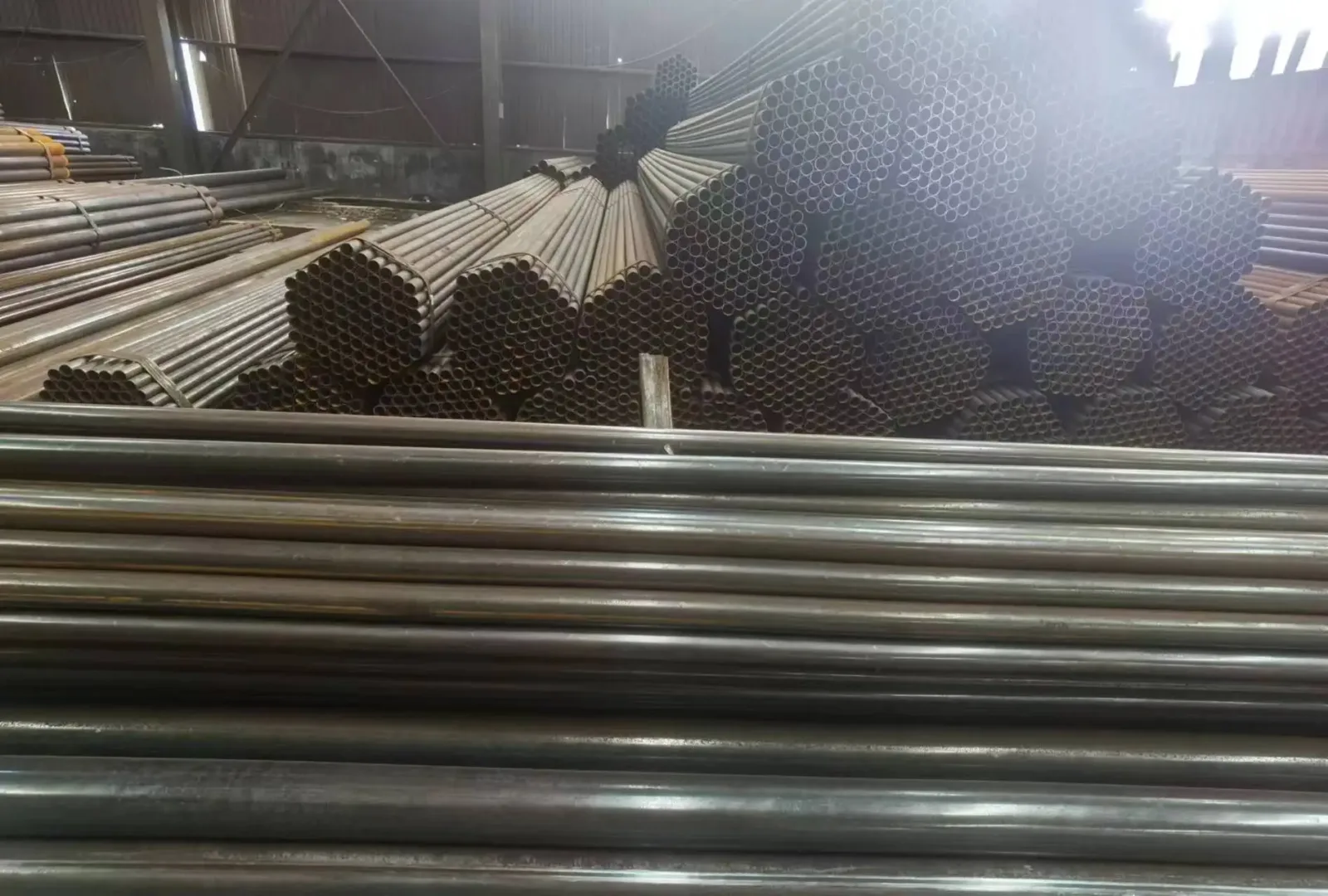

- Seamless pipes bundled with steel strip ties and edge protectors, sized to match the 10–609 mm OD range and fixed or random lengths per order
- Oiled surface treatment applied before bundling to prevent transit corrosion during ocean freight to Middle East and Southeast Asian ports
- Container loading plans optimized for mixed OD and wall thickness orders, maximizing payload within 20ft and 40ft GP or OT containers
- Custom cutting to project-specified lengths available before shipment, reducing on-site waste and secondary machining costs
- Heat number and steel grade stenciled on each pipe end for site-side traceability during installation and pressure testing
- FOB, CIF, and DDP shipping terms available with real-time tracking and door-to-door logistics coordination
Moving from Inquiry to Mill Test Certificate
Submit your specification sheet — outer diameter, wall thickness, steel grade, quantity, and destination port — and receive a detailed quotation within 12 hours including unit price, production lead time, applicable certifications, and payment terms. For non-standard sizes outside the 10–609 mm range or wall thickness beyond standard catalogs, our engineering team will confirm feasibility and tooling requirements. Request original mill test certificates and arrange SGS or BV third-party inspection before production begins to lock in quality expectations.
Frequently Asked Questions
Q: How do 20# and 45# Chinese grades compare to ASTM A106 Grade A and Grade B?
A: The 20# grade corresponds to ASTM A106 Grade A with similar carbon content and mechanical properties, while 45# aligns with Grade B offering higher strength for high-temperature service. Both grades are produced and tested to meet the chemical composition and tensile requirements defined in ASTM A106.
Q: Can you provide mill test certificates and arrange third-party inspection?
A: Yes. Every heat batch is tested in our in-house physical and chemical laboratory, and original mill test certificates are issued per heat number. Third-party inspection through SGS or BV can be arranged at our facility before shipment.
Q: Do you offer cutting, beveling, and threading services to project drawings?
A: Yes. Processing services include cutting to fixed length, beveling for weld preparation, threading for mechanical connections, and bending — all performed in-house before shipment to reduce on-site fabrication time.
Q: How does your laboratory ensure consistency across heat batches?
A: Our in-house physical and chemical laboratory conducts incoming raw material inspection, in-process dimensional checks, and final testing for chemical composition, tensile properties, and hydrostatic pressure before any heat is released for shipment.
Q: What shipping terms and documentation do you provide for international delivery?
A: We offer FOB, CIF, and DDP shipping terms with full documentation including mill test certificates, packing list, bill of lading, and certificate of origin. Professional loading plans optimize container utilization for mixed-size orders.
Get Your ASTM A106 Seamless Pipe Quote with Mill Test Certificate
Send your specification — OD, wall thickness, grade, quantity, and destination — to receive pricing and certification details within 12 hours.
