Description
Factory-Direct Mill Supply — Every 20# and 45# seamless pipe undergoes wall-thickness verification in our in-house laboratory before loading, eliminating tolerance disputes at your port.
Technical Specifications
| Parameter | Value |
|---|---|

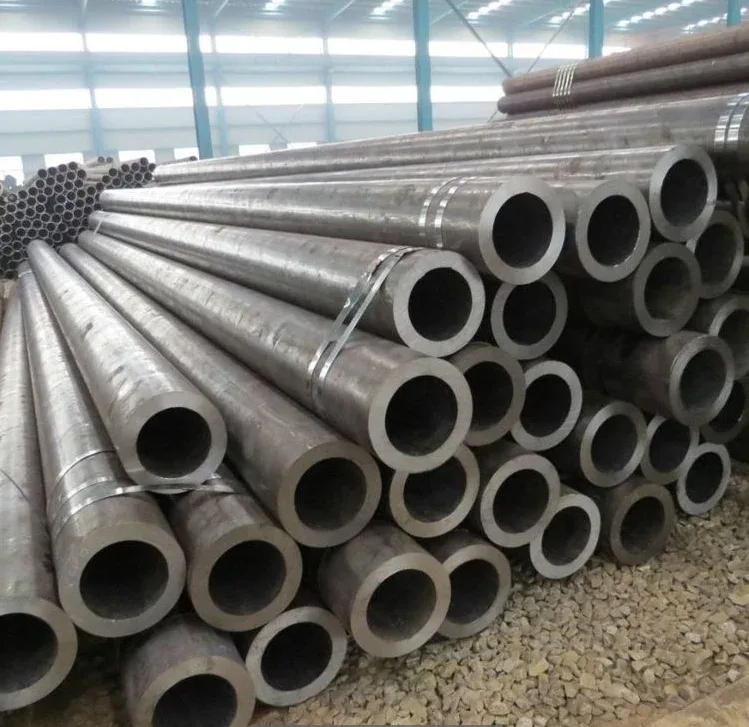

| Designation | 20# 45# Seamless Round Steel Pipe |
| Product Type | Seamless Steel Pipe |
| Steel Grade | 20#, 45#, ASTM A106 Grade A/B |
| Standard | API 5CT, API 5L, ASTM A106, BS, JIS, DIN |
| Section Shape | Round |
| Outer Diameter | 10–609 mm |
| Wall Thickness | 1.65–59.54 mm |
| Technique | Hot Rolled / Cold Rolled / Cold Drawn |
| Surface Treatment | Hot Rolled, Oiled / Non-oiled |
| Tolerance | ±5% / ±1% |
| Ends | Plain / Beveled (per standard) |
| Processing Service | Welding, Punching, Cutting, Bending, Decoiling |
| Invoicing | By Theoretical Weight |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas | High-pressure transmission pipelines, drill pipe strings, wellhead casing |
| Power Generation | Superheater tubes, boiler headers, steam transport lines |
| Heavy Machinery | Hydraulic cylinder barrels, crane boom sections, press frame components |
| Chemical Processing | Reactor feed lines, heat exchanger tubes, fertilizer plant piping |
| Structural Engineering | Load-bearing columns, truss members, bridge support piers |
When Wall Thickness Variance Costs You a Container at Customs
Inconsistent OD-to-WT ratios trigger third-party rejection and full-batch resubmission.
Sourcing ASTM A106 20# 45# seamless steel pipe supplier from fragmented channels often means receiving mixed heat numbers without traceable mill test certificates. A Southeast Asian power plant project once faced a two-month delay because the boiler tubes arrived with minus 8% wall tolerance — the third-party inspector rejected the entire container before it left the port. The cost of air-freighting replacements erased any savings from choosing the lowest bidder. [NEED_CITE: ASTM A106 dimensional tolerance requirements for high-temperature service]
Matching High-Pressure Service Environments
The 20# and 45# carbon steel grades in this ASTM A106 20# 45# seamless steel pipe supplier range are selected for their proven performance under elevated temperature and pressure. The 20# grade offers excellent weldability and ductility for boiler tube assemblies, while 45# provides higher carbon content for machined hydraulic components requiring greater surface hardness. Hot-rolled oiled surface treatment protects against transit corrosion without interfering with downstream welding or coating processes.
Engineering Compliance and Certification Pathways
Projects specifying ASTM A106 for high-temperature service require documented chemical composition and mechanical property verification per heat number. For EU-bound shipments, CE certification under EN 10210/10219 confirms conformity with European pressure equipment directives. Our in-house physical and chemical laboratory conducts incoming raw material inspection, in-process dimensional checks, and final mechanical testing — generating mill test certificates that satisfy both customs authorities and project QA auditors. [NEED_CITE: EN 10210 hot-finished structural hollow section certification requirements]
Steel Grade Selection and Manufacturing Process
The 20# grade (approximately 0.20% carbon) delivers balanced strength and formability, making it the default choice for fluid transport and boiler applications under ASTM A106. The 45# grade (approximately 0.45% carbon) shifts toward higher tensile strength and machinability, suitable for mechanical components and hydraulic systems. Hot-rolled production covers the thicker wall range up to 59.54 mm with economical lead times, while cold-drawn processing achieves tighter ±1% tolerance for precision applications. The oiled surface treatment applied after final cooling prevents flash rust during ocean transit without adding coating thickness that would interfere with field welding.
Hidden Costs of Unverified Material Sources
Purchasing seamless pipe without original mill test certificates creates cascading risks: customs authorities may detain shipments lacking proper documentation, project inspectors can reject entire batches for untraceable heat numbers, and field welding of off-specification chemistry leads to weld metal cracking. Negative tolerance abuse — where actual wall thickness falls below the specified minus allowance — reduces pressure rating and triggers structural recalculation costs that far exceed the initial material savings. [NEED_CITE: API 5L dimensional inspection and tolerance verification procedures]
Procurement Confidence Through Vertical Integration
As a manufacturer operating three dedicated production lines, we control the entire process from billet inspection to final bundling. Our in-house laboratory performs real-time spectrographic analysis for chemical composition and tensile testing for mechanical properties, with results documented in original mill test certificates provided before shipment. The facility holds ISO 9001:2015 certification and produces over 2,800 specifications across square, rectangular, and round profiles — meaning your seamless pipe order can be consolidated with structural sections and plate requirements in a single shipment. Third-party inspection by SGS or BV is available upon request for projects requiring independent verification.
Documentation & Compliance
- Mill test certificate documenting 20# and 45# chemical composition (C, Mn, Si, P, S) and mechanical properties per ASTM A106, with heat number traceability
- CE certificate under EN 10210/EN 10219 for EU market compliance on structural and pressure applications
- ISO 9001:2015 quality management system certificate covering design, production, and inspection processes
- SGS or BV third-party inspection report available for pre-shipment verification of dimensions, surface quality, and mechanical testing
- Material traceability documentation linking each pipe to its original heat number, billet certificate, and production batch record
- Customs documentation package including commercial invoice, packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- Seamless pipes bundled with steel strips and edge protectors, with oiled surface preserved by waterproof wrapping for ocean transit
- Wall thickness and outer diameter clearly marked on each pipe end with heat number, steel grade (20#/45#), and standard designation
- Container loading optimized for 10–609 mm OD range, with nested smaller diameters inside larger pipes to maximize cubic utilization
- Custom cutting to project-specified lengths available, with cut ends deburred and protected against damage during handling
- FOB, CIF, and DDP shipping terms supported, with professional loading plans coordinated to port schedules and vessel booking
Securing Your Project Timeline with Verified Material
Submit your specification sheet including outer diameter, wall thickness, steel grade (20# or 45#), quantity, and destination port to receive a detailed quotation with production timeline and applicable certification documentation. Our team responds within 12 hours with pricing, mill test certificate samples, and loading optimization recommendations for your shipment.
Request Quotation and Mill Test Certificate
Provide your seamless pipe specifications, steel grade requirements, and destination to receive pricing with original mill test certificate documentation. Contact us via email at admin@sdxjysteel.com or WhatsApp at +86 188 5315 7756.
Frequently Asked Questions
Q: What is the chemical and mechanical difference between 20# and ASTM A106 Grade B?
A: The 20# Chinese standard grade closely corresponds to ASTM A106 Grade B in carbon content (approximately 0.17–0.24%) and manganese range. Both grades serve high-temperature service applications, though ASTM A106 Grade B specifies minimum tensile strength of 415 MPa while 20# follows GB/T 699 mechanical property requirements. Mill test certificates clearly document the applicable standard for each heat.
Q: How do you verify wall thickness tolerance before shipment?
A: Every pipe undergoes ultrasonic thickness testing at multiple points along the length and around the circumference. Results are recorded in the mill test certificate with actual measurements compared against the specified tolerance (±5% for hot-rolled, ±1% for cold-drawn). Third-party inspection by SGS or BV can witness these measurements upon request.
Q: Can you supply non-standard outer diameter or wall thickness combinations?
A: Yes. Our production lines cover OD 10–609 mm and wall thickness 1.65–59.54 mm, with capability to produce intermediate sizes outside standard schedules. Minimum order quantities for non-standard dimensions depend on the specific size and production setup — contact us with your drawing or specification for a detailed assessment.
Q: What surface treatment options are available beyond oiled?
A: Standard delivery is hot-rolled with oiled surface for transit protection. For corrosive environments, we can supply black (un-oiled) for field coating, or coordinate external coating services including 3PE, epoxy, or galvanized finishing through our processing partners. Specify your service environment when requesting quotation.
Q: How is invoicing calculated — theoretical weight or actual weight?
A: Seamless pipes in this range are invoiced by theoretical weight based on the specified outer diameter, wall thickness, and length, calculated per the standard formula. This provides predictable costing regardless of minor production variations within tolerance. Actual weight certificates are available if required for logistics planning.
