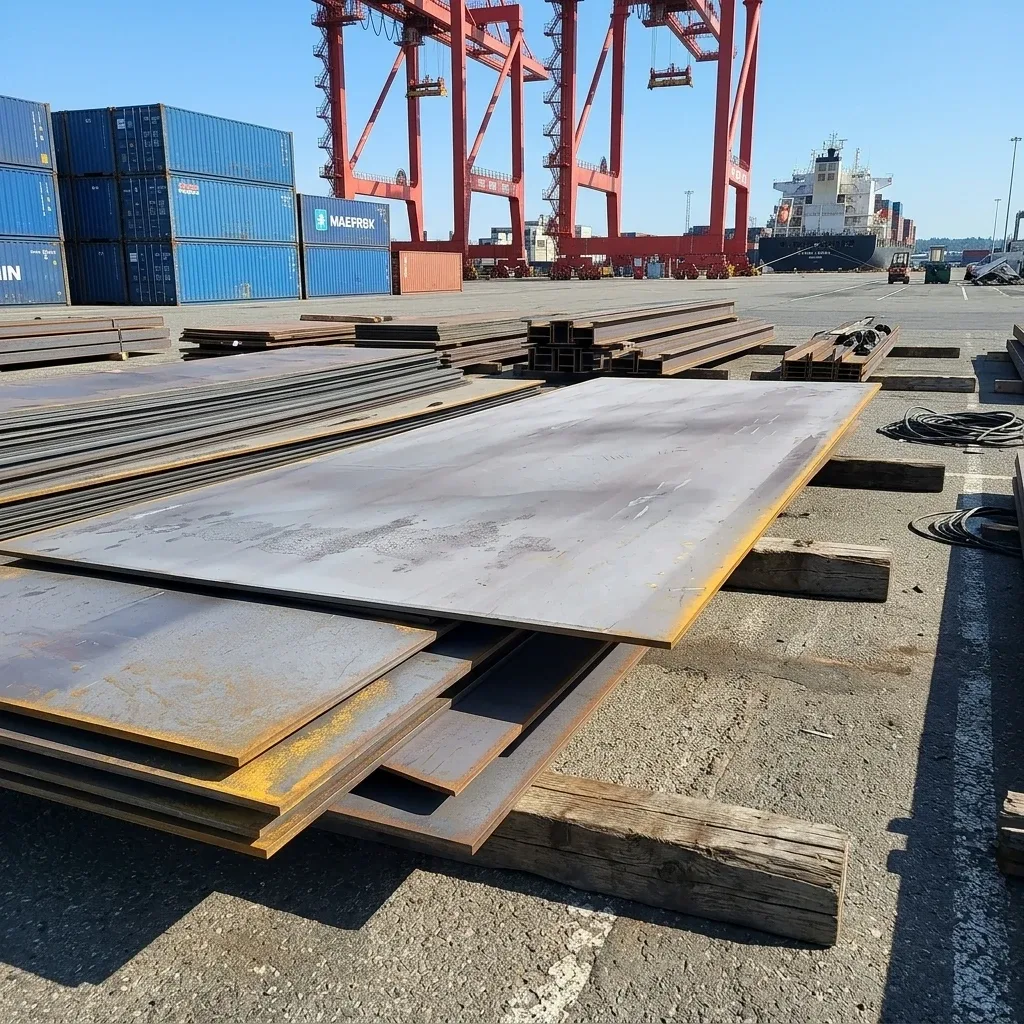

Description
Factory-Direct NM400/NM500 Plates — Every heat is tested in our in-house physical and chemical laboratory before shipment, so hardness values and chemical composition match the mill test certificate you receive.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | NM400/NM500 Wear Resistant Steel Plate |
| Product Type | Steel Plate |
| Steel Grade | NM400, NM500 |
| Standard | ASTM, DIN, JIS |
| Thickness | 12mm |
| Technique | Hot Rolled |
| Surface Treatment | Hot Rolled, Coated |
| Service | Cutting Service Available |
| Application | Mining equipment, Construction machinery, Boiler manufacturing, Industrial wear parts, Structural fabrication |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Mining & Quarrying | Excavator bucket liners, crusher jaw plates, conveyor skirt boards, hopper linings |
| Construction Machinery | Loader blade edges, bulldozer end bits, dump truck bed liners, grader moldboards |
| Industrial Fabrication | Boiler wear panels, chute linings, silo hopper walls, screw conveyor flights |
| Infrastructure & EPC | Bridge bearing plates, pile driving wear shoes, tunnel boring machine components |
Where Thickness Tolerance Decides Equipment Lifespan on a Wear Plate Order
A 12mm NM400 plate that arrives at 11.2mm fails acceptance — and the entire batch gets rejected at the mine site.
Global procurement teams sourcing NM400 NM500 Wear Resistant Steel Plate Supplier materials from overseas mills routinely encounter negative tolerance issues that slip past visual inspection. When a hot rolled plate is rolled to the lower edge of permissible deviation, the effective wear life drops disproportionately because abrasion resistance depends on the full cross-section of hardened material. [NEED_CITE: negative tolerance practices in hot rolled wear plate manufacturing] Without independent hardness verification per heat number, buyers only discover the shortfall after cutting and welding — when replacement costs multiply.
Matching NM400 and NM500 Hardness Grades to Abrasive Environments
NM400 NM500 Wear Resistant Steel Plate selections must align with the specific abrasion severity of the working environment. NM400 provides sufficient Brinell hardness for moderate-impact applications such as conveyor linings and silo walls where material slides rather than strikes. NM500 steps into high-impact zones — crusher liners, mining shovel bucket edges, and dump truck floors — where repeated contact with hard ore demands higher surface resistance. Our in-house laboratory performs Brinell hardness testing on every production batch, and the results are documented on the mill test certificate before the plates leave Jinan. This means the hardness value on your MTC corresponds to the actual heat you receive, not a generic range pulled from a catalog.
Engineering Compliance and Surface Condition for Wear Plate Fabrication
Hot rolled NM400 and NM500 plates conform to ASTM, DIN, and JIS standard frameworks, giving EPC contractors flexibility across project specifications whether the end user follows American, European, or Japanese engineering codes. [NEED_CITE: steel grade equivalence between NM series and Hardox equivalents] The coated surface option adds a layer of corrosion protection during storage and transit — critical for plates destined for humid coastal job sites in Southeast Asia or the Middle East, where mill scale alone cannot prevent surface oxidation before fabrication. Precision cutting service allows plates to arrive at the weld bay in near-net shape, reducing on-site plasma cutting waste and keeping the heat-affected zone within acceptable limits for weld integrity.
Hot Rolled Process and Hardness Grade Fundamentals
NM400 and NM500 are quenched and tempered alloy steel grades where the numerical suffix indicates the nominal Brinell hardness value. The hot rolling process followed by controlled cooling and tempering produces a martensitic or bainitic microstructure that delivers uniform hardness through the full plate thickness. This through-thickness consistency is what separates a genuine wear plate from a surface-hardened mild steel that wears through prematurely. Coated surface treatment — typically a shop primer or anti-corrosion coating applied after rolling — protects the plate during ocean freight without interfering with subsequent welding or machining. When specifying NM400 NM500 Wear Resistant Steel Plate for boiler or pressure-containing applications, buyers should confirm that the chemical composition meets the carbon equivalent limits required for weldability under the relevant standard.
The Hidden Cost of Unverified Hardness and Excessive Negative Tolerance
Plates that fail to meet the stated hardness grade wear out faster in service, forcing unplanned shutdowns for liner replacement — a cost that dwarfs the initial purchase price difference between a verified supplier and an unverified one. [NEED_CITE: total cost of ownership in mining wear part procurement] Excessive negative tolerance means the buyer pays for 12mm but receives less, directly shortening service life while the invoice remains unchanged. Certification gaps compound the problem: without a traceable mill test certificate tied to a specific heat number, customs authorities in the EU and Middle East may hold the shipment, and project engineers cannot sign off on material compliance. The result is demurrage charges, re-inspection fees, and delayed commissioning timelines.
Procurement Confidence from a Verified Wear Plate Source
Every NM400 NM500 Wear Resistant Steel Plate we ship passes through our own physical and chemical laboratory — the same facility that supports our 41 patented technologies including proprietary sharp-corner rectangular tube production. We operate three dedicated production lines with real-time quality monitoring, meaning hardness, tensile properties, and chemical composition are verified before the plate is cut to size. Our certifications — ISO 9001:2015, Lloyd’s Register EU CE, Singapore FPC, plus SGS and BV verification — cover the full documentation chain from mill test certificate to customs paperwork. With nearly 20 years of export experience to 50+ countries, we handle professional loading plans that optimize container weight for heavy plate shipments, and our custom cutting service delivers plates in the exact dimensions your fabrication team needs. Non-standard sizes and thicknesses are available beyond the standard catalog range.
Documentation & Compliance
- Mill test certificate documenting NM400/NM500 chemical composition (C, Si, Mn, Cr, Mo) and Brinell hardness values per heat number
- Lloyd’s Register EU CE certificate confirming compliance for European market import and project acceptance
- ISO 9001:2015 quality management system certificate covering the full production and inspection process
- SGS or BV third-party inspection report available upon request for independent hardness and dimensional verification
- Material traceability documentation linking each plate to its heat number, rolling schedule, and test results
- Customs document package including commercial invoice, packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- NM400/NM500 plates bundled with high-tensile steel straps and placed on hardwood sleepers to prevent edge damage during crane handling at the mine site
- Coated surface protected by interleaving paper and edge guards to preserve the anti-corrosion layer through ocean transit to humid destination ports
- Container loading plans optimized for 12mm plate weight distribution, maximizing payload per 20ft or 40ft container while staying within road transport limits at destination
- Custom cutting service delivers plates to near-net dimensions, reducing on-site cutting waste and allowing direct fit-up at the fabrication shop
- Each plate marked with heat number, steel grade (NM400 or NM500), thickness, and purchase order reference for traceability at the receiving yard
- Shipping terms available as FOB, CIF, or DDP with real-time tracking and door-to-door logistics coordination to 50+ countries
Securing Your Wear Plate Quotation with Verified Hardness Data
Submit your required steel grade (NM400 or NM500), thickness, dimensions, quantity, and destination port to receive a detailed quotation including unit price, production lead time, and applicable certification documentation. Our team responds within 12 hours with a complete offer covering mill test certificates, cutting specifications, and loading optimization for your shipment.
Get Your NM400/NM500 Wear Plate Quote with Mill Test Certificate
Send your specifications, steel grade, and destination to receive pricing and hardness-verified documentation within 12 hours.
Company: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.sdxjysteel.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@sdxjysteel.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What is the hardness difference between NM400 and NM500, and how do I choose the right grade for my application?
A: NM400 offers a nominal Brinell hardness of approximately 400 HBW, suitable for moderate abrasion environments such as conveyor linings and silo walls. NM500 provides higher hardness around 500 HBW, designed for high-impact, severe abrasion zones like crusher liners and mining bucket edges. The choice depends on the abrasion severity and impact forces in your specific equipment.
Q: Can you provide third-party inspection and original mill test certificates for customs clearance?
A: Yes. Every shipment includes an original mill test certificate with chemical composition and Brinell hardness results tied to the specific heat number. SGS and BV third-party inspections are available for independent verification. Our CE, ISO 9001, and FPC certifications support customs clearance across EU, Middle East, and Asian markets.
Q: What cutting services are available for NM400/NM500 plates, and what tolerances can I expect?
A: We provide precision cutting services including plasma cutting, laser cutting, and flame cutting to deliver plates in your required dimensions. Cutting tolerances are maintained within standard industry limits for hot rolled plates, and all cut pieces retain full traceability to the original heat number and mill test certificate.
Q: How do NM400 and NM500 grades compare to international equivalents such as Hardox 400 and Hardox 450/500?
A: NM400 and NM500 are Chinese-standard wear resistant grades that correspond closely to international equivalents in terms of hardness range and application suitability. [NEED_CITE: steel grade equivalence between NM series and Hardox equivalents] We can provide cross-reference documentation and chemical composition comparisons to support your engineering team’s material approval process.
Q: Can you supply non-standard thicknesses and custom sizes beyond the standard 12mm offering?
A: Yes. Our production lines cover over 2,800 specifications across our full product range. For NM400 and NM500 wear resistant plates, we can accommodate custom thicknesses, widths, and lengths beyond standard catalog sizes. Minimum order quantities for non-standard sizes are discussed on a case-by-case basis depending on the specification required.
