Description
Factory-Direct Q235B ERW Tubes — Every Q235B ERW welded square steel tube ships with full mill test certificates and CE documentation, eliminating customs delays at European and Middle Eastern ports.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B ERW Welded Square Steel Tube |
| Product Type | Welded Square Steel Tube (Square Hollow Section / SHS) |
| Steel Grade | Q235B, S235JR, A36, S355, SS400 |
| Standard | ASTM A500, BS, EN, GB, AISI, DIN, JIS |
| Section Shape | Square |
| Technique | ERW (Electric Resistance Welded) |
| Surface Treatment | Cold Rolled |
| Length | Customized |
| Tolerance | ±1% |
| Oiled or Non-oiled | Non-oiled |
| Processing Service | Welding, Punching, Cutting, Bending, Decoiling |
| Invoicing | By Theoretical Weight |
| Application | Steel structures, construction frames, machinery frames, scaffolding, furniture, home decor |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Industrial plant steel frames, truss systems, conveyor support structures |
| Construction Companies | High-rise building columns, beam-to-column connections, commercial scaffolding |
| Machinery Manufacturers | Machine tool bases, equipment frames, automated conveyor chassis |
| Infrastructure Developers | Bridge handrails, sound barrier supports, solar mounting structures |
What Negative Tolerance Really Costs on a 20-Ton ERW Square Tube Order
A ±1% tolerance deviation on wall thickness can shift an entire container’s invoiced weight by nearly two tons.
I once watched a Q235B ERW welded square steel tube shipment arrive at a Southeast Asian port where the buyer had ordered by theoretical weight. The actual wall thickness ran well below the negative tolerance limit, and the site supervisor rejected the entire lot. The tubes were also cut slightly off-length, meaning the bolt holes on the connection plates did not align. That order cost the client three weeks of re-fabrication and a second air-freighted batch. When you source a Q235B ERW welded square steel tube, the tolerance spec on the mill test certificate is not a suggestion — it is the difference between a bolted frame that fits and one that needs plasma re-cutting on-site. [NEED_CITE: EN 10219 cold-formed hollow section requirements]
How Cold Rolled ERW Square Tubes Fit Structural Frame Connections
The cold rolled surface on a Q235B ERW welded square steel tube gives a smooth, scale-free finish that accepts paint or powder coating directly without secondary grinding. For steel structure frames, this means the tubes arrive on-site ready for welding and bolting — no shot blasting required. The ±1% dimensional tolerance ensures that square-to-square connections at beam-column joints maintain consistent gap widths for fillet welds. Our in-house physical and chemical laboratory tests every heat before the tubes leave the mill, so the Q235B ERW welded square steel tube you receive matches the mill test certificate down to the carbon and manganese content.
Engineering Compliance and Certification Requirements for ERW Hollow Sections
Structural frames in the EU must comply with EN 10219 for cold-formed welded hollow sections, which governs dimensional tolerances, sectional properties, and material traceability. [NEED_CITE: EN 10219 cold-formed hollow section requirements] In North America, ASTM A500 Grade B or C is the default specification for structural square tubes. The Q235B ERW welded square steel tube we produce meets both frameworks — Q235B is chemically and mechanically equivalent to S235JR under EN standards and closely aligned with A36 under ASTM. For projects requiring CE marking under the Construction Products Regulation, we supply EN 10219-compliant mill test certificates with heat-number traceability. Custom cut-to-length service eliminates on-site sawing, and the non-oiled cold rolled surface allows immediate galvanizing or painting per project coating specifications. [NEED_CITE: steel grade equivalence between EN and ASTM standards]
Understanding Q235B, S235JR, and A36 Grade Selection for ERW Square Tubes
Q235B belongs to the Chinese GB/T 700 carbon structural steel family, with a minimum yield strength position that aligns closely with S235JR under EN 10025 and A36 under ASTM A36/A36M. For general structural frames, scaffolding, and machinery bases, these three grades are often interchangeable — the choice usually depends on which standard the project engineer specified. S355 steps up to a higher yield tier, suitable for heavier load-bearing columns and long-span trusses. The ERW welding process fuses the strip edges through high-frequency electric resistance, producing a clean, narrow weld seam ideal for square and rectangular hollow sections. Cold rolling after forming delivers tight dimensional control and a smooth surface, which is why cold rolled ERW tubes are preferred for visible architectural frames and machinery where appearance matters. The non-oiled finish means no solvent cleaning is needed before welding or coating — a practical advantage on busy job sites.
Hidden Costs When ERW Square Tubes Fail Tolerance or Certification Checks
Ordering a Q235B ERW welded square steel tube without verifying the mill test certificate against EN 10219 or ASTM A500 requirements can trigger a chain of costly failures. Missing or incomplete chemical composition data leads to customs holds at EU and Middle Eastern ports. [NEED_CITE: EN 10219 cold-formed hollow section requirements] Wall thickness beyond the allowed negative tolerance reduces the load-bearing capacity of columns and beams, potentially failing third-party structural inspection. Off-length cuts force re-sawing on-site, adding labor cost and delaying the erection schedule. In the worst cases, material traceability gaps mean the entire batch must be quarantined until independent lab testing confirms compliance — a process that can add weeks to a project timeline.
Why Global Buyers Source Q235B ERW Square Tubes from Xin Jiyuan
We operate three dedicated ERW production lines in Jinan, covering over 2,800 square and rectangular tube specifications with wall thicknesses up to 40mm. Every Q235B ERW welded square steel tube passes through our in-house physical and chemical laboratory before shipment — no external lab delays. Our proprietary sharp-corner rectangular tube technology, backed by 41 invention patents, fills specification gaps that standard catalogs cannot cover. We hold CE certification under EN 10210 and EN 10219, ISO 9001:2015, Singapore FPC, and third-party verification from SGS and BV. Custom non-standard sizes and cut-to-length processing are available with no restrictive minimum order. Professional container loading plans optimize weight per TEU, and we coordinate FOB, CIF, and DDP shipments to 50+ countries with real-time tracking.
Documentation & Compliance
- Mill test certificate documenting Q235B chemical composition and mechanical properties per GB/T 700, with heat-number traceability for every batch
- CE certificate under EN 10219 for cold-formed welded structural hollow sections, required for EU construction project compliance
- ISO 9001:2015 quality management system certificate covering the full production and inspection process
- SGS or BV third-party inspection report available upon request for projects requiring independent verification
- Full customs documentation package including packing list, bill of lading, and certificate of origin for smooth port clearance
Packaging, Loading & Delivery

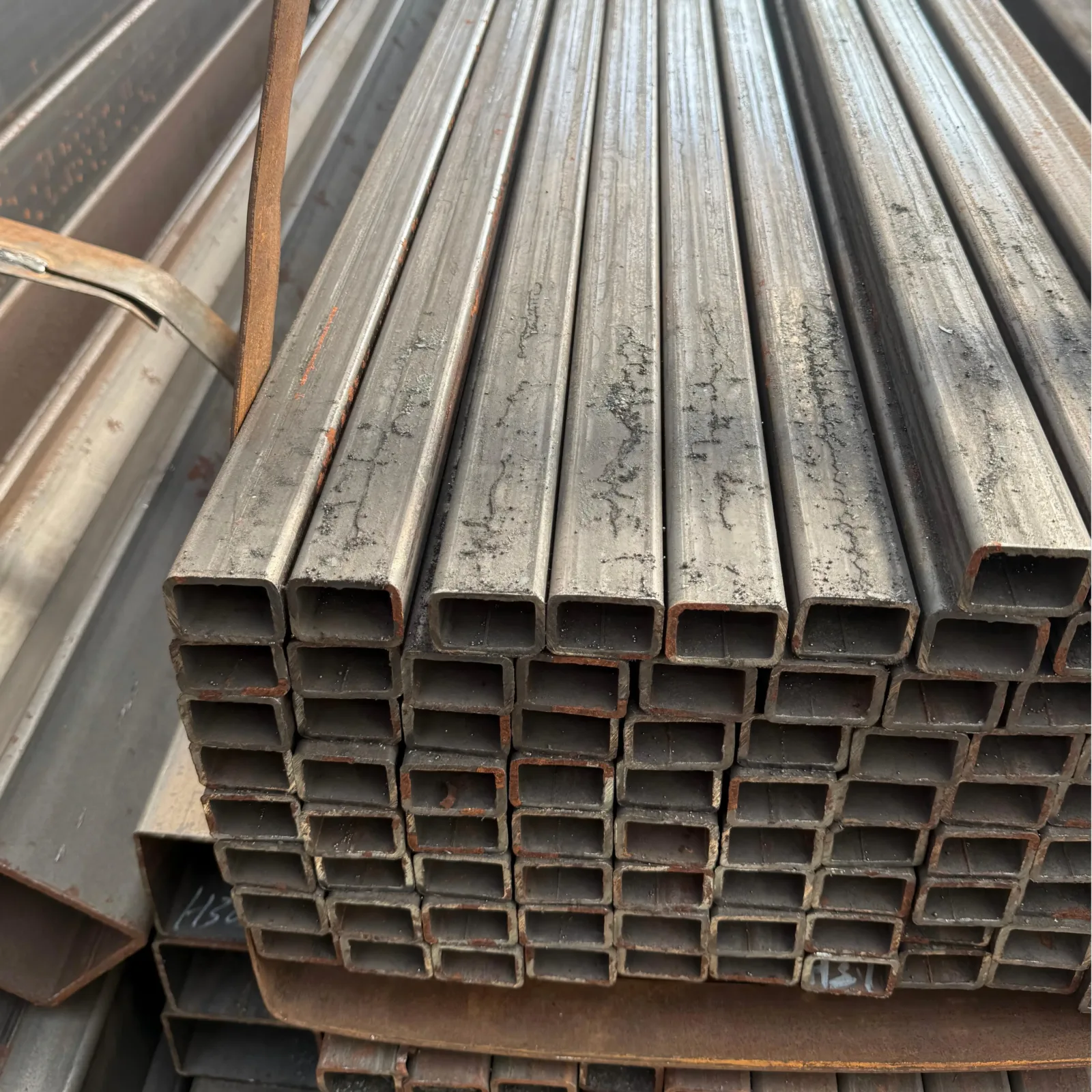

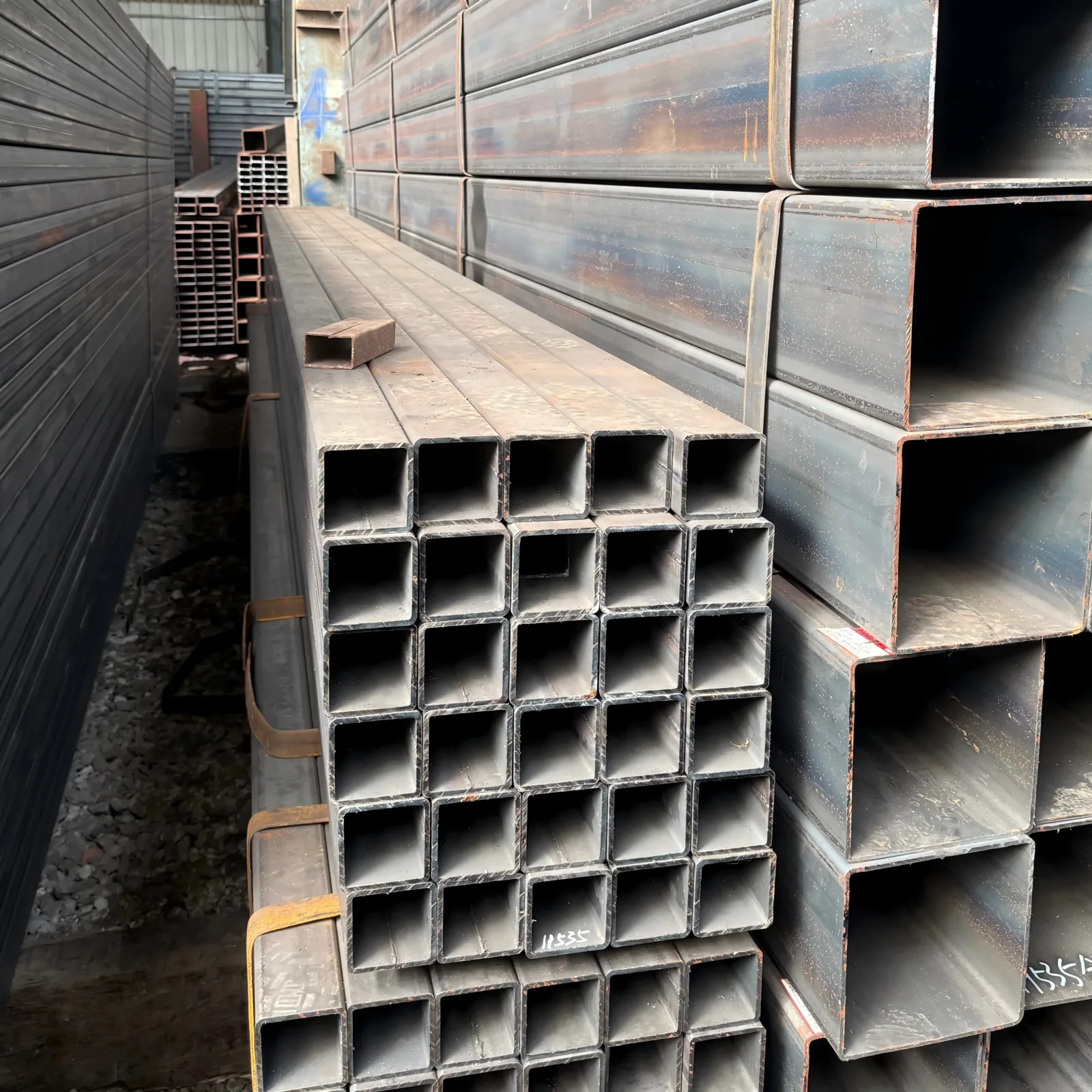

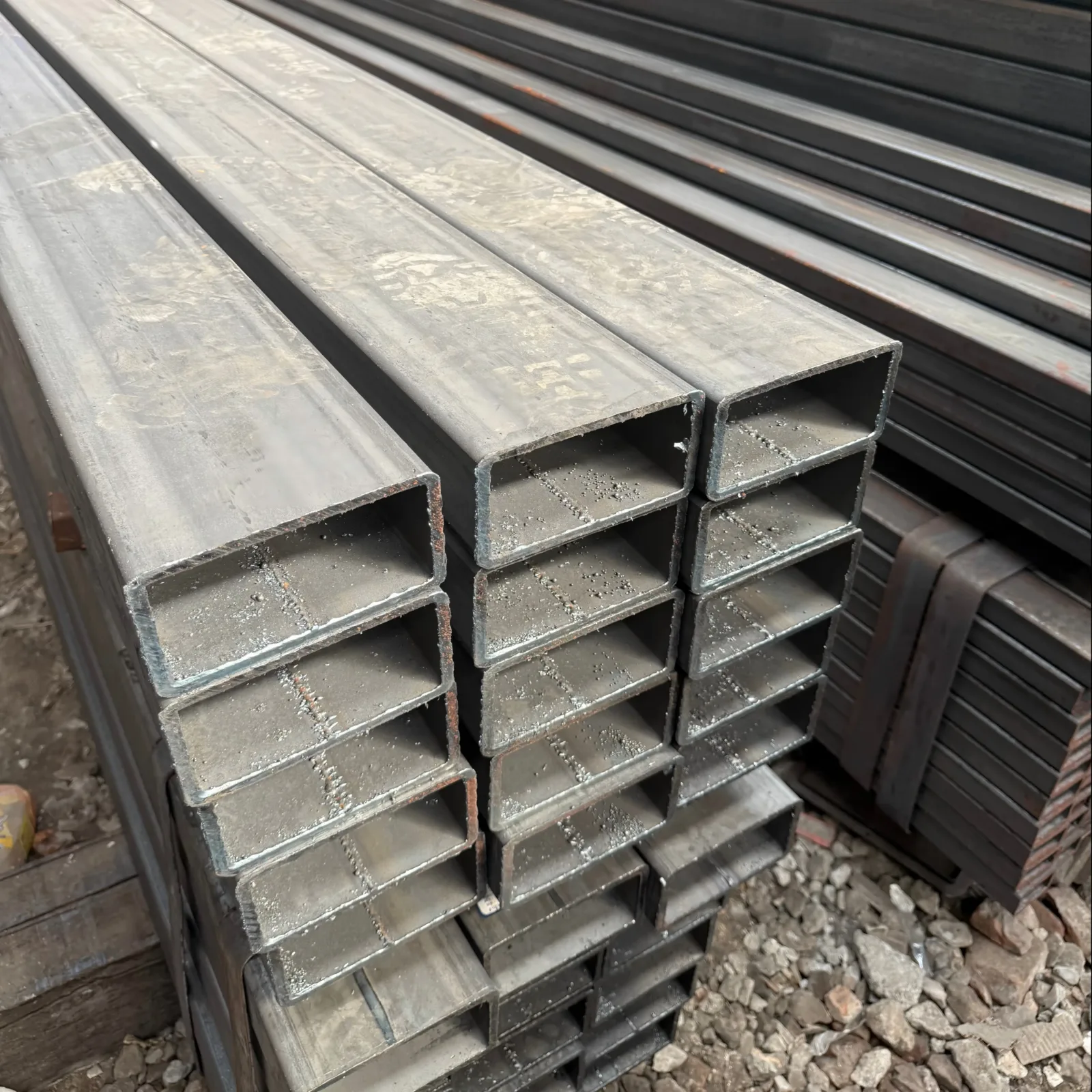

- Cold rolled Q235B ERW square tubes bundled with steel strips and edge protectors to preserve the smooth surface finish during ocean transit
- Non-oiled finish allows direct stacking with interleaving separators, maximizing container payload for standard 20ft and 40ft shipments
- Custom cut-to-length tubes packed in wooden crates or steel-framed bundles to prevent shifting and end damage for lengths exceeding 6 meters
- Each bundle labeled with heat number, steel grade Q235B, section dimensions, and length for on-site identification and traceability
- FOB Jinan/Qingdao, CIF, and DDP logistics options with professional loading plans optimized for square tube dimensional profiles
Ready to Lock In Your Q235B ERW Square Tube Specification
Send your section dimensions, wall thickness, steel grade, total quantity, and destination port — we return a detailed quotation with unit pricing, production lead time, and applicable certification documents within 12 hours. For non-standard sizes or custom cut-to-length requirements, our engineering team provides a feasibility assessment and processing plan before you commit.
Request Your Q235B ERW Square Tube Quote with Mill Test Certificate
Submit your specifications via email at admin@sdxjysteel.com or WhatsApp at +86 188 5315 7756 to receive a detailed quotation and sample mill test certificate.
Shandong Xin Jiyuan Special Steel Tube Co., Ltd
No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
www.sdxjysteel.com
Frequently Asked Questions
Q: Is Q235B equivalent to S235JR or A36 for structural applications?
A: Q235B is chemically and mechanically comparable to S235JR under EN 10025 and A36 under ASTM standards. For general structural frames and scaffolding, these grades are typically interchangeable — the choice depends on which standard your project engineer specified. We supply mill test certificates showing the actual chemical composition so your engineer can confirm equivalence.
Q: How do you verify material authenticity for ERW square tubes?
A: Every Q235B ERW welded square steel tube we produce is tested in our in-house physical and chemical laboratory. We issue original mill test certificates with heat-number traceability covering chemical composition and mechanical properties. Third-party inspection by SGS or BV is available for projects requiring independent verification.
Q: What is the minimum order quantity for custom non-standard sizes?
A: We cover over 2,800 standard specifications and can produce custom non-standard square tube sizes through our dedicated production lines. There is no restrictive minimum order for standard sizes. For custom non-standard dimensions, please send your drawing or specification for a feasibility check and quotation.
Q: What surface treatment options are available for ERW square tubes?
A: Our standard Q235B ERW welded square steel tube comes with a cold rolled, non-oiled finish suitable for direct painting, powder coating, or galvanizing. Hot rolled and galvanized options are also available depending on your corrosion environment and project coating specifications. The cold rolled surface provides tighter dimensional tolerance and a smoother appearance for visible architectural applications.
Q: How does theoretical weight invoicing work with negative tolerance?
A: ERW square tubes are invoiced by theoretical weight calculated from the nominal dimensions and standard density. The actual weight may vary within the allowed tolerance range. We clearly state the tolerance specification (±1%) in our quotation so you can calculate the expected weight range. Our mill test certificates document the actual measured dimensions for every heat.
