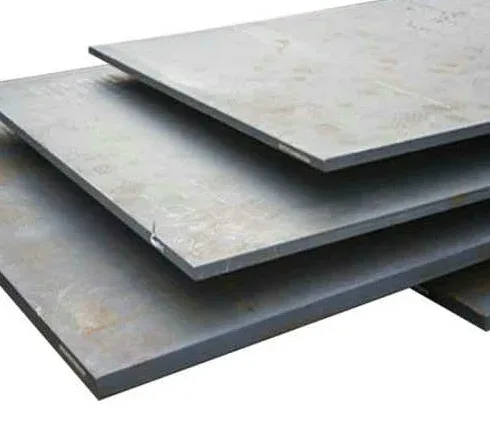

NM500 Wear Resistant Steel Plate 0.2-200mm Factory Direct Supplier

Description

Factory-Direct NM500 Plate — In-house hot rolling and cold rolling lines deliver 0.2mm–200mm thickness without broker markups.

Technical Specifications

Application Suitability

What Thickness Tolerance Costs on a Wear Liner Replacement Order

±1% tolerance on 0.2mm–200mm NM500 plates keeps weld-fit gaps within machining allowance.

When a quarry operator orders 50mm NM500 wear liners for a jaw crusher, even a 2mm overshoot forces on-site grinding that delays reassembly by days. Undersized plates slip out of bolt patterns under impact loading. Buyers who source from traders without in-house rolling control inherit batch-to-batch thickness drift that compounds across multi-plate assemblies. The result is field rework, bolt-hole elongation, and premature liner ejection under cyclic impact. [NEED_CITE: wear plate thickness tolerance impact on bolt-hole alignment in mining equipment]

Matching NM500 Hardness to Impact and Sliding Wear Environments

NM500 plates in the 6mm–60mm range serve sliding-abrasion zones where Brinell hardness resists material loss without catastrophic brittle fracture. For heavy-impact applications such as hammer mill beaters, specifiers pair NM500 backing plates with lower-carbon structural grades like Q345B to absorb shock energy. Hot-rolled surface finish provides adequate paint adhesion for outdoor structural frames, while cold-rolled smooth finish suits pressure vessel cladding where coating uniformity matters. Our in-house laser cutting and bending cells deliver pre-fabricated wear assemblies that bolt directly into chassis frames, eliminating secondary machining at the job site.

Structural Code Compliance and Surface Protection Pathways

Engineering specifications for pressure vessels and shipbuilding require documented traceability from slab heat number through final plate inspection. NM500 plates supplied under GB standard meet domestic wear-resistance classification, while equivalent grades conforming to ASTM or JIS frameworks serve export projects where mill certificates must satisfy port-state surveyors. Hot-rolled plates ship with mill oil to prevent transit corrosion; projects in marine or chemical environments specify additional passivation or shop-primer coating before dispatch. Third-party inspection by SGS or BV verifies chemistry and surface condition before container sealing. [NEED_CITE: NM500 wear plate equivalence mapping between GB and international standards]

Steel Grade Selection and Rolling Process Fundamentals

NM500 designates a through-hardened wear grade where the “500” references Brinell hardness class, achieved by controlled carbon-manganese chemistry and quench-temper heat treatment. This differs fundamentally from structural grades like Q235 or A36, where yield strength—not surface hardness—drives the specification. Hot rolling above recrystallization temperature produces plates in the 6mm–200mm range with as-rolled scale suitable for structural fabrication. Cold rolling below recrystallization point achieves tighter thickness tolerance and smoother finish in the 0.2mm–3mm range for precision forming. The ±1% tolerance band applies across both processes, though cold-rolled plates hold tolerance more consistently at thin gauges. Welding NM500 requires preheat and low-hydrogen electrodes to prevent hydrogen-induced cracking in the heat-affected zone.

Hidden Costs When Wear Plate Chemistry Drifts Off-Grade

Plates labeled NM500 but shipped with sub-spec carbon content fail to achieve target hardness after quench-temper treatment. Field hardness testing reveals soft spots that wear prematurely, forcing unplanned shutdowns for liner replacement. Missing or forged mill test certificates trigger customs holds at destination ports, where surveyors demand original chemistry documentation before release. Negative tolerance abuse—where actual thickness falls below the −1% limit—reduces wear life proportionally while the buyer pays for nominal weight. Engineering acceptance protocols referencing EN or ASTM frameworks reject plates lacking traceable heat numbers tied to certified test reports. [NEED_CITE: consequences of off-chemistry wear plate in mining equipment failure analysis]

Procurement Confidence from Mill to Job Site

Every NM500 Wear Resistant Steel Plate rolls through our dedicated hot-rolling and cold-rolling lines with chemistry verified at each stage by our on-site physical and chemical laboratory. Original mill test certificates document heat number, chemical composition, and mechanical test results before shipment—no trader re-labeling. Our product portfolio spans over 2,800 specifications across square tubes, round pipes, plates, and section steel, so EPC contractors consolidate wear plate, structural beam, and pipe orders under one purchase order with unified documentation. We hold CE certification under EN 10210/10219, ISO 9001:2015 registration, and Singapore FPC approval, with SGS and BV verification available per shipment. Custom non-standard widths, lengths, and pre-cut shapes ship from our Jinan facility to over 50 countries, with professional loading plans optimizing container payload for heavy plate consignments.

Documentation & Compliance

• Mill Test Certificate documenting NM500 chemical composition (C, Mn, Si, Cr, Mo) and Brinell hardness per GB/T 24186
• CE certificate confirming conformity with EN 10210/10219 for structural steel plate applications in EU markets
• ISO 9001:2015 quality management certificate covering hot-rolled and cold-rolled plate production processes
• SGS or BV third-party inspection report verifying surface condition, dimensional tolerance, and hardness testing results
• Full material traceability linking each plate to original slab heat number through rolling and heat-treatment records
• Customs documentation package including packing list, bill of lading, and certificate of origin for destination-port clearance

Packaging, Loading & Delivery

• NM500 plates bundled with galvanized steel straps and edge protectors to prevent coating damage and corner deformation during ocean transit
• Hot-rolled surfaces coated with anti-rust mill oil; cold-rolled smooth-finish plates wrapped in waterproof paper and plastic film to preserve surface quality
• Container loading plans optimized for 2m–5m plate lengths, maximizing 20ft and 40ft payload capacity while maintaining weight distribution for crane handling
• Custom cut-to-length plates packed separately with heat-number stencils on each piece for on-site traceability verification
• FOB, CIF, and DDP shipping terms available from Qingdao port to destination ports across EU, North America, Southeast Asia, Middle East, and Africa
• Door-to-door logistics coordination including inland trucking, port customs clearance, and final delivery to project site or warehouse

Submit Specifications for Hardness-Verified Plate Quotes

Share your required thickness, width, length, steel grade, and destination port to receive a detailed quotation including unit price, production lead time, and applicable certification documents. Our engineering team reviews non-standard size requests and provides cut-to-length or pre-fabricated wear assembly options within typical production lead times.

Request NM500 Plate Quotation with Mill Test Certificate

Send your specifications via email to admin@sdxjysteel.com or contact us at +86 188 5315 7756 (WhatsApp/WeChat available).
