Q235B SS400 ASTM A36 Steel Plate Cutting Services 6-300mm Factory Direct

Description

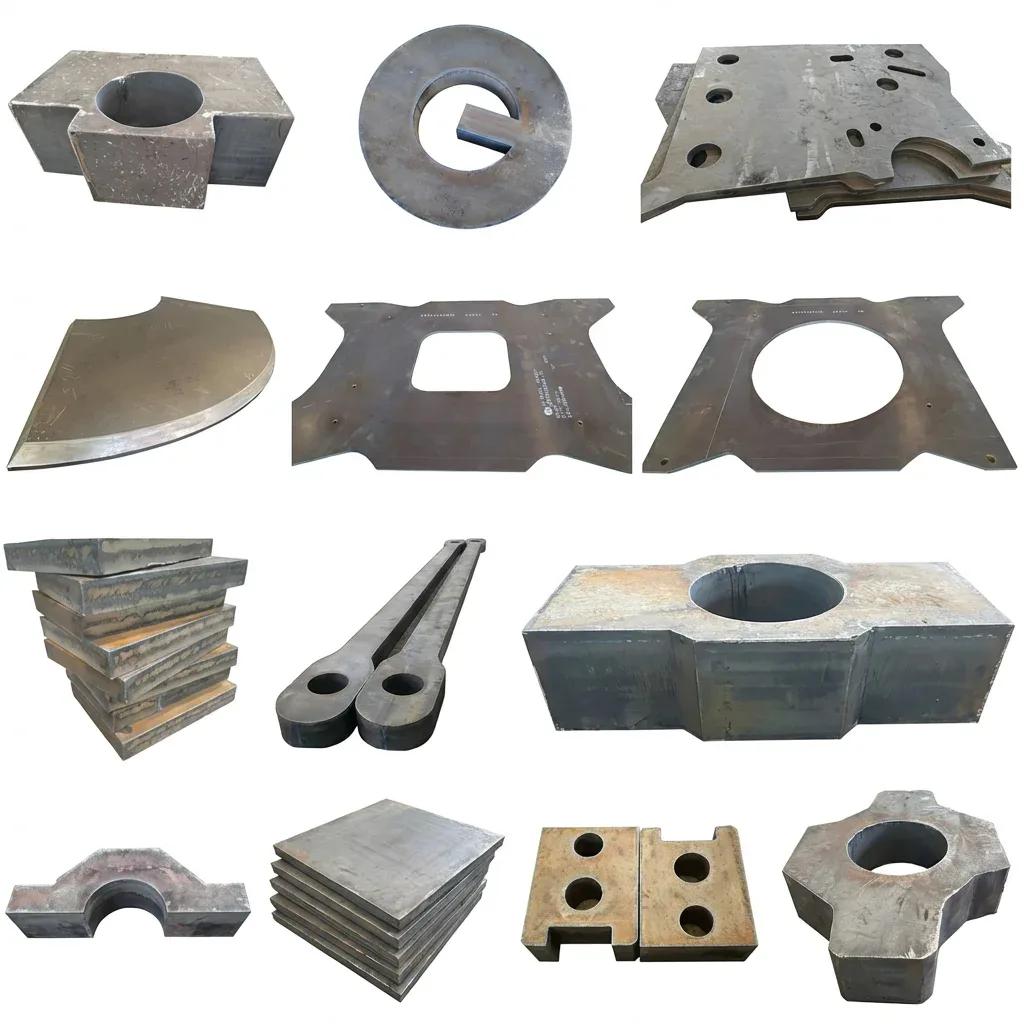

Factory-Direct Plate Cutting — In-house CNC flame, plasma, and fiber laser lines process Q235B through S1100Q plates up to 300 mm without outsourcing to third-party workshops.

Technical Specifications

Application Suitability

Why Tolerance Drift on a 200 mm Plate Costs More Than the Steel Itself

A ±2 mm deviation on a 300 mm S355J2 base plate means re-machining at the job site or scrapping the entire piece.

When EPC contractors receive hot rolled plates cut to drawing, the most common complaint is not surface rust or edge burrs — it is dimensional drift on thick sections. CNC flame cutting on plates beyond 100 mm tends to produce bevel angles that deviate from the vertical, while fiber laser on thin Q235B sheets can shift kerf width with ambient temperature changes. If your fabrication drawings call for M24 anchor bolt holes at precise centers, even a 1.5 mm offset forces on-site reaming or, worse, structural re-welding. Sourcing Custom Hot Rolled Steel Plate Cutting Services from a supplier without in-process verification means you absorb that risk. [NEED_CITE: dimensional tolerance requirements for structural steel fabrication per EN 1090-2]

Matching Cut Profiles to Structural Load Paths

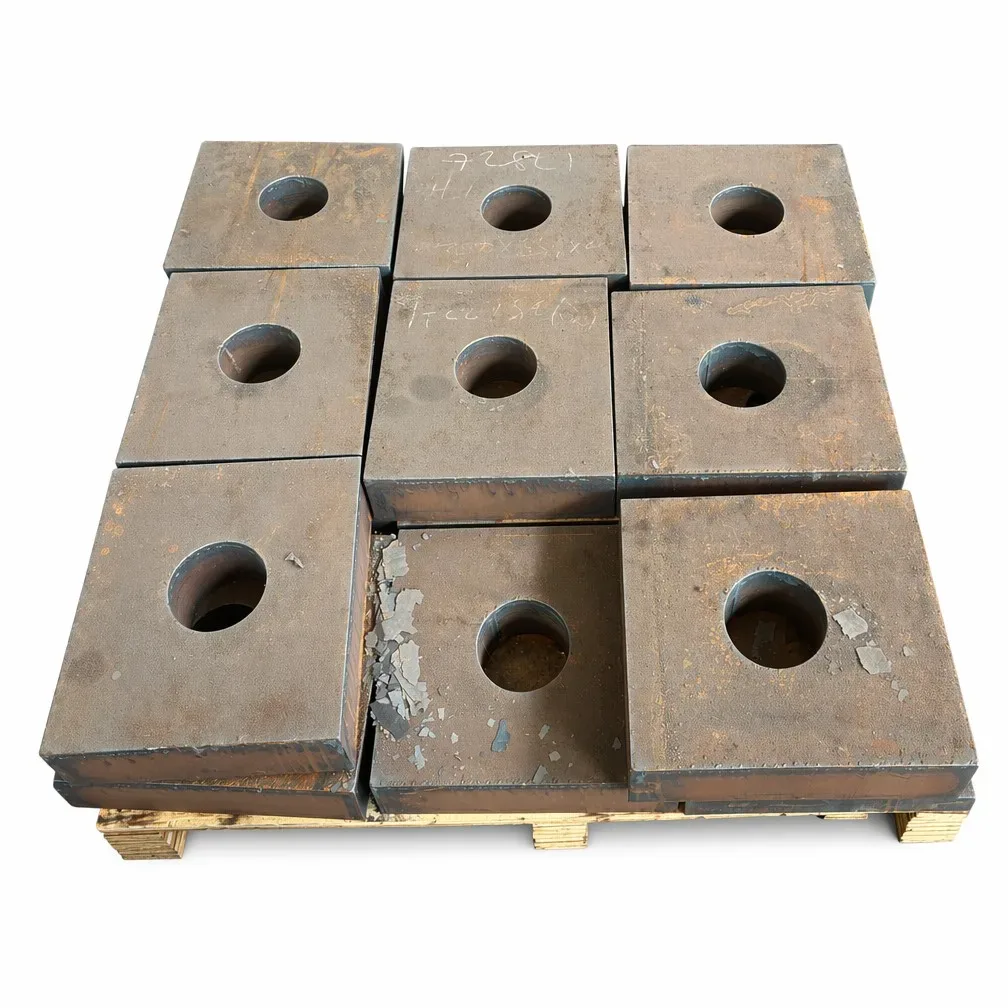

Fabricators building coal mine hydraulic supports need NM400 or NM500 wear plates cut with beveled edges ready for fillet welding — sending them plates that still require secondary beveling adds two weeks to assembly. Our CNC plasma lines handle mid-range thickness (20–80 mm) Q355 and S355J2 plates for conveyor stringers and crane runway beams, holding ±1 mm tolerance so that splice plates bolt up without forcing. For low-temperature spherical tanks in LNG terminals, 12MnNiVR plates must be cut without thermal distortion that compromises impact toughness at minus 40 degrees Celsius; we control heat input by adjusting plasma amperage and cutting speed per thickness, verified against WPS records. Custom Hot Rolled Steel Plate Cutting Services here means the plate arrives drilled, beveled, and shot-blasted to Sa 2.5 — ready to weld, not ready to rework.

Engineering Compliance Across Carbon, High-Strength, and Alloy Grades

Structural frames designed to EN 1993 require S355J2 with confirmed Charpy impact values at minus 20 degrees Celsius; North American projects referencing AISC 360 typically specify ASTM A572 Gr.50 with matching tensile and elongation thresholds. When you order Custom Hot Rolled Steel Plate Cutting Services, the mill test certificate must trace each cut piece back to its parent heat number — otherwise your inspector cannot verify that the S235JR gusset plate on a bridge connection actually conforms to EN 10025-2. For pressure-containing applications such as boiler drums and reactor shells, 14Cr1MoR and 12Cr2Mo1R plates demand ultrasonic testing per EN 10160 Class S1/E1 before any cutting begins. CE marking under EN 10210/10219 is mandatory for structural hollow sections exported to the EU, and the same traceability discipline applies when those sections are fabricated from cut plates. [NEED_CITE: EN 10025-2 hot rolled structural steel grade requirements]

Decoding the Grade Spectrum: From Q235 to S1100Q and Cr-Mo Alloys

Q235 and ASTM A36 are mild carbon steels chosen for general fabrication where weldability matters more than load capacity — they form the bulk of warehouse frames and non-critical brackets. Move up to Q355, S355J2, or ASTM A572 Gr.50 and you gain roughly 50 percent more yield strength, which lets designers reduce plate thickness and cut weight on crane booms and high-rise moment frames. Beyond S355, the high-strength quenched-and-tempered grades — Q550D through S1100Q — serve mobile cranes, mining shovels, and military vehicle hulls where every kilogram saved translates directly into payload. Wear-resistant NM360 through NM600 plates use a martensitic microstructure that resists abrasion from ore, coal, and aggregate; they are flame-cuttable but require preheat above 100 degrees Celsius to avoid hydrogen cracking. Cr-Mo alloy grades like 14Cr1MoR and 12Cr2Mo1R maintain creep strength at elevated temperatures inside refinery reactors and power station boilers; they cannot be cut with standard plasma parameters and demand controlled oxygen-fuel procedures with post-cut heat treatment. Surface finish selection — as-rolled for indoor structural work, shot-blasted and painted for outdoor exposure, galvanized for coastal or chemical environments — is driven by the corrosion category defined in ISO 12944, not by supplier preference. [NEED_CITE: ISO 12944 corrosion protection paint systems for steel structures]

The Hidden Price of Unverified Plate Cutting

Ordering Custom Hot Rolled Steel Plate Cutting Services from a trader who outsources to the nearest workshop often means receiving plates with no heat-number stamping, no mill test certificate, and no record of which parent coil the piece came from. When a customs inspector at a European port asks for EN 10204 3.1 certification on S355J2 plates and the trader cannot produce it, the container sits in bonded storage until the original mill reissues documents — or the cargo is rejected outright. On the fabrication floor, a batch of A572 Gr.50 plates that actually tests as A36 will pass visual inspection but fail the structural engineer’s load calculation during final sign-off, forcing tear-down and re-order. The cost is never just the steel price; it is the delayed project handover, the re-welding labor, and the reputational damage with the end client. [NEED_CITE: EN 10204 inspection document types for metallic products]

Why Procurement Teams Choose Xin Jiyuan for Plate Processing

We operate three dedicated production lines in Jinan with in-house physical and chemical laboratories, so every cut plate is verified against its mill certificate before it leaves the factory — no third-party lab delays, no document gaps. Our CNC flame, plasma, and fiber laser cells process thicknesses from 6 mm to 300 mm across carbon, high-strength, wear-resistant, and Cr-Mo alloy grades in a single facility, eliminating the need to source plates from one vendor and machining from another. We hold ISO 9001:2015 certification, CE marking under EN 10210/10219 for European compliance, and accept SGS or BV third-party inspection on any batch at the buyer’s request. Our engineering team reads DXF, DWG, STEP, and PDF drawings and returns cutting plans with nesting optimization within 24 hours, reducing material waste on large orders. With exports to over 50 countries across the EU, North America, the Middle East, and Southeast Asia, our logistics team plans container loading for heavy plate bundles to maximize payload per TEU and minimize port handling damage.

Documentation & Compliance

• Mill test certificate per EN 10204 3.1 documenting Q355B chemical composition and mechanical properties, traceable to parent heat number
• CE certificate covering EN 10210/10219 compliance for structural steel plates exported to European Union member states
• ISO 9001:2015 quality management certificate covering the full cutting, machining, and inspection process
• SGS or BV third-party inspection report available on request for independent verification of S355J2 or NM400 plate dimensions and surface quality
• Material traceability tag on every cut piece linking back to the original slab heat number and rolling schedule
• Full customs document package including packing list, bill of lading, and certificate of origin for destination-country clearance

Packaging, Loading & Delivery

• Heavy plates (over 20 mm) bundled with high-tensile steel straps and timber dunnage to prevent shifting during ocean transit; edges protected with angle steel to preserve cut tolerances
• Shot-blasted and painted Q355/S355 plates wrapped in waterproof kraft paper and plastic film to prevent coating damage and moisture ingress during container shipping
• Thin-gauge laser-cut parts (6–12 mm) stacked on wooden pallets with interleaving foam sheets to avoid surface scratching and edge deformation
• Container loading plans optimized for 20-foot and 40-foot open-top units when plate length exceeds standard dry-van door height, with weight distribution calculated to meet port crane lifting limits
• Each bundle tagged with heat number, steel grade (e.g., NM500), thickness, and piece count for immediate yard identification at destination
• FOB, CIF, and DDP shipping terms available with door-to-door logistics coordination to project sites in the Middle East, Southeast Asia, and South America

Getting Your Plate Cutting Quote Moving

Submit your drawing files (DXF, DWG, STEP, or PDF) along with steel grade, thickness, quantity, and destination port, and our engineering team returns a detailed quotation with nesting layout, lead time, and applicable mill test certificate scope within 12 hours. For non-standard thickness or alloy grades outside the common range, we confirm availability and alternative sourcing options before you commit.

Start Your Custom Plate Cutting Inquiry

Send your specifications and drawings to receive a quotation with mill test certificates and delivery schedule.

Mobile / WhatsApp / WeChat: +86 188 5315 7756

Email: admin@sdxjysteel.com

Frequently Asked Questions

Q: What steel grades can you cut and machine?

A: We process carbon steels (Q235, Q355, ASTM A36, A572 Gr.50, S235JR, S355J2, SS400), high-strength quenched-and-tempered grades (Q550D through S1100Q), wear-resistant plates (NM360 through NM600), and Cr-Mo alloy steels for pressure applications (14Cr1MoR, 12Cr2Mo1R, 07MnCrMoVR).

Q: What drawing formats do you accept for custom cutting?

A: We accept DXF, DWG, STEP, and PDF files. Our engineering team reviews each drawing for cuttability and returns a nesting plan with material utilization rates before production begins.

Q: What thickness range and tolerance can you hold?

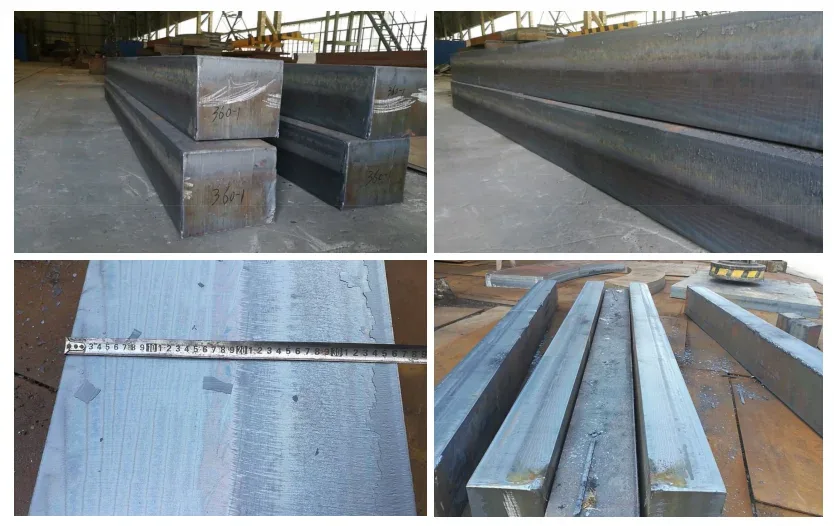

A: CNC flame cutting handles plates from 30 mm to 300 mm; high-definition plasma covers 10 mm to 80 mm; fiber laser provides the tightest tolerance (±0.5 mm) on plates from 6 mm to 25 mm. Tolerance varies by process and thickness, confirmed in the quotation.

Q: Do you provide mill test certificates and third-party inspection?

A: Yes. Every batch ships with an original mill test certificate per EN 10204 3.1 showing chemical composition and mechanical properties. SGS and BV third-party inspection is available on request for independent verification.

Q: What secondary machining and surface treatment services are included?

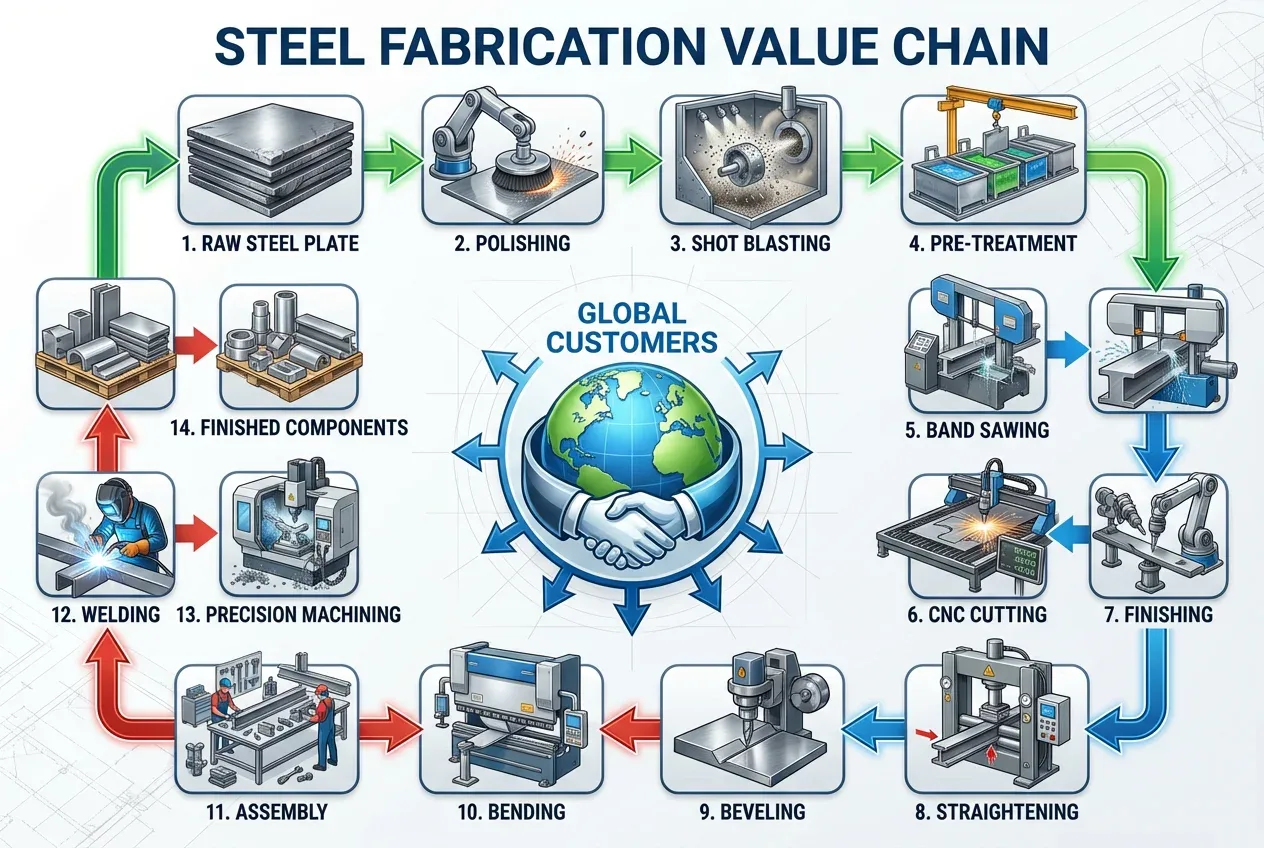

A: Beyond cutting, we offer drilling, milling, tapping, beveling, grinding, bending, welding, and assembly. Surface treatments include shot blasting, painting, oiling, and galvanizing, selected based on the end-use environment and corrosion protection requirements.
