Description
Factory-direct JCOE LSAW pipe — every heat tested in our in-house lab before container sealing.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | JCOE Longitudinal Submerged Arc Welded Steel Pipe |
| Product Type | JCOE Steel Pipe (Longitudinal Submerged Arc Welded) |
| Steel Grade | Q195, Q215A, Q215B, Q235A, Q235B, Q345A, Q345B, 10#, 20#, 45#, 16Mn, A53-A369, ST35-ST52, P195TR1, P235TR1, P265TR1, P195TR2, P235TR2, P265TR2, P235GH, P265GH, S235JR, S275J0, S275J2, S355J0, S355J2, S355KJ2 |
| Standard | GB/T 9711, API 5L (PSL1/PSL2), ISO 3183, ASTM A252, EN 10217-1, EN 10217-5, EN 10219-1/2, SY/T 5037, SY/T 5040 |
| Section Shape | Round |
| Size Range | OD 219mm–3000mm |
| Wall Thickness | 5.2mm–30mm |
| Length | 6m / 12m (or as required) |
| Technique | JCOE (Longitudinal Submerged Arc Welded) |
| Surface Treatment | 3PE / FBE / Hot Rolled / Oiled / Black |
| Tolerance | ±1% |
| Ends | Plain / Beveled |
| Application | Fluid transport / Oil & natural gas pipelines / Industrial and civil construction / Water supply / Structural piling |
| Invoicing | By Theoretical Weight |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas EPC | Transmission pipelines, gathering lines, offshore platform piling |
| Municipal Infrastructure | Water supply mains, drainage networks, bridge foundation piling |
| Industrial Construction | Plant pipe racks, structural columns, conveyor support frames |
| Civil Engineering | High-rise building cores, stadium roof trusses, airport terminal structures |
Where Wall-Thickness Tolerance Decides Project Acceptance on Large-Diameter Pipe
A ±1% tolerance on a 30mm wall, 2000mm OD JCOE LSAW steel pipe means the difference between passing ultrasonic inspection and full lot rejection.
I once watched a 24-inch LSAW lot get held at Dubai port because the mill cert said 12.7mm nominal but actual wall ran 11.9mm — outside EN 10217 negative deviation limits. The contractor lost three weeks and paid air-freight for replacement spools. On large-diameter JCOE LSAW steel pipe, wall thickness isn’t just a number on paper; it governs hydrostatic test pressure, weld integrity under field bending, and long-term corrosion allowance. When your supplier invoices by theoretical weight but ships under-tolerance pipe, you pay for steel you never receive [NEED_CITE: EN 10217 dimensional tolerance requirements for welded steel pipes].
Matching JCOE Pipe to High-Pressure Transmission and Piling Environments

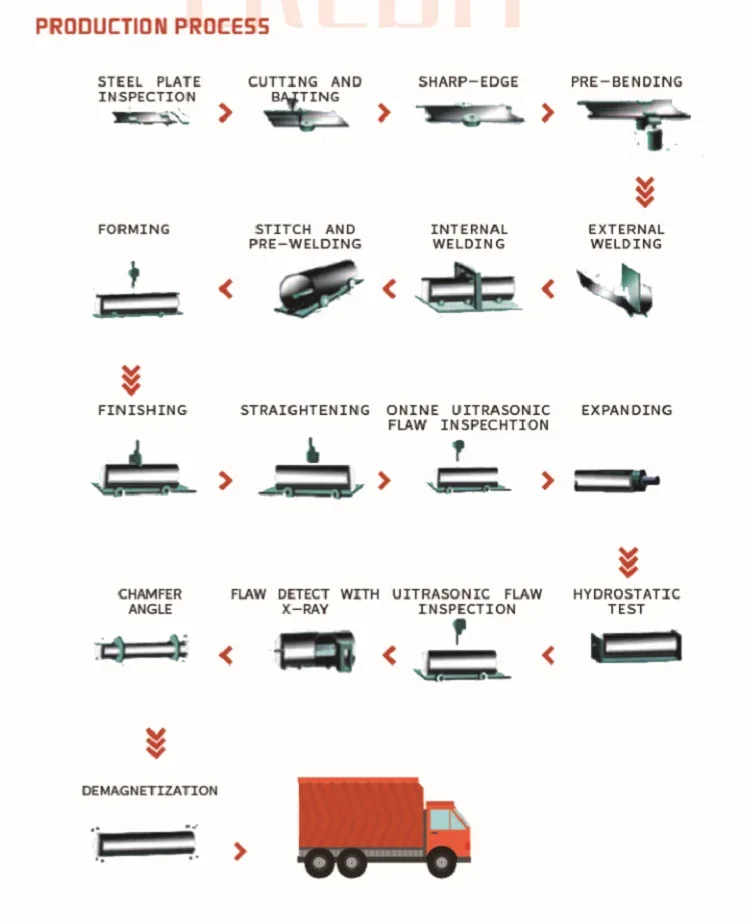

JCOE LSAW steel pipe in OD 219–3000mm covers the full spectrum from municipal water mains to API 5L PSL2 transmission lines. The JCOE forming process — progressive die pressing followed by submerged arc welding — delivers consistent roundness on thick-wall sections where SSAW spiral weld geometry creates stress concentration at the helix. For structural piling in marine environments, Q345B or S355J2 grades with 3PE anti-corrosion coating resist soil-side electrochemical attack while maintaining load-bearing capacity through 30mm wall sections. Our production lines run 2,800+ specification combinations, so a single purchase order can cover both line pipe and structural piling without splitting vendors.
Engineering Compliance Across EN, API, and ASTM Frameworks
JCOE LSAW steel pipe manufactured to EN 10217-1/5 or EN 10219-1/2 meets EU structural design codes including EN 1993-1-1 for hollow sections, while API 5L PSL2 compliance satisfies oil & gas transmission specifications requiring Charpy impact testing at sub-zero temperatures. For North American projects, ASTM A252 piling grade or A53 structural grade pipes ship with CE marking where dual-certification is specified. The ±1% wall thickness tolerance ensures compliance across all three standard systems without requiring separate production runs. Third-party inspection by SGS or BV before shipment provides independent verification for projects demanding EN 10204 3.2 certificates [NEED_CITE: API 5L PSL2 Charpy impact testing requirements].
Steel Grade Selection and JCOE Welding Metallurgy
Carbon steel grades from Q235B through S355KJ2 represent increasing yield strength tiers — Q235B suits low-pressure water conveyance, while S355J2 delivers higher load capacity for structural frames with guaranteed -20°C impact toughness. The JCOE submerged arc welding process uses dual-wire internal and external welding passes, producing full-penetration welds with coarse-grain heat-affected zones normalized through post-weld heat treatment. This metallurgical control matters when field welding continues at construction sites — preheat requirements and interpass temperature limits depend on carbon equivalent values that vary between P265GH pressure vessel grade and S275J0 structural grade. Surface treatment selection follows service environment: FBE epoxy for buried pipelines resisting cathodic disbondment, 3PE for aggressive soil conditions, and oiled finish for temporary protection during fabrication.
Hidden Costs When Mill Certificates Don’t Match Physical Pipe
Ordering JCOE LSAW steel pipe based solely on price per ton invites three failure modes: material substitution where Q345B arrives as Q235A with lower yield strength, negative tolerance stacking where 30mm nominal wall measures 27mm actual, and certificate forgery where MTC heat numbers don’t match pipe stenciling. Each failure triggers re-inspection costs, project delay penalties, and in structural applications, potential safety review by building authorities. EN 10219 cold-formed hollow sections require full traceability from slab to finished pipe — without heat-number marking on every length, customs officials in EU ports can reject entire shipments regardless of paper documentation [NEED_CITE: EN 10219 traceability and marking requirements].
Procurement Confidence Through Vertical Integration
Our JCOE LSAW steel pipe production runs on three dedicated lines with in-house physical and chemical laboratories performing tensile testing, Charpy impact, hydrostatic proof, and ultrasonic weld inspection before any pipe leaves the mill. Every heat receives individual MTC documentation with chemical composition and mechanical properties traceable to raw material certificates. We hold CE certification under EN 10210/10219 for EU market access, ISO 9001:2015 quality management, and Singapore FPC approval for Southeast Asian infrastructure projects. Factory-direct pricing eliminates trading company margins while our professional export team handles customs documentation, container loading optimization, and door-to-door logistics coordination to 50+ countries.
Documentation & Compliance
- Mill Test Certificate documenting Q345B chemical composition and yield strength per GB/T 1591, or S355J2 properties per EN 10219-1
- CE certificate confirming EN 10217-5 compliance for pressure applications or EN 10219-2 for structural hollow sections
- ISO 9001:2015 quality management system certificate covering JCOE forming and submerged arc welding processes
- SGS or BV third-party inspection report verifying wall thickness tolerance and ultrasonic weld examination results
- Material traceability report linking each pipe heat number to original slab test certificates and production records
- Customs documentation package including packing list, bill of lading, and certificate of origin for destination port clearance
Packaging, Loading & Delivery

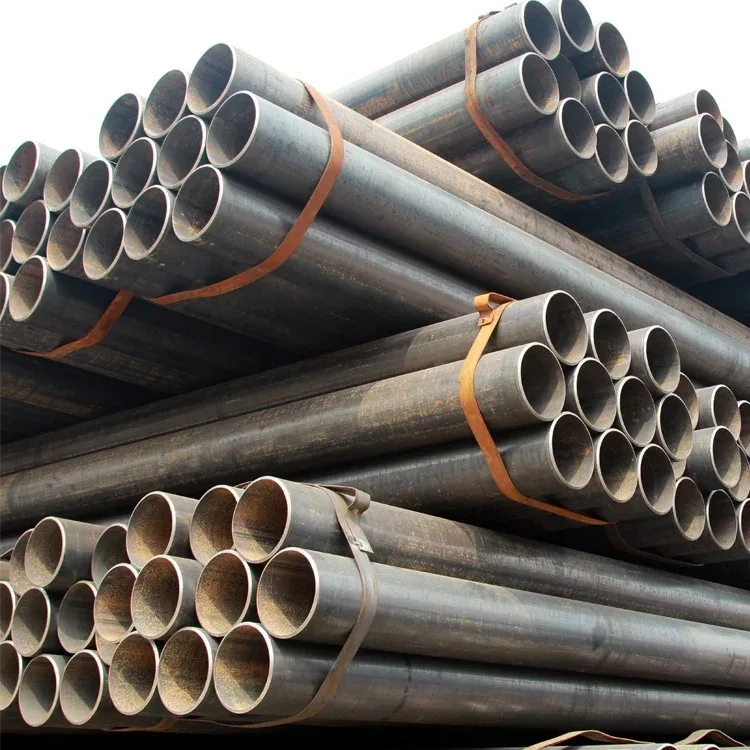

- JCOE LSAW steel pipe bundled with galvanized steel strips at 1.5m intervals, with end caps protecting beveled edges during ocean transit

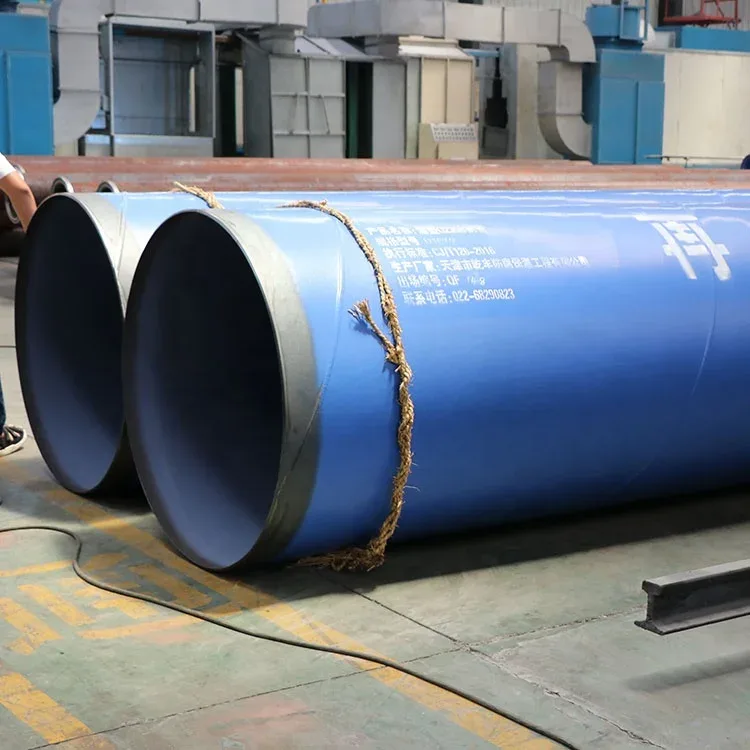

- 3PE coated pipes wrapped with PE film and separated by rubber spacers to prevent coating damage from bundle movement
- Container loading plans optimized for 12m length pipes in 40ft OT containers, maximizing payload while maintaining weight distribution for crane handling at destination
- Custom cutting to 6m or project-specific lengths available, with cut ends deburred and re-protected against corrosion
- Heat number and steel grade stenciled on every pipe end in weather-resistant paint for site identification and traceability verification
- FOB, CIF, or DDP shipping terms with real-time container tracking and port coordination for oversized cargo handling
Getting Your JCOE LSAW Steel Pipe Quote Started
Submit your specification sheet including OD, wall thickness, length, steel grade, quantity, and destination port — we return detailed pricing with delivery timeline and applicable certification documentation within 12 hours. For non-standard sizes outside catalog ranges, our engineering team provides custom manufacturing feasibility assessment and lead time confirmation. Request sample pipe sections and original mill test certificates before contract signing to verify material compliance with your project specifications.
Frequently Asked Questions
Q: What is the difference between API 5L PSL1 and PSL2 for JCOE LSAW steel pipe?
A: API 5L PSL1 requires basic chemical composition and tensile testing, while PSL2 adds mandatory Charpy impact testing, stricter chemical composition limits on carbon and sulfur, and 100% ultrasonic weld examination. PSL2 specification is required for sour service environments and offshore applications where brittle fracture resistance is critical.
Q: Can you provide EN 10204 3.2 certificates for EU projects?
A: Yes, we provide EN 10204 3.2 certificates issued by independent third-party inspection agencies such as SGS or BV, witnessing material testing and verifying chemical composition and mechanical properties against EN 10217 or EN 10219 standards.
Q: What surface treatment is recommended for buried JCOE LSAW steel pipe?
A: For buried pipelines, 3PE (three-layer polyethylene) coating provides superior resistance to soil stress, moisture penetration, and cathodic disbondment compared to FBE epoxy alone. The 3PE system combines FBE primer, copolymer adhesive, and PE outer layer for mechanical protection during backfilling.
Q: How do you ensure wall thickness tolerance on large-diameter pipe?
A: Our JCOE production lines use ultrasonic thickness gauging at multiple points around the pipe circumference and along the length, with real-time feedback to forming presses. Final inspection includes 100% ultrasonic measurement with results documented in mill test certificates, ensuring ±1% tolerance compliance.
Q: What is your typical production lead time for JCOE LSAW steel pipe?
A: Standard specifications in stock steel grades ship within typical production lead times, while custom sizes or special coating requirements follow confirmed manufacturing schedules. We provide exact delivery dates in our quotation based on current mill capacity and coating line availability.
