Description

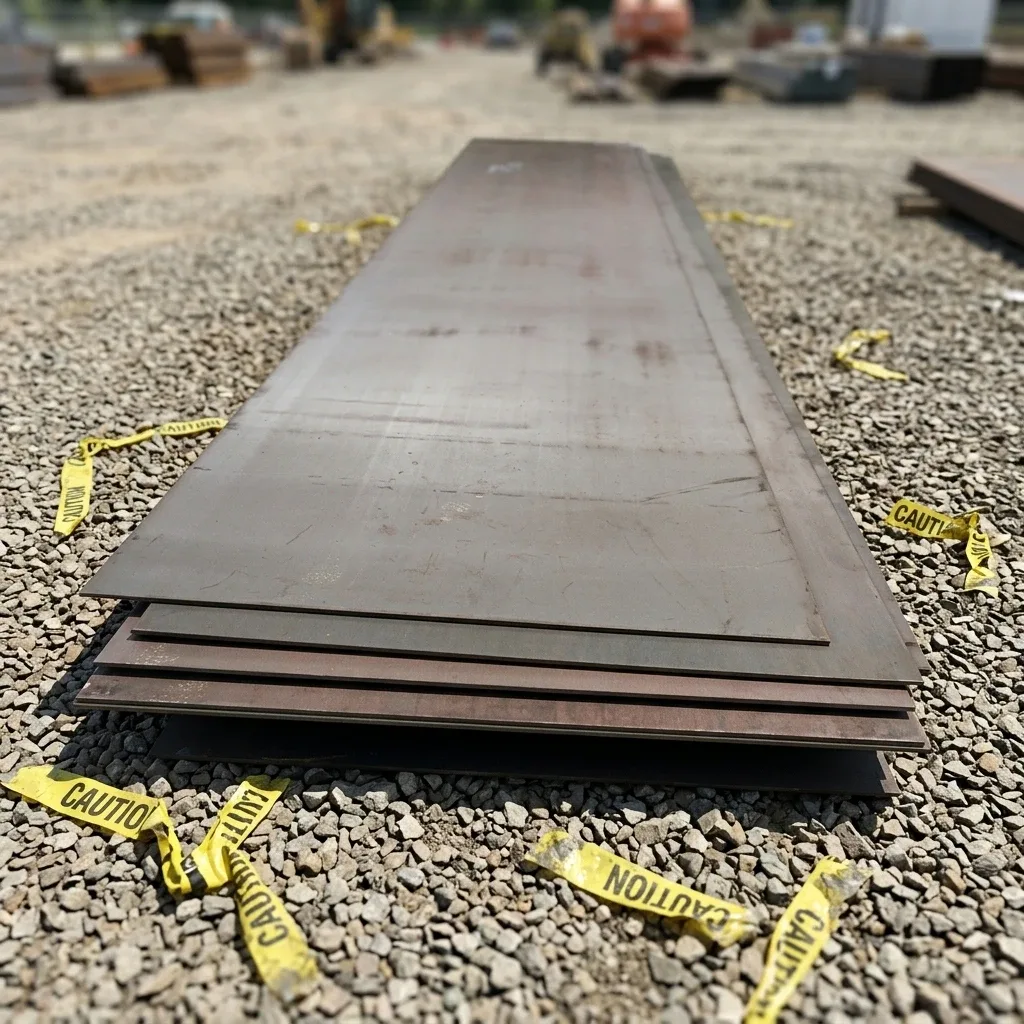

Factory-Direct Hot Rolled Plates — Each batch verified in our in-house physical and chemical laboratory before shipment, eliminating middleman markups on ASTM A36 and Q235 steel plates.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235/Q275/20#/ASTM A36 Hot Rolled Steel Plate |
| Product Type | Steel Plate |
| Steel Grade | ASTM A36, Q235, Q255, Q275, 20# |
| Standard | ASTM, DIN, JIS |
| Thickness | 3-200mm |
| Technique | Hot Rolled |
| Surface Treatment | Hot Rolled |
| Processing | Welding, Cutting, Bending |
| Application | Fabrication, Structural steel, Pressure vessels, Shipbuilding, Machinery manufacturing, Construction |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Contractors | Industrial plant frames, pipeline support structures, equipment foundations |
| Construction Companies | High-rise building core columns, bridge deck stiffeners, concrete formwork panels |
| Machinery Manufacturers | Crane boom side plates, conveyor frame gussets, hydraulic press base plates |
| Shipbuilding | Hull stiffening webs, deck plating, bulkhead framing |
Why Thickness Tolerance Decides Whether Your Structural Frame Passes Inspection
A plate that measures 19.2mm instead of the specified 20mm can void an entire load-bearing calculation.
When sourcing an ASTM A36 Q235 hot rolled steel plate supplier, buyers frequently encounter inconsistent thickness across sheets from the same heat number. The rolling mill’s finishing stand temperature and reduction ratio directly affect the final gauge, and without in-process gauge monitoring, plates can drift below nominal tolerance. I have seen project inspectors reject full container loads because ultrasonic thickness readings fell outside the allowable deviation band — even though the chemical composition was perfectly within spec. This is not a material failure; it is a process control failure that costs weeks of delay and replacement freight. [NEED_CITE: hot rolled steel plate thickness tolerance standards per ASTM A6]
Matching Plate Grades to Structural Load Paths
Every structural frame distributes forces through specific load paths, and the plate grade must align with the stress regime at each node. For primary beam-to-column connections in industrial buildings, Q275 or ASTM A36 plates provide adequate yield capacity for welded moment connections. When the same ASTM A36 Q235 hot rolled steel plate supplier delivers material for pressure vessel end caps, the 20# grade offers the carbon content balance needed for post-weld heat treatment without cracking. Our production lines roll these grades across the full 3-200mm range, so EPC contractors can consolidate structural plates, machinery base plates, and vessel components into a single purchase order rather than coordinating three separate mills.
Engineering Compliance Across Destination Markets
Structural steel plates entering the European Union must carry CE marking under EN 10210 or equivalent fabrication standards, while North American projects reference ASTM A36 and AISC design guides. An ASTM A36 Q235 hot rolled steel plate supplier serving both markets needs to issue mill test certificates that map chemical composition and mechanical results to the correct standard framework — a Q235B plate cannot simply be relabeled as S235JR without verified equivalence testing. [NEED_CITE: steel grade equivalence mapping between GB/T 700 and EN 10025] Customs authorities in Southeast Asia and the Middle East increasingly require third-party inspection stamps from SGS or BV alongside the original MTC, and missing documentation can hold a shipment at port for weeks. We produce plates to ASTM, DIN, and JIS standards from the same facility, with certification packages prepared for the destination market before the container is sealed.
Hot Rolling Process and Grade Selection Logic
Hot rolling above the recrystallization temperature produces a normalized microstructure that balances formability with strength — this is why ASTM A36 Q235 hot rolled steel plate supplier shipments dominate structural and fabrication work worldwide. The Q-series grades (Q235, Q255, Q275) follow the Chinese GB/T 700 system where the number indicates minimum yield strength in MPa, making Q275 a step up in load capacity from Q235 for heavier frame members. The 20# grade is a low-carbon manganese steel favored for machined components and pressure applications because its carbon content supports clean welding and post-weld treatment. ASTM A36 remains the default structural plate grade in North American specifications, with chemistry and tensile requirements that overlap significantly with Q235B but differ in elongation and copper content for atmospheric corrosion resistance. Hot rolled surface finish provides a mill scale layer that offers baseline corrosion protection during storage and transit, though projects in marine or chemical environments typically specify further surface treatment after delivery.
The Hidden Cost of Accepting Unverified Mill Certificates
Purchasing from an ASTM A36 Q235 hot rolled steel plate supplier who issues generic certificates — rather than heat-specific test reports — transfers all material risk to the buyer. When a plate fails ultrasonic examination at the fabrication shop, the cost is not just the replacement material; it includes crane downtime, welder idle time, and potential redesign if the substitute grade is unavailable. Projects in the EU that receive plates without proper CE documentation face customs holds that can exceed typical production lead times, and re-exporting or destroying non-compliant material adds freight and disposal costs on top. [NEED_CITE: consequences of non-compliant steel plate documentation in EU construction projects]
Procurement Confidence Backed by Production Control
We operate three dedicated production lines with in-house physical and chemical laboratories that test every heat before the plates leave the facility. Our 41 invention patents include proprietary processes that improve surface quality and dimensional accuracy across the full 3-200mm thickness range. As an ASTM A36 Q235 hot rolled steel plate supplier with ISO 9001:2015 certification and Lloyd’s Register EU CE approval, we provide complete documentation packages — including SGS and BV third-party inspection reports — with every shipment. We have exported to over 50 countries across the EU, North America, India, Southeast Asia, and the Middle East, and our professional loading team optimizes container weight distribution for plates in the 3-200mm range to minimize freight cost per ton.
Documentation & Compliance
- Mill Test Certificate documenting Q235B chemical composition (C, Mn, Si, S, P) and yield/tensile strength per GB/T 700 for each heat number
- CE certificate confirming conformity with EN 10210 structural steel requirements for plates shipped to European Union member states
- ISO 9001:2015 quality management system certificate covering the full hot rolling and inspection process
- SGS or BV third-party inspection report verifying dimensional tolerance and surface condition before container sealing
- Material traceability report linking each plate to its heat number, rolling schedule, and laboratory test results
- Customs documentation package including packing list, bill of lading, and certificate of origin formatted for destination port requirements
Packaging, Loading & Delivery
- Hot rolled steel plates bundled with high-tensile steel strips at intervals matched to the 3-200mm thickness range, preventing shift during ocean transit
- Mill scale surface protected by anti-rust oil coating on Q235 and 20# grade plates to prevent moisture-induced staining during container shipping
- Container loading plans optimized for plate dimensions, with heavy 200mm plates loaded at the bottom and thinner 3-10mm sheets separated by timber dunnage to prevent edge damage
- Custom cutting to project-specified lengths available before shipment, reducing on-site waste and secondary cutting costs for EPC contractors
- Each plate marked with heat number, steel grade (ASTM A36 / Q235 / Q275 / 20#), and thickness for immediate identification at the fabrication yard
- Shipping terms available as FOB, CIF, or DDP with door-to-door logistics coordination to project sites in over 50 countries
Submit Your Plate Specifications for a Detailed Quote
Send your required thickness, width, length, steel grade, and destination port to receive a quotation with full mill test certificate preview and estimated production schedule. Our team responds within 12 hours with pricing, certification details, and container loading recommendations for your ASTM A36 Q235 hot rolled steel plate order.
Get Your Hot Rolled Steel Plate Quote with Mill Test Certificate
Share your specifications, quantity, and destination to receive a detailed quotation and sample MTC within 12 hours.
