Description
Factory-Direct API 5L & ASME A53 Pipe — Every heat of steel is tested in our in-house physical and chemical laboratory before it leaves the mill, so your pipeline contractor never faces a rejected batch at the port.
Technical Specifications
| Parameter | Value |
|---|---|

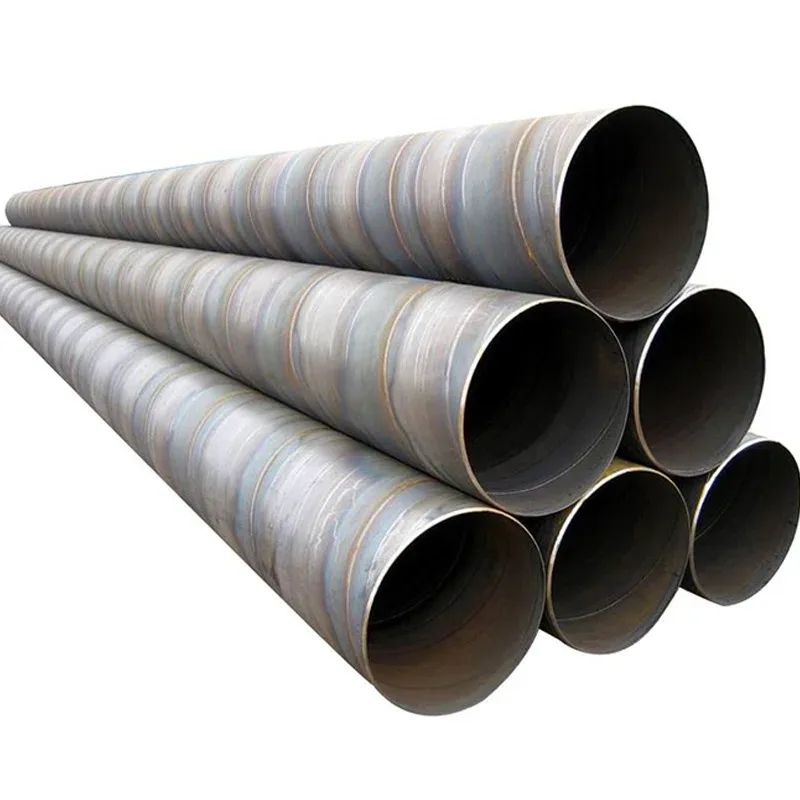

| Designation | API 5L / ASME A53 ERW Spiral Weld Carbon Steel Pipe |
| Product Type | ERW / Spiral Welded Round Steel Pipe |
| Steel Grade | Q195, Q235, Q335, API 5L Grades (A/B/X42/X52/X60), ASME A53 Gr. A/B |
| Standard | ASME A53, API 5L, GB |
| Section Shape | Round |
| Outer Diameter | 159 mm – 3200 mm |
| Wall Thickness | 0.3 mm – 16 mm |
| Length | 5.8 m – 11.8 m (or as required) |
| Technique | SSAW / ERW Welding |
| Surface Treatment | Hot Rolled / Antiseptical Coating |
| External Coating | FBE / 2PE / 3PE / 3PP |
| Pipe Ends | Plain End / Beveled End / Threaded and Coupled / PVC Covered with Caps |
| Tolerance | ±1% |
| Invoicing | By Theoretical Weight |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas EPC | Onshore and offshore crude oil trunk lines, natural gas gathering pipelines, refinery process piping |
| Municipal Infrastructure | Urban heat-supply networks, potable water transmission mains, storm-water drainage systems |
| Power & Chemical | Cooling water circulating pipes in thermal plants, chemical feedstock conveyance lines |
| Civil Construction | Bridge piling, foundation bored-pile casings, structural support columns |
What Negative Wall Tolerance Costs on a Pipeline Order
A pipe that measures minus 12% on wall thickness will fail third-party inspection at the discharge port — and the replacement freight bill lands on your ledger.
On a Middle East oil pipeline project I worked early in my career, a batch of API 5L B ERW pipes arrived at Jebel Ali with wall thickness running well past the allowable negative tolerance. The client’s inspector flagged the entire lot. Two containers were rejected, pulled back to the yard, re-measured pipe by pipe, and we had to air-freight replacements at our own cost. Pipeline steel does not forgive sloppy QC. When you source an API 5L ASME A53 ERW Spiral Weld Carbon Steel Pipe from a supplier without an in-house lab, you inherit that risk — inconsistent material properties, unclear grade traceability, and no independent verification before the container is sealed. [NEED_CITE: API 5L dimensional tolerance requirements for line pipe]
Matching Pipe Dimensions to Pipeline and Piling Engineering
An API 5L ASME A53 ERW Spiral Weld Carbon Steel Pipe covering OD 159 mm to 3200 mm and wall thickness from 0.3 mm to 16 mm addresses the full spectrum from small-bore gas distribution lines to large-diameter piling casings. The ±1% dimensional tolerance ensures that field welding crews working to API 1104 standards receive consistent bevel geometry, while the availability of plain, beveled, threaded-and-coupled, and PVC-capped ends lets procurement teams match connection methods to site conditions without ordering from multiple vendors. Our 2,800+ specification range means non-standard OD and WT combinations can be produced on dedicated lines rather than forcing designers to round to catalog sizes.
Engineering Compliance Across Pressure and Corrosion Environments
Pipeline projects governed by ASME B31.3 or B31.4 require documented compliance with the specified grade’s chemical and mechanical envelope. For offshore or buried service, selecting the correct external coating — FBE for single-layer high-temperature resistance, 3PE for mechanical protection in rocky backfill, or 3PP for elevated operating temperatures — directly determines service life. [NEED_CITE: coating selection criteria for buried steel pipelines per ISO 21809] Steel grade selection from Q195 for low-pressure drainage up to API 5L X60 for high-pressure transmission lines must align with the design pressure and corrosion allowance calculated by the EPC engineer. CE certification under EN 10210/10219 is mandatory for shipments entering the EU, while API 5L and ASME A53 markings satisfy North American and Middle Eastern customs and project acceptance requirements.
Understanding Grade Designations and Welding Processes
The API 5L grade system — from Grade A and B through X42, X52, and X60 — designates minimum yield strength in ksi, with higher numbers indicating greater resistance to internal pressure and external loading. ASME A53 Gr. A and B serve general mechanical and low-pressure fluid applications, while the Q-series (Q195, Q235, Q335) follows the Chinese GB standard with yield strength designated in MPa. ERW welding produces a longitudinal seam suited to moderate pressures and smaller diameters, while SSAW spiral welding enables larger diameters up to 3200 mm with efficient steel utilization. [NEED_CITE: comparison of ERW and SSAW welding processes for line pipe] External coatings such as FBE, 2PE, 3PE, and 3PP provide layered corrosion protection, with the choice depending on soil resistivity, operating temperature, and installation method. Wall thickness tolerance of ±1% ensures that theoretical weight invoicing reflects actual material delivered, preventing disputes at project handover.
Hidden Costs When Certification and Traceability Fall Short
Pipes shipped without original mill test certificates tied to specific heat numbers face customs holds or outright rejection at the destination port. Material that does not conform to the specified API 5L or ASME A53 grade — whether through substitution or uncontrolled negative tolerance — creates structural liability that surfaces during hydrostatic testing or years later as premature corrosion failure. [NEED_CITE: consequences of non-conforming line pipe in pipeline integrity management] Re-work, replacement shipping, and project delay penalties routinely exceed the original price differential between a verified supplier and an unverified one.
Why Engineering Procurement Teams Specify Xin Jiyuan
Every API 5L ASME A53 ERW Spiral Weld Carbon Steel Pipe leaving our Jinan facility passes through an in-house physical and chemical laboratory that tests weld seam integrity, tensile strength, and charpy impact values before the heat is cleared for shipment. Our 41 patented technologies — including proprietary sharp-corner rectangular tube processes — reflect a culture of process innovation that extends to welded line pipe. Factory-direct pricing eliminates trading-company markups, while our 2,800+ specification inventory means standard and non-standard sizes ship from a single source. Full certification coverage — ISO 9001:2015, Lloyd’s Register EU CE (EN 10210/10219), Singapore FPC, and third-party verification by SGS and BV — ensures that documentation travels with the cargo and clears customs without delay. Professional loading plans optimize container utilization for heavy-wall pipe, and our export team coordinates FOB, CIF, and DDP logistics to 50+ countries with real-time tracking.
Documentation & Compliance
- Mill test certificate documenting API 5L X52 chemical composition and yield strength per API 5L specification
- CE certificate confirming compliance with EN 10210/EN 10219 for EU market entry
- ISO 9001:2015 quality management system certificate covering full production scope
- SGS or BV third-party inspection report available per heat lot upon client request
- Material traceability by heat number linking each pipe to its original slab and test results
- Complete customs document package including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- API 5L pipes bundled with steel strips and edge protectors to preserve FBE and 3PE coatings during ocean transit
- Beveled-end pipes fitted with plastic caps on each end to prevent thread and bevel damage from handling
- Spiral welded pipes up to 11.8 m loaded with optimized stowage plans maximizing 20ft and 40ft container payload
- Heat number and steel grade stenciled on each pipe for on-site traceability and inspection verification
- FOB Jinan/Qingdao, CIF, and DDP logistics coordinated with door-to-door delivery to project sites across 50+ countries
- Custom length cutting available to match 5.8 m or 11.8 m standard or project-specific requirements
Securing Your Quote and Mill Test Certificate
Submit your required outer diameter, wall thickness, steel grade, coating specification, and destination port, and our engineering team will return a detailed quotation including unit price, production lead time, applicable certifications, and logistics options within 12 hours. Original mill test certificates and SGS/BV third-party inspection reports are confirmed at the quotation stage so your project compliance team can verify documentation before the deposit is released.
Request Your API 5L Pipe Quotation with Mill Test Certificate
Send your specifications, steel grade, and destination to receive a factory-direct quotation and original mill test certificate within 12 hours.
Tel: +86 531 8573 6315 | Mobile/WhatsApp/WeChat: +86 188 5315 7756 | Email: admin@sdxjysteel.com
Frequently Asked Questions
Q: How do API 5L, ASME A53, and GB steel grades compare for pipeline applications?
A: API 5L grades (A, B, X42, X52, X60) designate minimum yield strength in ksi and are specified for oil and gas transmission pipelines. ASME A53 Gr. A and B cover general mechanical and low-pressure fluid conveyance. The Chinese Q-series (Q195, Q235, Q335) follows GB standards with yield strength in MPa, commonly used for domestic water, gas, and structural applications. We supply all three systems and can provide grade cross-reference guidance for your project specification.
Q: Can you provide SGS or BV third-party inspection reports and original mill test certificates?
A: Yes. Every shipment includes an original mill test certificate documenting chemical composition and mechanical properties per heat number. SGS and BV third-party inspections are available upon request and can be arranged for incoming material verification, in-process checks, or final pre-shipment inspection.
Q: When should I specify FBE versus 3PE versus 3PP external coating for pipeline corrosion protection?
A: FBE (fusion-bonded epoxy) is suitable for single-layer protection in moderate soil conditions and higher operating temperatures. 3PE (three-layer polyethylene) adds a mechanical protection layer ideal for rocky backfill or directional drilling installations. 3PP (three-layer polypropylene) extends the temperature range further for high-temperature transmission lines. Our team can advise based on your soil resistivity data and operating temperature profile.
Q: Can you produce non-standard outer diameter and wall thickness, and what is the minimum order quantity?
A: We maintain over 2,800 specifications across our production lines and can manufacture non-standard OD and WT combinations on dedicated equipment. Minimum order quantities depend on the specific size and grade requested — contact us with your dimensions and we will confirm MOQ and lead time.
Q: Do you handle FOB, CIF, and DDP logistics and provide complete export documentation?
A: Yes. We coordinate FOB from Jinan or Qingdao ports, CIF to your destination port, and DDP door-to-door delivery. Every shipment includes a complete documentation package: mill test certificate, packing list, bill of lading, and certificate of origin, ensuring smooth customs clearance at your destination.
